ECU Acura TSX 2014 User Guide

uu Child Safety u Safety of Infants and Small Children
54

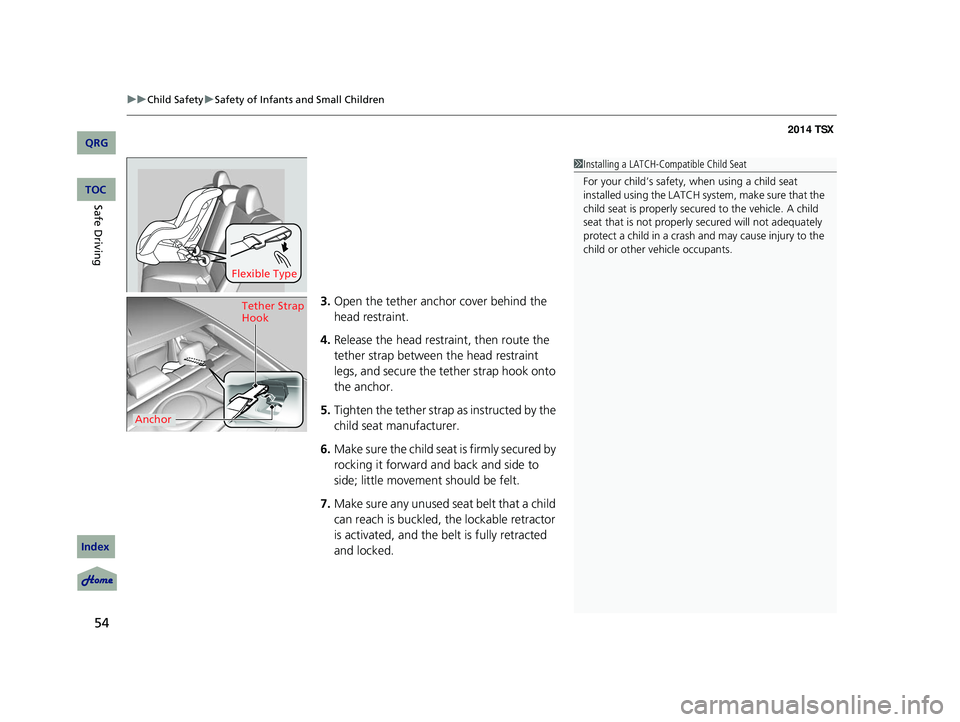

3. Open the tether anchor cover behind the
head restraint.
4.Release the head restraint, then route the
tether strap between the head restraint
legs, and secure the tether strap hook onto
the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
Flexible Type
1 Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
Tether Strap
Hook
Anchor
14 ACURA TSX 4D-31TL16500.book 54 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Safe DrivingTOC

uu Child Safety u Safety of Infants and Small Children
56
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
7.Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
1 Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
14 ACURA TSX 4D-31TL16500.book 56 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Safe DrivingTOC

57
uu Child Safety u Safety of Infants and Small Children
A tether anchorage point is provided
behind each rear seating position. A child
seat that is installed with a seat belt and
comes with a tether can use the tether for
additional security.
1. Locate the appropriate tether anchorage
point and lift the cover.
2. Raise the head restraint to its highest
position, then route the tether strap
through the head restraint legs. Make sure
the strap is not twisted.
3. Secure the tether strap hook onto
the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
■Adding Security with a Tether1 Adding Security with a Tether
Since a tether can provide additional security to the
lap/shoulder seat belt in stallation, we recommend
using a tether whenever one is available.
Tether Anchorage Points
CoverAnchor
Outer Position Tether
Strap Hook
Anchor
Center PositionTether
Strap Hook
Anchor
14 ACURA TSX 4D-31TL16500.book 57 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Safe DrivingTOC

58
uu Child Safety u Safety of Larger Children
Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed , and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upright and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3 WARNING
Allowing a child age 12 or under to sit in
front can result in serious injury or death if
the passenger’s fron t airbag inflates.
If a larger child must ri de in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, us ing a booster seat if
needed.
14 ACURA TSX 4D-31TL16500.book 58 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Safe DrivingTOC

59
uu Child Safety u Safety of Larger Children
If a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
a rear seating position. For the child’s safety,
check that the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positioned so that the child is secure in
the seat.
■Monitoring child passengers
We strongly recommend that you keep an ey e on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or we ight (e.g. six years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children - Final Checks
14 ACURA TSX 4D-31TL16500.book 59 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Safe DrivingTOC

71
uu Indicators u
IndicatorNameOn/BlinkingExplanationMessage
Security System
Alarm Indicator
●Blinks when the security system
alarm has been set.
2Security System Alarm P. 99—
CRUISE MAIN
Indicator●Comes on when you press the
CRUISE button.2Cruise Control P. 203—
CRUISE
CONTROL
Indicator●Comes on if you have set a speed
for cruise control.
2 Cruise Control P. 203—
Indicator
14 ACURA TSX 4D-31TL16500.book 71 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Instrument PanelTOC

81
uu Gauges and Multi-Information Display u Multi-Information Display
Continued
■Customization flow
CHG SETTING
Press and hold the button.
DEFAULT ALL
EXIT
METER SETUP
POSITION SETUP
LIGHTING SETUP
DOOR SETUP
ADJUST OUTSIDE TEMP. DISPLAY
LANGUAGE SELECTION
ELAPSED TIME RESET
TRIP A RESET with REFUEL
MEMORY POSITION LINK *
INTERIOR LIGHT DIMMING TIME
AUTO LIGHT SENSITIVITY
HEADLIGHT AUTO OFF TIMER
AUTO DOOR LOCK
SECURITY RELOCK TIMER
AUTO DOOR UNLOCK
DOOR LOCK MODE
KEYLESS LOCK ACKNOWLEDGMENT
SEL/RESET
Press and hold the button.
EXIT
SEL/RESET
SEL/RESET
SEL/RESET
SEL/RESET
SEL/RESET
* Not available on all models
14 ACURA TSX 4D-31TL16500.book 81 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Instrument PanelTOC

83
uu Gauges and Multi-Information Display u Multi-Information Display
Continued
*1: Default Setting
*2: Default Setting for automatic transmission
*3: Default Setting for manual transmission
Setup Group Customizable Features DescriptionSelectable settings
DOOR
SETUP
AUTO DOOR LOCKChanges the setting for the automatic locking
feature.OFF/ WITH VEH SPD*1/SHIFT
FROM P (A/T only)
AUTO DOOR UNLOCKChanges the setting for when the doors unlock
automatically.
OFF/DRIVER DOOR With
SHIFT to P*2 (A/T only)/ ALL
DOORS With SHIFT to P (A/T
only)/ DRIVER DOOR With IGN
OFF
*3/ ALL DOORS With IGN
OFF
DOOR LOCK MODESets up either the driver’s door or all doors to unlock
on the first push of the remote.DRIVER DOOR*1/ ALL DOORS
KEYLESS LOCK
ACKNOWLEDGMENTLOCK/UNLOCK - The exterior lights flash LOCK (2nd
push) - The beeper soundsON*1/OFF
SECURITY RELOCK
TIMERChanges the time it takes fo r the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec /60sec /30sec*1
DEFAULT ALLSets/Cancels all the customized settings as default.SET/ CANCEL
14 ACURA TSX 4D-31TL16500.book 83 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Instrument PanelTOC

87
Controls
This chapter explains how to operate the various controls necessary for driving.
Setting the Clock................................ 88
Locking and Unlocking the Doors
Key Types and Functions .................... 89
Locking/Unlocking the Doors from the Outside ............................................ 91
Locking/Unlocking the Doors from the Inside ............................................... 93
Childproof Door Locks ....................... 95
Auto Door Lock/Unlock ...................... 95
Opening and Closing the Trunk ......... 96
Security System .................................. 99
Immobilizer System ............................ 99
Security System Alarm ........................ 99
Opening and Closing the Windows ... 101 Opening and Closing the Moonroof
.. 104
Operating the Switches Around the
Steering Wheel Ignition Switch ................................. 105
Turn Signals ..................................... 106
Light Switches.................................. 106
Fog Lights ........................................ 108
Daytime Running Lights (DRL) .......... 108
Wipers and Washers ........................ 109
Brightness Control ........................... 110
Rear Defogger/Heated Door Mirror
Button........................................ 111
Driving Position Memory System *....112
Adjusting the Steering Wheel........... 114 Adjusting the Mirrors
....................... 115
Interior Rearview Mirror ................... 115
Power Door Mirrors ......................... 115
Adjusting the Seats .......................... 117
Adjusting the Seat Positions ............. 117
Interior Lights/Interior Convenience Items .............. .................................. 126
Interior Lights .................................. 126
Interior Convenience Items .............. 127
Climate Control System ................... 134
Using Automatic Climate Control .... 134
Automatic Climate Control Sensors ... 137
* Not available on all models
14 ACURA TSX 4D-31TL16500.book 87 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index 2014 TSX

91
uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
Continued
Locking/Unlocking the Doors from the Outside
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors,
trunk, and fuel fill door lock, and the
security system sets.
Twice (within five seconds after the
first push): u A beeper sounds and verifies the security
system is set.
■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the
driver’s door and fuel fill door unlock.
Twice: u The rem aining doors and the
trunk unlock.
■Using the Remote Transmitter1 Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will auto matically relock.
If the interior light switch is in the door activated
position, the interior light s come on when you press
the unlock button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately. 2 Interior Lights P. 126
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote transmitter will not work when the key is
in the ignition switch. The remote will not lock the
vehicle when a door is open.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Battery P. 272
LED
Lock
Button
Unlock
Button
14 ACURA TSX 4D-31TL16500.book 91 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC
