engine Acura TSX 2014 Owner's Guide

105
Operating the Switches Around the Steering Wheel
Ignition Switch
1Ignition Switch
You cannot take the key out unless the shift lever is
in
(
P
.
If you open the driver’s door when the key is in LOCK
(
0
or ACCESSORY (
q
, a warning buzzer will sound
to remind you to take the key out.
When this happens, the following messages appear
on the multi-information display:
•In LOCK (
0
: REMOVE KEY .
•In ACCESSORY (
q
: REMOVE KEY . The buzzer will
stop when you take the key out.
If the key won’t turn from LOCK
(
0
to ACCESSORY
(
q
, turn the key while moving the steering wheel left
and right. The steering wh eel will unlock, allowing
the key to turn.
3 WARNING
Removing the key from the ignition switch
while driving locks the steering. This can
cause you to lose control of the vehicle.
Remove the key from the ignition switch
only when parked.
Manual transmission models
Automatic transmission models
All models
(
0
LOCK: Insert and remove the key in this
position.
(
q
ACCESSORY: Operate the audio system and
other accessories in this position.
(
w
ON: This is the position when driving.
(
e
START: This position is for starting the engine.
The switch returns to ON (
w
when you let go of
the key.
14 ACURA TSX 4D-31TL16500.book 105 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

106
uu Operating the Switches Around the Steering Wheel u Turn Signals
Turn Signals
The turn signals can be used when the ignition
switch is in ON
(w
.
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the position of the
ignition switch.
■High beams
Push the lever forward until you hear a click.
■Low beams
When in high beams, pull the lever back to
return to low beams.
■Flashing the high beams
Pull the lever back, and release it.
Right Turn
Left Turn
■Manual Operation
1 Light Switches
If you remove the key from the ignition switch while
the lights are on, a chime sounds when the driver’s
door is opened.
Repeatedly turning the headlights on and off reduces
the life of the HI D headlight bulbs.
If you sense that the le vel of the headlights is
abnormal, have the vehicl e inspected by a dealer.
Do not leave the lights on when the engine is off
because it will cause the battery to discharge.
High Beams
Flashing the high beams
Low Beams
Turns on parking, side marker,
tail and license plate lights
Turns on headlights, parking, side
marker, tail, and license plate
lights
14 ACURA TSX 4D-31TL16500.book 106 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

111
uu Operating the Switches Around the Steering Wheel u Rear Defogger/Heated Door Mirror Button
Rear Defogger/Heated Door Mirror Button
Press the rear defogger and heated door
mirror button to defog the rear window and
mirrors when the ignition is in ON
(w
.
The rear defogger and heated door mirrors
automatically switch of f after 10-30 minutes
depending on the outside temperature.
However, if the outside temperature is 32°F
(0°C) or below, they do not automatically
switch off.
1 Rear Defogger/Heated Door Mirror Button
NOTICE
When cleaning the inside of the rear window, be
careful not to damage the heating wires.
It is critical to wipe the window from side to side
along the defogger heating wires.
This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long period when
the engine is idling. This may weaken the battery,
making it difficult to start the engine.
14 ACURA TSX 4D-31TL16500.book 111 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

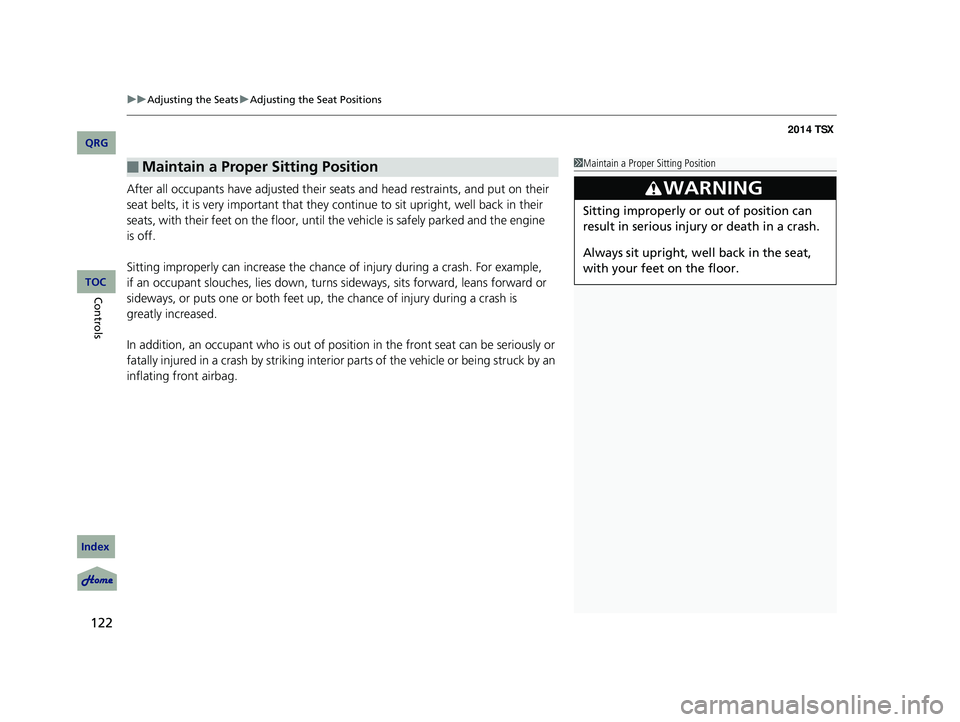

uu Adjusting the Seats u Adjusting the Seat Positions
122
After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the engine
is off.
Sitting improperly can increase the chance of injury during a crash. For example,
if an occupant slouches, lies down, turns sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is
greatly increased.
In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.
■Maintain a Proper Sitting Position1 Maintain a Proper Sitting Position
3 WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
14 ACURA TSX 4D-31TL16500.book 122 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

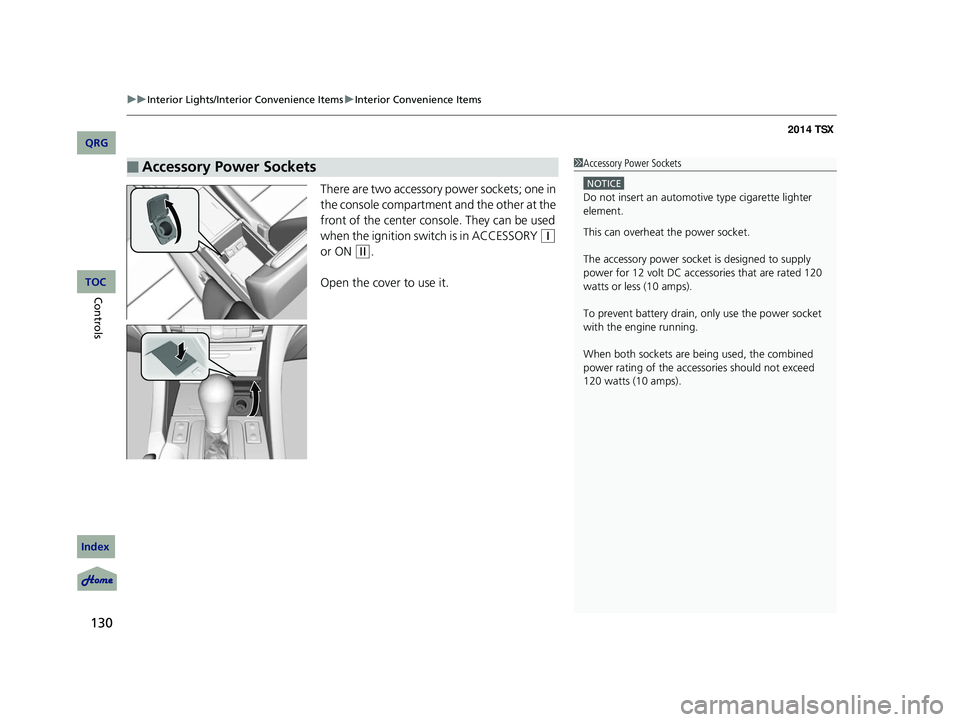

uu Interior Lights/Interior Convenience Items u Interior Convenience Items
130
There are two accessory power sockets; one in
the console compartment and the other at the
front of the center cons ole. They can be used
when the ignition swit ch is in ACCESSORY
(q

or ON
(w
.
Open the cover to use it.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 120
watts or less (10 amps).
To prevent battery drain, only use the power socket
with the engine running.
When both sockets are being used, the combined
power rating of the accesso ries should not exceed
120 watts (10 amps).
14 ACURA TSX 4D-31TL16500.book 130 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

133
uu Interior Lights/Interior Convenience Items u Interior Convenience Items
The ignition switch must be in ON (w
to use
the seat heaters. The HI setting heats the seats
faster than the LO setting.
There is no heater in the passenger’s seat-
back due to the side airbag cutoff system.
While in HI , the heater cycles on and off.
u The appropriate indicator will be on
while the seat heater is on. Briefly
press the button on the opposite side
to turn the heater off. The indicator
will be off. When a comfortable
temperature is reached, select LO to
keep the seat warm.
■Seat Heaters1 Seat Heaters
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
In the LO setting, the heater runs continuously and
does not automatically turn off.
3 WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
14 ACURA TSX 4D-31TL16500.book 133 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

134
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heated or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side
control switch.
3. Press the button to cancel.
■Switching between the recirculation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculat es air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains ou tside ventilation. Keep the system in
fresh air mode in normal situations.
1 Using Automatic Climate Control
If any buttons are presse d while using the climate
control system in AUTO, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button th at was pressed will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on AUTO, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
Floor and
defroster
vents
Floor vents
Dashboard and floor
vents, and back of
the center console
*
Dashboard vents
and back of the
center console
*
AUTO Button
Driver’s Side
Temperature
Control Switch (Recirculation) Button
(Fan Control) Bar
A/C (Air Conditioning)
Button
Passenger’s Side
Temperature
Control Switch
* Not available on all models
14 ACURA TSX 4D-31TL16500.book 134 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

183
Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving
Driving Preparation .......................... 184
Maximum Load Limit........................ 187
Towing a Trailer Towing Preparation .......................... 189
Driving Safely with a Trailer .............. 191
Towing Your Vehicle ........................ 192
When Driving Starting the Engine .......................... 193
Precautions While Driving................. 195
Automatic Transmission ................... 196Shifting ............................................
197
Shifting ............................................ 201
Cruise Control ................................. 203
Vehicle Stability Assist (VSA®), aka Electronic
Stability Control (ESC), System ............... 206
Tire Pressure Monitoring System (TPMS) ... 208
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ........... 210
Braking
Brake System ................................... 212
Anti-lock Brake System (ABS) ........... 214
Automatic transmission
Manual transmission
Brake Assist System ......................... 215
Parking Your Vehicle
When Stopped ................................ 216
Refueling Fuel Information .............................. 217
How to Refuel ................................. 218
Fuel Economy ..
.................................. 220
Improving Fuel Economy .................. 220
Accessories and Modifications Accessories ...................................... 221
Modifications................................... 221
14 ACURA TSX 4D-31TL16500.book 183 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index 2014 TSX

184

Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressure, check for damage and excessive wear.
2 Checking and Maintaining Tires P. 261
• Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert key if the water freezes in
the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
14 ACURA TSX 4D-31TL16500.book 184 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
TOC

189Continued
Towing a Trailer
Towing Preparation
Your vehicle can tow a trailer if you carefully observe the load limits, use the proper
equipment, and follow the towing guidelin es. Check the load limits before driving.
■Total trailer weight
Maximum allowable weight of the trailer,
cargo, and everything in or on it must not
exceed 1,000 lbs (450 kg). Towing loads in
excess of this can seriously affect vehicle
handling and performance and can damage
the engine and drivetrain.
■Tongue load
The weight of the tongue with a fully loaded
trailer on the hitch should be approximately
10% of the total trailer weight.
• Excessive tongue load reduces front tire
traction and steering control. Too little
tongue load can make the trailer unstable
and cause it to sway.
• To achieve a proper tongue load, start by
loading 60% of the load toward the front
of the trailer and 40% toward the rear.
Readjust the lo ad as needed.
■Towing Load Limits1Towing Load Limits
Check if all loads are within limits at a public scale.
If a public scale is not available, add the estimated
weight of your cargo load to the weight of your
trailer (as quoted by th e manufacturer), and the
tongue load.
Break-in Period
Avoid towing a trailer duri ng your vehicle’s first 600
miles (1,000 km).
Never exceed the gross weight ratings.
Gross weight information 2 Vehicle Specifications P. 308
3 WARNING
Exceeding any load limit or improperly
loading your vehicle and trailer can cause a
crash in which you can be seriously hurt or
killed.
Check the loading of your vehicle and
trailer carefully before starting to drive.
Total Load
Tongue Load
14 ACURA TSX 4D-31TL16500.book 189 ページ ２０１３年６月１７日　月曜日　午前９時４０分
P. 310
QRG
Index
DrivingTOC
