Handling the Unexpected

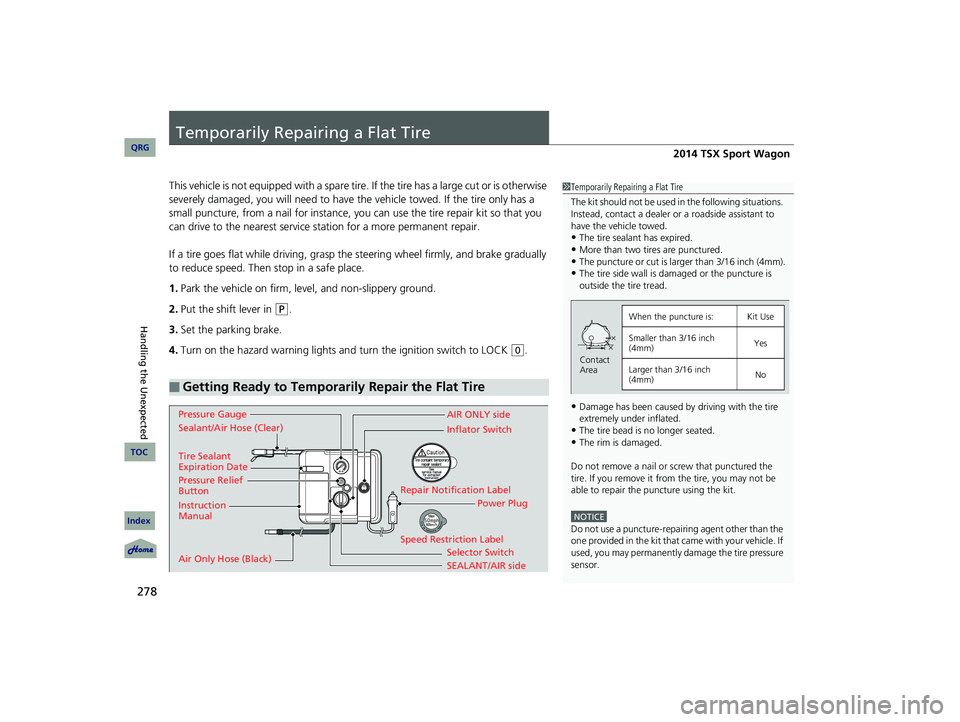

Temporarily Repairing a Flat Tire
This vehicle is not equipped with a spare tire. If the tire has a large cut or is otherwise
severely damaged, you will need to have the vehicle towed. If the tire only has a
small puncture, from a nail fo r instance, you can use the tire repair kit so that you
can drive to the nearest service station for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on firm, level, and non-slippery ground.
2. Put the shift lever in
(P
.
3. Set the parking brake.
4. Turn on the hazard warning lights and turn the ignition switch to LOCK
(0
.
■Getting Ready to Temporar ily Repair the Flat Tire
1Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or a roadside assistant to
have the vehicle towed.
•The tire sealant has expired.•More than two tires are punctured.•The puncture or cut is larger than 3/16 inch (4mm).•The tire side wall is dama ged or the puncture is
outside the tire tread.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICEDo not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
used, you may permanently da mage the tire pressure
sensor.
When the puncture is:Kit Use
Smaller than 3/16 inch
(4mm) Yes
Larger than 3/16 inch
(4mm) No
Contact
Area
Instruction
Manual
Air Only Hose (Black) Speed Restriction Label Repair Notification Label
Pressure Relief
Button Inflator Switch
Selector Switch
SEALANT/AIR side
Sealant/Air Ho
se (Clear) AIR ONLY side
Power Plug
Pressure Gauge
Tire Sealant
Expiration Date
14 ACURA TSX 5D-31TL76300.book 278 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
TOC
2014 TSX Sport Wagon

uu If a Tire Goes Flat u Changing a Flat Tire
292




1. Remove the center cap and place the flat
tire face down in the spare tire well.
2. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
3. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
cargo area.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After dr iving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. CHECK TPMS
SYSTEM appears on the multi-information display, but this is normal.
If you replace the tire with a specified regular tire, the warning message on
the multi-information display and the TPMS indicator will go off after a few
miles (kilometers).
■Storing the Flat Tire1Storing the Flat Tire
3 WARNING
Loose items can fly around the interior
in a crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Spacer
Cone Wing
Bolt
For
compact
spare tire For

full-size
tire
■TPMS and the Spare Tire1 TPMS and the Spare Tire
The system cannot monitor the pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use TPMS specific wheels. Each is equipped with a
tire pressure sensor mount ed inside the tire behind
the valve stem.
14 ACURA TSX 5D-31TL76300.book 292 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

Index
323
Index
ABS (Anti-lock Brake System).................. 218
Accessories and Modifications ................ 225
Accessory Power Sockets ......................... 135
Active Head Restraints ............................. 125
Additives Coolant .................................................. 242
Engine Oil ............................................... 237
Washer ................................................... 246
Additives, Engine Oil ............................... 237
Adjusting
Armrest .................................................. 127
Front Seats.............................................. 119
Head Restraints ....................................... 121
Headlights .............................................. 247
Mirrors.................................................... 117
Rear Seats ............................................... 126
Steering Wheel ....................................... 116
Temperature ............................................. 77
Air Conditioning System (Climate Control
System) .................................................... 141
Changing the Mode................................ 141
Defrosting the Windshield and 
Windows .............................................. 142
Dust and Pollen Filter .............................. 271
Recirculation/Fresh Air Mode................... 141
Sensor .................................................... 144
Synchronized Mode ................................ 143
Using Automatic Climate Control............ 141
Air Pressure ...................................... 260, 313 Airbags
........................................................ 34
Advanced Airbags ..................................... 40
Airbag Care ............................................... 48
Event Data Recorder .................................. 19
Front Airbags (SRS) .................................... 37
Indicator ........................................ 45, 67, 70
Passenger Airbag Off Indicator .................. 46
Sensors...................................................... 34
Side Airbag Cutoff Syst em ......................... 43
Side Airbag Off Indicator ........................... 47
Side Airbags .............................................. 41
Side Curtain Airbags .................................. 44
AM/FM Radio ............................................ 152
Anti-lock Brak e System (ABS) .................. 218
Indicator .................................................... 66
Armrest ..................................................... 127
Audio System ............................................ 146
Adjusting the Sound ................................ 151
Auxiliary Input Jack ...... ............................ 148
Error Messages ........................................ 167
General Information ................................ 169
MP3/WMA/AAC ...................................... 162
Recommended CDs ................................. 170
Recommended Devices ............................ 172
Remote Controls ..................................... 150
Security Code .......................................... 148
Theft Protection....................................... 148
USB Adapter Cable .................................. 147
USB Flash Drives ...................................... 172
Authorized Manuals ................................. 321Auto Door Lock/Unlock
.............................. 93
Customize ........................................... 80, 82
Automatic Lighting .................................. 108
Automatic Transmission ........................... 202
Creeping ................................................. 202
Fluid ........................................................ 244
Kickdown ................................................ 202
Operating the Shift Lever................... 13, 204
Sequential Shift Mode ............................. 205
Shift Lever Does Not Move ...................... 296
Shifting ................................................... 203
Auxiliary Input Jack .................................. 148
Average Fuel Economy .............................. 77
Average Speed ........................................... 78
Battery ...................................................... 268
Charging System Indi cator................. 65, 299
Jump Starting .......................................... 294
Maintenance (Checking the Battery) ........ 268
Maintenance (Replacing) ......................... 270
Belts (Seat) .................................................. 26
Beverage Holders ..................................... 134
Bluetooth ® Audio ..................................... 165
Bluetooth ® HandsFreeLink ®..................... 175
Booster Seats (For Children) ...................... 60
Brake System ............................................ 216
Anti-lock Brake System (ABS)................... 218
Brake Assist System ................................. 219
Fluid ........................................................ 245
14 ACURA TSX 5D-31TL76300.book 323 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
A
B
2014 TSX Sport Wagon

324
Foot Brake ............................................... 217
Indicator ............................................ 64, 301
Parking Brake .......................................... 216
Brightness Control (Instrument Panel) .... 112
Bulb Replacement..................................... 247
Back-Up Lights......................................... 252
Brake Light, Taillight, Rear Turn Signal Light and Rear Side Marker Lights................... 251
Fog Lights ................................................ 248
Front Turn Signal/Parking/Side Marker 
Lights..................................................... 249
Headlights ............................................... 247
High-Mount Brake Light . ......................... 251
License Plate ............................................ 253
Side Turn Signal/Emergency Indicator 
Lights..................................................... 250
Bulb Specifications .................................... 312
Carbon Monoxide Gas ................................ 61
Cargo Hooks .............................................. 137
Carrying Cargo .................................. 191, 193
CD Player ................................................... 156
Certification Label .................................... 314
Changing Bulbs ......................................... 247
Charging System Indicator ................. 65, 299
Child Safety ................................................. 49
Childproof Door Locks .... ........................... 93
Child Seat .................................................... 49
Booster Seats ........ ..................................... 60Child Seat for Infants.................................
51
Child Seat for Small Children ..................... 52
Installing a Child Seat with a Lap/Shoulder 
Seat Belt .................................................. 56
Larger Children ......................................... 59
Rear-facing Child Seat ............................... 51
Selecting a Child Seat ................................ 53
Using a Tether ........................................... 58
Childproof Door Locks ............................... 93
Cleaning the Exterior ............................... 274
Cleaning the Interior ................................ 272
Client Service Information ....................... 322
Climate Control System ............................ 141
Changing the Mode ................................ 141
Defrosting the Windshield and 
Windows ............................................... 142
Dust and Pollen Filter............................... 271
Recirculation and Fres h Air Mode ............ 141
Sensors ................................................... 144
Synchronized Mode................................. 143
Using Automatic Climate Control ............ 141
Clock ............................................................ 86
Coat Hook ................................................. 136
Compact Spare Tire .......................... 287, 313
Compass .................................................... 187
Console Compartment ............................. 131
Controls ....................................................... 85
Coolant (Engine) ...................................... 242
Adding to the Radiator ............................ 243
Adding to the Reserve Tank..................... 242
Overheating ............................................ 297Temperature Gauge ..................................
74
Creeping (Automatic Transmission) ........ 202
Cruise Control .......................................... 207
Indicator ................................................... 71
Cup Holders .............................................. 134
Customized Features ................................. 79
Daytime Running Lights .......................... 109
Dead Battery ............................................ 294
Defrosting the Windshield and 
Windows ................................................. 142
Detachable Shelf ...................................... 130
Devices that Emit Radio Waves ............... 315
Dimming
Headlights .............................................. 107
Rear View Mirror..................................... 117
Dipstick (Engine Oil) ................................ 238
Directional Signals (Turn Signal) ............. 107
Door Mirrors ............................................. 117
Doors .......................................................... 87
Auto Door Lock ........................................ 93
Auto Door Unlock ..................................... 93
Door and Tailgate Open Indicator ....... 25 , 68
Keys.......................................................... 87
Locking/Unlocking the Doors from the 
Inside ................................................ 10, 91
Locking/Unlocking the Doors from the 
Outside ................................................... 89
Lockout Prevention System ....................... 90
14 ACURA TSX 5D-31TL76300.book 324 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
C
D
2014 TSX Sport Wagon

329
Engine Switch Buzzer .............................. 106
Jump Starting ......................................... 294
Steering Wheel ........................................ 116
Adjusting ................................................ 116
Stopping ................................................... 220
Sunglasses Holder .................................... 138
Supplemental Restraint System (SRS) ....... 37
Switches (Around the Steering 
Wheel) ............................................ 2, 3, 106
SYNC Mode .............................................. 143
System Message Indicator ......................... 69
Tachometer ................................................ 74
Tailgate ....................................................... 94
Unable to Open ...................................... 310
Temperature .............................................. 77
Gauge ........................................................ 8
Outside Temperature Disp lay .................... 77
Temperature Sensor ................................ 144
Tie-down Anchors .................................... 137
Time (Setting) ............................................. 86
Tire Pressure Monitoring System 
(TPMS) ..................................................... 212
Indicator ........................................... 68, 302
Tire Repair Kit .......................................... 278
Tires .......................................................... 259
Air Pressure..................................... 260, 313
Checking and Maintaining ...................... 259
Inspection ............................................... 259Labeling ..................................................
260
Puncture (Flat Tire)........................... 278, 287
Regulations ............................................. 262
Rotation .................................................. 266
Spare Tire ........................................ 287, 313
Tire Chains .............................................. 267
Tire Repair Kit .......................................... 278
Wear Indicators ....................................... 264
Winter ..................................................... 267
Tonneau Cover ......................................... 140
Tools .......................................................... 278
Towing a Trailer ....................................... 195
Equipment and Accessories ..................... 196
Load Limits .............................................. 195
Towing Your Vehicle ................................ 198
Emergency .............................................. 308
TPMS (Tire Pressure Monitoring 
System) .................................................... 212
Indicator ............................................ 68, 302
Transmission ............................................. 203
Automatic ............................................... 203
Fluid ........................................................ 244
Number ................................................... 314
Sequential Shift Mode ............................. 205
Shift Position Indicator . ............................ 204
Trip Meter ................................................... 76
Trip/Reset Switch ........................................ 76
Troubleshooting ....................................... 277
Blown Fuse .............................................. 303
Brake Pedal Vibrates .................................. 17
Buzzer Sounds When Opening Door .......... 18Emergency Towing ..................................
308
Engine Won’t Start .................................. 293
Noise When Braking .................................. 18
Overheating ............................................ 297
Premium Gasoline ........................... 221, 312
Puncture/Flat Tire ............................ 278, 287
Rear Door Won’t Open........................ 17, 93
Select Lever Won’t Move ......................... 296
Warning Indicators .................................... 64
Turn Signals .............................................. 107
Indicators (Instrument Panel) ..................... 69
Under-floor Storage Area ........................ 132
Unlocking the Doors .................................. 89
Unlocking the Front Doors from the 
Inside ......................................................... 10
USB Adapter Cable ........................... 146, 147
USB Flash Drives ....................................... 172
Valet Key ..................................................... 88
Vanity Mirrors ............................................... 5
Vehicle Identification Number ................ 314
Vehicle Stabilit y Assist (VSA®).................. 210
Off Button............................................... 211
Off Indicator.............................................. 67
System Indicator ........................................ 67
Ventilation .............................................. 141
14 ACURA TSX 5D-31TL76300.book 329 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
TU
V
2014 TSX Sport Wagon
