light Acura TSX 2014 Owner's Guide

117Continued
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct
driving position.When driving after dark, the automatic
dimming rearview mirror reduces the glare
from headlights behind you. Press the auto
button to turn this function on and off.
When activated, the au to
indicator comes on.
Power Door Mirrors
You can adjust the door mirrors when the
ignition switch is in ON
(w
.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move
the mirror.
■Automatic Dimming Rearview Mirror
1Adjusting the Mirrors
Keep the inside and outside mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Adjusting the Seat Positions P. 119
1Automatic Dimming Rearview Mirror
The auto dimming function cancels when the shift
position is in
(R
.
Indicator
Auto ButtonSensor
Selector SwitchAdjustment Switch
14 ACURA TSX 5D-31TL76300.book 117 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

128
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any of the doors are opened.
• You unlock the driver’s door.
• You remove the key from the ignition
switch.
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
The map lights can be turned on and off by
pressing the lenses.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 seconds after the doors are
closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open
it.
•When you remove the key from the ignition switch
but do not open a door.
You can change the interior lights dimming time. 2 Customized Features P. 79
The interior lights go off immediately in the following
situations:
•When you lock the driver’s door.•When you close the driver’s door with the key in
the ignition switch.
•When you turn the ignition switch to ON (w
.
If you leave any of the doors open without the key in
the ignition switch, the interior lights go off after
about 15 minutes.
Door Activated Position
OffFront
Door Activated Position
On
Off
Rear
On
■Map Lights
1
Map Lights
When the ceiling light switch is in the door activated
position and any door is open, the map light will not
go off when you press the lens.
14 ACURA TSX 5D-31TL76300.book 128 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

129
uu Interior Lights/Interior Convenience Items u Interior Lights
■ON
The light comes on when you open the
tailgate, and goes off when closed.
■OFF
The light stays off with or without opening
the tailgate.
■Cargo Area Light
On Off
14 ACURA TSX 5D-31TL76300.book 129 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

130
uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the master key.
■Detachable shelf
The shelf in the glove box is detachable. To
remove it, disengage the tabs.
■Glove Box1 Glove Box
The glove box light comes on when the parking lights
are on.
3 WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock
Shelf
14 ACURA TSX 5D-31TL76300.book 130 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

Continued131
uu Interior Lights/Inter ior Convenience Items u Interior Convenience Items
Pull the handle to open the
console compartment.
To use the console lid as an armrest, slide it to
the desired position while pulling up the
release lever.
You can keep beverage bottles and cans cool
with the air cond itioning system.
1. Turn the dial counterc lockwise to open the
air vent in the console compartment.
2. Turn on the climate control system and
adjust the temperature to cool.
3. Set the mode control or .
u The cool air is diverted through the
air vent.
■Console Compartment1Console Compartment
Use only resealable cont ainers or keep unopened
cans in the console compartment.
Spilled liquids can damage the upholstery and
electrical components in the console compartment.
When the heater begins to divert warm air, the
airflow into the console compartment is shut off.
Close
Open
14 ACURA TSX 5D-31TL76300.book 131 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

132
uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Lift up the handle and put the lid on
the notch.
Hold the strap and raise the lid.
■Under-floor Storage Area
Handle
Lid
Notch
■Floor Storage Compartments
StrapStrap
14 ACURA TSX 5D-31TL76300.book 132 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

133
uu Interior Lights/Inter ior Convenience Items u Interior Convenience Items
Continued

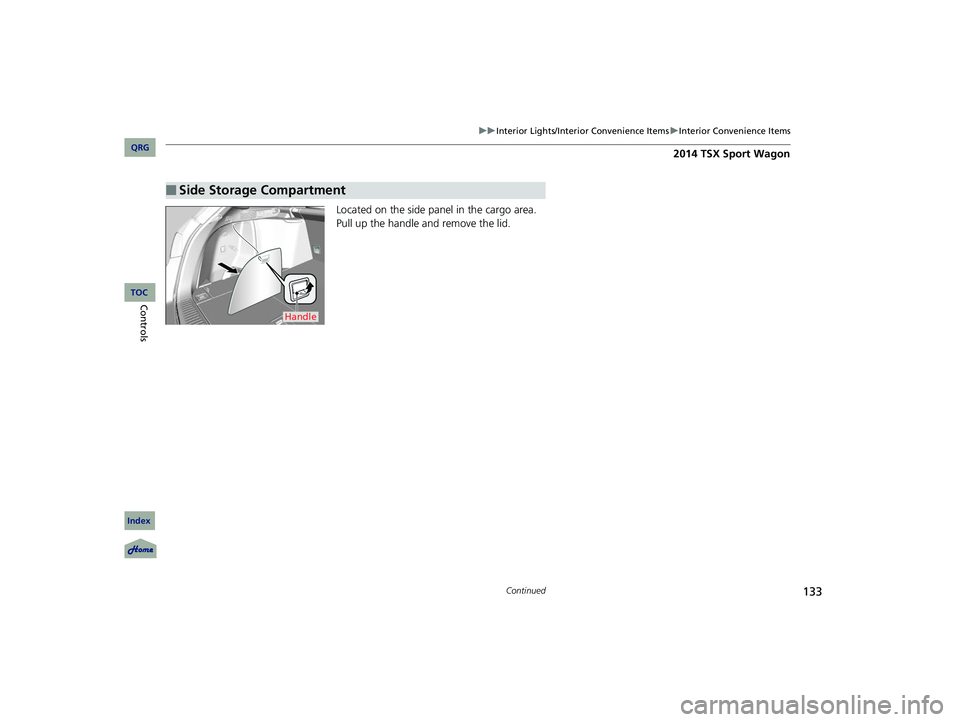

Located on the side panel in the cargo area.
Pull up the handle and remove the lid.
■Side Storage Compartment
Handle
14 ACURA TSX 5D-31TL76300.book 133 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

uu Interior Lights/Interior Convenience Items u Interior Convenience Items
134
■Front seat beverage holders
Press the raised detent to open the lid. To
close the lid, push it down until it latches.
■Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders1Beverage Holders
NOTICESpilled liquids can damage th e upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Push
14 ACURA TSX 5D-31TL76300.book 134 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

Continued135
uu Interior Lights/Inter ior Convenience Items u Interior Convenience Items
There are three accessory power sockets; one
in the console compartment, one in the front
of the center console, and one in the left side
panel in the cargo area.They can be used
when the ignition switch is in ACCESSORY
(q

or ON
(w
.
Open the cover to use it.
■Accessory Power Sockets1Accessory Power Sockets
NOTICEDo not insert an automoti ve type cigarette lighter
element.
This can overheat the power socket.
NOTICEDo not operate the tire re pair kit compressor for
more than 15 minutes. The accessory power socket
and compressor can ov erheat and become
permanently damaged.
The accessory power socket is designed to supply
continuous electrical power for 12 volt DC
accessories that are rate d 120 watts or less (10
amps).
To prevent battery drain, only use the power socket
with the engine running.
14 ACURA TSX 5D-31TL76300.book 135 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

uu Interior Lights/Interior Convenience Items u Interior Convenience Items
136
There is a coat hook on the rear grab handle
of both sides. Pull it down to use it.
■Coat Hooks1Coat Hooks
The coat hooks are not desi gned for large or heavy
items.
