uu Replacing Light Bulbs u Rear License Plate Light Bulbs
Continued


2. Turn the socket to the left and remove it.
Remove the old bulb.
3. Insert a new bulb.
Rear License Plate Light Bulbs
When replacing, use the following bulbs.
1.Push the tab on the left and pull out the
lens and the socket attached to it.
Bulb
Socket
License Plate Light: 5W
TabLens
14 ACURA TSX 5D-31TL76300.book 253 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

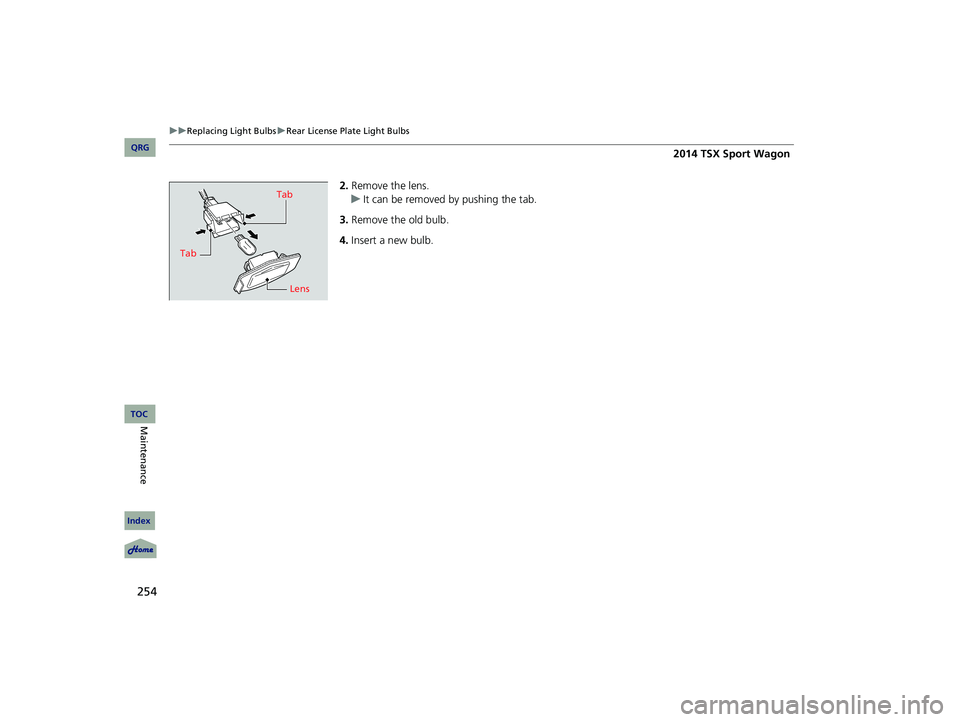

254
uu Replacing Light Bulbs u Rear License Plate Light Bulbs



2. Remove the lens.
u It can be removed by pushing the tab.
3. Remove the old bulb.
4. Insert a new bulb.Tab
Lens
Tab
14 ACURA TSX 5D-31TL76300.book 254 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

278




Handling the Unexpected
Temporarily Repairing a Flat Tire
This vehicle is not equipped with a spare tire. If the tire has a large cut or is otherwise
severely damaged, you will need to have the vehicle towed. If the tire only has a
small puncture, from a nail fo r instance, you can use the tire repair kit so that you
can drive to the nearest service station for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on firm, level, and non-slippery ground.
2. Put the shift lever in
(P
.
3. Set the parking brake.
4. Turn on the hazard warning lights and turn the ignition switch to LOCK
(0
.
■Getting Ready to Temporar ily Repair the Flat Tire
1Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or a roadside assistant to
have the vehicle towed.
•The tire sealant has expired.•More than two tires are punctured.•The puncture or cut is larger than 3/16 inch (4mm).•The tire side wall is dama ged or the puncture is
outside the tire tread.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICEDo not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
used, you may permanently da mage the tire pressure
sensor.
When the puncture is:Kit Use
Smaller than 3/16 inch
(4mm) Yes
Larger than 3/16 inch
(4mm) No
Contact
Area
Instruction
Manual
Air Only Hose (Black) Speed Restriction Label Repair Notification Label
Pressure Relief
Button Inflator Switch
Selector Switch
SEALANT/AIR side
Sealant/Air Ho
se (Clear) AIR ONLY side
Power Plug
Pressure Gauge
Tire Sealant
Expiration Date
14 ACURA TSX 5D-31TL76300.book 278 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
TOC
2014 TSX Sport Wagon

287Continued



If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake
gradually to reduce speed. Then, stop in a safe place. Replace the flat tire with
the compact spare tire. Go to a dealer as soon as possible to have the full-size tire
repaired or replaced.
1.Park the vehicle on firm, level, and non-slippery surface and apply the
parking brake.
2. Move the shift lever in
(P
.
3. Set the parking brake.
4. Turn on the hazard warn ing lights and turn the ignition switch to LOCK
(0
.
Vehicles with optional spare tire kit
1Changing a Flat Tire
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the co mpact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model.
Do not use them with another vehicle.
Do not use another type of compact spare tire or
wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it will
the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
14 ACURA TSX 5D-31TL76300.book 287 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

293



Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check brightness of the interior light.
Turn on interior lights and check brightness.
●If the interior lights are dim or do not come on at all2Checking the Battery P. 268●If the interior lights come on normally 2 Inspecting and Changing Fuses P. 307
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2 Starting the Engine P. 199
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 100
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 74
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 307
If the problem continues:2 Emergency Towing P. 308
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it. 2 Jump Starting P. 294
14 ACURA TSX 5D-31TL76300.book 293 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

294




Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect the first jumper cable to your
vehicle’s battery + terminal.
2. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt boos ter battery only.
3. Connect the second jumper cable to the
booster battery - terminal.
4. Connect the other end of the second
jumper cable:
Engine mounting bolt
Do not connect this jumper cable to any
other part.
5. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
6. Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engine from starting.
3 WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery
14 ACURA TSX 5D-31TL76300.book 294 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

297Continued



Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The temperature gauge needle is at the mark or the engine suddenly
loses power.
• Steam or spray comes out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the engine running and open the hood.
u Steam or spray is present: Turn off the engine and wait until it subsides.
Then open the hood.
1How to Handle Overheating
NOTICEContinuing to drive with the temperature gauge
needle at the mark may damage the engine.
3 WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hood if steam is coming
out.
H
H
14 ACURA TSX 5D-31TL76300.book 297 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

299



Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for about three minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 238
3. Start the engine and check th e low oil pressure indicator.
u The light goes out: Start driving again.
u The light does not go out within 10 seconds: Stop the engine and
contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when the indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1If the Low Oil Pressure Indicator Comes On
NOTICERunning the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1 If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
14 ACURA TSX 5D-31TL76300.book 299 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

301
uu Indicator, Coming On/Blinking u If the Brake System Indicator Comes On



If the Brake System Indicator Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Press the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steering (EPS)
System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idlin g, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when the indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1If the Brake System Indicator Comes On
Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the brake distribution system is
not working. This can result in vehicle instability
under sudden braking.
Have your vehicle inspected by a dealer immediately.
14 ACURA TSX 5D-31TL76300.book 301 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

305
uu Fuses u Circuit Protected and Amps for Each Fuse
Continued



Circuit Protected and Amps for Each Fuse
The current rating in brackets indicate that
you may find a fuse in the location even if
your particular model is not equipped with
the device the fuse is used for.
■Engine Compartment
Circuit ProtectedAmps
1Battery100 A
Passenger’s Side Fuse Box40 A
2
EPS70 A
Passenger’s Side Fuse Box (40 A)
ABS/VSA FSR30 A
Power Tailgate Motor *40 A
ABS/VSA Motor30 A
− −
3
IG50 A
Power Tailgate Motor *(40 A)
Passenger’s Side Light Main30 A
Driver’s Side Fuse Box(60 A)
Driver’s Side Light Main30 A
Main Fan Motor30 A
−−
Wiper Motor30 A
4 Rear Defogger 40 A
5Sub Fan Motor20 A
6 − −
7−−
8Heater Motor 40 A
9Hazard 15 A
10 Horn 10 A
11−−
12 Stop 15 A
13IG Coil15 A
14 FI Sub 15 A
15Backup10 A
16 Interior Lights 7.5 A
17FI Main15 A
18 DBW 15 A
19−−
20 MG Clutch 7.5 A
21Engine Oil Level7.5 A
Circuit ProtectedAmps■Driver Side
Circuit ProtectedAmps
1−−
2Seat Memory(7.5 A)
3Washer15 A
4Wiper10 A
5Meter7.5 A
6ABS/VSA7.5 A
7ACG15 A
8STS(7.5 A)
9Fuel Pump20 A
10VB SOL(10 A)
11SRS10 A
12ODS7.5 A
13IG1(7.5 A)
14−−
15Daytime Running Lights7.5 A
16A/C7.5 A
17Accessory, Key, Lock7.5 A
18Accessory7.5 A
19Driver’s Power Seat Sliding(20 A)
20Moonroof(20 A)
21Driver’s Power Seat
Reclining(20 A)
22Rear Driver’s Side Power
Window20 A
* Not available on all models
14 ACURA TSX 5D-31TL76300.book 305 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon
