belt Acura TSX 2014 Service Manual

uu Adjusting the Seats u Adjusting the Seat Positions
124
After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the engine
is off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is
greatly increased.
In addition, an occupant who is out of posit ion in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.
■Maintain a Proper Sitting Position1Maintain a Proper Sitting Position
3 WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
14 ACURA TSX 5D-31TL76300.book 124 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

126
uu Adjusting the Seats u Rear Seats
Rear Seats
1. Unlatch the detachable anchor from the
anchor buckle and store the detachable
anchor in the retractor housing.
2. Pull the re
lease lever and fold down the
seat-back.
If the rear head restraints get caught on the
front seat-backs, remove the head restraints.
2 Removing and Reinstalling the Head
Restraints P. 122
■Folding Down the Rear Seats1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier it ems in the cargo area.
Never drive with a seat-back folded down and the
tailgate open. 2 Carbon Monoxide Gas P. 61
To lock a seat-back upright, push it backwards until it
locks.
When returning a seat-back to it’s original position,
push it firmly back. Also, ma ke sure all rear shoulder
belts are positioned in front of the seat-back, and the
center shoulder belt is re -positioned in the guide.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly.
2 Passenger Airbag Off Indicator P. 46
Anchor Buckle
Lever
14 ACURA TSX 5D-31TL76300.book 126 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

130
uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the master key.
■Detachable shelf
The shelf in the glove box is detachable. To
remove it, disengage the tabs.
■Glove Box1 Glove Box
The glove box light comes on when the parking lights
are on.
3 WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock
Shelf
14 ACURA TSX 5D-31TL76300.book 130 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

192
uu Before Driving u Driving Preparation


• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2 Fastening a Seat Belt P. 29
•Make sure that the indicators in the instrument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 64
14 ACURA TSX 5D-31TL76300.book 192 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
DrivingTOC
2014 TSX Sport Wagon

233
uu Maintenance MinderTM u
Continued


■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Items
*1: If message, SERVICE DUE NOW does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive primarily in dusty conditions, replac e the air cleaner element every 15,000 miles (24,000
km).
CODEMaintenance Main Items
A●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Check expiration date for TRK bottle●Inspect tie rod ends, steering gear box, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lines (Including ABS)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle sp eeds or trailer towing results in higher transmission
temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed at 60,000 miles (100,000 km), then every 30,000 miles (48,000 km).
# : See information on maintenance and emissions warranty.
CODEMaintenance Sub Items
1●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5●Replace engine coolant
14 ACURA TSX 5D-31TL76300.book 233 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

272




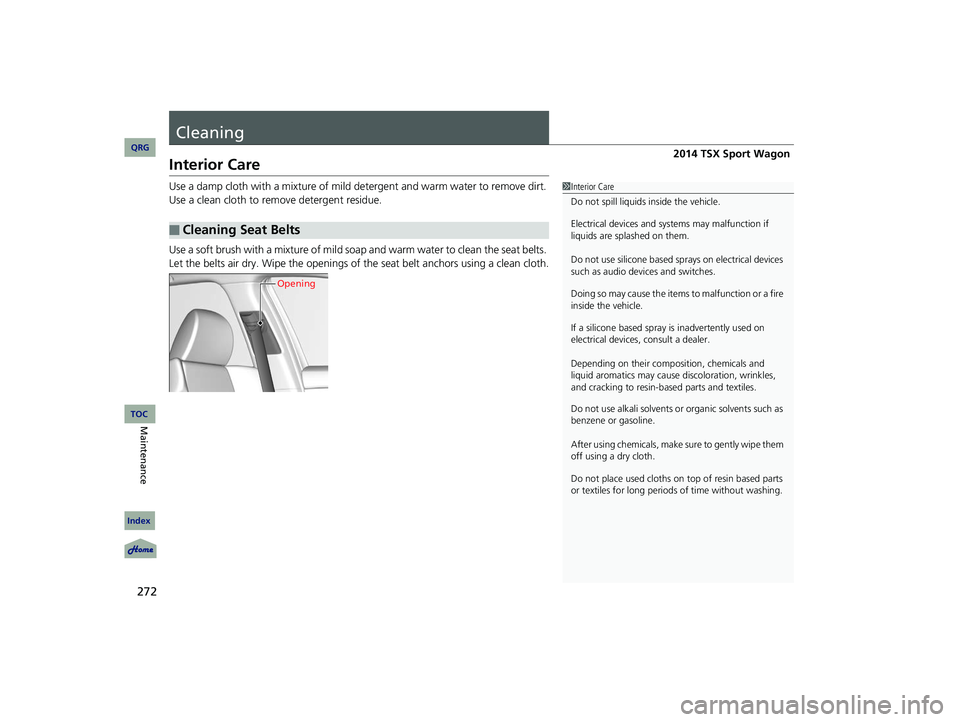

Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the openings of the seat belt anchors using a clean cloth.
■Cleaning Seat Belts
1Interior Care
Do not spill liquids inside the vehicle.
Electrical devices and systems may malfunction if
liquids are splashed on them.
Do not use silicone based sprays on electrical devices
such as audio devi ces and switches.
Doing so may cause the items to malfunction or a fire
inside the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their composition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-based parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemicals, make sure to gently wipe them
off using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Opening
14 ACURA TSX 5D-31TL76300.book 272 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

319Continued





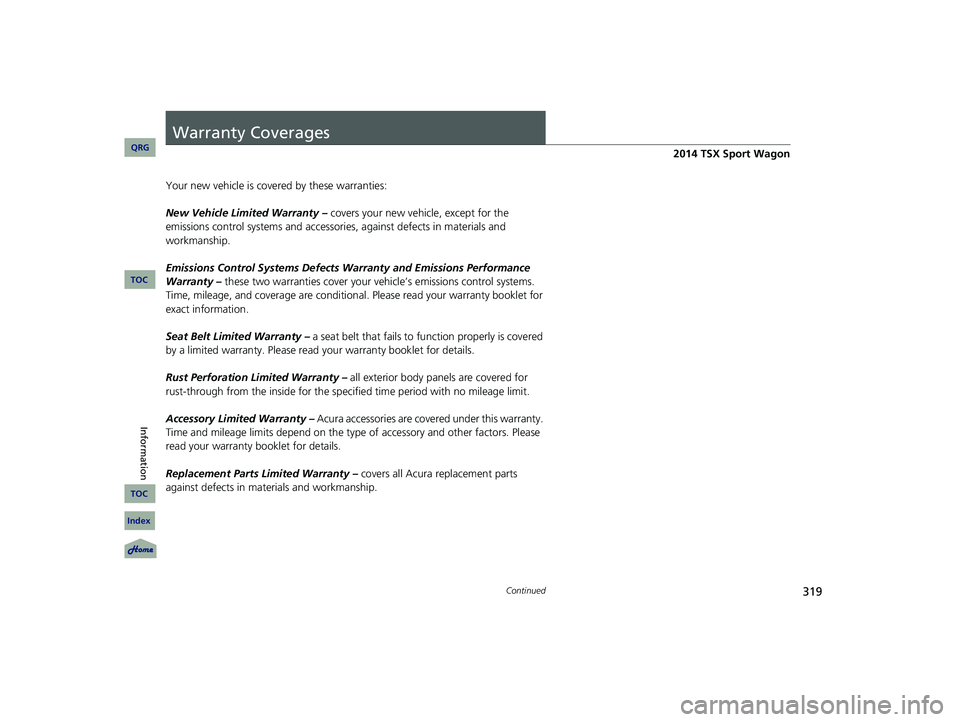

Warranty Coverages
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessori es, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.
Accessory Limite d Warranty – Acura accessories are covered under this warranty.
Time and mileage limits depend on the type of accessory and other factors. Please
read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Acura replacement parts
against defects in materials and workmanship.
14 ACURA TSX 5D-31TL76300.book 319 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
TOC
Information
TOC
2014 TSX Sport Wagon

Index
323
Index
ABS (Anti-lock Brake System).................. 218
Accessories and Modifications ................ 225
Accessory Power Sockets ......................... 135
Active Head Restraints ............................. 125
Additives Coolant .................................................. 242
Engine Oil ............................................... 237
Washer ................................................... 246
Additives, Engine Oil ............................... 237
Adjusting
Armrest .................................................. 127
Front Seats.............................................. 119
Head Restraints ....................................... 121
Headlights .............................................. 247
Mirrors.................................................... 117
Rear Seats ............................................... 126
Steering Wheel ....................................... 116
Temperature ............................................. 77
Air Conditioning System (Climate Control
System) .................................................... 141
Changing the Mode................................ 141
Defrosting the Windshield and 
Windows .............................................. 142
Dust and Pollen Filter .............................. 271
Recirculation/Fresh Air Mode................... 141
Sensor .................................................... 144
Synchronized Mode ................................ 143
Using Automatic Climate Control............ 141
Air Pressure ...................................... 260, 313 Airbags
........................................................ 34
Advanced Airbags ..................................... 40
Airbag Care ............................................... 48
Event Data Recorder .................................. 19
Front Airbags (SRS) .................................... 37
Indicator ........................................ 45, 67, 70
Passenger Airbag Off Indicator .................. 46
Sensors...................................................... 34
Side Airbag Cutoff Syst em ......................... 43
Side Airbag Off Indicator ........................... 47
Side Airbags .............................................. 41
Side Curtain Airbags .................................. 44
AM/FM Radio ............................................ 152
Anti-lock Brak e System (ABS) .................. 218
Indicator .................................................... 66
Armrest ..................................................... 127
Audio System ............................................ 146
Adjusting the Sound ................................ 151
Auxiliary Input Jack ...... ............................ 148
Error Messages ........................................ 167
General Information ................................ 169
MP3/WMA/AAC ...................................... 162
Recommended CDs ................................. 170
Recommended Devices ............................ 172
Remote Controls ..................................... 150
Security Code .......................................... 148
Theft Protection....................................... 148
USB Adapter Cable .................................. 147
USB Flash Drives ...................................... 172
Authorized Manuals ................................. 321Auto Door Lock/Unlock
.............................. 93
Customize ........................................... 80, 82
Automatic Lighting .................................. 108
Automatic Transmission ........................... 202
Creeping ................................................. 202
Fluid ........................................................ 244
Kickdown ................................................ 202
Operating the Shift Lever................... 13, 204
Sequential Shift Mode ............................. 205
Shift Lever Does Not Move ...................... 296
Shifting ................................................... 203
Auxiliary Input Jack .................................. 148
Average Fuel Economy .............................. 77
Average Speed ........................................... 78
Battery ...................................................... 268
Charging System Indi cator................. 65, 299
Jump Starting .......................................... 294
Maintenance (Checking the Battery) ........ 268
Maintenance (Replacing) ......................... 270
Belts (Seat) .................................................. 26
Beverage Holders ..................................... 134
Bluetooth ® Audio ..................................... 165
Bluetooth ® HandsFreeLink ®..................... 175
Booster Seats (For Children) ...................... 60
Brake System ............................................ 216
Anti-lock Brake System (ABS)................... 218
Brake Assist System ................................. 219
Fluid ........................................................ 245
14 ACURA TSX 5D-31TL76300.book 323 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
A
B
2014 TSX Sport Wagon

324
Foot Brake ............................................... 217
Indicator ............................................ 64, 301
Parking Brake .......................................... 216
Brightness Control (Instrument Panel) .... 112
Bulb Replacement..................................... 247
Back-Up Lights......................................... 252
Brake Light, Taillight, Rear Turn Signal Light and Rear Side Marker Lights................... 251
Fog Lights ................................................ 248
Front Turn Signal/Parking/Side Marker 
Lights..................................................... 249
Headlights ............................................... 247
High-Mount Brake Light . ......................... 251
License Plate ............................................ 253
Side Turn Signal/Emergency Indicator 
Lights..................................................... 250
Bulb Specifications .................................... 312
Carbon Monoxide Gas ................................ 61
Cargo Hooks .............................................. 137
Carrying Cargo .................................. 191, 193
CD Player ................................................... 156
Certification Label .................................... 314
Changing Bulbs ......................................... 247
Charging System Indicator ................. 65, 299
Child Safety ................................................. 49
Childproof Door Locks .... ........................... 93
Child Seat .................................................... 49
Booster Seats ........ ..................................... 60Child Seat for Infants.................................
51
Child Seat for Small Children ..................... 52
Installing a Child Seat with a Lap/Shoulder 
Seat Belt .................................................. 56
Larger Children ......................................... 59
Rear-facing Child Seat ............................... 51
Selecting a Child Seat ................................ 53
Using a Tether ........................................... 58
Childproof Door Locks ............................... 93
Cleaning the Exterior ............................... 274
Cleaning the Interior ................................ 272
Client Service Information ....................... 322
Climate Control System ............................ 141
Changing the Mode ................................ 141
Defrosting the Windshield and 
Windows ............................................... 142
Dust and Pollen Filter............................... 271
Recirculation and Fres h Air Mode ............ 141
Sensors ................................................... 144
Synchronized Mode................................. 143
Using Automatic Climate Control ............ 141
Clock ............................................................ 86
Coat Hook ................................................. 136
Compact Spare Tire .......................... 287, 313
Compass .................................................... 187
Console Compartment ............................. 131
Controls ....................................................... 85
Coolant (Engine) ...................................... 242
Adding to the Radiator ............................ 243
Adding to the Reserve Tank..................... 242
Overheating ............................................ 297Temperature Gauge ..................................
74
Creeping (Automatic Transmission) ........ 202
Cruise Control .......................................... 207
Indicator ................................................... 71
Cup Holders .............................................. 134
Customized Features ................................. 79
Daytime Running Lights .......................... 109
Dead Battery ............................................ 294
Defrosting the Windshield and 
Windows ................................................. 142
Detachable Shelf ...................................... 130
Devices that Emit Radio Waves ............... 315
Dimming
Headlights .............................................. 107
Rear View Mirror..................................... 117
Dipstick (Engine Oil) ................................ 238
Directional Signals (Turn Signal) ............. 107
Door Mirrors ............................................. 117
Doors .......................................................... 87
Auto Door Lock ........................................ 93
Auto Door Unlock ..................................... 93
Door and Tailgate Open Indicator ....... 25 , 68
Keys.......................................................... 87
Locking/Unlocking the Doors from the 
Inside ................................................ 10, 91
Locking/Unlocking the Doors from the 
Outside ................................................... 89
Lockout Prevention System ....................... 90
14 ACURA TSX 5D-31TL76300.book 324 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
C
D
2014 TSX Sport Wagon

326
Handling the Unexpected........................ 277
HandsFreeLink ® (HFL) ............................... 175
Help Features........................................... 176
HFL Buttons ............................................. 175
HFL Status Display.................................... 176
Making a Call .......................................... 181
Menus ..................................................... 177
Muting a Call........................................... 182
Phone Setup ............................................ 179
Phonebook .............................................. 183
Receiving a Call ....................................... 182
Sending Numbers or Names During a 
Call ........................................................ 182
Transferring a Call ................................... 182
Hazard Warning Button ............................... 2
Head Restraints ......................................... 121
Headlights ................................................. 107
Aiming .................................................... 247
Automatic Operation ...... ......................... 108
Dimming ......................................... 107, 109
Operating ................................................ 107
Heated Door Mirrors ................................ 113
Heaters (Seat) ............................................ 139
HFL (HandsFreeLink ®)............................... 175
High-Beam Indicator .................................. 69
HomeLink ® Universal Transceiver ............ 173
Identification Numbers ............................ 314
Engine and Transmission.......................... 314Vehicle Identification ..
............................. 314
Ignition Switch ......................................... 106
Illumination Control ................................. 112
Knob ....................................................... 112
Immobilizer System .................................. 100
Indicator.................................................... 70
Indicators .................................................... 64
ABS (Anti-lock Brake Sy stem)..................... 66
Charging System ............................... 65, 299
Cruise Control ................................... 71, 208
Cruise Main....................................... 71, 207
Door and Tailgate Open ...................... 25, 68
EPS (Electric Power Steering) System .. 68, 301
Fog Light ................................................... 70
High-Beam ................................................ 69
Immobilizer System ...... ............................. 70
Lights On .................................................. 69
Low Fuel ................................................... 66
Low Oil Pressure ................................ 64, 299
Low Tire Pressure/TPMS ............. 68, 212, 214
Maintenance Minder
TM............................ 231
Malfunction Indicator Lamp............... 65, 300
Parking Brake and Brake System ........ 64, 301
Seat Belt Reminder .............................. 27, 66
Security System Alarm ............................... 71
Side Airbag Off ................................... 47, 70
Supplemental Restraint System .. .......... 45, 67
System Message ........................................ 69
Transmission ............................................. 65
Turn Signal ................................................ 69VSA
® (Vehicle Stability Assist) 
System ............................................ 67, 210
VSA ® OFF.......................................... 67, 211
Information .............................................. 311
Information Buttons .................................. 75
Instant Fuel Economy ................................ 77
Instrument Panel ........................................ 63
Brightness Control .................................. 112
Interior Lights ........................................... 128
Interior Rearview Mirror ......................... 117
Jack (Wheel Nut Wrench) ........................ 290
Jump Starting ........................................... 294
Key Number Tag ........................................ 88
Keyless Lockout Prevention....................... 90
Keys ............................................................. 87
Lockout Prevention ................................... 90
Number Tag.............................................. 88
Rear Door Won’t Open ............................. 93
Remote Transmitter .................................. 89
Retractable Master Keys ............................ 87
Types and Functions.................................. 87
Valet Key .................................................. 88
Won’t Turn ............................................... 17
Kickdown (Automatic Transmission) ...... 202
14 ACURA TSX 5D-31TL76300.book 326 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
I
KJ
2014 TSX Sport Wagon
