uu Child Safety u Protecting Child Passengers
50
• Any child who is too small to wear a seat belt correctly must be restrained in an
approved child seat that is properly secured to the vehicle using either the lap belt
portion of the lap/shoulder belt or the lower anchors of the LATCH system.
• Never hold a child on your lap because it is impossible to protect them in the
event of a collision.
• Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child an d cause serious or fatal injuries.
• Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.
• Do not allow children to operate the doors, windows or seat adjustments.
• Do not leave children in the vehicle unattended, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly.1Protecting Child Passengers
To deactivate a lockable re tractor, release the buckle
and allow the seat belt to wind up all the way.
To remind you of the passenger’s front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard and on the front visors.
Please read and follow the instructions on these
labels. 2 Safety Labels P. 62
3 WARNING
Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.
Instruct children not to play with any seat
belt and make sure any unused seat belt a
child can reach is buckled, fully retracted,
and locked.
14 ACURA TSX 5D-31TL76300.book 50 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

51
uu Child Safety u Safety of Infants and Small Children
Continued
Safety of Infants and Small Children
An infant must be properly restrained in a rear-facing, reclining child seat until the
infant reaches the seat maker’s weight or he ight limit for the seat, and the infant is
at least one year old.
■Positioning a rear-facing child seat
Child seats must be placed and secured in a
rear seating position.
When properly installed, a rear-facing child seat may prevent the driver or a front
passenger from moving their seat all the wa y back, or from locking their seat-back
in the desired position.
It can also interfere with proper operation of the passenger’s advanced front
airbag system.
2 Airbags P. 34
If this occurs, we re commend that you install the child seat directly behind the front
passenger’s seat, move the seat as far fo rward as needed, and leave it unoccupied.
Or, you may wish to get a smaller rear-facing child seat.
■Protecting Infants1 Protecting Infants
Rear-facing child seats should never be installed in a
forward facing position.
Always refer to the child seat manufacturer’s
instructions before installation.
3 WARNING
Placing a rear-facing child seat in the front
seat can result in serious injury or death
during a crash.
Always place a rear-facing child seat in the
rear seat, not the front.
14 ACURA TSX 5D-31TL76300.book 51 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

uu Child Safety u Safety of Infants and Small Children
52
If a child is at least one year old and within the weight range indicated by the child
seat manufacturer, the child should be pr operly restrained in a firmly secured
forward-facing child seat.
■Forward-facing child seat placement
We strongly recommend placing a forward-
facing child seat in a rear seating position.
Placing a forward-facing child seat in the front seat can be hazardous, even with
advanced front airbags that automatically turn the passenger’s front airbag off. A
rear seat is the safest place for a child.
■Protecting Smaller Children1Protecting Smaller Children
Educate yourself about the laws and regulations
regarding child seat use where you are driving, and
follow the child seat manufacturer’s instructions.
Many experts recommend us e of a rear-facing seat
for a child up to age two years old, if the child’s
height and weight are appropriate for a rear-facing
seat.
3 WARNING
Placing a forward-facing child seat in the
front seat can result in serious injury or
death if the front airbag inflates.
If you must place a forward-facing child
seat in front, move the vehicle seat as far
back as possible, and properly restrain the
child.
14 ACURA TSX 5D-31TL76300.book 52 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

Continued53
uu Child Safety u Safety of Infants and Small Children
Most child seats are LATCH-compatible (L ower Anchors and Tethers for CHildren).
Some have a rigid-type connector while othe rs have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions as well as the instructions in this manual.
Proper installation is key to ma ximizing your child’s safety.
In seating positions and ve hicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/shoulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Please read th e child seat owner’s manual
for proper installation instructions.
■Important consideration when selecting a child seat
Make sure the child seat meets the following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compli ant with Federal Motor Ve hicle Safety Standard 213.
■Selecting a Child Seat1Selecting a Child Seat
Installation of a LATCH-compatible child seat is
simple.
LATCH-compatible child seats have been developed
to simplify the installation process and reduce the
likelihood of injuries caused by incorrect installation.
14 ACURA TSX 5D-31TL76300.book 53 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

54
uu Child Safety u Safety of Infants and Small Children

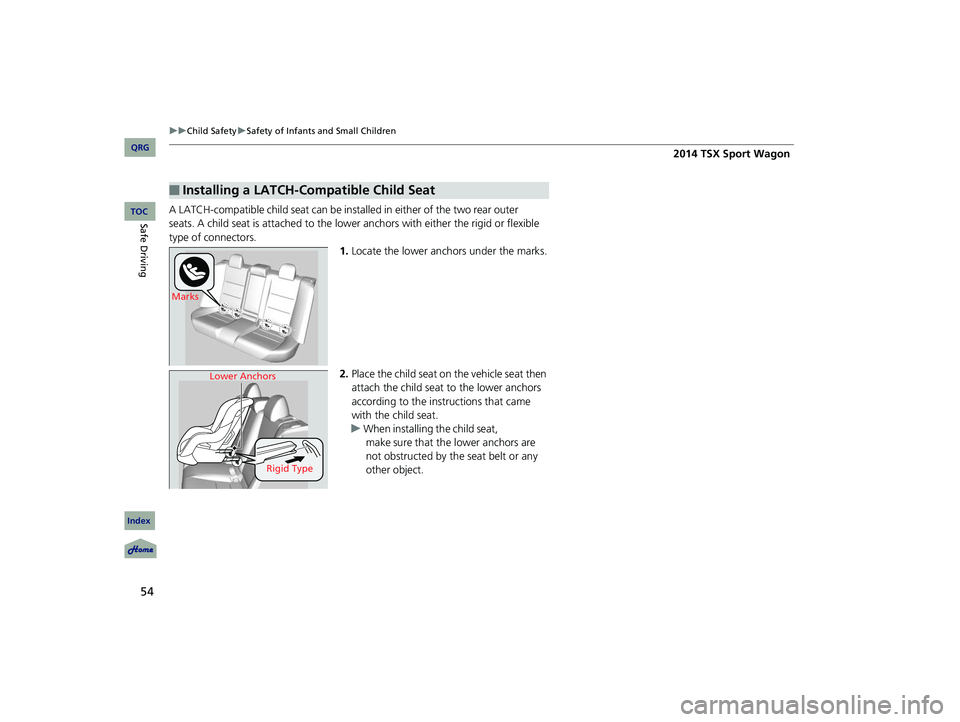

A LATCH-compatible child seat can be installed in either of the two rear outer
seats. A child seat is attached to the lower anchors with either the rigid or flexible
type of connectors.
1.Locate the lower anchors under the marks.
2. Place the child seat on the vehicle seat then
attach the child seat to the lower anchors
according to the instructions that came
with the child seat.
u When installing the child seat,
make sure that the lower anchors are
not obstructed by the seat belt or any
other object.
■Installing a LATCH-Compatible Child Seat
Marks
Rigid Type
Lower Anchors
14 ACURA TSX 5D-31TL76300.book 54 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

Continued55
uu Child Safety u Safety of Infants and Small Children
3. Release the head restra int, then route the
tether strap between the head restraint
legs, and secure the tether strap hook onto
the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
5. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
6. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the belt is fully retracted
and locked.
Flexible Type
1Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH sy stem, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash an d may cause injury to the
child or other vehicle occupants.
Tether Strap Hook
Anchor
14 ACURA TSX 5D-31TL76300.book 55 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

56
uu Child Safety u Safety of Infants and Small Children
1. Place the child seat on the vehicle seat.
2. Route the seat belt th rough the child seat
according to the seat maker's instructions,
and insert the latch pl ate into the buckle.
u Insert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it st ops. This activates the
lockable retractor.
4. Let the seat belt completely wind up into
the retractor, then try to pull it out to make
sure the retractor is locked.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Pull the seat belt all the way
out, and repeat steps 2 – 4.
5. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
u When doing this, place your weight
on the child seat and push it into the
vehicle seat.
■Installing a Child Seat with a Lap/Shoulder Seat Belt
14 ACURA TSX 5D-31TL76300.book 56 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

Continued57
uu Child Safety u Safety of Infants and Small Children
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the belt is fully retracted
and locked.1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
To deactivate a lockable re tractor, release the buckle
and allow the seat belt to wind up all the way.
14 ACURA TSX 5D-31TL76300.book 57 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

uu Child Safety u Safety of Infants and Small Children
58
Two tether anchorage points are provided
behind the rear outer seating positions and
one in the ceiling for the rear center. A child
seat that is installed with a seat belt and
comes with a tether can use the tether for
additional security.
■Using an outer anchor
1. Raise the head restra int to its highest
position, then route the tether strap
through the head restraint legs. Make sure
the strap is not twisted.
2. Secure the tether strap hook onto the
anchor.
3. Tighten the tether strap as instructed by the
child seat manufacturer.
■Using the center anchor
1. Lower the head restraint to its lowest
position.
2. Open the anchor cover.
3.Route the tether strap over the head restraint.
Make sure the strap is not twisted.
4.Secure the tether strap hook onto the anchor.
5.Tighten the tether strap as instructed by the
child seat manufacturer.
■Adding Security with a Tether1Adding Security with a Tether
Since a tether can provide additional security to the
lap/shoulder seat belt in stallation, we recommend
using a tether whenever one is available.
Anchor Fitting
Tether Anchor age Points
Tether Strap Hook
Anchor
Tether Strap
Hook Anchor
14 ACURA TSX 5D-31TL76300.book 58 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

59
uu Child Safety u Safety of Larger Children
Continued
Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too bi g for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upri ght and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all thes e questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fi ts properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1Safety of Larger Children
3 WARNING
Allowing a child age 12 or under to sit in
front can result in serious injury or death if
the passenger’s front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, using a booster seat if
needed.
14 ACURA TSX 5D-31TL76300.book 59 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon
