uu Checking and Maintaining Tires u Tire Rotation




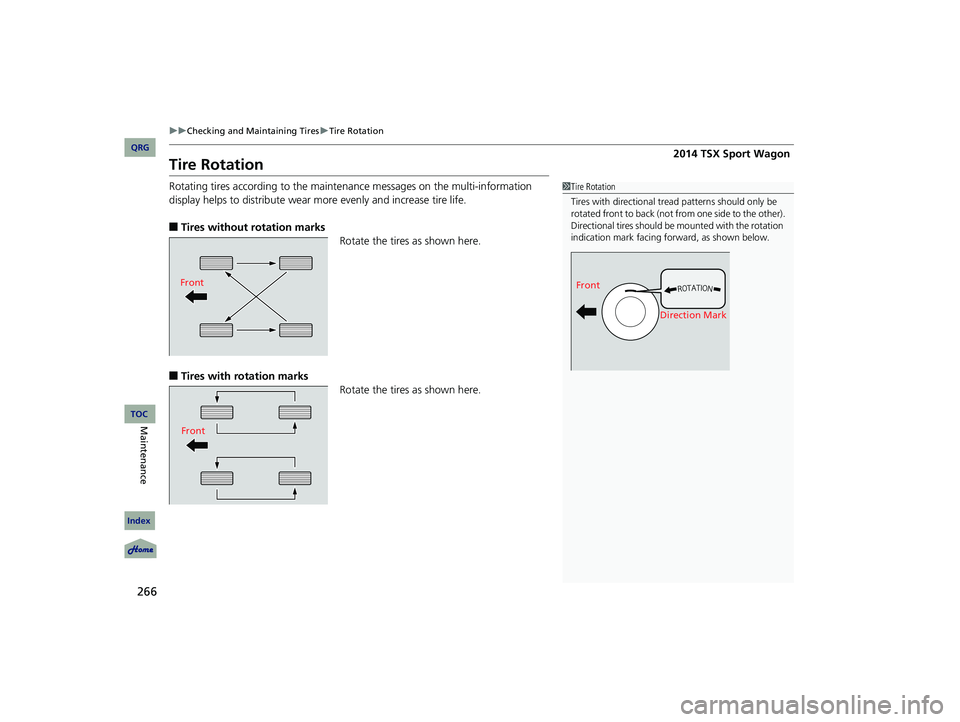

Tire Rotation
Rotating tires according to the maintenance messages on the multi-information
display helps to distribute wear mo re evenly and increase tire life.
■Tires without rotation marks
Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional tread patterns should only be
rotated front to back (not from one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Front
Direction MarkFront
Front
14 ACURA TSX 5D-31TL76300.book 266 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

uu If a Tire Goes Flat u Changing a Flat Tire
292




1. Remove the center cap and place the flat
tire face down in the spare tire well.
2. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
3. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
cargo area.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After dr iving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. CHECK TPMS
SYSTEM appears on the multi-information display, but this is normal.
If you replace the tire with a specified regular tire, the warning message on
the multi-information display and the TPMS indicator will go off after a few
miles (kilometers).
■Storing the Flat Tire1Storing the Flat Tire
3 WARNING
Loose items can fly around the interior
in a crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Spacer
Cone Wing
Bolt
For
compact
spare tire For

full-size
tire
■TPMS and the Spare Tire1 TPMS and the Spare Tire
The system cannot monitor the pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use TPMS specific wheels. Each is equipped with a
tire pressure sensor mount ed inside the tire behind
the valve stem.
14 ACURA TSX 5D-31TL76300.book 292 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

325
Driving...................................................... 189
Automatic Transmission .......................... 202
Braking ................................................... 216
Cruise Control ........................................ 207
Shifting Gear .......................................... 203
Starting the Engine ................................. 199
Driving Position Memory System ............ 114
Dust and Po llen Filter.............................. 271
Elapsed Time .............................................. 78
Electric Power Steering (EPS) System
Indicator ........................................... 68, 301
Electronic Stability Control (ESC) ............ 210
Emergency ................................................ 308
Emissions Testing (Readiness Codes) ...... 317
Engine ....................................................... 314
Coolant .................................................. 242
Jump Starting ......................................... 294
Oil .......................................................... 237
Starting................................................... 199
Switch Buzzer ......................................... 106
Engine Coolant ........................................ 242
Adding to the Radiator ........................... 243
Adding to the Reserve Tank .................... 242
Overheating ............................................ 297
Temperature Gauge .................................. 74
Engine Oil ................................................. 237
Adding ................................................... 239
Checking ................................................ 238Displaying Oil Life ....................................
231
Low Oil Pressure Indicator.................. 64, 299
Recommended Engine Oil........................ 237
EPS (Electric Power Steering) 
System ............................................... 68, 301
Exhaust Gas Hazard (Carbon Monoxide) .. 61
Exterior Care (Cleaning) ........................... 274
Exterior Mirrors ........................................ 117
Features ..................................................... 145
Filters
Dust and Pollen ....................................... 271
Oil ........................................................... 240
Flat Tire ............................................. 278, 287
Floor Mats ................................................. 273
Fluids Automatic Transmission........................... 244
Brake....................................................... 245
Engine Coolant........................................ 242
Windshield Washer.................................. 246
Fog Light Indicator ..................................... 70
Folding Down the Rear Seats .................. 126
Foot Brake ................................................. 217
Front Airbags (SRS) ..................................... 37
Front Seats ................................................ 119
Adjusting................................................. 119
Fuel ...................................................... 14, 221
Economy ................................................. 224
Gauge ....................................................... 74Instant Fuel Economy .....
........................... 77
Low Fuel Indicator ..................................... 66
Range ....................................................... 77
Recommendation .................................... 221
Refueling................................................. 221
Fuel Economy ........................................... 224
Fuel Fill Cap ........................................ 14, 223
Message.................................................. 300
Fuel Fill Door ...................................... 14, 222
Unable to Unlock .................................... 309
Fuses .......................................................... 303
Inspecting and Changing......................... 307
Locations................................................. 303
Gasoline (Fuel) Economy ................................................. 224
Gauge ....................................................... 74
Information ............................................. 221
Low Fuel Indicator ..................................... 66
Refueling................................................. 221
Gauges ........................................................ 74
Gear Shift Lever Positions Automatic Transmission .......................... 203
Glass (care) ................................................ 275
Glove Box .................................................. 130
Halogen Bulbs .................................. 247, 248
14 ACURA TSX 5D-31TL76300.book 325 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
E
G
F
G
H
2014 TSX Sport Wagon

326
Handling the Unexpected........................ 277
HandsFreeLink ® (HFL) ............................... 175
Help Features........................................... 176
HFL Buttons ............................................. 175
HFL Status Display.................................... 176
Making a Call .......................................... 181
Menus ..................................................... 177
Muting a Call........................................... 182
Phone Setup ............................................ 179
Phonebook .............................................. 183
Receiving a Call ....................................... 182
Sending Numbers or Names During a 
Call ........................................................ 182
Transferring a Call ................................... 182
Hazard Warning Button ............................... 2
Head Restraints ......................................... 121
Headlights ................................................. 107
Aiming .................................................... 247
Automatic Operation ...... ......................... 108
Dimming ......................................... 107, 109
Operating ................................................ 107
Heated Door Mirrors ................................ 113
Heaters (Seat) ............................................ 139
HFL (HandsFreeLink ®)............................... 175
High-Beam Indicator .................................. 69
HomeLink ® Universal Transceiver ............ 173
Identification Numbers ............................ 314
Engine and Transmission.......................... 314Vehicle Identification ..
............................. 314
Ignition Switch ......................................... 106
Illumination Control ................................. 112
Knob ....................................................... 112
Immobilizer System .................................. 100
Indicator.................................................... 70
Indicators .................................................... 64
ABS (Anti-lock Brake Sy stem)..................... 66
Charging System ............................... 65, 299
Cruise Control ................................... 71, 208
Cruise Main....................................... 71, 207
Door and Tailgate Open ...................... 25, 68
EPS (Electric Power Steering) System .. 68, 301
Fog Light ................................................... 70
High-Beam ................................................ 69
Immobilizer System ...... ............................. 70
Lights On .................................................. 69
Low Fuel ................................................... 66
Low Oil Pressure ................................ 64, 299
Low Tire Pressure/TPMS ............. 68, 212, 214
Maintenance Minder
TM............................ 231
Malfunction Indicator Lamp............... 65, 300
Parking Brake and Brake System ........ 64, 301
Seat Belt Reminder .............................. 27, 66
Security System Alarm ............................... 71
Side Airbag Off ................................... 47, 70
Supplemental Restraint System .. .......... 45, 67
System Message ........................................ 69
Transmission ............................................. 65
Turn Signal ................................................ 69VSA
® (Vehicle Stability Assist) 
System ............................................ 67, 210
VSA ® OFF.......................................... 67, 211
Information .............................................. 311
Information Buttons .................................. 75
Instant Fuel Economy ................................ 77
Instrument Panel ........................................ 63
Brightness Control .................................. 112
Interior Lights ........................................... 128
Interior Rearview Mirror ......................... 117
Jack (Wheel Nut Wrench) ........................ 290
Jump Starting ........................................... 294
Key Number Tag ........................................ 88
Keyless Lockout Prevention....................... 90
Keys ............................................................. 87
Lockout Prevention ................................... 90
Number Tag.............................................. 88
Rear Door Won’t Open ............................. 93
Remote Transmitter .................................. 89
Retractable Master Keys ............................ 87
Types and Functions.................................. 87
Valet Key .................................................. 88
Won’t Turn ............................................... 17
Kickdown (Automatic Transmission) ...... 202
14 ACURA TSX 5D-31TL76300.book 326 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
I
KJ
2014 TSX Sport Wagon

327
LATCH (Child Seats)................................... 54
Lights ................................................ 107, 247
Automatic............................................... 108
Bulb Replacement ................................... 247
Daytime Running Lights .......................... 109
Fog Lights ............................................... 109
High-Beam Indicator ................................. 69
Interior.................................................... 128
Light Switches......................................... 107
Lights On Indicator.................................... 69
Turn Signals ............................................ 107
Load Limits ............................................... 193
Locking/Unlocking ..................................... 87
Auto Door Lock/Unlock ............................. 93
Childproof Door Locks .............................. 93
From Inside ............................................... 91
From Outside ............................................ 89
Keys.......................................................... 87
Lockout Prevention Syst em ....................... 90
Using a Key............................................... 90
Lockout Prevention System ....................... 90
Low Battery Charge ................................. 299
Low Fuel Indicator ..................................... 66
Low Oil Pressure Indicator ................. 64, 299
Lower Anchors ........................................... 54
Lubricant Specifications Chart ................ 313
Luggage (Maximum Load Limit) ............. 193Maintenance
............................................. 227
Battery .................................................... 268
Brake Fluid .............................................. 245
Cleaning.................................................. 272
Climate Control ....................................... 271
Coolant ................................................... 242
Maintenance Minder
TM............................ 231
Oil ........................................................... 238
Precautions.............................................. 228
Radiator .................................................. 243
Remote Transmitter ................................. 270
Replacing Light Bulbs... ............................ 247
Safety ...................................................... 229
Service Items ........................................... 233
Tires ........................................................ 259
Transmission Fluid ................................... 244
Under the Hood ...................................... 235
Malfunction Indicator Lamp .............. 65, 300
Map Lights ................................................ 128
Maximum Load Limit ............................... 193
Meters, Gauges ........................................... 74
Mirrors ....................................................... 117
Adjusting................................................. 117
Automatic Dimming ................................ 117
Door........................................................ 117
Exterior.................................................... 117
Interior Rearview ..................................... 117
Modifications (and Accessories) .............. 225
Moonroof .................................................. 105
MP3 ................................................... 156, 162 Multi-Information Display
......................... 75
Numbers (Identification) .......................... 314
Odometer ................................................... 76
Oil (Engine) ............................................... 237
Adding .................................................... 239
Checking................................................. 238
Displaying Oil Life .................................... 231
Low Oil Pressure Indicator ................. 64, 299
Recommended Engine Oil ....................... 237
Viscosity .................................................. 237
Opening/Closing Hood....................................................... 236
Moonroof ............................................... 105
Power Windows ...................................... 102
Tailgate ..................................................... 94
Outside Temperature Display .................... 77
Overheating .............................................. 297
Paddle Shifters (S equential Shift 
Mode) ................................................ 13, 205
Panic Mode ............................................... 101
Parking ...................................................... 220
Parking Brake ........................................... 216
14 ACURA TSX 5D-31TL76300.book 327 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
LM
N
O
P Q
2014 TSX Sport Wagon
