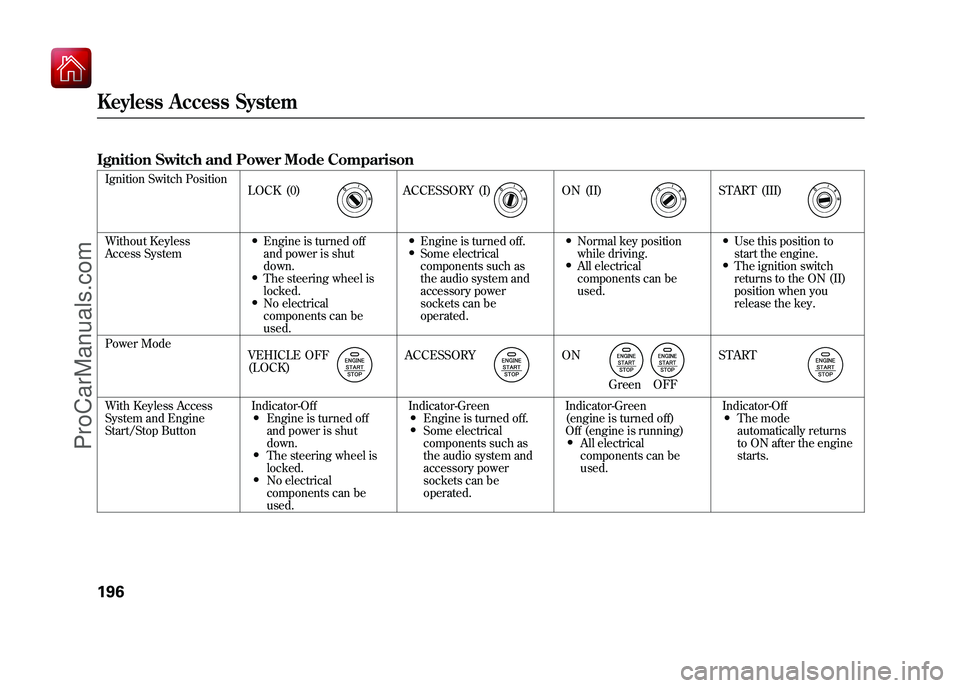

Ignition Switch and Power Mode ComparisonIgnition Switch Position
Without Keyless
Access System
●Engine is turned off
and power is shut
down.●The steering wheel is
locked.●No electrical
components can be
used.
●Engine is turned off.●Some electrical
components such as
the audio system and
accessory power
sockets can be
operated.
●Normal key position
while driving.●All electrical
components can be
used.
●Use this position to
start the engine.●The ignition switch
returns to the ON (II)
position when you
release the key.
Power Mode
With Keyless Access
System and Engine
Start/Stop Button Indicator-Off
●Engine is turned off
and power is shut
down.●The steering wheel is
locked.●No electrical
components can be
used.Indicator-Green
●Engine is turned off.●Some electrical
components such as
the audio system and
accessory power
sockets can be
operated.
Indicator-Green
(engine is turned off)
Off (engine is running)
●All electrical
components can be
used.
Indicator-Off
●The mode
automatically returns
to ON after the engine
starts.
LOCK (0)
ACCESSORY (I)
ON (II)
START (III)
VEHICLE OFF
(LOCK)
ACCESSORY
ON
Green OFF
START
Keyless Access System19609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

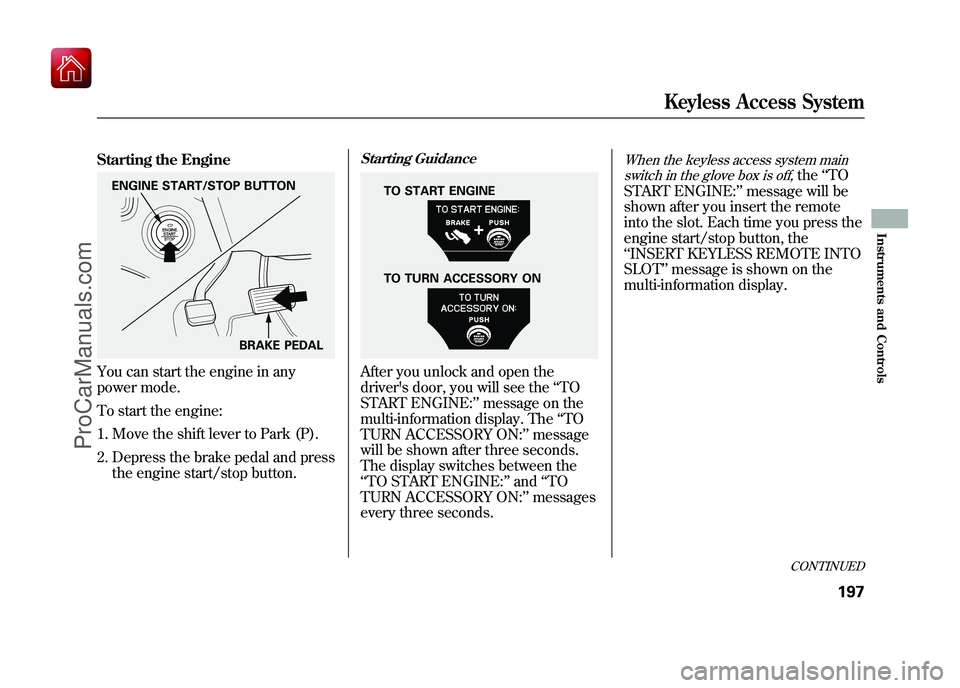

Starting the EngineYou can start the engine in any
power mode.
To start the engine:1. Move the shift lever to Park (P).
2. Depress the brake pedal and press the engine start/stop button.
Starting GuidanceAfter you unlock and open the
driver's door, you will see the ‘‘TO
START ENGINE: ’’message on the
multi-information display. The ‘‘TO
TURN ACCESSORY ON: ’’message
will be shown after three seconds.
The display switches between the
‘‘ TO START ENGINE: ’’and ‘‘TO
TURN ACCESSORY ON: ’’messages
every three seconds.
When the keyless access system main
switch in the glove box is off,
the ‘‘TO
START ENGINE: ’’message will be
shown after you insert the remote
into the slot. Each time you press the
engine start/stop button, the
‘‘ INSERT KEYLESS REMOTE INTO
SLOT ’’message is shown on the
multi-information display.
ENGINE START/STOP BUTTON
BRAKE PEDAL
TO TURN ACCESSORY ON TO START ENGINE
CONTINUED
Keyless Access System
197
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

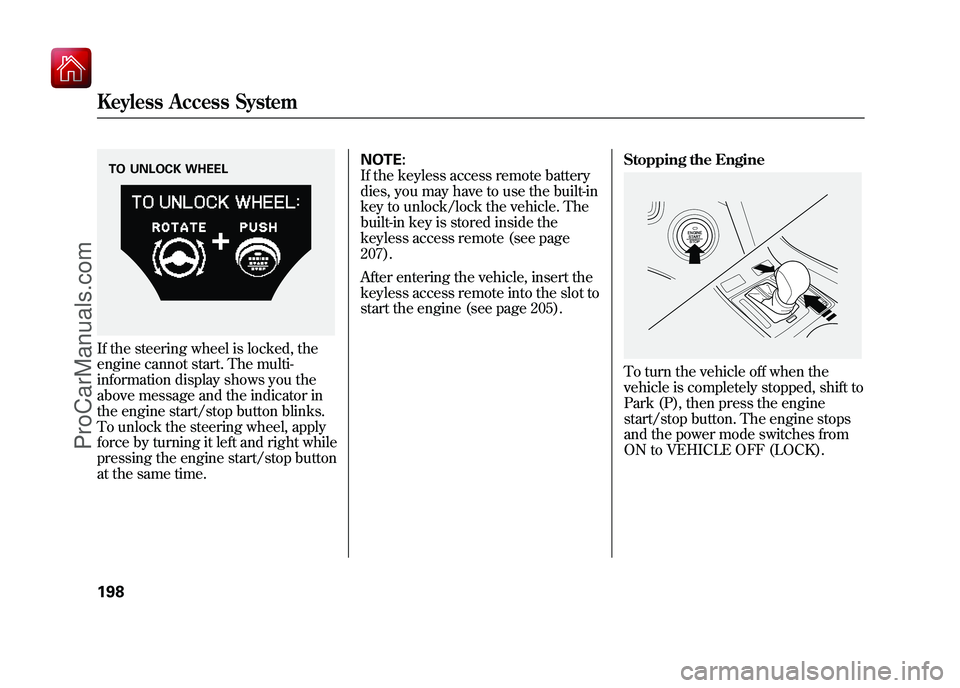

If the steering wheel is locked, the
engine cannot start. The multi-
information display shows you the
above message and the indicator in
the engine start/stop button blinks.
To unlock the steering wheel, apply
force by turning it left and right while
pressing the engine start/stop button
at the same time.NOTE:
If the keyless access remote battery
dies, you may have to use the built-in
key to unlock/lock the vehicle. The
built-in key is stored inside the
keyless access remote (see page
207).
After entering the vehicle, insert the
keyless access remote into the slot to
start the engine (see page 205).
Stopping the Engine
To turn the vehicle off when the
vehicle is completely stopped, shift to
Park (P), then press the engine
start/stop button. The engine stops
and the power mode switches from
ON to VEHICLE OFF (LOCK).
TO UNLOCK WHEELKeyless Access System19809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

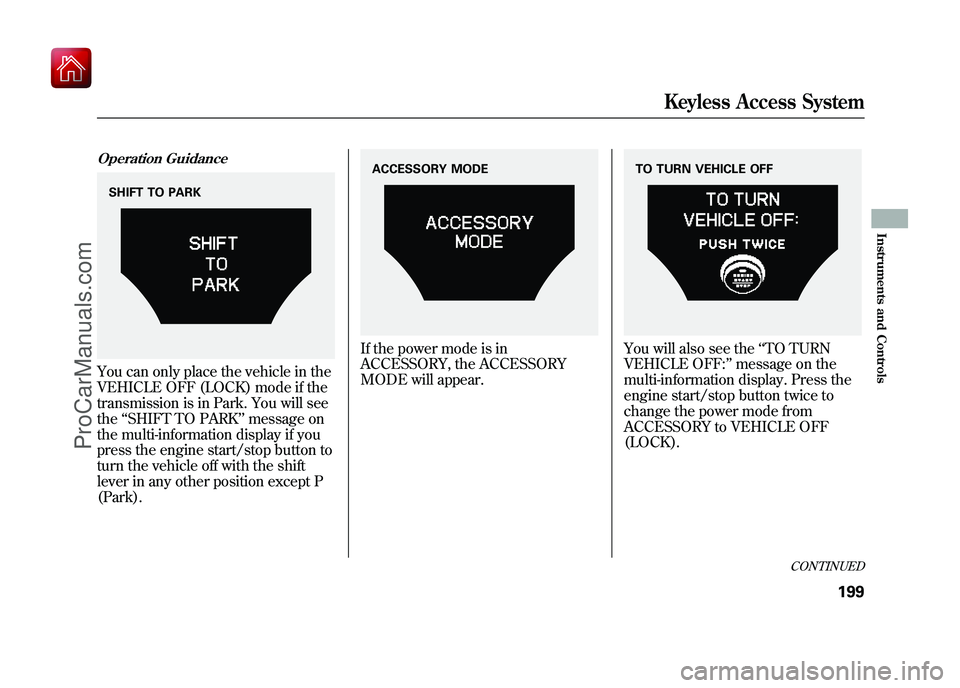

Operation GuidanceYou can only place the vehicle in the
VEHICLE OFF (LOCK) mode if the
transmission is in Park. You will see
the‘‘SHIFT TO PARK ’’message on
the multi-information display if you
press the engine start/stop button to
turn the vehicle off with the shift
lever in any other position except P
(Park).
If the power mode is in
ACCESSORY, the ACCESSORY
MODE will appear.
You will also see the ‘‘TO TURN
VEHICLE OFF: ’’message on the
multi-information display. Press the
engine start/stop button twice to
change the power mode from
ACCESSORY to VEHICLE OFF
(LOCK).
SHIFT TO PARK
ACCESSORY MODE
TO TURN VEHICLE OFF
CONTINUED
Keyless Access System
199
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

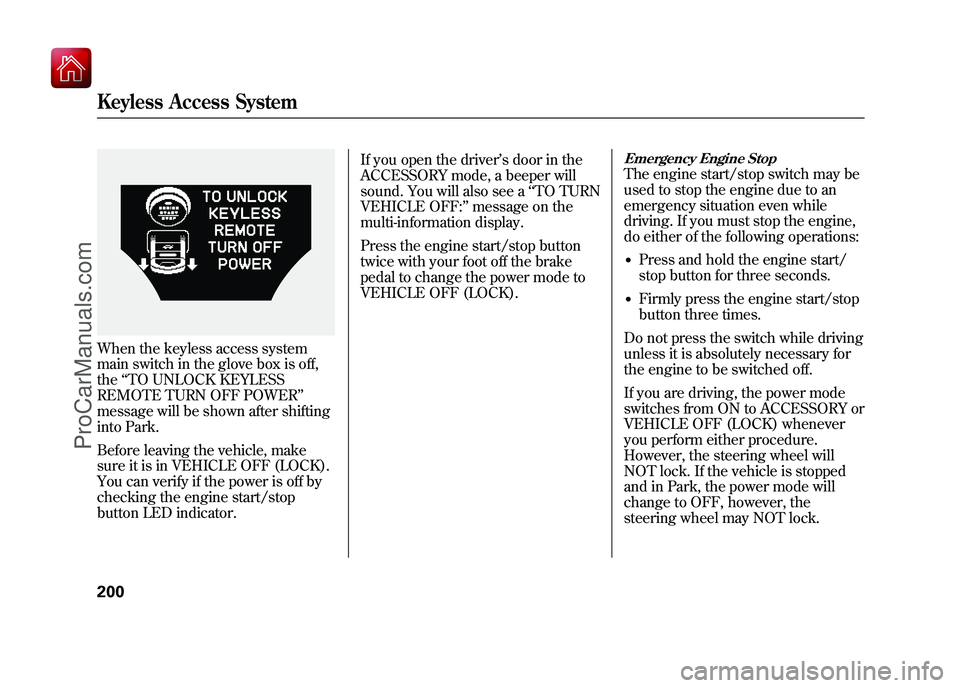

When the keyless access system
main switch in the glove box is off,
the‘‘TO UNLOCK KEYLESS
REMOTE TURN OFF POWER ’’
message will be shown after shifting
into Park.
Before leaving the vehicle, make
sure it is in VEHICLE OFF (LOCK).
You can verify if the power is off by
checking the engine start/stop
button LED indicator. If you open the driver’
s door in the
ACCESSORY mode, a beeper will
sound. You will also see a ‘‘TO TURN
VEHICLE OFF: ’’message on the
multi-information display.
Press the engine start/stop button
twice with your foot off the brake
pedal to change the power mode to
VEHICLE OFF (LOCK).
Emergency Engine StopThe engine start/stop switch may be
used to stop the engine due to an
emergency situation even while
driving. If you must stop the engine,
do either of the following operations:●Press and hold the engine start/
stop button for three seconds.●Firmly press the engine start/stop
button three times.
Do not press the switch while driving
unless it is absolutely necessary for
the engine to be switched off.
If you are driving, the power mode
switches from ON to ACCESSORY or
VEHICLE OFF (LOCK) whenever
you perform either procedure.
However, the steering wheel will
NOT lock. If the vehicle is stopped
and in Park, the power mode will
change to OFF, however, the
steering wheel may NOT lock.
Keyless Access System20009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

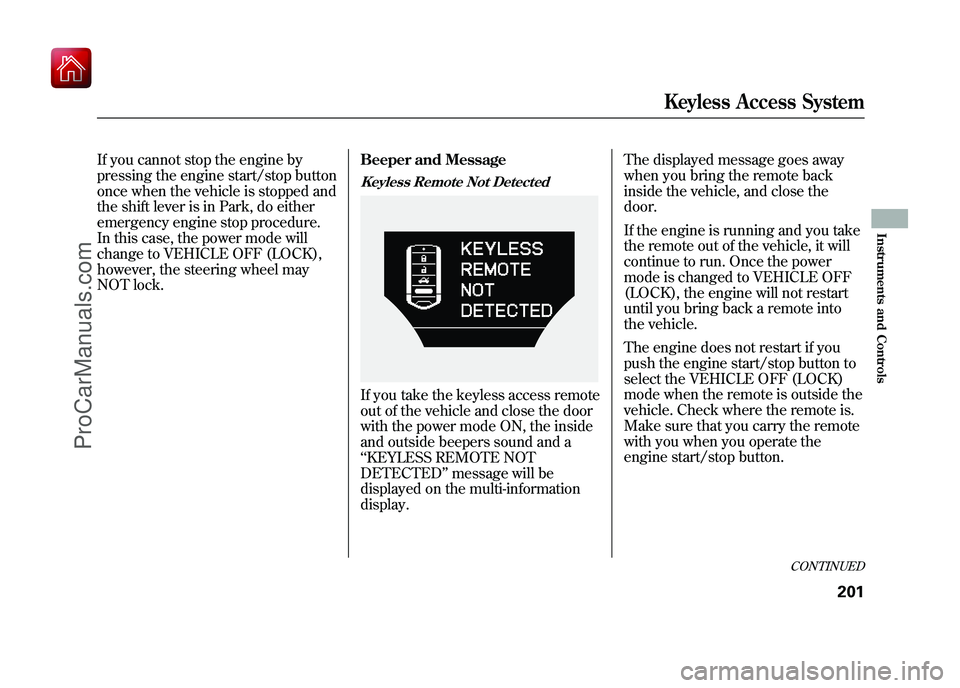

If you cannot stop the engine by
pressing the engine start/stop button
once when the vehicle is stopped and
the shift lever is in Park, do either
emergency engine stop procedure.
In this case, the power mode will
change to VEHICLE OFF (LOCK),
however, the steering wheel may
NOT lock.Beeper and Message
Keyless Remote Not DetectedIf you take the keyless access remote
out of the vehicle and close the door
with the power mode ON, the inside
and outside beepers sound and a
‘‘
KEYLESS REMOTE NOT
DETECTED ’’message will be
displayed on the multi-information
display. The displayed message goes away
when you bring the remote back
inside the vehicle, and close the
door.
If the engine is running and you take
the remote out of the vehicle, it will
continue to run. Once the power
mode is changed to VEHICLE OFF
(LOCK), the engine will not restart
until you bring back a remote into
the vehicle.
The engine does not restart if you
push the engine start/stop button to
select the VEHICLE OFF (LOCK)
mode when the remote is outside the
vehicle. Check where the remote is.
Make sure that you carry the remote
with you when you operate the
engine start/stop button.
CONTINUED
Keyless Access System
201
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

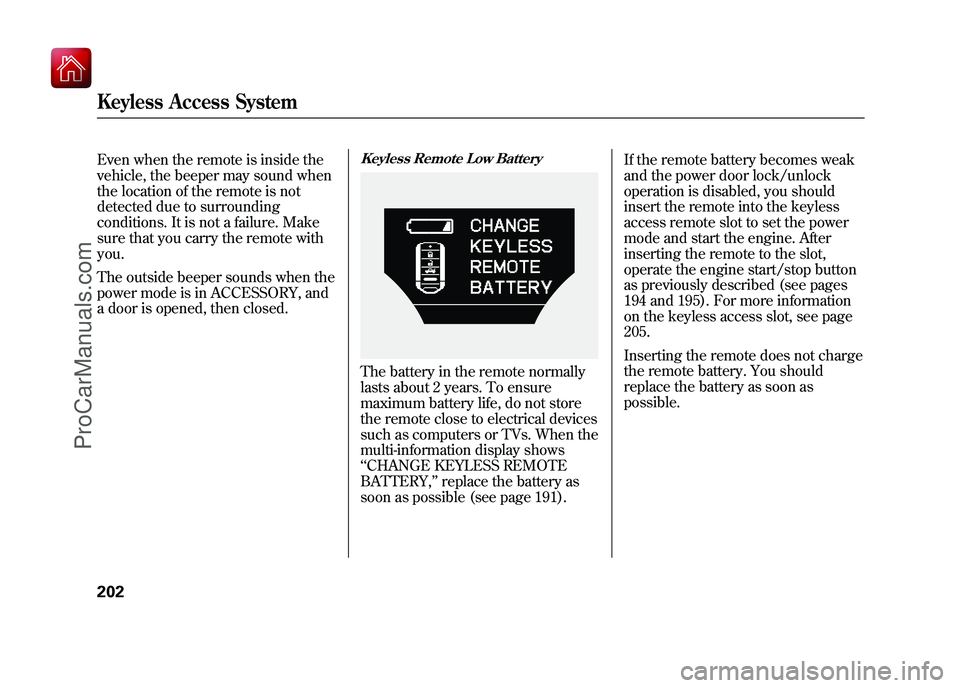

Even when the remote is inside the
vehicle, the beeper may sound when
the location of the remote is not
detected due to surrounding
conditions. It is not a failure. Make
sure that you carry the remote with
you.
The outside beeper sounds when the
power mode is in ACCESSORY, and
a door is opened, then closed.
Keyless Remote Low BatteryThe battery in the remote normally
lasts about 2 years. To ensure
maximum battery life, do not store
the remote close to electrical devices
such as computers or TVs. When the
multi-information display shows
‘‘CHANGE KEYLESS REMOTE
BATTERY, ’’replace the battery as
soon as possible (see page 191). If the remote battery becomes weak
and the power door lock/unlock
operation is disabled, you should
insert the remote into the keyless
access remote slot to set the power
mode and start the engine. After
inserting the remote to the slot,
operate the engine start/stop button
as previously described (see pages
194 and 195). For more information
on the keyless access slot, see page
205.
Inserting the remote does not charge
the remote battery. You should
replace the battery as soon as
possible.
Keyless Access System20209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

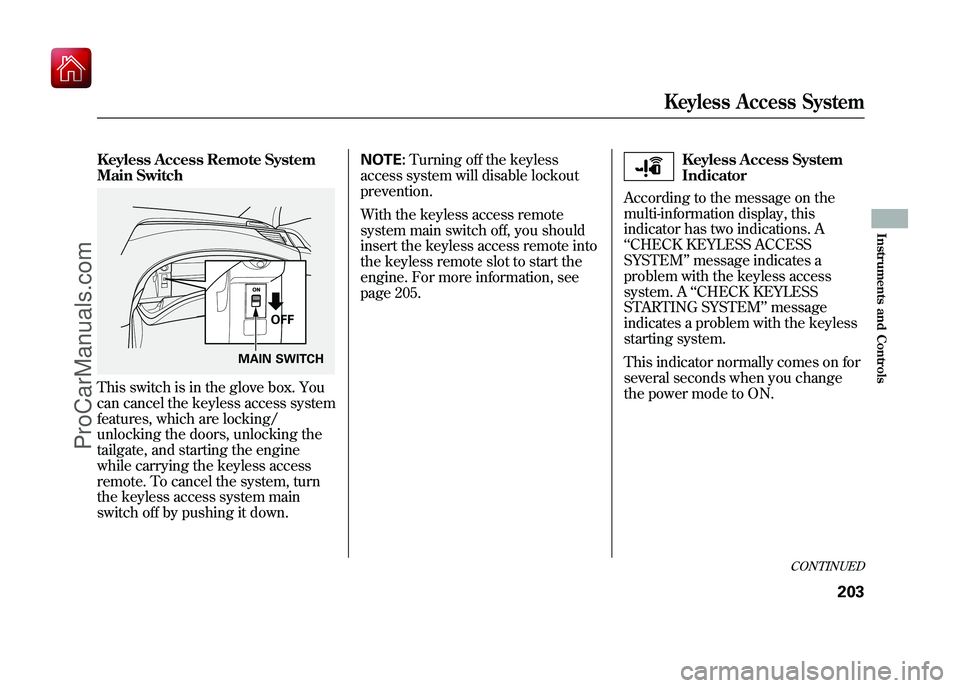

Keyless Access Remote System
Main SwitchThis switch is in the glove box. You
can cancel the keyless access system
features, which are locking/
unlocking the doors, unlocking the
tailgate, and starting the engine
while carrying the keyless access
remote. To cancel the system, turn
the keyless access system main
switch off by pushing it down.NOTE:
Turning off the keyless
access system will disable lockout
prevention.
With the keyless access remote
system main switch off, you should
insert the keyless access remote into
the keyless remote slot to start the
engine. For more information, see
page 205.
Keyless Access System
Indicator
According to the message on the
multi-information display, this
indicator has two indications. A
‘‘ CHECK KEYLESS ACCESS
SYSTEM ’’message indicates a
problem with the keyless access
system. A ‘‘CHECK KEYLESS
STARTING SYSTEM ’’message
indicates a problem with the keyless
starting system.
This indicator normally comes on for
several seconds when you change
the power mode to ON.
OFF
MAIN SWITCH
CONTINUED
Keyless Access System
203
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

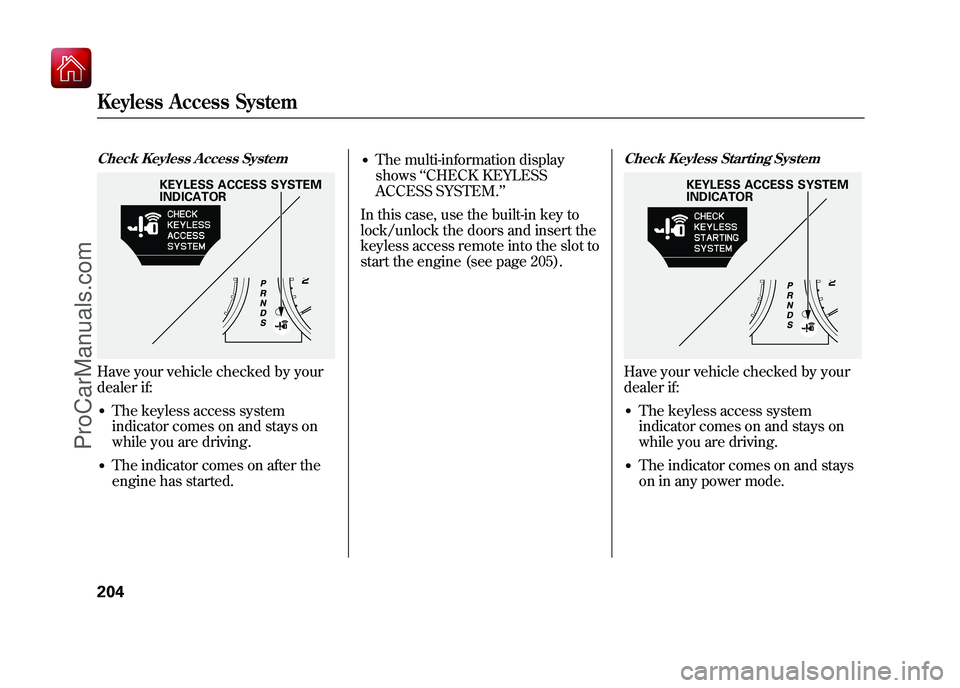

Check Keyless Access SystemHave your vehicle checked by your
dealer if:●The keyless access system
indicator comes on and stays on
while you are driving.●The indicator comes on after the
engine has started.
●The multi-information display
shows‘‘CHECK KEYLESS
ACCESS SYSTEM. ’’
In this case, use the built-in key to
lock/unlock the doors and insert the
keyless access remote into the slot to
start the engine (see page 205).
Check Keyless Starting SystemHave your vehicle checked by your
dealer if:●The keyless access system
indicator comes on and stays on
while you are driving.●The indicator comes on and stays
on in any power mode.
KEYLESS ACCESS SYSTEM
INDICATOR
KEYLESS ACCESS SYSTEM
INDICATOR
Keyless Access System20409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

●The multi-information display
shows‘‘CHECK KEYLESS
STARTING SYSTEM. ’’
In this case, you should not shut off
your engine until you are in a safe
location or at your dealer, as your

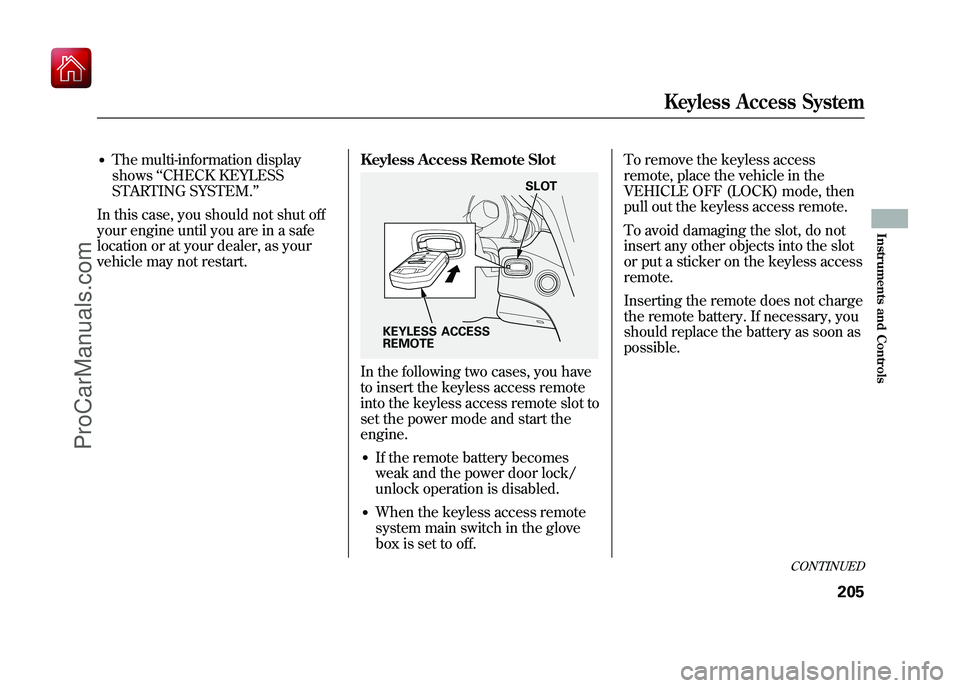

vehicle may not restart. Keyless Access Remote Slot
In the following two cases, you have
to insert the keyless access remote
into the keyless access remote slot to
set the power mode and start the
engine.●If the remote battery becomes
weak and the power door lock/
unlock operation is disabled.●When the keyless access remote
system main switch in the glove
box is set to off.To remove the keyless access
remote, place the vehicle in the
VEHICLE OFF (LOCK) mode, then
pull out the keyless access remote.
To avoid damaging the slot, do not
insert any other objects into the slot
or put a sticker on the keyless access
remote.
Inserting the remote does not charge
the remote battery. If necessary, you
should replace the battery as soon as
possible.KEYLESS ACCESS
REMOTE
SLOT
CONTINUED
Keyless Access System
205
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
