To safely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inflated.
The following pages give more
detailed information on how to take
care of your tires and what to do
when they need to be replaced.
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner's manual regarding tire
inflation and maintenance.Inflation Guidelines
Keeping the tires properly inflated
provides the best combination of
handling, tread life, and riding
comfort.
●Underinflated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.●Overinflated tires can make your
vehicle ride more harshly, are
more prone to damage from road
hazards, and wear unevenly.
The tire pressure monitoring system
(TPMS) warns you when a tire
pressure is low. See page 490 for
more information.
Even though your vehicle is
equipped with TPMS, we
recommend that you visually check
your tires every day. If you think a
tire might be low, check it
immediately with a tire gauge. Use a gauge to measure the air
pressure in each tire at least once a
month. Even tires that are in good
condition may lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf/cm
2) per
month. Remember to check the
spare tire at the same time.CONTINUED
Tires
567
Maintenance
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
Page 576 of 645

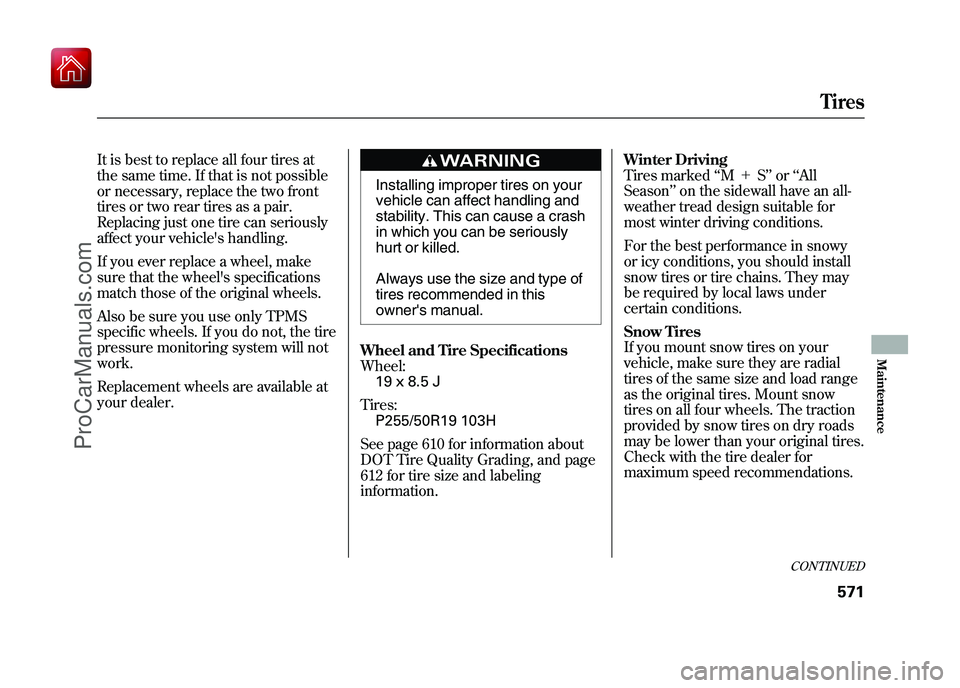

It is best to replace all four tires at
the same time. If that is not possible
or necessary, replace the two front
tires or two rear tires as a pair.
Replacing just one tire can seriously
affect your vehicle's handling.
If you ever replace a wheel, make
sure that the wheel's specifications
match those of the original wheels.
Also be sure you use only TPMS
specific wheels. If you do not, the tire
pressure monitoring system will not
work.
Replacement wheels are available at
your dealer.
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner's manual.
Wheel and Tire Specifications
Wheel: 19 x 8.5 J
Tires: P255/50R19 103H
See page 610 for information about
DOT Tire Quality Grading, and page
612 for tire size and labeling
information. Winter Driving
Tires marked
‘‘M + S’’ or ‘‘All
Season ’’on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best performance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
Snow Tires
If you mount snow tires on your
vehicle, make sure they are radial
tires of the same size and load range
as the original tires. Mount snow
tires on all four wheels. The traction
provided by snow tires on dry roads
may be lower than your original tires.
Check with the tire dealer for
maximum speed recommendations.
CONTINUED
Tires
571
Maintenance
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
Page 583 of 645

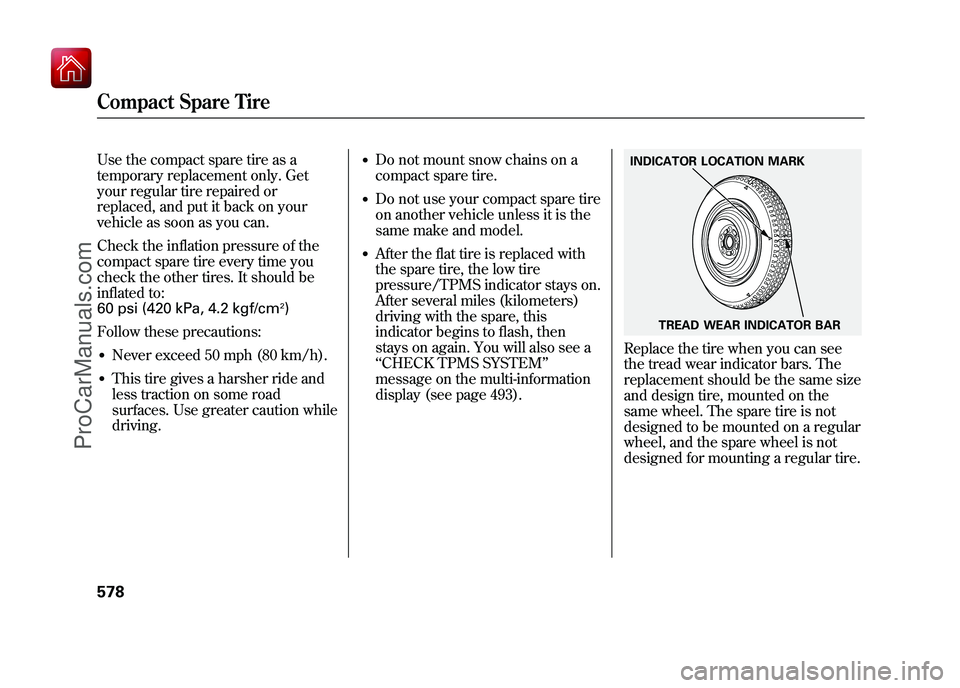

Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or
replaced, and put it back on your
vehicle as soon as you can.
Check the inflation pressure of the
compact spare tire every time you
check the other tires. It should be
inflated to:
60 psi (420 kPa, 4.2 kgf/cm
2)
Follow these precautions:
●Never exceed 50 mph (80 km/h).●This tire gives a harsher ride and
less traction on some road
surfaces. Use greater caution while
driving.
●Do not mount snow chains on a
compact spare tire.●Do not use your compact spare tire
on another vehicle unless it is the
same make and model.●After the flat tire is replaced with
the spare tire, the low tire
pressure/TPMS indicator stays on.
After several miles (kilometers)
driving with the spare, this
indicator begins to flash, then
stays on again. You will also see a
‘‘ CHECK TPMS SYSTEM’’
message on the multi-information
display (see page 493).
Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed for mounting a regular tire.INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
Compact Spare Tire57809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
Page 589 of 645

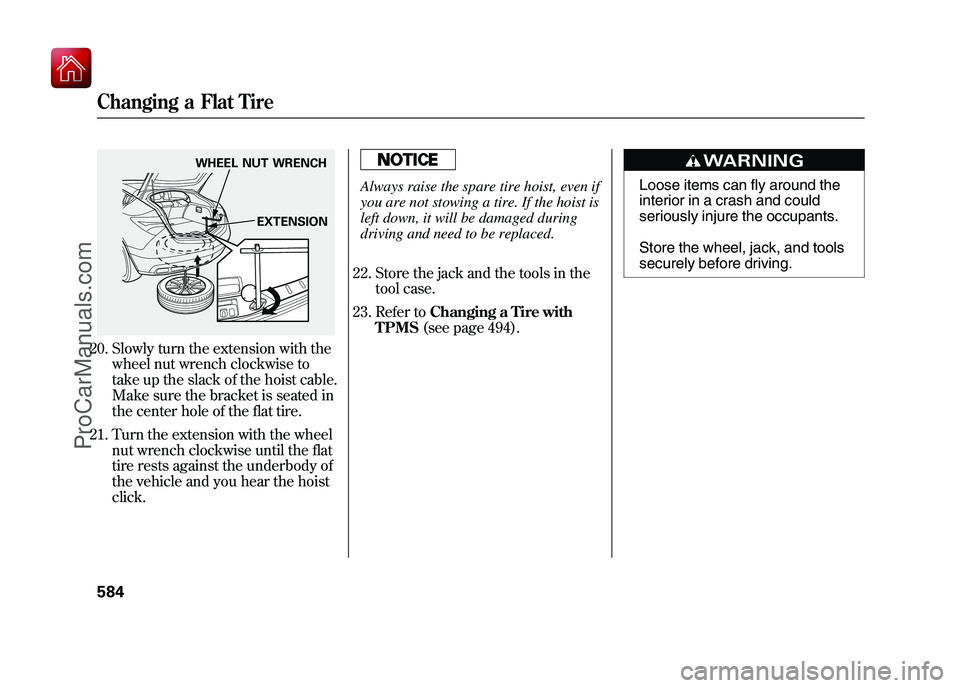

20. Slowly turn the extension with thewheel nut wrench clockwise to
take up the slack of the hoist cable.
Make sure the bracket is seated in
the center hole of the flat tire.
21. Turn the extension with the wheel nut wrench clockwise until the flat
tire rests against the underbody of
the vehicle and you hear the hoist
click.
Always raise the spare tire hoist, even if
you are not stowing a tire. If the hoist is
left down, it will be damaged during
driving and need to be replaced.
22. Store the jack and the tools in the tool case.
23. Refer to Changing a Tire with
TPMS (see page 494).
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
WHEEL NUT WRENCH
EXTENSION
Changing a Flat Tire58409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
Page 605 of 645

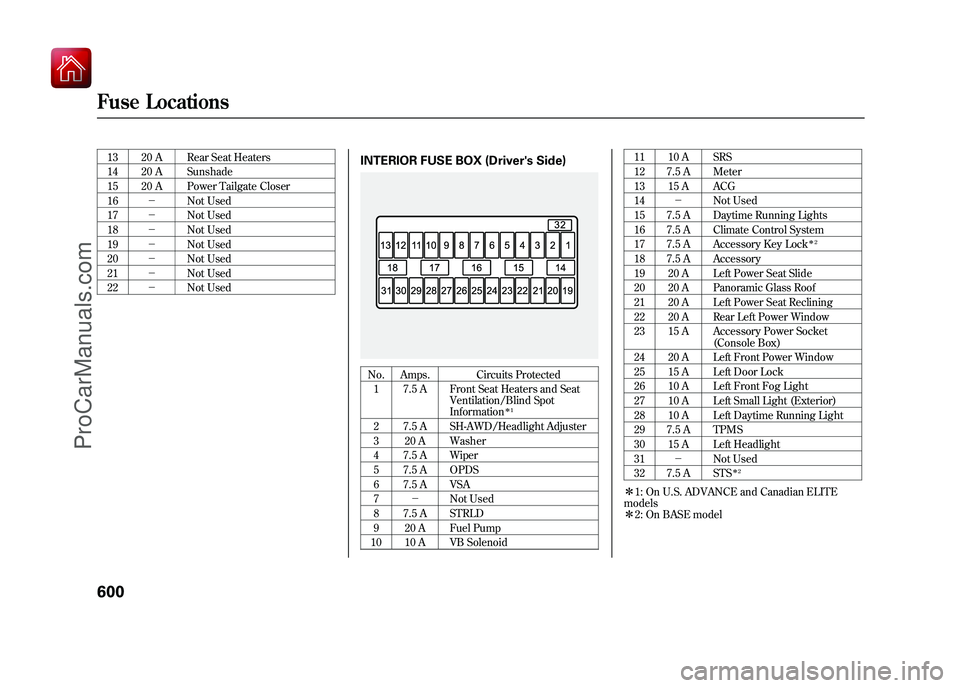

13 20 A Rear Seat Heaters
14 20 A Sunshade
15 20 A Power Tailgate Closer
16- Not Used
17 - Not Used
18 - Not Used
19 - Not Used
20 - Not Used
21 - Not Used
22 - Not Used
INTERIOR FUSE BOX (Driver's Side)No. Amps. Circuits Protected
1 7.5 A Front Seat Heaters and Seat Ventilation/Blind Spot
Information
ꭧ1
2 7.5 A SH-AWD/Headlight Adjuster
3 20 A Washer
4 7.5 A Wiper
5 7.5 A OPDS
6 7.5 A VSA
7 - Not Used
8 7.5 A STRLD
9 20 A Fuel Pump
10 10 A VB Solenoid 11 10 A SRS
12 7.5 A Meter
13 15 A ACG
14
- Not Used
15 7.5 A Daytime Running Lights
16 7.5 A Climate Control System
17 7.5 A Accessory Key Lock
ꭧ 2
18 7.5 A Accessory
19 20 A Left Power Seat Slide
20 20 A Panoramic Glass Roof
21 20 A Left Power Seat Reclining
22 20 A Rear Left Power Window
23 15 A Accessory Power Socket
(Console Box)
24 20 A Left Front Power Window
25 15 A Left Door Lock
26 10 A Left Front Fog Light
27 10 A Left Small Light (Exterior)
28 10 A Left Daytime Running Light
29 7.5 A TPMS
30 15 A Left Headlight
31 - Not Used
32 7.5 A STS
ꭧ 2
ꭧ1: On U.S. ADVANCE and Canadian ELITE
models
ꭧ 2: On BASE model
Fuse Locations60009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
Page 610 of 645

The diagrams in this section give you
the dimensions and capacities of
your vehicle and the locations of the
identification numbers. It also
includes information you should
know about your vehicle's tires and
emissions control systems.Identification Numbers
...............
606
Specifications
..............................
608
DOT Tire Quality Grading (U.S. Vehicles)
.................................
610
Tire Labeling
..............................
612
Tire Pressure Monitoring System
(TPMS) -Required Federal
Explanation
.........................
614
Emissions Controls
.....................
616
Three Way Catalytic Converter
................................
618
Emissions Testing
.......................
619
Technical Information
605
Technical Information
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
Page 619 of 645

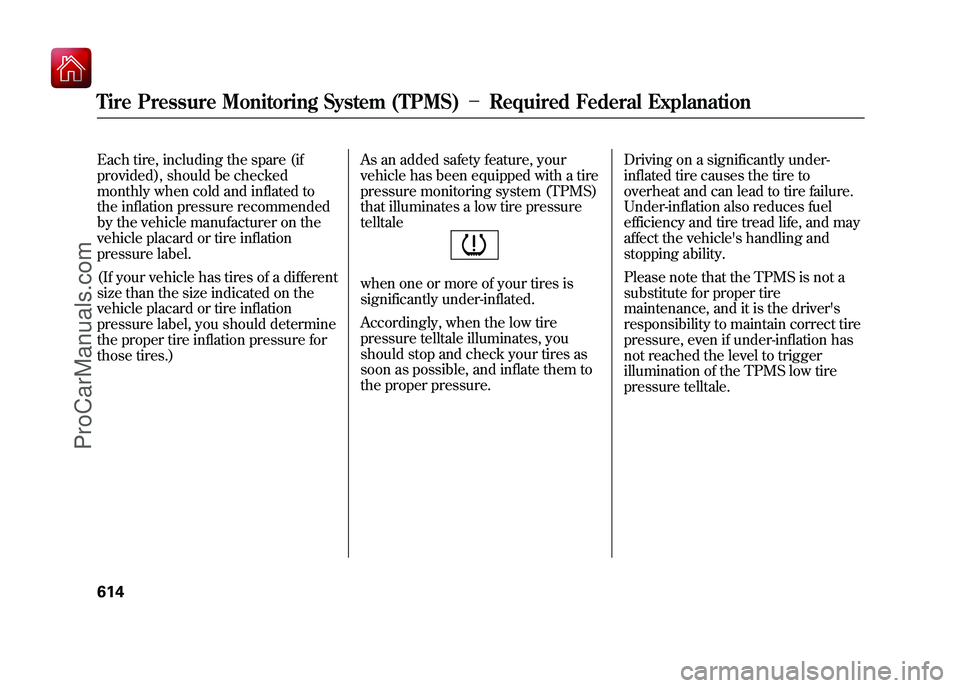

Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated to
the inflation pressure recommended
by the vehicle manufacturer on the
vehicle placard or tire inflation
pressure label.
(If your vehicle has tires of a different
size than the size indicated on the
vehicle placard or tire inflation
pressure label, you should determine
the proper tire inflation pressure for
those tires.)As an added safety feature, your
vehicle has been equipped with a tire
pressure monitoring system (TPMS)
that illuminates a low tire pressure
telltale
when one or more of your tires is
significantly under-inflated.
Accordingly, when the low tire
pressure telltale illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure.Driving on a significantly under-
inflated tire causes the tire to
overheat and can lead to tire failure.
Under-inflation also reduces fuel
efficiency and tire tread life, and may
affect the vehicle's handling and
stopping ability.
Please note that the TPMS is not a
substitute for proper tire
maintenance, and it is the driver's
responsibility to maintain correct tire
pressure, even if under-inflation has
not reached the level to trigger
illumination of the TPMS low tire
pressure telltale.
Tire Pressure Monitoring System (TPMS)
-Required Federal Explanation61409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
Page 620 of 645

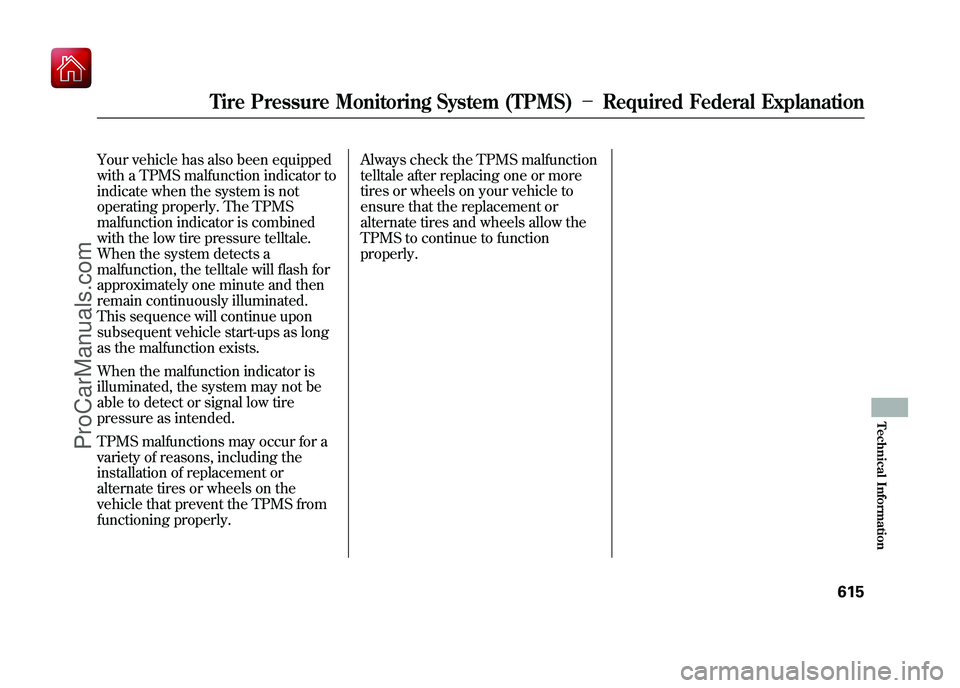

Your vehicle has also been equipped
with a TPMS malfunction indicator to
indicate when the system is not
operating properly. The TPMS
malfunction indicator is combined
with the low tire pressure telltale.
When the system detects a
malfunction, the telltale will flash for
approximately one minute and then
remain continuously illuminated.
This sequence will continue upon
subsequent vehicle start-ups as long
as the malfunction exists.
When the malfunction indicator is
illuminated, the system may not be
able to detect or signal low tire
pressure as intended.
TPMS malfunctions may occur for a
variety of reasons, including the
installation of replacement or
alternate tires or wheels on the
vehicle that prevent the TPMS from
functioning properly.Always check the TPMS malfunction
telltale after replacing one or more
tires or wheels on your vehicle to
ensure that the replacement or
alternate tires and wheels allow the
TPMS to continue to function
properly.
Tire Pressure Monitoring System (TPMS)
-Required Federal Explanation
615
Technical Information
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
Page 641 of 645

Starting the Engine (Models withKeyless Access System)
.........
475
Starting the Engine (Models without Keyless Access
System)
..............................
473
Steam Coming from Engine
.......
589
Steering Wheel Adjustments
............................
145
Anti-theft Column Lock
...........
150
Buttons
...........................
371, 379
Position Memory
....................
180
Stereo Sound System
..........
228, 277
Storage Compartments
..............
214
Storing Your Vehicle
..................
575
Sunglasses Holder
.....................
215
Sun Visor
...................................
216
Super Handling-All Wheel Drive ™
(SH-AWD
®) System
................
487
Supplemental Restraint System
............................
10, 26
Servicing
..................................
37
SRS Indicator
......................
34, 66
System Components
................
26
Synthetic Oil
..............................
546 T
Tachometer
..................................
76
Tailgate
......................................
153
Open Indicator
.........................
69
Opening the
............................
153
Open Monitor
..........................
12
Power
......................................
153
Taillights, Changing Bulbs in
.....
558
Taking Care of the Unexpected
............................
577
Technical Descriptions DOT Tire Quality Grading (U.S. Vehicles)
.............................
610
Emissions Control Systems
.....
616
Three Way Catalytic Converter
............................
618
Tire Labeling
...........................
612
Tire Pressure Monitoring System (TPMS) -Required Federal
Explanation
......................
614
Temperature Gauge
.....................
77
Temperature, Outside
..................
83
Tensioners, Seat Belts
..................
23
Tether Anchorage Points
.............
53 Theft Protection, Radio
..............
374
Three Way Catalytic Converter
...............................
618
Tilt/Telescopic Steering
Wheel
.....................................
145
Time, Setting the
........................
375
Timing Belt
................................
554
Tire Chains
................................
572
Tire, How to Change a Flat
........
579
Tire Information
.........................
612
Tire Labeling
..............................
612
Tire Pressure Monitoring System
(TPMS)
.......................
490, 614
Low Tire Pressure Indicator
........................
69, 490
Tire Pressure Monitor
.......
84, 491
Tires
..........................................
567
Air Pressure
............................
568
Checking Wear
.......................
569
Compact Spare
........................
578
DOT Tire Quality Grading (U.S.
Vehicles)
.............................
610
Inflation
...................................
567
Inspection
...............................
569
Labeling
..................................
612
Maintenance
...........................
570
IndexX09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
Page 642 of 645

Pressure Monitoring System
...
490
Replacing
................................
570
Rotating
..................................
570
Snow
.......................................
571
Specifications
..........................
609
Tire Chains
.............................
572
Tools, Tire Changing
.................
579
Towing A Trailer
..................................
522
Emergency Wrecker
...............
602
Equipment and Accessories
....
524
Trailer Loading
.......................
523
Trailer Towing Tips
.................
525
Weight Limit
...........................
522
TPMS (Tire Pressure Monitoring System)
..............................
490
Required Federal Explanation
.........................
614
Transmission Checking Fluid Level
..............
551
Fluid Selection
........................
551
Identification Number
.............
606
Shifting the Automatic
.............
478
Treadwear
..................................
569
Trip Computer
.............................
87
Trip Meter
...................................
82 Turn Signals
.................................
68
U
Under Floor Storage
..................
214
Unexpected, Taking Care of the
..........................................
577
Uniform Tire Quality Grading
....
610
Unleaded Gasoline
.....................
454
USB Flash Memory Device Error Messages
........................
271, 359
Used Oil, How to Dispose of......
547
V
Vanity Mirror
.............................
217
Vehicle Capacity Load
................
466
Vehicle Dimensions
...................
608
Vehicle Identification Number
...
606
Vehicle Stability Assist (VSA
®),
aka Electronic Stability Control (ESC), System
VSA OFF Indicator
..................
508 Vehicle Stability Assist (VSA)
System
................................
508
VSA OFF Button
.....................
509
VSA OFF Indicator
...................
68
VSA System Indicator
..............
67
Vehicle Storage
..........................
575
VIN
............................................
606
Viscosity, Oil
..............................
545
W
WARNING, Explanation of
...........
iii
Warning Labels, Location of
.........
59
Warranty Coverages (U.S.
only)
.......................................
623
Washer, Windshield Checking the Fluid Level
........
550
Operation
................................
137
Wheels Adjusting the Steering
.............
145
Alignment and Balance
...........
570
Aluminum Alloy Wheels
.........
572
Cleaning
..................................
572
Compact Spare
........................
578
Wrench, Nut
...........................
579
CONTINUED
Index
XI
INDEX
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
