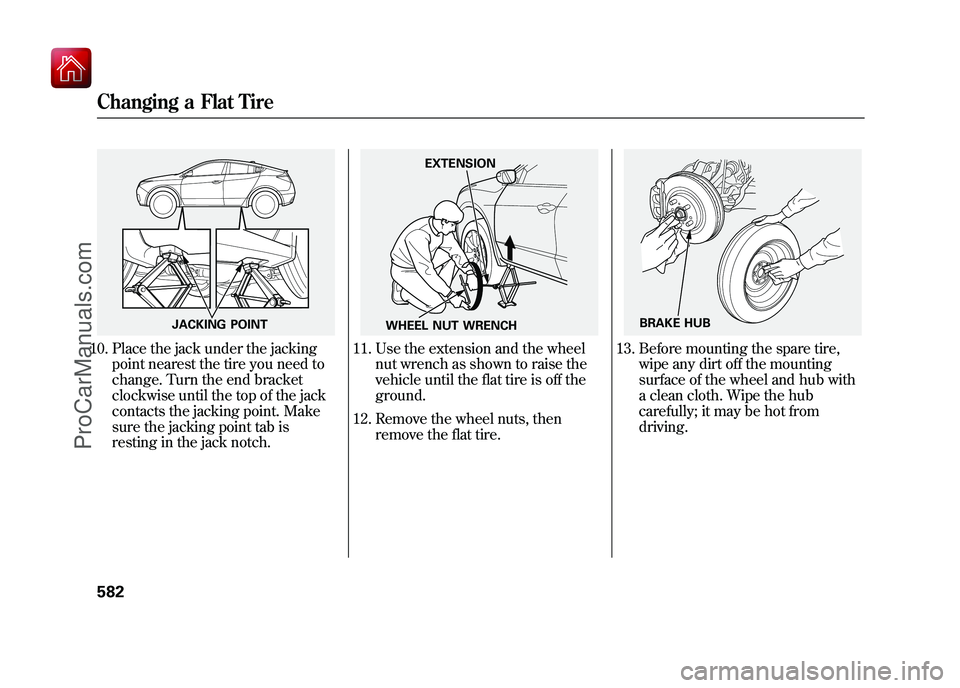

10. Place the jack under the jackingpoint nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
resting in the jack notch.
11. Use the extension and the wheelnut wrench as shown to raise the
vehicle until the flat tire is off the
ground.
12. Remove the wheel nuts, then remove the flat tire.
13. Before mounting the spare tire,wipe any dirt off the mounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully; it may be hot from
driving.
JACKING POINT
WHEEL NUT WRENCH EXTENSION
BRAKE HUB
Changing a Flat Tire58209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Side Airbag Off
....................
35, 67
SRS
.....................................
34, 66
System Message
.................
69, 89
Tire Pressure Monitor
..............
69
Turn Signal and Hazard Warning
...............................
68
VSA OFF
..................................
68
VSA System
.............................
67
Individual Map Lights
................
209
Infant Restraint
............................
44
Infant Seats
..................................
44
Tether Anchorage Point
...........
53
Inflation, Proper Tire
..................
567
Inside Mirror
.............................
177
Inspection, Tire
..........................
569
Installing a Child Seat
..................
48
Instrument Panel
..........................
63
Instrument Panel Brightness
.....
144
Instruments and Controls
.............
61
Integrated Dynamics System (IDS)
......................................
519
Interface Dial
.............................
277
Interior Care
..............................
576
Interior Lights
............................
208
Courtesy Lights
.......................
209
Introduction
...................................
i iPod
®...................................
255, 340
iPod
®Error Messages
.........
263, 348
J
Jacking up the Vehicle
...............
579
Jack, Tire
...................................
579
Jump Starting
.............................
587
K
Keyless Access System
..............
183
Keys
...........................................
147
L
Label, Certification
.....................
606
Lane Change, Signaling
.............
139
Lap/Shoulder Belt
.................
16, 22
LATCH Anchorage System
..........
49
Light Control Buttons
................
208
Lights Bulb Replacement
...................
555
Indicator
...................................
63 Interior
....................................
208
Parking
...................................
139
Load Limit
...........................
466, 522
LOCK (Ignition Key Position)....
150
Locks Anti-theft Steering Column
......
150
Childproof Door
......................
153
Fuel Fill Door
..........................
455
Glove Box
...............................
215
Lockout Prevention
.................
152
Power Door
.............................
151
Tailgate
...................................
153
Low Coolant Level
......................
459
Lower Anchors
.............................
49
Low Fuel Indicator
.......................
72
Low Oil Pressure Indicator
...........................
65, 591
Lubricant Specifications Chart...
608
Luggage, Storing (cargo)
...........
465
M
Maintenance
..............................
531
Main Items and Sub Items
......
538
Minder
....................................
533
IndexVI09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
