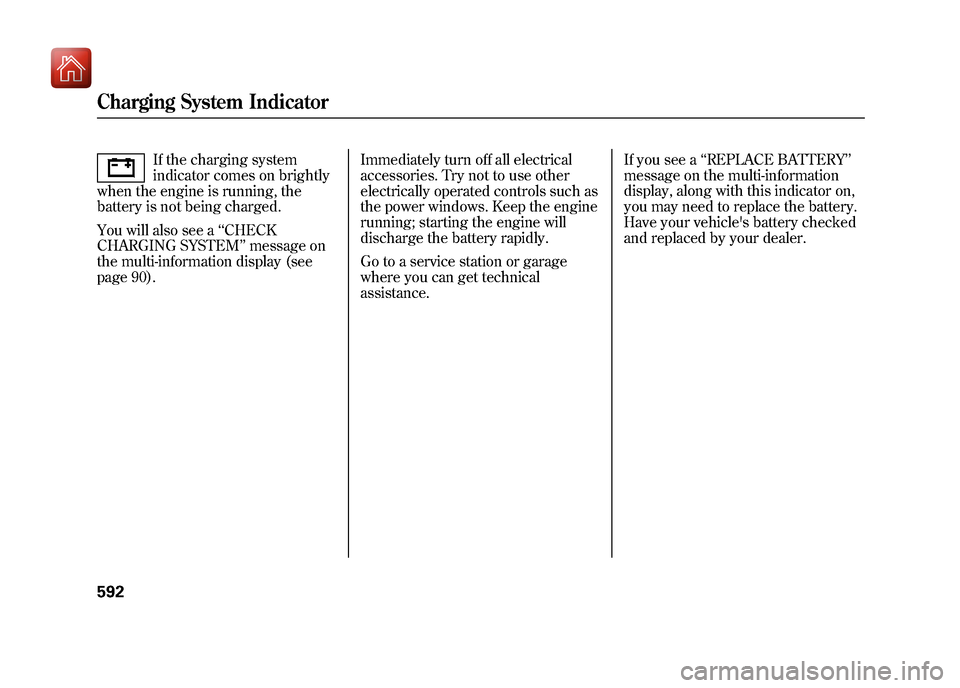

If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
You will also see a ‘‘CHECK
CHARGING SYSTEM ’’message on
the multi-information display (see
page 90). Immediately turn off all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.If you see a
‘‘REPLACE BATTERY ’’
message on the multi-information
display, along with this indicator on,
you may need to replace the battery.
Have your vehicle's battery checked
and replaced by your dealer.
Charging System Indicator59209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

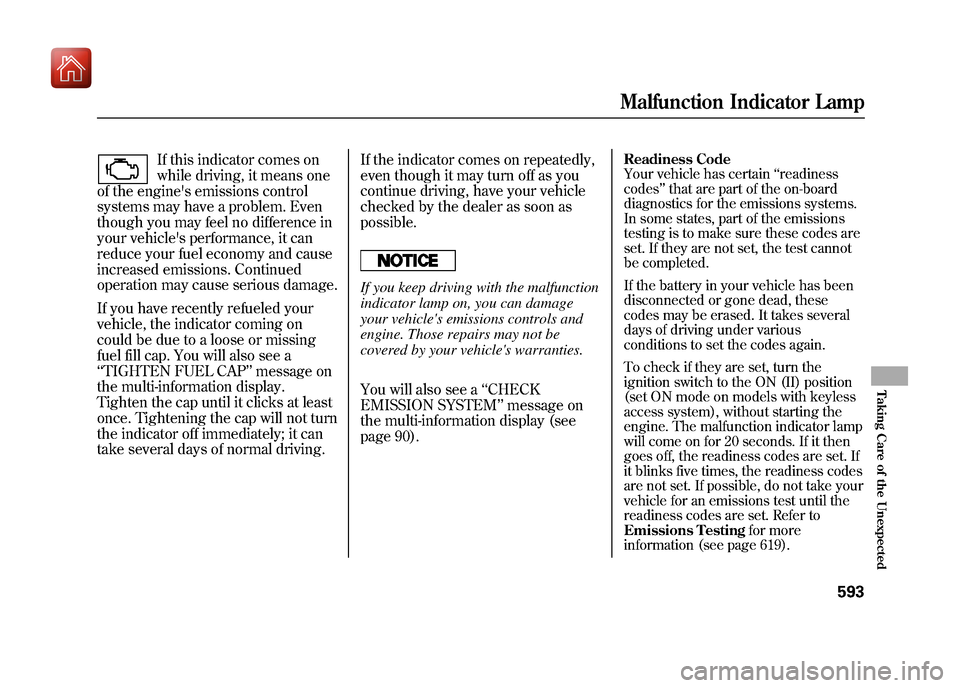

If this indicator comes on
while driving, it means one
of the engine's emissions control
systems may have a problem. Even
though you may feel no difference in
your vehicle's performance, it can
reduce your fuel economy and cause
increased emissions. Continued
operation may cause serious damage.
If you have recently refueled your
vehicle, the indicator coming on
could be due to a loose or missing
fuel fill cap. You will also see a
‘‘ TIGHTEN FUEL CAP ’’message on
the multi-information display.
Tighten the cap until it clicks at least
once. Tightening the cap will not turn
the indicator off immediately; it can
take several days of normal driving. If the indicator comes on repeatedly,
even though it may turn off as you
continue driving, have your vehicle
checked by the dealer as soon as
possible.
If you keep driving with the malfunction
indicator lamp on, you can damage
your vehicle's emissions controls and
engine. Those repairs may not be
covered by your vehicle's warranties.
You will also see a
‘‘CHECK
EMISSION SYSTEM ’’message on
the multi-information display (see
page 90).
Readiness CodeYour vehicle has certain ‘‘readiness
codes ’’that are part of the on-board
diagnostics for the emissions systems.
In some states, part of the emissions
testing is to make sure these codes are
set. If they are not set, the test cannot
be completed.
If the battery in your vehicle has been
disconnected or gone dead, these
codes may be erased. It takes several
days of driving under various
conditions to set the codes again.
To check if they are set, turn the
ignition switch to the ON (II) position
(set ON mode on models with keyless
access system), without starting the
engine. The malfunction indicator lamp
will come on for 20 seconds. If it then
goes off, the readiness codes are set. If
it blinks five times, the readiness codes
are not set. If possible, do not take your
vehicle for an emissions test until the
readiness codes are set. Refer to
Emissions Testing for more
information (see page 619).Malfunction Indicator Lamp
593
Taking Care of the Unexpected
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

U.S. Canada

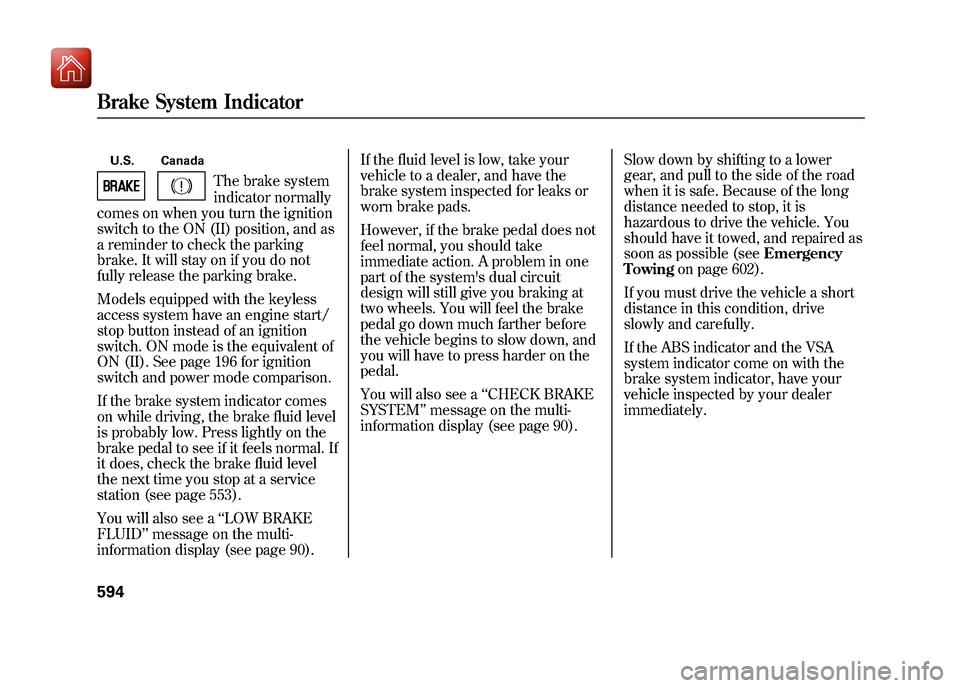

The brake system
indicator normally
comes on when you turn the ignition
switch to the ON (II) position, and as
a reminder to check the parking
brake. It will stay on if you do not
fully release the parking brake.
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON mode is the equivalent of
ON (II). See page 196 for ignition
switch and power mode comparison.
If the brake system indicator comes
on while driving, the brake fluid level
is probably low. Press lightly on the
brake pedal to see if it feels normal. If
it does, check the brake fluid level
the next time you stop at a service
station (see page 553).
You will also see a ‘‘LOW BRAKE
FLUID ’’message on the multi-
information display (see page 90). If the fluid level is low, take your
vehicle to a dealer, and have the
brake system inspected for leaks or
worn brake pads.
However, if the brake pedal does not
feel normal, you should take
immediate action. A problem in one
part of the system's dual circuit
design will still give you braking at
two wheels. You will feel the brake
pedal go down much farther before
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
You will also see a
‘‘CHECK BRAKE
SYSTEM ’’message on the multi-
information display (see page 90). Slow down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed, and repaired as
soon as possible (see
Emergency
Towing on page 602).
If you must drive the vehicle a short
distance in this condition, drive
slowly and carefully.
If the ABS indicator and the VSA
system indicator come on with the
brake system indicator, have your
vehicle inspected by your dealer
immediately.
Brake System Indicator59409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

The primary under-hood fuse box is
on the passenger's side. The
secondary fuse box is located next to
the battery.
To open it, push the tabs as shown.Checking and Replacing Fuses
If something electrical in your
vehicle stops working, the first thing
you should check for is a blown fuse.
Determine from the chart on pages
599, 600, and 601, or the diagram on
the fuse box lid, which fuse or fuses
control that device. Check those
fuses first, but check all the fuses
before deciding that a blown fuse is
the cause. Replace any blown fuses,
and check if the device works.
1. Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are off.
Models equipped with the keyless
access system have an engine
start/stop button instead of an
ignition switch. VEHICLE OFF
(LOCK) mode is the equivalent of
LOCK (0). See page 196 for
ignition switch and power mode
comparison.
2. Remove the cover from the fusebox.
3. Check each of the large fuses in the under-hood fuse boxes by
looking through the top at the wire
inside. Removing these fuses
requires a Phillips-head
screwdriver.FUSE BLOWN
