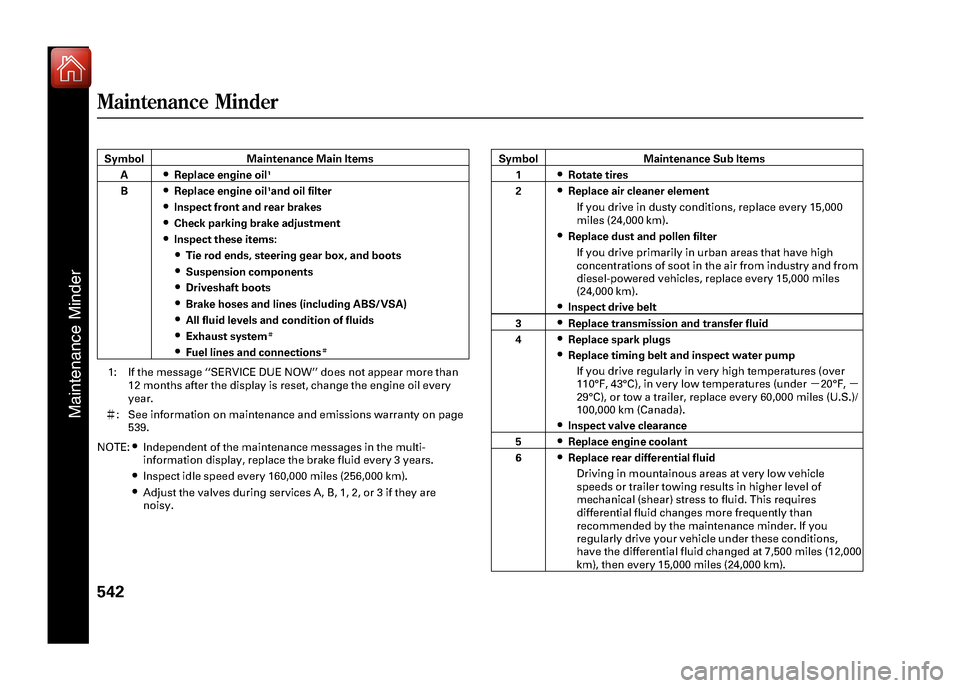

SymbolMaintenance Main Items
A
●Replace engine oil
1
B
●Replace engine oil
1and oil filter
●Inspect front and rear brakes●Check parking brake adjustment●Inspect these items:●Tie rod ends, steering gear box, and boots●Suspension components●Driveshaft boots●Brake hoses and lines (including ABS/VSA)●All fluid levels and condition of fluids●Exhaust system
＃
●Fuel lines and connections
＃
1: If the message ‘‘SERVICE DUE NOW ’’does not appear more than
12 months after the display is reset, change the engine oil every
year.
＃ : See information on maintenance and emissions warranty on page
539.
NOTE:
●Independent of the maintenance messages in the multi-
information display, replace the brake fluid every 3 years.●Inspect idle speed every 160,000 miles (256,000 km).●Adjust the valves during services A, B, 1, 2, or 3 if they are
noisy. Symbol Maintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element
If you drive in dusty conditions, replace every 15,000
miles (24,000 km).●Replace dust and pollen filterIf you drive primarily in urban areas that have high
concentrations of soot in the air from industry and from
diesel-powered vehicles, replace every 15,000 miles
(24,000 km).●Inspect drive belt
3●Replace transmission and transfer fluid
4●Replace spark plugs●Replace timing belt and inspect water pump If you drive regularly in very high temperatures (over
110°F, 43°C), in very low temperatures (under －20°F, －
29°C), or tow a trailer, replace every 60,000 miles (U.S.)/
100,000 km (Canada).●Inspect valve clearance
5●Replace engine coolant
6●Replace rear differential fluid Driving in mountainous areas at very low vehicle
speeds or trailer towing results in higher level of
mechanical (shear) stress to fluid. This requires
differential fluid changes more frequently than
recommended by the maintenance minder. If you
regularly drive your vehicle under these conditions,
have the differential fluid changed at 7,500 miles (12,000
km), then every 15,000 miles (24,000 km).
Maintenance Minder
Maintenance Minder
54209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

LightsHeadlights (high/low beam)
ꭧ1
35 W (D2S)
Daytime running lights 60 W (HB3)
Front side marker lights 5 W
Front turn signal/parking lights 28/8 W (Amber)
Fog lights 55 W (H11)
Side turn signal lights LED
Rear turn signal lights 21 W
Rear side marker lights 3 CP
Stop/taillights 21/5 W
Back-up lights 21 W
License plate lights 5 W
High-mount brake lights LED
Front and rear individual map lights LED
Cargo area light 8 W
Door courtesy lights 3.4 W
Vanity mirror lights 1.4 W
Console compartment light 1.4 W
Glove box light 1.4 W
Foot light LED
Door inner handle light
ꭧ 2
LED
ꭧ1: The low beam headlights are high voltage discharged type. Replacement of a low beam headlight bulb should be performed by your dealer.
ꭧ2: On models with adaptive cruise control (ACC)
Battery Capacity 12 V －60AH/5 HR
12 V －72AH/20 HR Fuses
Interior Driver's side See page 600 or the fuse label attached under the steering column.
Passenger's side See page 601 or the fuse label attached on the inside of fuse box lid.
Under-hood See page 599 or the fuse box cover.
Engine Type Water-cooled, 4-stroke SOHC VTEC V6 gasoline engine
Bore x Stroke 3.54 x 3.78 in (90.0 x 96.0 mm)
Displacement 223.5 cu-in (3,664 cm
3)
Compression ratio 11.2 : 1
Spark plugs DENSO: NGK:SXU22HCR11S
ILZKR7B-11S
Alignment Toe-in Front 0.00 in (0.0 mm)
Rear 0.07 in (2.0 mm)
Camber Front －0.5°
Rear －0.5°
Caster Front 4.64°
Tires Size Front/Rear P255/50R19 103H
Spare T165/80D17 104M
Pressure Front/Rear 32 psi (220 kPa, 2.2 kgf/cm2)
Spare 60 psi (420 kPa, 4.2 kgf/cm2)
Specifications
609
Technical Information
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

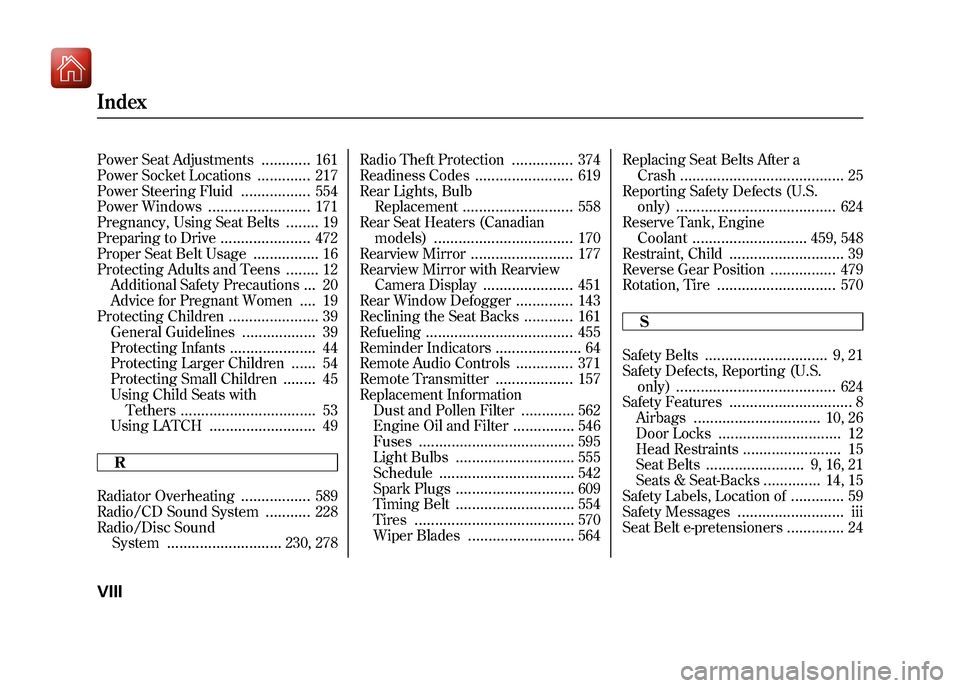

Power Seat Adjustments
............
161
Power Socket Locations
.............
217
Power Steering Fluid
.................
554
Power Windows
.........................
171
Pregnancy, Using Seat Belts
........
19
Preparing to Drive
......................
472
Proper Seat Belt Usage
................
16
Protecting Adults and Teens
........
12
Additional Safety Precautions
...
20
Advice for Pregnant Women
....
19
Protecting Children
......................
39
General Guidelines
..................
39
Protecting Infants
.....................
44
Protecting Larger Children
......
54
Protecting Small Children
........
45
Using Child Seats with Tethers
.................................
53
Using LATCH
..........................
49
R
Radiator Overheating
.................
589
Radio/CD Sound System
...........
228
Radio/Disc Sound System
............................
230, 278 Radio Theft Protection
...............
374
Readiness Codes
........................
619
Rear Lights, Bulb Replacement
...........................
558
Rear Seat Heaters (Canadian models)
..................................
170
Rearview Mirror
.........................
177
Rearview Mirror with Rearview Camera Display
......................
451
Rear Window Defogger
..............
143
Reclining the Seat Backs
............
161
Refueling
....................................
455
Reminder Indicators
.....................
64
Remote Audio Controls
..............
371
Remote Transmitter
...................
157
Replacement Information Dust and Pollen Filter
.............
562
Engine Oil and Filter
...............
546
Fuses
......................................
595
Light Bulbs
.............................
555
Schedule
.................................
542
Spark Plugs
.............................
609
Timing Belt
.............................
554
Tires
.......................................
570
Wiper Blades
..........................
564 Replacing Seat Belts After a
Crash
........................................
25
Reporting Safety Defects (U.S. only)
.......................................
624
Reserve Tank, Engine Coolant
............................
459, 548
Restraint, Child
............................
39
Reverse Gear Position
................
479
Rotation, Tire
.............................
570
S
Safety Belts
..............................
9, 21
Safety Defects, Reporting (U.S.
only)
.......................................
624
Safety Features
..............................
8
Airbags
...............................
10, 26
Door Locks
..............................
12
Head Restraints
........................
15
Seat Belts
........................
9, 16, 21
Seats & Seat-Backs
..............
14, 15
Safety Labels, Location of
.............
59
Safety Messages
..........................
iii
Seat Belt e-pretensioners
..............
24
IndexVIII09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Seat Belts
.................................
9, 21
Additional Information
.............
21
Advice for Pregnant Women
....
19
Automatic Seat Belt
Tensioners
...........................
23
Cleaning
..................................
562
e-pretensioner
..........................
24
Lap/Shoulder Belt
..............
16, 22
Maintenance
............................
25
Reminder Indicator and Beeper
.............................
21, 64
System Components
................
21
Use During Pregnancy
.............
19
Wearing a Lap/Shoulder Belt
..................................
16, 22
Seats
..........................................
161
Head Restraints
.......................
162
Heaters
...........................
167, 168
Position Memory
....................
180
Ventilation
...............................
168
Seats, Adjusting the
...................
161
Security System
.........................
378
Security System Indicator
............
72
Sensors Driver's Seat Position Sensor
...
30 Front Passenger's Weight
Sensors
................................
30
Impact Sensors
........................
26
Serial Number
............................
606
Service Intervals
.........................
533
Service Manual (U.S. only)
........
625
Service Station Procedures
........
455
Setting the Clock
........................
375
SH-AWD
®...................................
487
Indicator
...................................
70
Shifting the Automatic Transmission
..........................
478
Shift Lever Position Indicators
...
477
Shift Lock Release
......................
480
Side Airbags
.................................
32
How the Side Airbag Off Indicator Works
...................
35
How Your Side Airbags Work..32
Side Curtain Airbags
....................
33
How Your Side Curtain Airbags Work
....................................
33
Side Marker Lights, Bulb Replacement in
.......................
555
Signaling Turns
............................
68
Snow Tires
.................................
571
Sound System
.....................
228, 277 Spare Tire
..................................
578
Inflating
...........................
567, 578
Specifications
..........................
609
Spark Plugs
................................
609
Specifications
.............................
608
Speed Control
............................
379
Speed Limiter
.............................
480
Speedometer
................................
76
SRS, Additional Information
.........
26
Additional Safety Precautions
...
37
Airbag Service
..........................
37
Airbag System Components
.....
26
How the Side Airbag Off Indicator Works
...................
35
How the SRS Indicator Works..34
How Your Front Airbags Work
....................................
28
How Your Side Airbags Work..32
How Your Side Curtain Airbags Work
....................................
33
SRS Indicator
.........................
34, 66
START (Ignition Key Position)
.................................
150
Starting the Engine With a Dead Battery
................
587
CONTINUED
Index
IX
INDEX
