341
uuFuses uCircuit Protected and Amps for Each Fuse
Continued
Handling the Unexpected
■Secondary Engine
Compartment
Circuits ProtectedAmps.
1VSA Motor40 A
2VSA FSR20 A
3−−
4−−
5SH-AWD30 A
6Power Tailgate Motor40 A
7Tilt Steering Wheel20 A
8Telescopic Steering Wheel20 A
9Hazard15 A
10Headlight Hi/Lo Solenoid7.5 A
11Power Management System7.5 A
12Smart Accessory*7.5 A
13Rear Seat Heaters20 A
14Sunshade20 A
15Power Tailgate Closer20 A
16−−
17−−
18−−
19−−
20−−
21−−
22−−
■Driver Side Interior
Circuits ProtectedAmps.
1Front Seat Heaters and Seat
Ventilation/Blind Spot Information
*
7.5 A
2SH-AWD/Headlight
Adjuster7.5 A
3Washer20 A
4Wiper7.5 A
5OPDS7.5 A
6VSA7.5 A
7−−
8STRLD7.5 A
9Fuel Pump20 A
10VB Solenoid10 A
11SRS10 A
12Meter7.5 A
13ACG15 A
14−−
15Daytime Running Lights7.5 A
16Climate Control System7.5 A
17Accessory Key Lock*7.5 A
18Accessory7.5 A
19Left Power Seat Slide20 A
20Panoramic Glass Roof20 A
21Left Power Seat Reclining20 A
22Rear Left Power Window20 A
23Accessory Power Socket (Console Box)15 A
24Left Front Power Window20 A
25Left Door Lock15 A
26Left Front Fog Light10 A
27Left Small Light (Exterior)10 A
28Left Daytime Running Light10 A
29TPMS7.5 A
30Left Headlight15 A
31−−
32STS*7.5 A
Circuits ProtectedAmps.
* Not available on all models

343
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK 0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller an d replace it with a
new one.
*1: Models with the keyless access system have an ENGINE START/STOP button
instead of an ig nition switch.1Inspecting and Changing Fuses
NOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified ampe rage on the fuse label.
2 Fuse Locations P. 338
There is a fuse puller on the back of the engine
compartment fuse box.
Blown Fuse
Fuse
Combined Fuse
Blown Fuse
Fuse Puller

349

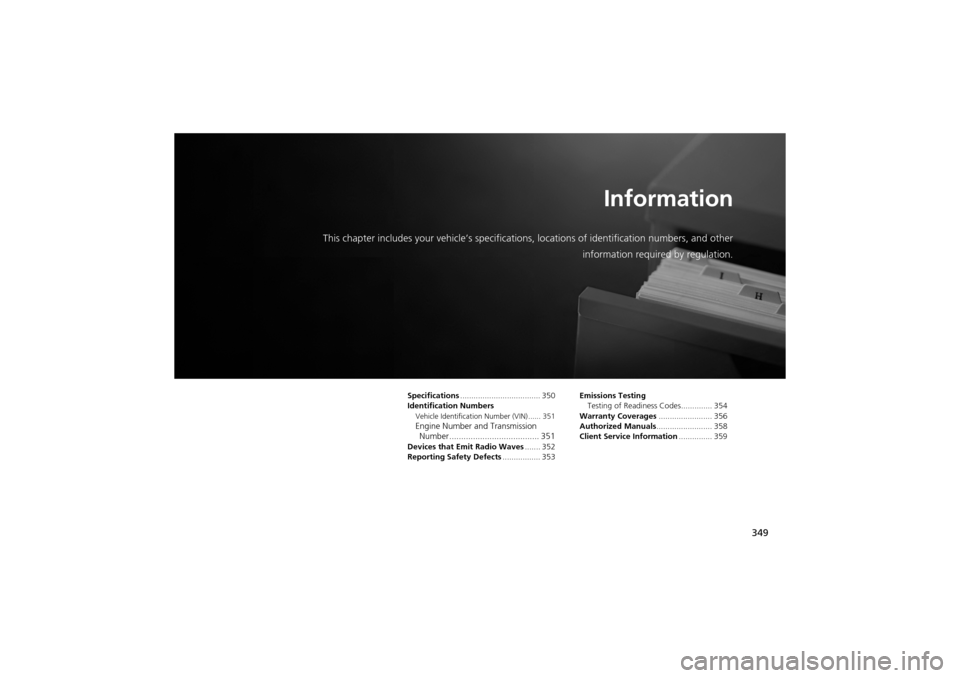

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and otherinformation required by regulation.
Specifications.................................... 350
Identification Numbers
Vehicle Identification Number (VIN) ...... 351Engine Number and Transmission Number...................................... 351
Devices that Emit Radio Waves ....... 352
Reporting Safety Defects ................. 353Emissions Testing
Testing of Readiness Codes.............. 354
Warranty Coverages ........................ 356
Authorized Manuals ......................... 358
Client Service Information............... 359

350
Information

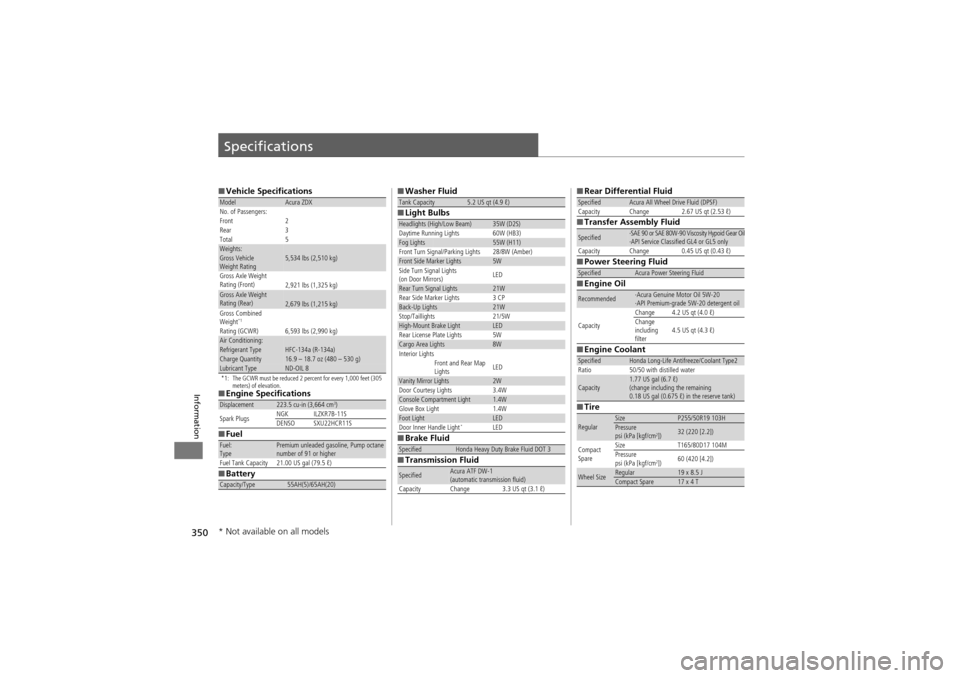

Specifications
■Vehicle Specifications
*1: The GCWR must be reduced 2 percent for every 1,000 feet (305
meters) of elevation.
■Engine Specifications
■ Fuel
■ Battery
ModelAcura ZDX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating 5,534 lbs (2,510 kg)
Gross Axle Weight
Rating (Front)2,921 lbs (1,325 kg)Gross Axle Weight
Rating (Rear)2,679 lbs (1,215 kg)
Gross Combined
Weight
*1
Rating (GCWR) 6,593 lbs (2,990 kg)
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity16.9 – 18.7 oz (480 – 530 g)Lubricant TypeND-OIL 8
Displacement223.5 cu-in (3,664 cm3)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
TypePremium unleaded gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 21.00 US gal (79.5 ℓ)
Capacity/Type55AH(5)/65AH(20)
■ Washer Fluid
■ Light Bulbs
■ Brake Fluid
■ Transmission FluidTank Capacity5.2 US qt (4.9 ℓ)
Headlights (High/Low Beam)35W (D2S)
Daytime Running Lights 60W (HB3)
Fog Lights55W (H11)
Front Turn Signal/Parking Lights 28/8W (Amber)
Front Side Marker Lights5W
Side Turn Signal Lights
(on Door Mirrors) LED
Rear Turn Signal Lights21W
Rear Side Marker Lights 3 CP
Back-Up Lights21W
Stop/Taillights 21/5W
High-Mount Brake LightLED
Rear License Plate Lights 5W
Cargo Area Lights8W
Interior Lights
Front and Rear Map
LightsLED
Vanity Mirror Lights2WDoor Courtesy Lights3.4WConsole Compartment Light1.4WGlove Box Light1.4WFoot LightLEDDoor Inner Handle Light*LED
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedAcura ATF DW-1
(automatic transmission fluid)
Capacity Change 3.3 US qt (3.1 ℓ)
■ Rear Differential Fluid
■ Transfer Assembly Fluid
■ Power Steering Fluid
■ Engine Oil
■ Engine Coolant
■ TireSpecifiedAcura All Wheel Drive Fluid (DPSF)
Capacity Change 2.67 US qt (2.53 ℓ)
Specified·SAE 90 or SAE 80W-90 Viscosity Hypoid Gear Oil
·API Service Classified GL4 or GL5 only
Capacity Change 0.45 US qt (0.43 ℓ)
SpecifiedAcura Power Steering Fluid
Recommended·Acura Genuine Motor Oil 5W-20
·API Premium-grade 5W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.77 US gal (6.7 ℓ)
(change including the remaining
0.18 US gal (0.675 ℓ) in the reserve tank)
RegularSizeP255/50R19 103HPressure
psi (kPa [kgf/cm2])32 (220 [2.2])
Compact
Spare Size T165/80D17 104M
Pressure
psi (kPa [kgf/cm
2])
60 (420 [4.2])
Wheel SizeRegular19 x 8.5 JCompact Spare17 x 4 T
* Not available on all models

351
Information

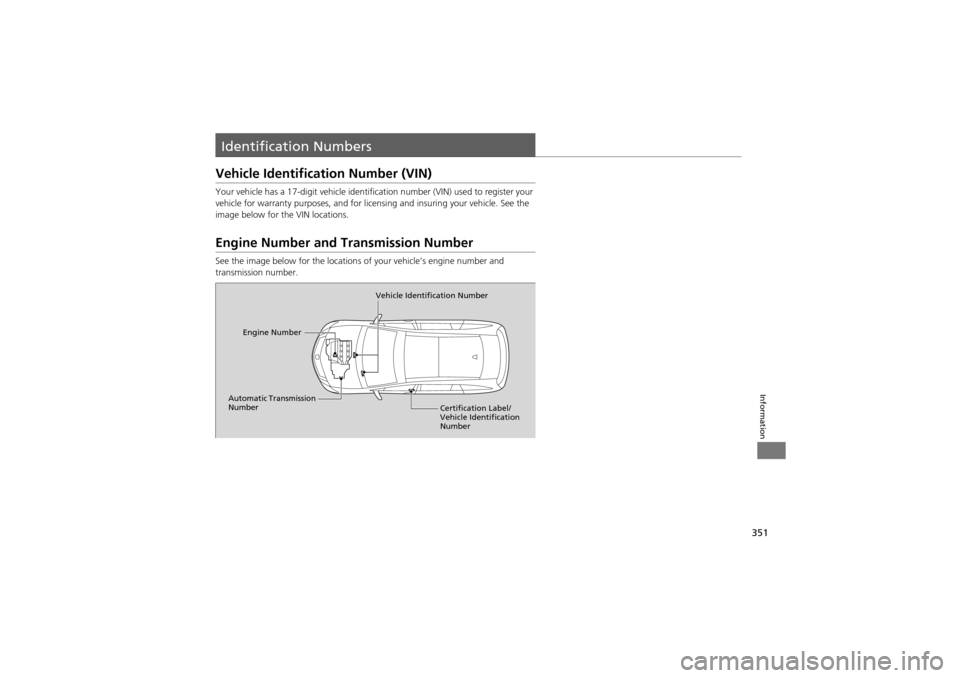

Identification Numbers
Vehicle Identification Number (VIN)
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. See the
image below for the VIN locations.
Engine Number and Transmission Number
See the image below for the locations of your vehicle’s engine number and
transmission number.
Vehicle Identifi cation Number
Engine Number
Certification Label/
Vehicle Identification
Number
Automatic Transmission
Number

354
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle uses “readiness codes,” as part of its onboard self diagnostic system.
Some states refer to these codes during te sting to see if your vehicle’s emissions
components are working properly.
The codes may not be read if you go thro ugh the testing just after the battery has
gone dead or been disconnected.
To check if they are set, tu rn the ignition switch to ON
w*1, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the en gine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touc hing the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
P. Increase the engine speed to 2,000 rpm, and hold it there
until the temperature gauge rises to at l east 1/4 of the scale (about 3 minutes).
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the keyless access system have an ENGINE START/STOP button
instead of an ignition switch.
1 Testing of Readiness Codes
The readiness codes are eras ed when the battery is
disconnected, and set again on ly after several days of
driving under a variety of conditions.
If a testing facility determ ines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility dete rmines the readiness codes
are still not set, see a dealer.

355
uuEmissions Testing uTesting of Readiness Codes
Information

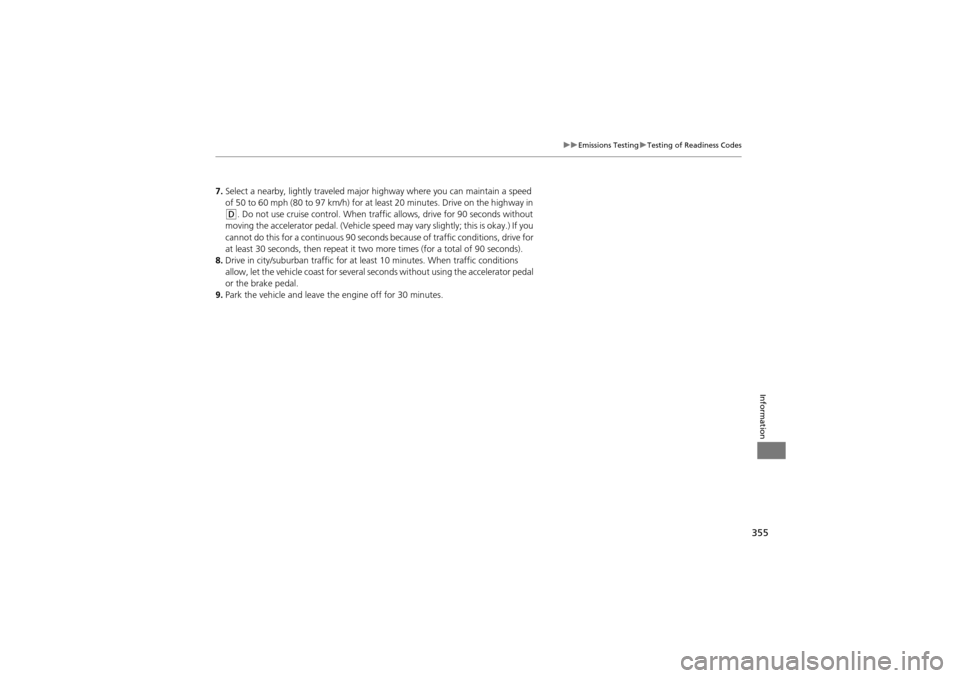

7. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
D. Do not use cruise control. When traffi c allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at l east 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.

358
Information
Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
The publications listed below can be purchased from Helm Incorporated. You can
order a manual by phone at (800) 782-4356 (credit card orders only), or online at
www.helminc.com .
Make an inquiry to Helm Inc. at (800) 782-4356 if you are interested in ordering
other models’ or other years’ manuals.
Publication
Form NumberForm Description
61SZN022012 Acura ZDX Service Manual
61SZN02EL2012 Acura ZDX Electrical Troubleshooting Manual
61SZN302010 Acura ZDX Body Repair Manual
31SZN6202012 Acura ZDX Owner’s Manual
31SZN8202012 Acura ZDX Navigation System Owner’s Manual
31SZNM202012 Acura ZDX Maintenance Journal
31SZNQ202012 Acura ZDX Advanced Technology Guide
ACU-ROrder Form for Previous Years- In dicate Year and Model Desired
1Authorized Manuals
Service Manual:
Covers maintenance and recommended procedures
for repair to engine and chassis components. It is
written for the journeyman te chnician, but it is simple
enough for most mechanically inclined owners to
understand.
Electrical Troubl eshooting Manual:
Complements the Service Manual by providing in-
depth troubleshooting inform ation for each electrical
circuit in your vehicle.
Body Repair Manual:
Describes the procedures in volved in the replacement
of damaged body parts.
Si vous avez besoin d’un Manuel du Conducteur en
français, veuillez demander à votre concessionnaire
de commander le numéro de pièce 33SZNC20
Canadian Owners
U.S. Owners

Index
361
Index
A
ABS (Anti-lock Brake System).................. 255
Accessories and Modifications ................ 267
Accessory Power Sockets ......................... 157
Active Head Restraints ............................. 148
Adaptive Cruise Control (ACC) ................ 235
Additives
Coolant .................................................. 285
Engine Oil ............................................... 280
Washer ................................................... 290
Additives, Engine Oil ............................... 280
Adjusting Armrest .................................................. 150
Front Seats.............................................. 143
Head Restraints ....................................... 145
Mirrors.................................................... 141
Rear Seats ............................................... 149
Steering Wheel ....................................... 140
Temperature ............................................. 91
Air Conditioning System (Climate Control System) ...................... 163
Changing the Mode................................ 163
Defrosting the Windshield and Windows................ ....................... 164
Dust and Pollen Filter .............................. 312
Recirculation/Fresh Air Mo de................... 163
Sensor .................................................... 166
Synchronized Mode ................................ 165
Using Automatic Climate Control............ 163
Air Pressure ...................................... 301, 350 Airbags
........................................................ 35
Advanced Airbags ..................................... 41
After a Collision... ................................ 30, 39
Airbag Care ............................................... 49
Event Data Recorder .................................. 19
Front Airbags (SRS) .................................... 38
Indicator ........................................ 46, 72, 75
Passenger Airbag Off Indicator .................. 47
Sensors...................................................... 35
Side Airbag Cutoff System ......................... 44
Side Airbag Off Indicator ........................... 48
Side Airbags .............................................. 42
Side Curtain Airbags .................................. 45
AM/FM Radio ............................................ 173
Anti-lock Brak e System (ABS) .................. 255
Indicator .................................................... 71
Armrest ..................................................... 150
Audio Remote Controls ............................ 190
Audio System ............................................ 168
Adjusting the Sound ................................ 172
Auxiliary Input Jack ........ .......................... 169
Error Messages ........................................ 188
General Information ................................ 191
MP3/WMA/AAC ...................................... 183
Reactivating............................................. 170
Recommended CDs ................................. 192
Recommended Devices ............................ 194
Remote Controls ..................................... 190
Security Code .......................................... 170
Theft Protection....................................... 170
USB Adapter Cable .................................. 169 USB Flash Drives ...................................... 194
Authorized Manuals ................................ 358
Auto Door Locking/Unlocking ................. 113
Automatic Lighting .................................. 132
Automatic Transmission ........................... 227
Creeping ................................................. 227
Fluid ........................................................ 287
Kickdown ................................................ 227
Operating the Shift Lever........... 13, 229, 231
Sequential Shift Mode ............................. 230
Shift Lever Does Not Move ...................... 331
Shifting ................................................... 228
Auxiliary Input Jack .................................. 169
Average Fuel Economy .............................. 91
Average Speed ........................................... 92
B
Battery...................................................... 309
Charging System Indicato r................. 69, 334
Jump Starting .......................................... 329
Maintenance (Checking th e Battery) ........ 309
Maintenance (Replacing) ......................... 310
Belts (Seat) .................................................. 27
Beverage Holders ..................................... 156
Blind Spot Information (BSI) .................... 246
Bluetooth ® HandsFreeLink ®..................... 197
Bluetooth ®Audio ...................................... 186
Booster Seats (For Children) ...................... 63
Brake System ............................................ 253
Anti-lock Brake System (A BS)................... 255

362
Index
Brake Assist System ................................. 256
Fluid ........................................................ 288
Foot Brake ............................................... 254
Indicator ............................................ 68, 336
Parking Brake .......................................... 253
Brightness Control (Instrument Panel) .... 136
Bulb Replacement ..................................... 291
Back-Up Lights......................................... 296
Daytime Running Light ....... ..................... 294
Fog Lights ................................................ 292
Front Side Marker Lights .......................... 293
Front Turn Signal/Parking Lights ............... 293
Headlights ............................................... 291
High-Mount Brake Light ..... ..................... 297
Rear License Plate Light............................ 297
Side Turn Signal/
Emergency Indicator Lights .................... 294
Stop Light, Taillight, Rear Turn Signal Light and Rear Side Marker Lights.................. 295
Bulb Specifications .................................... 350
C
Carbon Monoxide Gas ................................ 64
Cargo Hooks .............................................. 158
Carrying Cargo .................................. 211, 213
CD Changer ............................................... 177
Certification Label .................................... 351
Changing Bulbs ......................................... 291
Charging System Indicator ................. 69, 334Child Safety
................................................. 50
Childproof Door Locks............................. 112
Child Seat .................................................... 50
Booster Seats ............................................ 63
Child Seat for Infants................................. 52
Child Seat for Small Children ..................... 53
Installing a Child Seat with a Lap/
Shoulder Seat Belt ................................... 58
Larger Children ......................................... 62
Rear-facing Child Seat ......................... ...... 52
Selecting a Child Seat ................................ 54
Using a Tether ........................................... 60
Childproof Door Locks ............................. 112
Cleaning the Exterior ............................... 315
Cleaning the Interior ................................ 313
Client Service Information ....................... 359
Climate Control System ............................ 163
Changing the Mode ................................ 163
Defrosting the Windshield
and Windows ............... ........................ 164
Dust and Pollen Filter............................... 312
Recirculation/Fresh Air Mode ................... 163
Sensor ..................................................... 166
Synchronized Mode................................. 165
Using Automatic Climate Control ............ 166
Clock .......................................................... 102
Coat Hook ................................................. 158
Compact Spare Tire .......................... 319, 350
Console Compartment ............................. 154
Controls ..................................................... 101 Coolant (Engine)
...................................... 285
Adding to the Radiator ... ........................ 286
Adding to the Reserve Tank .................... 285
Overheating ............................................ 332
Temperature Gauge .................................. 87
Creeping ................................................... 227
Cruise Control .......................................... 232
Indicator ................................................... 77
Cup Holders .............................................. 156
Customized Features ................................. 94
D
Daytime Running Lights .......................... 133
Dead Battery ............................................ 329
Devices that Emit Radio Waves ............... 352
Dimming Headlights .............................................. 131
Rearview Mirror .............. ........................ 141
Dipstick (Engine Oil) ................................ 281
Directional Signals (Turn Signal) ............. 131
Door Mirrors ............................................. 142
Doors ........................................................ 103
Auto Door Locking.......... ........................ 113
Auto Door Unlocking ...... ........................ 113
Door and Tailgate Open Indicator ....... 26, 73
Keys........................................................ 103
Locking/Unlocking the Doors from the Inside..................................... 111
Locking/Unlocking the Doors
from the Outside.................................. 106
