fuse Acura ZDX 2012 User Guide

340
uuFuses uCircuit Protected and Amps for Each Fuse
Handling the Unexpected
Circuit Protected and Amps for Each Fuse
The current rating in brackets indicate that
you may find a fuse in the location even if
your particular model is not equipped with
the device the fuse is used for.■Primary Engine Compartment
Circuits ProtectedAmps.
1Battery120 A
Passenger’s Side Fuse Box STD40 A
2−−
−−
Headlight Washer*30 A
Passenger’s Side Fuse Box Option40 A
Right e-pretensioner*30 A
Left e-pretensioner*30 A
3IG Main50 A
Sub Fan Motor40 A
−−
Driver’s Fuse Box STD60 A
Main Fan Motor40 A
Driver’s Light Main30 A
Wiper Motor30 A
−−
4Heater Motor40 A
5Passenger’s Light Main30 A
6−−
7−−
8Rear Defroster40 A
9Trailer Turn/Stop Lights7.5 A
10Stop & Horn15 A
11Trailer Small Lights7.5 A
12ADS*30 A
13IG Coil15 A
14FI Sub15 A
15Back Up10 A
16Interior Light7.5 A
17FI Main15 A
18DBW15 A
19Woofer15 A
20MG Clutch7.5 A
21Radiator Fan Timer7.5 A
Circuits ProtectedAmps.
* Not available on all models

341
uuFuses uCircuit Protected and Amps for Each Fuse
Continued
Handling the Unexpected
■Secondary Engine
Compartment
Circuits ProtectedAmps.
1VSA Motor40 A
2VSA FSR20 A
3−−
4−−
5SH-AWD30 A
6Power Tailgate Motor40 A
7Tilt Steering Wheel20 A
8Telescopic Steering Wheel20 A
9Hazard15 A
10Headlight Hi/Lo Solenoid7.5 A
11Power Management System7.5 A
12Smart Accessory*7.5 A
13Rear Seat Heaters20 A
14Sunshade20 A
15Power Tailgate Closer20 A
16−−
17−−
18−−
19−−
20−−
21−−
22−−
■Driver Side Interior
Circuits ProtectedAmps.
1Front Seat Heaters and Seat
Ventilation/Blind Spot Information
*
7.5 A
2SH-AWD/Headlight
Adjuster7.5 A
3Washer20 A
4Wiper7.5 A
5OPDS7.5 A
6VSA7.5 A
7−−
8STRLD7.5 A
9Fuel Pump20 A
10VB Solenoid10 A
11SRS10 A
12Meter7.5 A
13ACG15 A
14−−
15Daytime Running Lights7.5 A
16Climate Control System7.5 A
17Accessory Key Lock*7.5 A
18Accessory7.5 A
19Left Power Seat Slide20 A
20Panoramic Glass Roof20 A
21Left Power Seat Reclining20 A
22Rear Left Power Window20 A
23Accessory Power Socket (Console Box)15 A
24Left Front Power Window20 A
25Left Door Lock15 A
26Left Front Fog Light10 A
27Left Small Light (Exterior)10 A
28Left Daytime Running Light10 A
29TPMS7.5 A
30Left Headlight15 A
31−−
32STS*7.5 A
Circuits ProtectedAmps.
* Not available on all models

342
uuFuses uCircuit Protected and Amps for Each Fuse
Handling the Unexpected

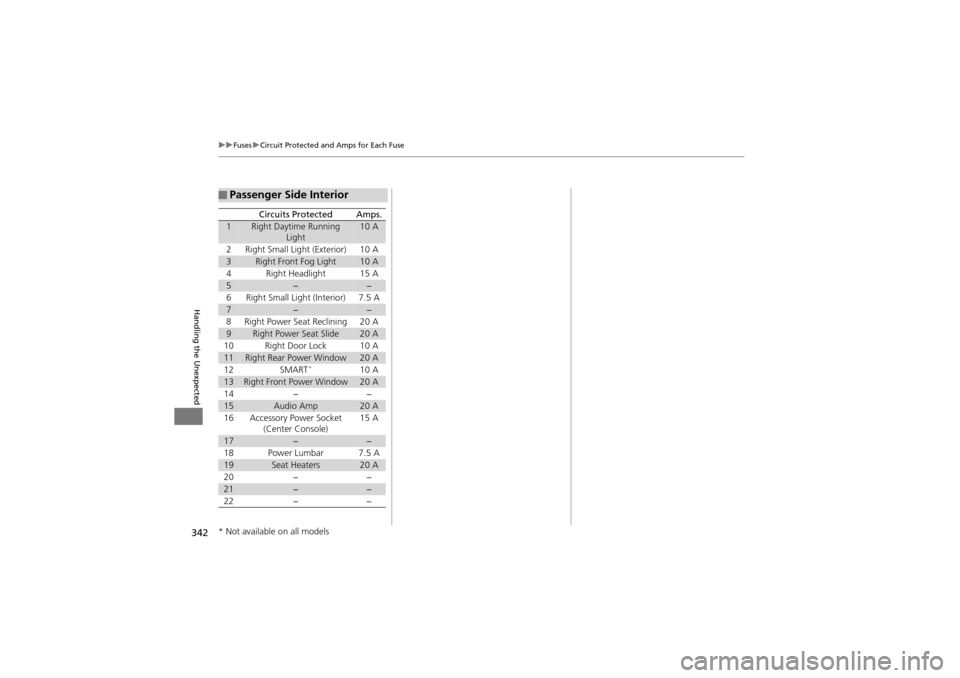

■Passenger Side Interior
Circuits ProtectedAmps.
1Right Daytime Running
Light10 A
2Right Small Light (Exterior)10 A
3Right Front Fog Light10 A
4Right Headlight15 A
5−−
6Right Small Light (Interior)7.5 A
7−−
8Right Power Seat Reclining20 A
9Right Power Seat Slide20 A
10Right Door Lock10 A
11Right Rear Power Window20 A
12SMART*10 A
13Right Front Power Window20 A
14−−
15Audio Amp20 A
16Accessory Power Socket (Center Console)15 A
17−−
18Power Lumbar7.5 A
19Seat Heaters20 A
20−−
21−−
22−−
* Not available on all models

343
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK 0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller an d replace it with a
new one.
*1: Models with the keyless access system have an ENGINE START/STOP button
instead of an ig nition switch.1Inspecting and Changing Fuses
NOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified ampe rage on the fuse label.
2 Fuse Locations P. 338
There is a fuse puller on the back of the engine
compartment fuse box.
Blown Fuse
Fuse
Combined Fuse
Blown Fuse
Fuse Puller
