tailgate Acura ZDX 2012 Owner's Guide

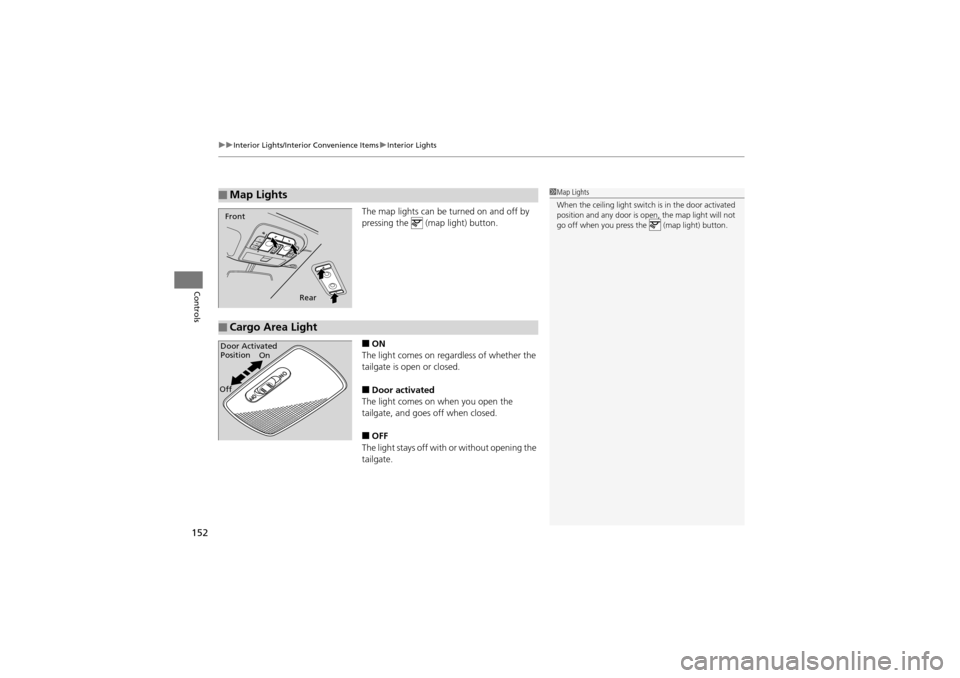

uuInterior Lights/Interior Convenience Items uInterior Lights
152
Controls
The map lights can be turned on and off by
pressing the (map light) button.
■ON
The light comes on regardless of whether the
tailgate is open or closed.
■Door activated
The light comes on when you open the
tailgate, and goes off when closed.
■OFF
The light stays off with or without opening the
tailgate.
■Map Lights1 Map Lights
When the ceiling light switch is in the door activated
position and any door is open, the map light will not
go off when you press the (map light) button.
Front
Rear
■Cargo Area Light
Door Activated
Position
Off On

Continued211

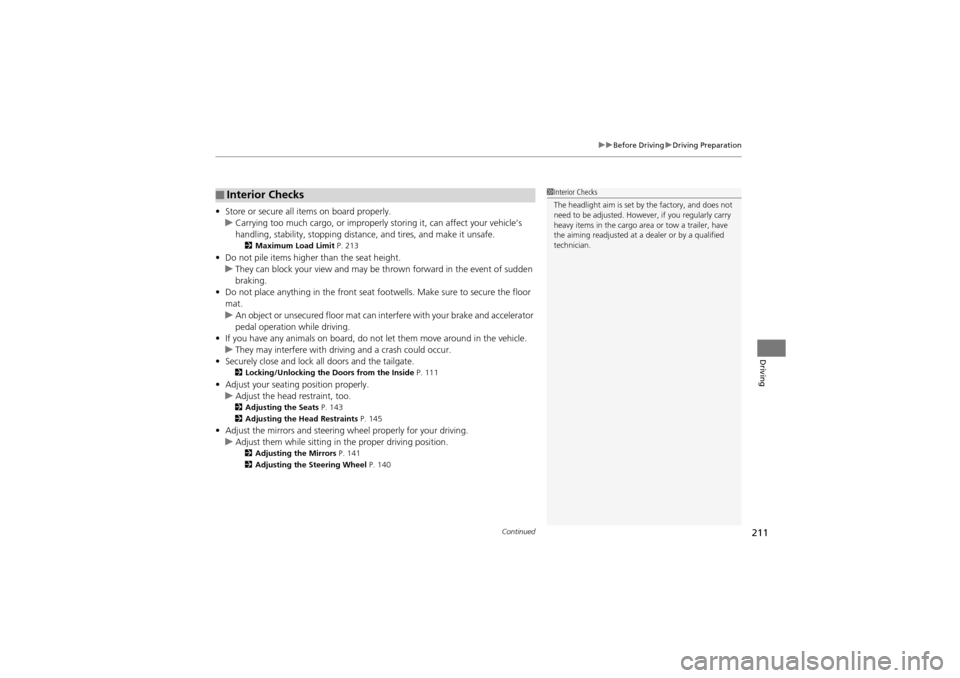

uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, stopping distan ce, and tires, and make it unsafe.
2Maximum Load Limit P. 213
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in th e front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can inte rfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driv ing and a crash could occur.
• Securely close and lock a ll doors and the tailgate.
2Locking/Unlocking the Doors from the Inside P. 111
•Adjust your seating position properly.
u Adjust the head restraint, too.
2 Adjusting the Seats P. 143
2 Adjusting the Head Restraints P. 145
•Adjust the mirrors and steering wheel properly for your driving.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 141
2 Adjusting the Steering Wheel P. 140
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the cargo ar ea or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.

317
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
Tools
Types of Tools .................................. 318
If a Tire Goes Flat Changing a Flat Tire ......................... 319
Engine Does Not Start
Checking the Engine ........................ 326
If the Keyless Access Remote Battery is Weak ..........................................327
Emergency Engine Stop ................... 328
Jump Starting .................................... 329
Shift Lever Do es Not Move.............. 331 Overheating
How to Handle Overheating............. 332
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On ............................................. 334
If the Charging System Indicator Comes
On ................................................. 334
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 335
If the Brake System Indicator (Red) Comes On .................................. 336
If the ECPS Indicator* Comes On ..... 336 If the Low Tire Pres
sure/TPMS Indicator
Comes On or Blinks ....................... 337
Fuses Fuse Locations ................................. 338
Circuit Protected and Amps for Each Fuse............................................ 340
Inspecting and Changing Fuses ........ 343
Emergency Towing ........................... 344
When You Cannot Unlock the Fuel Fill Door ................................................. 346
When You Cannot Open or Close the Tailgate ............................................ 347
* Not available on all models

341
uuFuses uCircuit Protected and Amps for Each Fuse
Continued
Handling the Unexpected
■Secondary Engine
Compartment
Circuits ProtectedAmps.
1VSA Motor40 A
2VSA FSR20 A
3−−
4−−
5SH-AWD30 A
6Power Tailgate Motor40 A
7Tilt Steering Wheel20 A
8Telescopic Steering Wheel20 A
9Hazard15 A
10Headlight Hi/Lo Solenoid7.5 A
11Power Management System7.5 A
12Smart Accessory*7.5 A
13Rear Seat Heaters20 A
14Sunshade20 A
15Power Tailgate Closer20 A
16−−
17−−
18−−
19−−
20−−
21−−
22−−
■Driver Side Interior
Circuits ProtectedAmps.
1Front Seat Heaters and Seat
Ventilation/Blind Spot Information
*
7.5 A
2SH-AWD/Headlight
Adjuster7.5 A
3Washer20 A
4Wiper7.5 A
5OPDS7.5 A
6VSA7.5 A
7−−
8STRLD7.5 A
9Fuel Pump20 A
10VB Solenoid10 A
11SRS10 A
12Meter7.5 A
13ACG15 A
14−−
15Daytime Running Lights7.5 A
16Climate Control System7.5 A
17Accessory Key Lock*7.5 A
18Accessory7.5 A
19Left Power Seat Slide20 A
20Panoramic Glass Roof20 A
21Left Power Seat Reclining20 A
22Rear Left Power Window20 A
23Accessory Power Socket (Console Box)15 A
24Left Front Power Window20 A
25Left Door Lock15 A
26Left Front Fog Light10 A
27Left Small Light (Exterior)10 A
28Left Daytime Running Light10 A
29TPMS7.5 A
30Left Headlight15 A
31−−
32STS*7.5 A
Circuits ProtectedAmps.
* Not available on all models

346
Handling the Unexpected

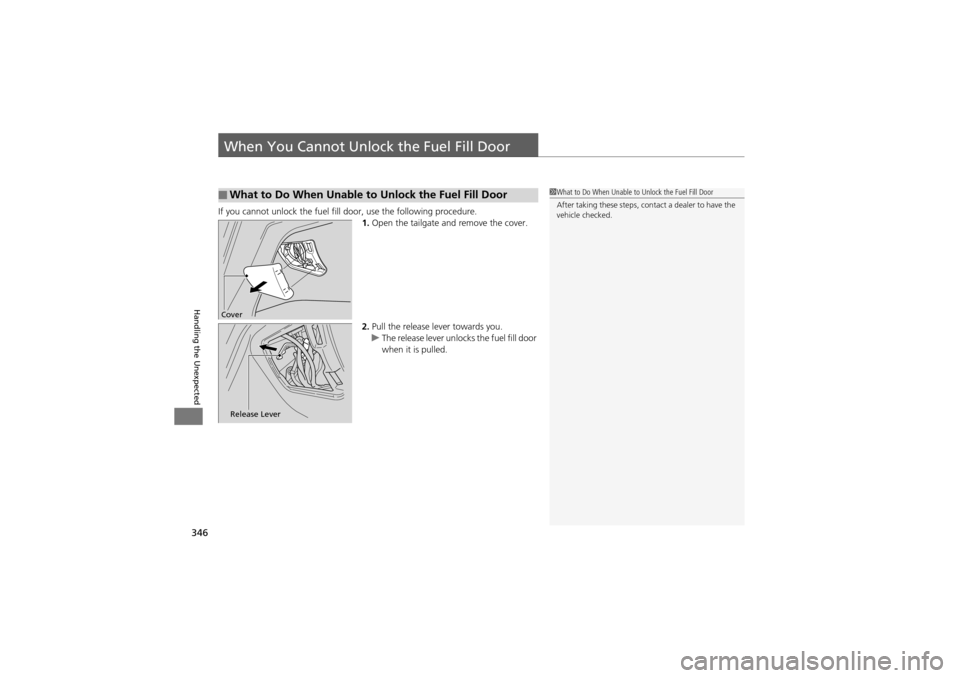

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the tailgate and remove the cover.
2. Pull the release lever towards you.
u The release lever unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have the
vehicle checked.
Cover
Release Lever

347
Handling the Unexpected
When You Cannot Open or Close the Tailgate
If you cannot open or close the tailgate, use the following procedure.
1.Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.
2. To open the tailgate, push the tailgate
while pushing the lever to the right.
■When You Cannot Open or Close the Tailgate1When You Cannot Open or Close the Tailgate
What to do-Following up
After taking these steps, contact a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space ar ound the tailgate, and it
does not hit anyone or any object.
Cover
Lever

362
