338
Handling the Unexpected

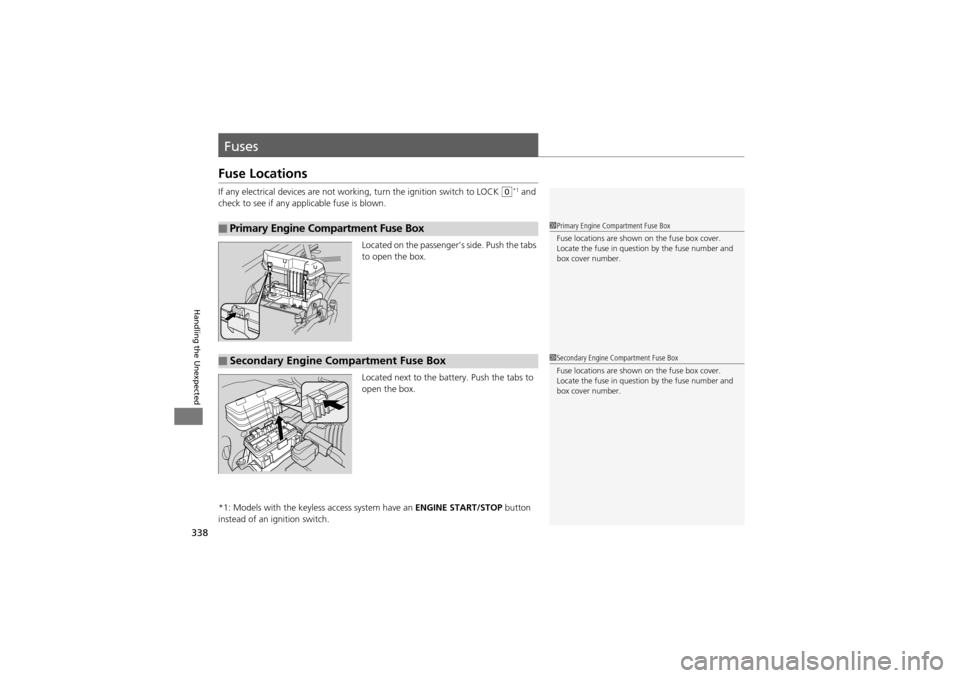

Fuses
Fuse Locations
If any electrical devices are not working, turn the ig nition switch to LOCK 0*1 and
check to see if any applicable fuse is blown.
Located on the passenger’s side. Push the tabs
to open the box.
Located next to the battery. Push the tabs to
open the box.
*1: Models with the keyless access system have an ENGINE START/STOP button
instead of an ignition switch.
■Primary Engine Compartment Fuse Box1 Primary Engine Compartment Fuse Box
Fuse locations are shown on the fuse box cover.
Locate the fuse in questi on by the fuse number and
box cover number.
■Secondary Engine Compartment Fuse Box1 Secondary Engine Compartment Fuse Box
Fuse locations are shown on the fuse box cover.
Locate the fuse in questi on by the fuse number and
box cover number.

339
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Located on the lower side panel. Take off the
cover to open.
■Driver Side Interior Fuse Box1Driver Side Interior Fuse Box
Fuse locations are shown on the label under the
steering column.
Locate the fuse in questi on by the fuse number and
box cover number.
■Passenger Side Interior Fuse Box1 Passenger Side Interior Fuse Box
Fuse locations are shown on the fuse box cover.
Locate the fuse in questi on by the fuse number and
box cover number.

340
uuFuses uCircuit Protected and Amps for Each Fuse
Handling the Unexpected
Circuit Protected and Amps for Each Fuse
The current rating in brackets indicate that
you may find a fuse in the location even if
your particular model is not equipped with
the device the fuse is used for.■Primary Engine Compartment
Circuits ProtectedAmps.
1Battery120 A
Passenger’s Side Fuse Box STD40 A
2−−
−−
Headlight Washer*30 A
Passenger’s Side Fuse Box Option40 A
Right e-pretensioner*30 A
Left e-pretensioner*30 A
3IG Main50 A
Sub Fan Motor40 A
−−
Driver’s Fuse Box STD60 A
Main Fan Motor40 A
Driver’s Light Main30 A
Wiper Motor30 A
−−
4Heater Motor40 A
5Passenger’s Light Main30 A
6−−
7−−
8Rear Defroster40 A
9Trailer Turn/Stop Lights7.5 A
10Stop & Horn15 A
11Trailer Small Lights7.5 A
12ADS*30 A
13IG Coil15 A
14FI Sub15 A
15Back Up10 A
16Interior Light7.5 A
17FI Main15 A
18DBW15 A
19Woofer15 A
20MG Clutch7.5 A
21Radiator Fan Timer7.5 A
Circuits ProtectedAmps.
* Not available on all models

343
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK 0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller an d replace it with a
new one.
*1: Models with the keyless access system have an ENGINE START/STOP button
instead of an ig nition switch.1Inspecting and Changing Fuses
NOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified ampe rage on the fuse label.
2 Fuse Locations P. 338
There is a fuse puller on the back of the engine
compartment fuse box.
Blown Fuse
Fuse
Combined Fuse
Blown Fuse
Fuse Puller

363
