uuReplacing Light BulbsuFog Light Bulbs
Maintenance

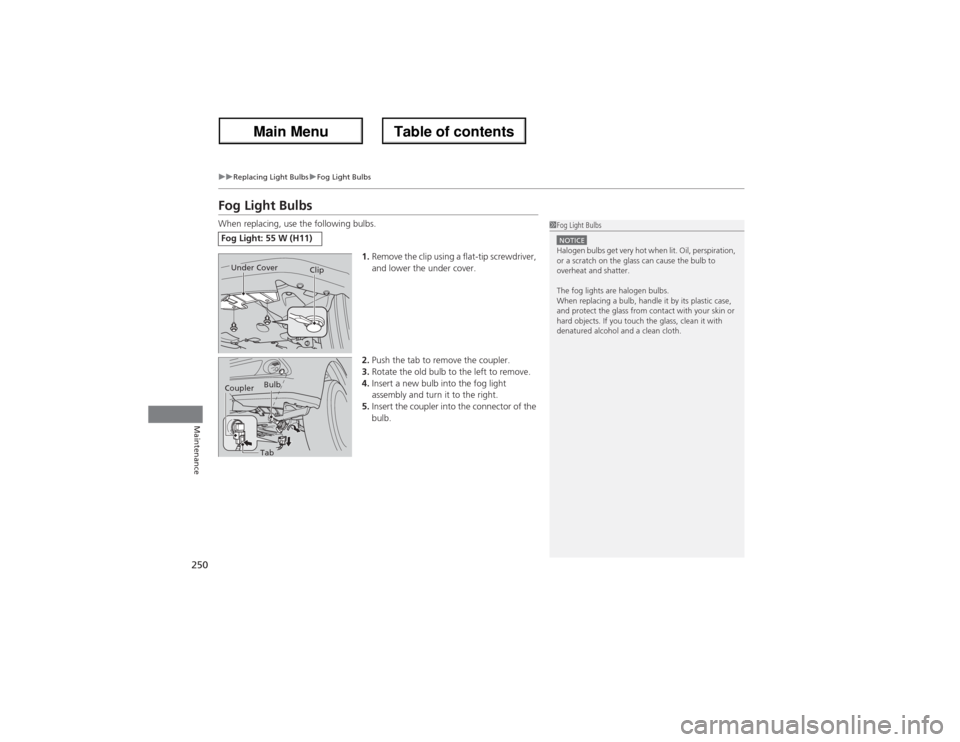

Fog Light BulbsWhen replacing, use the following bulbs.
1.Remove the clip using a flat-tip screwdriver,
and lower the under cover.
2.Push the tab to remove the coupler.
3.Rotate the old bulb to the left to remove.
4.Insert a new bulb into the fog light
assembly and turn it to the right.
5.Insert the coupler into the connector of the
bulb.Fog Light: 55 W (H11)
1Fog Light BulbsNOTICEHalogen bulbs get very hot when lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
The fog lights are halogen bulbs.
When replacing a bulb, handle it by its plastic case,
and protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Under Cover
Clip
Bulb
Coupler
Tab

251
uuReplacing Light BulbsuFront Turn Signal/Parking Light and Front Side Marker Light Bulbs
Maintenance
Front Turn Signal/Parking Light and Front Side Marker Light BulbsWhen replacing, use the following bulbs.
1.Remove the bulkhead cover and engine
compartment covers.
2Engine Compartment Covers P. 237
2.Turn the socket to the left and remove it.
3.Remove the old bulb and insert a new bulb.
Front Turn Signal/Parking Light: 28/8 W (Amber)Front Side Marker Light: 5W
Bulb
Socket
SocketBulb

252
uuReplacing Light BulbsuDaytime Running Light Bulbs
Maintenance

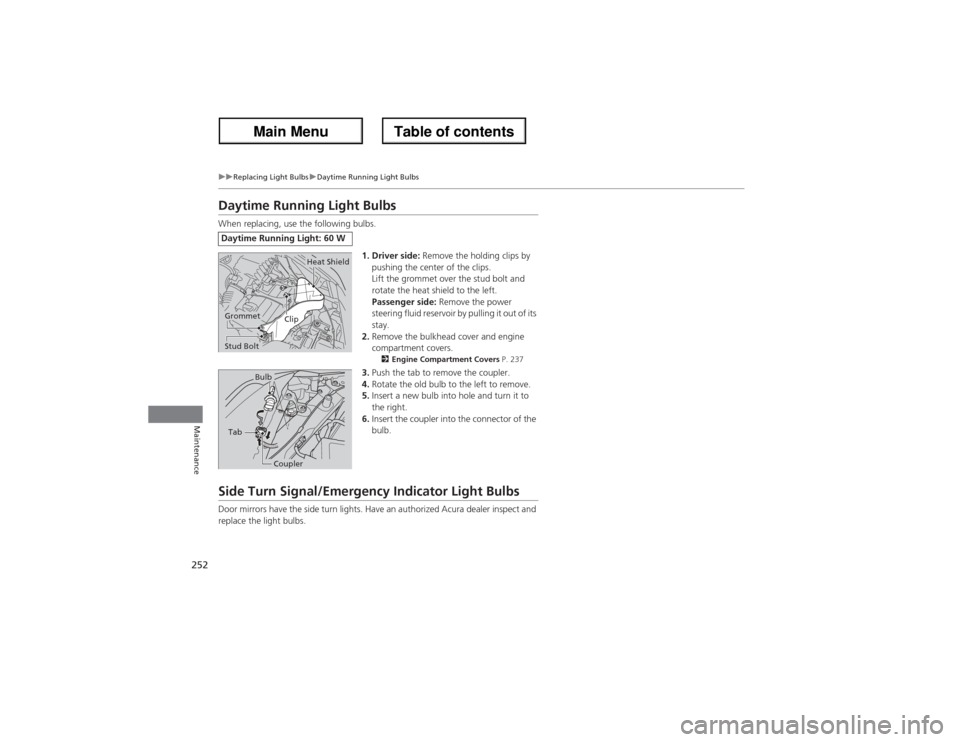

Daytime Running Light BulbsWhen replacing, use the following bulbs.
1. Driver side: Remove the holding clips by
pushing the center of the clips.
Lift the grommet over the stud bolt and
rotate the heat shield to the left.
Passenger side: Remove the power
steering fluid reservoir by pulling it out of its
stay.
2.Remove the bulkhead cover and engine
compartment covers.
2Engine Compartment Covers P. 237
3.Push the tab to remove the coupler.
4.Rotate the old bulb to the left to remove.
5.Insert a new bulb into hole and turn it to
the right.
6.Insert the coupler into the connector of the
bulb.
Side Turn Signal/Emergency Indicator Light BulbsDoor mirrors have the side turn lights. Have an authorized Acura dealer inspect and
replace the light bulbs.Daytime Running Light: 60 W
Clip
Heat Shield
GrommetStud Bolt
Bulb
Tab
Coupler

253

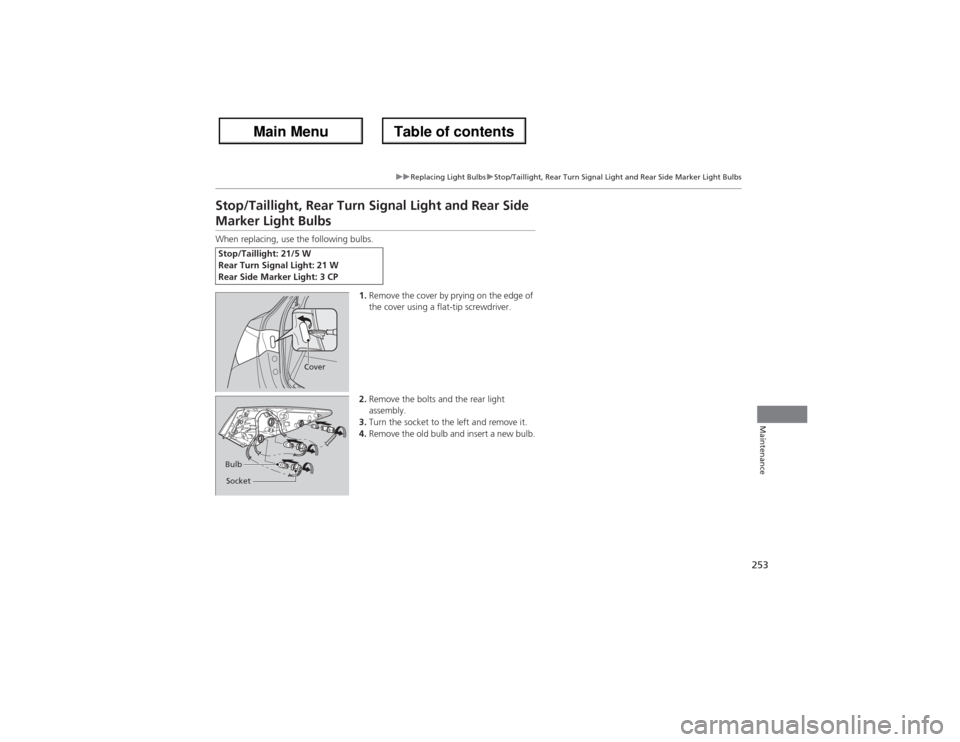

uuReplacing Light BulbsuStop/Taillight, Rear Turn Signal Light and Rear Side Marker Light Bulbs
Maintenance
Stop/Taillight, Rear Turn Signal Light and Rear Side Marker Light BulbsWhen replacing, use the following bulbs.
1.Remove the cover by prying on the edge of
the cover using a flat-tip screwdriver.
2.Remove the bolts and the rear light
assembly.
3.Turn the socket to the left and remove it.
4.Remove the old bulb and insert a new bulb.Stop/Taillight: 21/5 W
Rear Turn Signal Light: 21 W
Rear Side Marker Light: 3 CP
Cover
Bulb
Socket

254
uuReplacing Light BulbsuBack-Up Light Bulbs
Maintenance

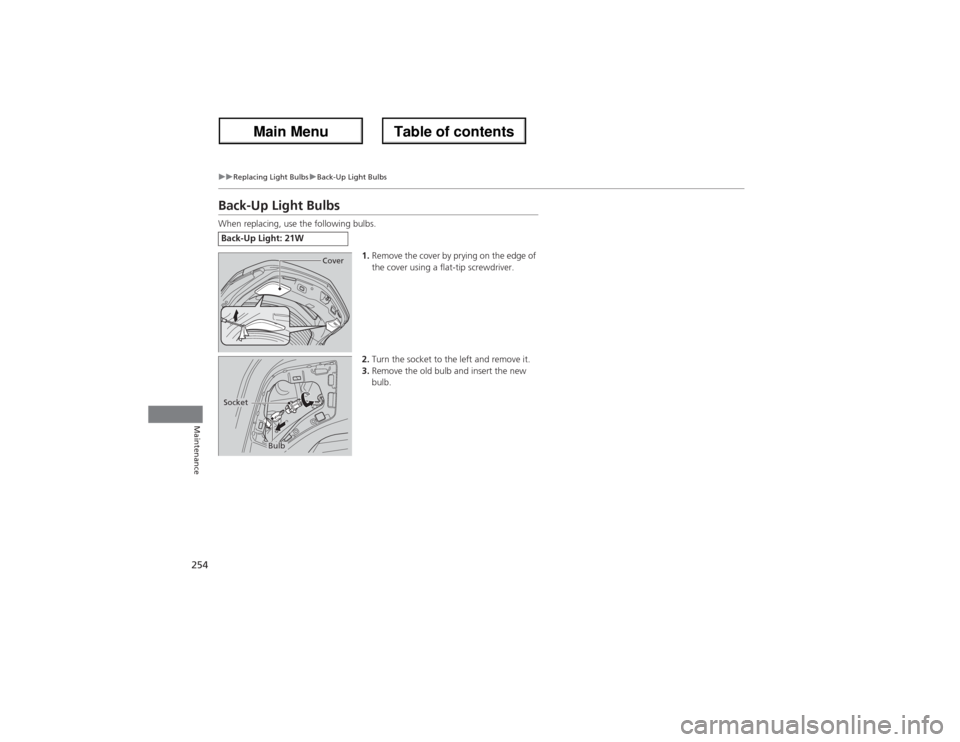

Back-Up Light BulbsWhen replacing, use the following bulbs.
1.Remove the cover by prying on the edge of
the cover using a flat-tip screwdriver.
2.Turn the socket to the left and remove it.
3.Remove the old bulb and insert the new
bulb.Back-Up Light: 21W
Cover
Bulb
Socket

255
uuReplacing Light BulbsuRear License Plate Light Bulb
Maintenance

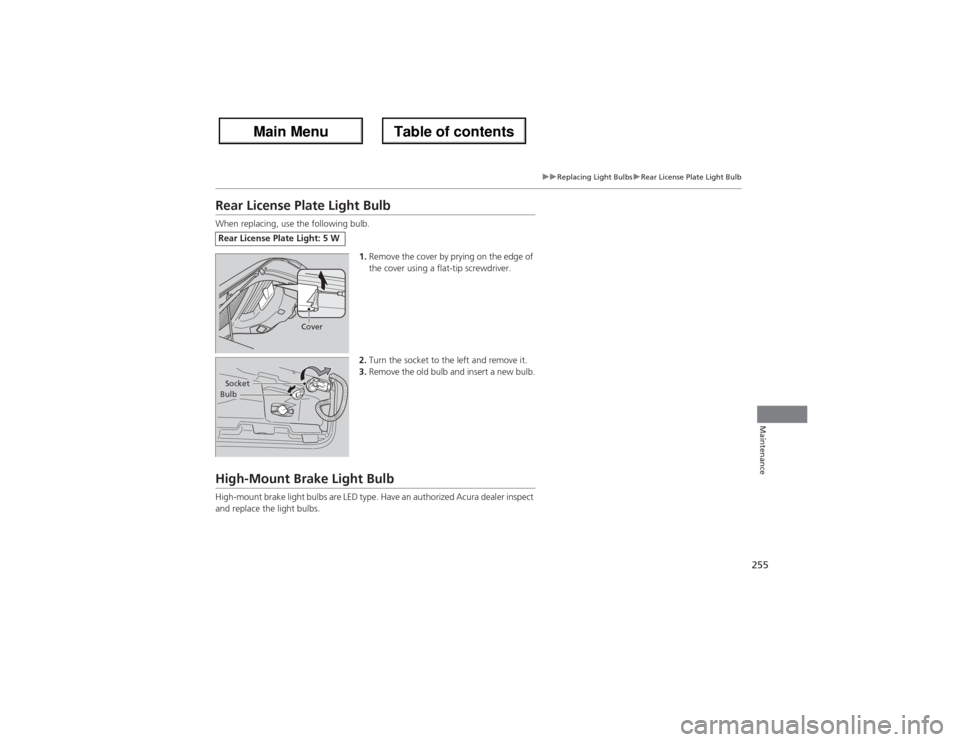

Rear License Plate Light BulbWhen replacing, use the following bulb.
1.Remove the cover by prying on the edge of
the cover using a flat-tip screwdriver.
2.Turn the socket to the left and remove it.
3.Remove the old bulb and insert a new bulb.High-Mount Brake Light BulbHigh-mount brake light bulbs are LED type. Have an authorized Acura dealer inspect
and replace the light bulbs.Rear License Plate Light: 5 W
Cover
BulbSocket

256Maintenance

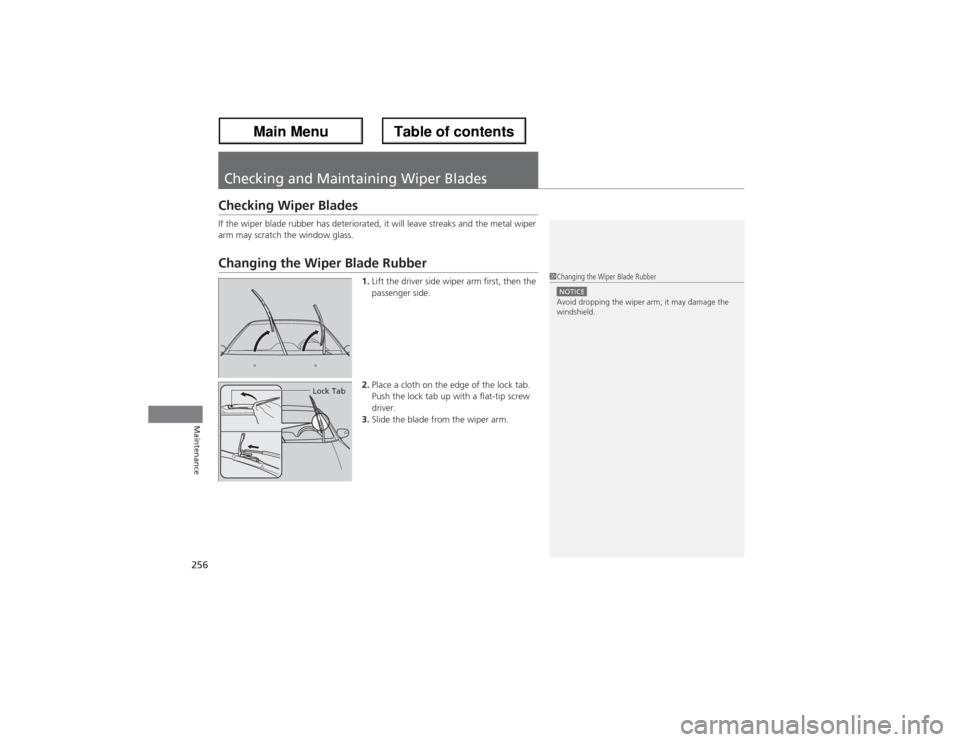

Checking and Maintaining Wiper BladesChecking Wiper BladesIf the wiper blade rubber has deteriorated, it will leave streaks and the metal wiper
arm may scratch the window glass.Changing the Wiper Blade Rubber
1.Lift the driver side wiper arm first, then the
passenger side.
2.Place a cloth on the edge of the lock tab.
Push the lock tab up with a flat-tip screw
driver.
3.Slide the blade from the wiper arm.
1Changing the Wiper Blade RubberNOTICEAvoid dropping the wiper arm; it may damage the
windshield.
Lock Tab

257
uuChecking and Maintaining Wiper BladesuChanging the Wiper Blade Rubber
Maintenance

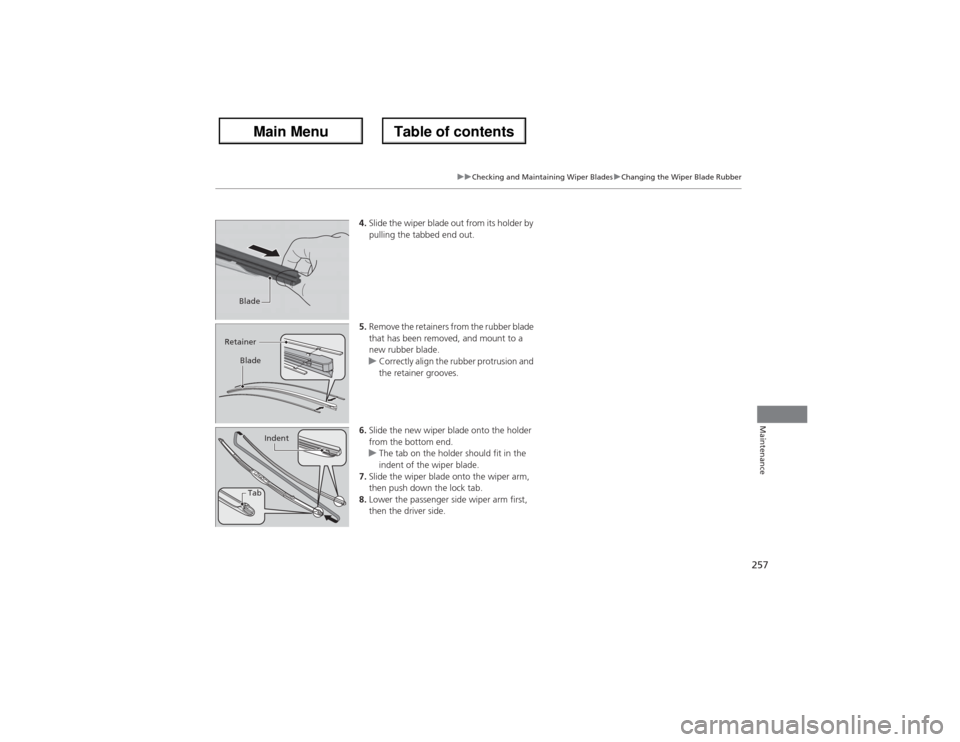

4.Slide the wiper blade out from its holder by
pulling the tabbed end out.
5.Remove the retainers from the rubber blade
that has been removed, and mount to a
new rubber blade.
uCorrectly align the rubber protrusion and
the retainer grooves.
6.Slide the new wiper blade onto the holder
from the bottom end.
uThe tab on the holder should fit in the
indent of the wiper blade.
7.Slide the wiper blade onto the wiper arm,
then push down the lock tab.
8.Lower the passenger side wiper arm first,
then the driver side.
Blade
Retainer
Blade
TabIndent

258Maintenance

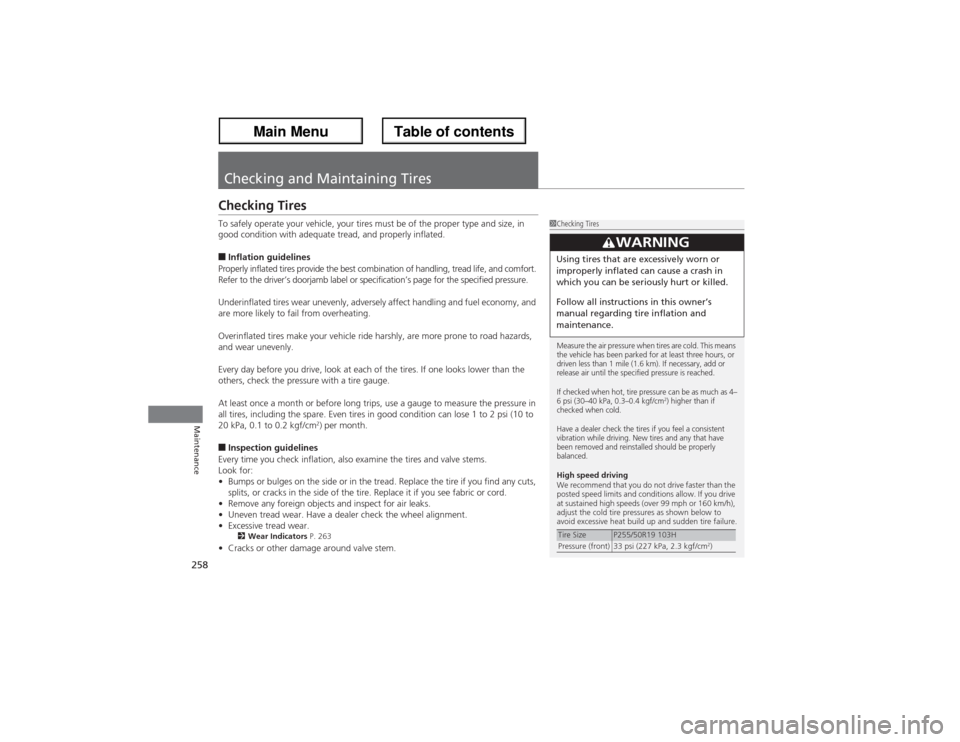

Checking and Maintaining TiresChecking TiresTo safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.■Inflation guidelines
Properly inflated tires provide the best combination of handling, tread life, and comfort.
Refer to the driver’s doorjamb label or specification’s page for the specified pressure.
Underinflated tires wear unevenly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride harshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips, use a gauge to measure the pressure in
all tires, including the spare. Even tires in good condition can lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf/cm
2) per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
•Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire. Replace it if you see fabric or cord.
•Remove any foreign objects and inspect for air leaks.
•Uneven tread wear. Have a dealer check the wheel alignment.
•Excessive tread wear.2Wear Indicators P. 263
•Cracks or other damage around valve stem.
1Checking TiresMeasure the air pressure when tires are cold. This means
the vehicle has been parked for at least three hours, or
driven less than 1 mile (1.6 km). If necessary, add or
release air until the specified pressure is reached.
If checked when hot, tire pressure can be as much as 4–
6 psi (30–40 kPa, 0.3–0.4 kgf/cm
2) higher than if
checked when cold.
Have a dealer check the tires if you feel a consistent
vibration while driving. New tires and any that have
been removed and reinstalled should be properly
balanced.
High speed driving
We recommend that you do not drive faster than the
posted speed limits and conditions allow. If you drive
at sustained high speeds (over 99 mph or 160 km/h),
adjust the cold tire pressures as shown below to
avoid excessive heat build up and sudden tire failure.
3
WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instructions in this owner’s
manual regarding tire inflation and
maintenance.Tire Size
P255/50R19 103H
Pressure (front) 33 psi (227 kPa, 2.3 kgf/cm
2)

259
uuChecking and Maintaining TiresuTire and Loading Information Label
Continued
Maintenance

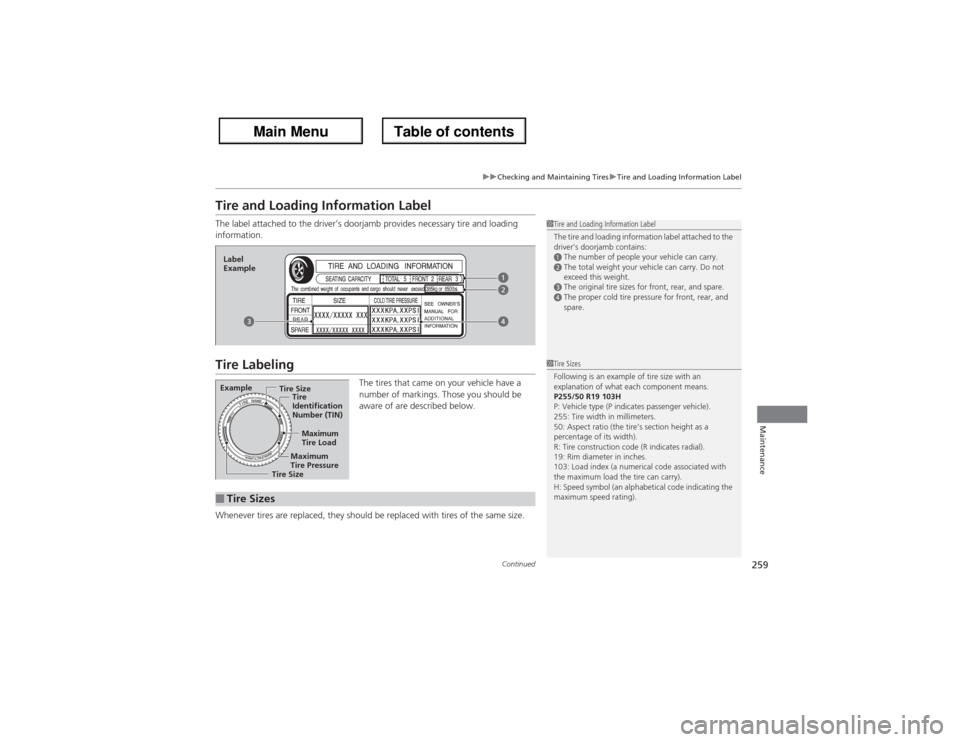

Tire and Loading Information LabelThe label attached to the driver’s doorjamb provides necessary tire and loading
information.Tire Labeling
The tires that came on your vehicle have a
number of markings. Those you should be
aware of are described below.
Whenever tires are replaced, they should be replaced with tires of the same size.
1Tire and Loading Information Label
The tire and loading information label attached to the
driver’s doorjamb contains:aThe number of people your vehicle can carry.bThe total weight your vehicle can carry. Do not
exceed this weight.cThe original tire sizes for front, rear, and spare.dThe proper cold tire pressure for front, rear, and
spare.
Label
ExampleExample
Tire Size
Tire
Identification
Number (TIN)
Maximum
Tire Load
Maximum
Tire Pressure
Tire Size■Tire Sizes
1Tire Sizes
Following is an example of tire size with an
explanation of what each component means.
P255/50 R19 103H
P: Vehicle type (P indicates passenger vehicle).
255: Tire width in millimeters.
50: Aspect ratio (the tire’s section height as a
percentage of its width).
R: Tire construction code (R indicates radial).
19: Rim diameter in inches.
103: Load index (a numerical code associated with
the maximum load the tire can carry).
H: Speed symbol (an alphabetical code indicating the
maximum speed rating).
