uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Set the power mode to VEHICLE OFF
(LOCK).
Turn headlights and all accessories off.
2.Remove the fuse box cover.
3.Check the large fuse in the engine
compartment.
uIf the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4.Inspect the small fuses in the engine
compartment and the vehicle interior.
uIf there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
1Inspecting and Changing FusesNOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
2Fuse Locations P. 295
There is a fuse puller on the back of the engine
compartment fuse box.
Blown Fuse Fuse
Combined Fuse
Blown FuseFuse Puller

301Handling the Unexpected

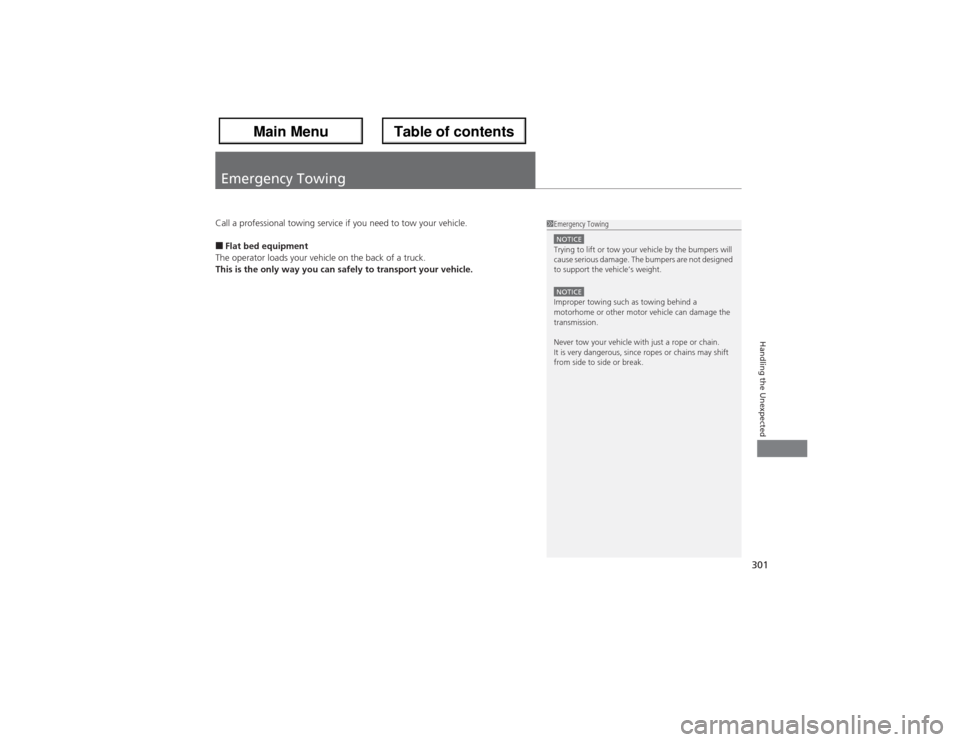

Emergency TowingCall a professional towing service if you need to tow your vehicle.■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely to transport your vehicle.
1Emergency TowingNOTICETrying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.NOTICEImproper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.

302Handling the Unexpected

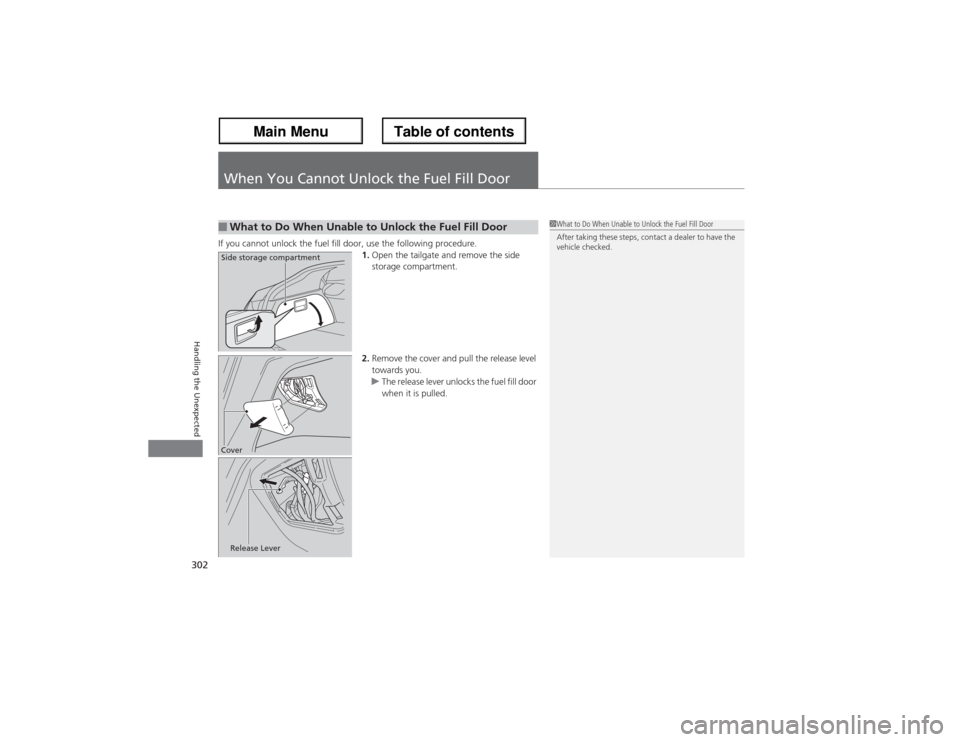

When You Cannot Unlock the Fuel Fill DoorIf you cannot unlock the fuel fill door, use the following procedure.
1.Open the tailgate and remove the side
storage compartment.
2.Remove the cover and pull the release level
towards you.
uThe release lever unlocks the fuel fill door
when it is pulled.■What to Do When Unable to Unlock the Fuel Fill Door
1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have the
vehicle checked.
Side storage compartmentCoverRelease Lever

303Handling the Unexpected
When You Cannot Open or Close the TailgateIf you cannot open or close the tailgate, use the following procedure.
1.Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.
2.To open the tailgate, push the tailgate
while pushing the lever to the right.■When You Cannot Open or Close the Tailgate
1When You Cannot Open or Close the Tailgate
What to do-Following up
After taking these steps, contact a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever

304

305

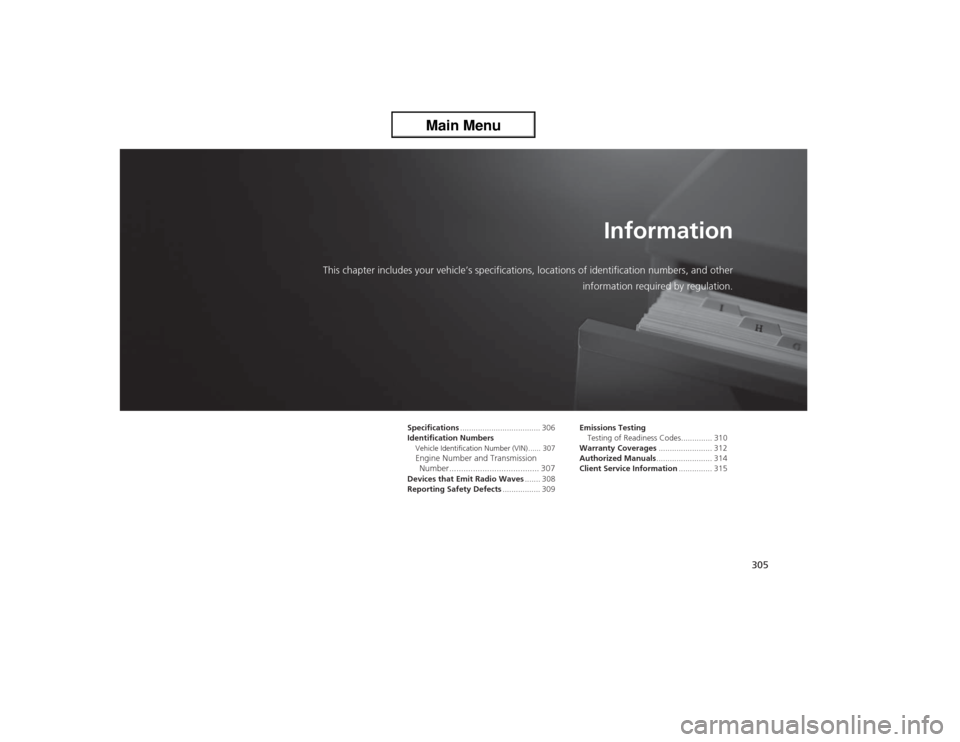

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 306
Identification NumbersVehicle Identification Number (VIN) ...... 307Engine Number and Transmission
Number...................................... 307Devices that Emit Radio Waves....... 308
Reporting Safety Defects................. 309Emissions Testing
Testing of Readiness Codes.............. 310
Warranty Coverages........................ 312
Authorized Manuals......................... 314
Client Service Information............... 315

306Information
Specifications■Vehicle Specifications*1: The GCWR must be reduced 2 percent for every 1,000 feet (305
meters) of elevation.■Engine Specifications
■Fuel
■BatteryModel
Acura ZDX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating
5,534 lbs (2,510 kg)
Gross Axle Weight
Rating (Front)
2,921 lbs (1,325 kg)
Gross Axle Weight
Rating (Rear)
2,679 lbs (1,215 kg)
Gross Combined
Weight
*1
Rating (GCWR) 6,593 lbs (2,990 kg)
Air Conditioning:Refrigerant Type
HFC-134a (R-134a)
Charge Quantity
16.9 – 18.7 oz (480 – 530 g)
Lubricant Type
ND-OIL 8
Displacement
223.5 cu-in (3,664 cm
3)
Spark PlugsNGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
Type
Premium unleaded gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 21.00 US gal (79.5 ℓ)
Capacity/Type
55AH(5)/65AH(20)
■Washer Fluid
■Light Bulbs
■Brake Fluid
■Transmission FluidTank Capacity
5.2 US qt (4.9 ℓ)
Headlights (High/Low Beam)
35W (D2S)
Daytime Running Lights 60W (HB3)
Fog Lights
55W (H11)
Front Turn Signal/Parking Lights 28/8W (Amber)
Front Side Marker Lights
5W
Side Turn Signal Lights (on Door
Mirrors)LED
Rear Turn Signal Lights
21W
Rear Side Marker Lights 3 CP
Back-Up Lights
21W
Stop/Taillights 21/5W
High-Mount Brake Light
LED
Rear License Plate Lights 5W
Cargo Area Lights
8W
Interior Lights
Front and Rear Map
Lights
LED
Vanity Mirror Lights
1.4W
Door Courtesy Lights
3.4W
Console Compartment Light
1.4W
Glove Box Light
1.4W
Foot Light
LED
Specified
Acura Heavy Duty Brake Fluid DOT 3
Specified
Acura ATF DW-1
(automatic transmission fluid)
Capacity Change 3.3 US qt (3.1 ℓ)
■Rear Differential Fluid
■Transfer Assembly Fluid
■Power Steering Fluid
■Engine Oil
■Engine Coolant
■TireSpecified
Acura All Wheel Drive Fluid (DPSF)
Capacity Change 2.67 US qt (2.53 ℓ)
Specified
·SAE 90 or SAE 80W-90 Viscosity Hypoid Gear Oil
·API Service Classified GL4 or GL5 only
Capacity Change 0.45 US qt (0.43 ℓ)
Specified
Acura Power Steering Fluid
Recommended
·Acura Genuine Motor Oil 5W-20
·API Premium-grade 5W-20 detergent oil
CapacityChange 4.2 US qt (4.0 ℓ)
Change
including
filter4.5 US qt (4.3 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.77 US gal (6.7 ℓ)
(change including the remaining
0.18 US gal (0.675 ℓ) in the reserve tank)
Regular
Size
P255/50R19 103H
Pressure
psi (kPa [kgf/cm
2])
32 (220 [2.2])
Compact
SpareSize T165/80D17 104M
Pressure
psi (kPa [kgf/cm
2])60 (420 [4.2])
Wheel Size
Regular
19 x 8.5 J
Compact Spare
17 x 4 T

307Information

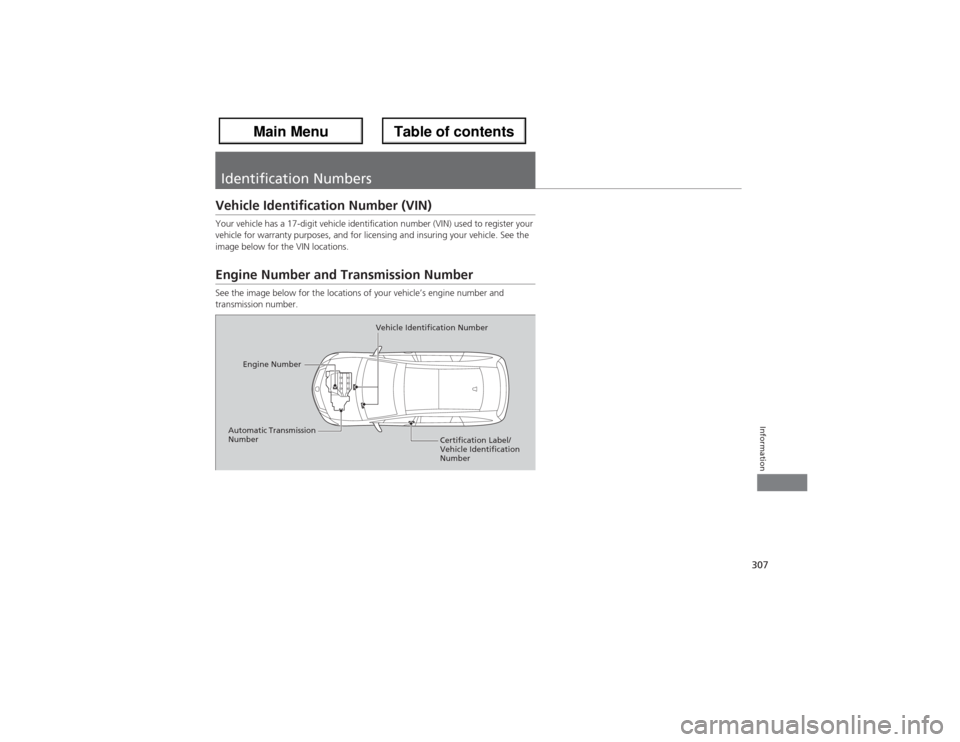

Identification NumbersVehicle Identification Number (VIN)Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. See the
image below for the VIN locations.Engine Number and Transmission NumberSee the image below for the locations of your vehicle’s engine number and
transmission number.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number Automatic Transmission
Number

308Information
Devices that Emit Radio WavesThe following products and systems on your vehicle emit radio waves when in operation.Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.U.S. AcuraLinkBlind Spot InformationBluetooth® HandsFreeLink®HomeLink® Universal TransceiverImmobilizer SystemKeyless Access SystemRemote TransmitterTire Pressure Monitoring System (TPMS)

309Information

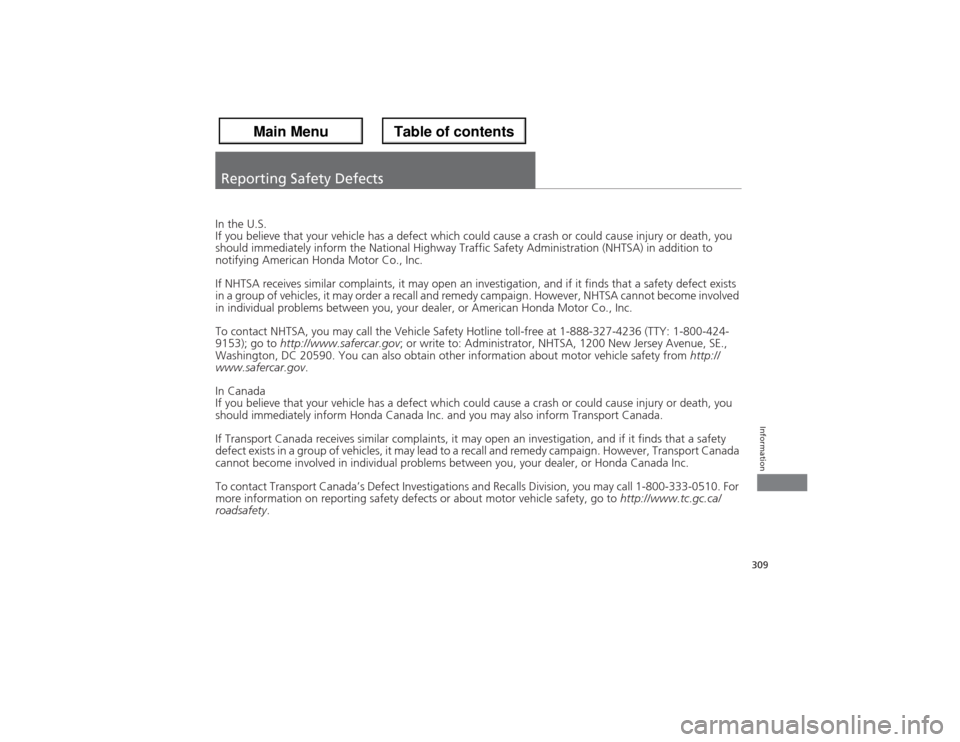

Reporting Safety DefectsIn the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov.
In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety.
