3Quick Reference Guide
❙Headlights/Turn Signals
(P132)
❙Fog Lights
(P134)
❙Paddle Shifter (Shift down)
(P192)
❙Audio Remote Control Buttons() See the Navigation Manual❙Bluetooth® HandsFreeLink® System
Voice Control Buttons() See the Navigation Manual❙Horn (Press an area around .)❙Brightness Control
(P137)
❙Paddle Shifter (Shift up)
(P192)
❙Wipers/Washers
(P135)
❙Cruise Control Buttons
(P193)
❙Keyless Access Remote Slot
(P131)
❙ENGINE START/STOP Button
(P129)
❙SEL/RESET Button
(P87)
❙
(Information) Button
(P87)
* Not available on all models

9Quick Reference Guide
Controls
(P105)
Clock The navigation system receives signals from
GPS satellites, updating the clock
automatically.Turn Signals
(P132)
LeftRightTurn Signal Control Lever
ENGINE START/STOP
Button
(P129)
Press the button to change the vehicle’s
power mode.
Lights
(P132)
Light Control Switches
High Beam
Low
Beam
Flashing
Wipers and Washers
(P135)
Wiper/Washer Control Lever
Adjustment Ring
: Long Delay
: Short DelayMIST
OFF
INT: Low speed with intermittent
LO: Low speed wipe
HI: High speed wipePull toward
you to spray
washer
fluid.

16Quick Reference Guide
What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
●The steering wheel may be locked.●Move the steering wheel left and right after
pressing the ENGINE START/STOP button.
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
The shift lever should be moved to
(P.
Why does the brake pedal
pulsate slightly when
applying the brakes?
This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
The rear door cannot be
opened from inside the
vehicle. Why?
Check if the childproof lock is in the
LOCK position. If so, open the rear
door with the outside door handle.
To cancel this function, push the lever
to the UNLOCK position.

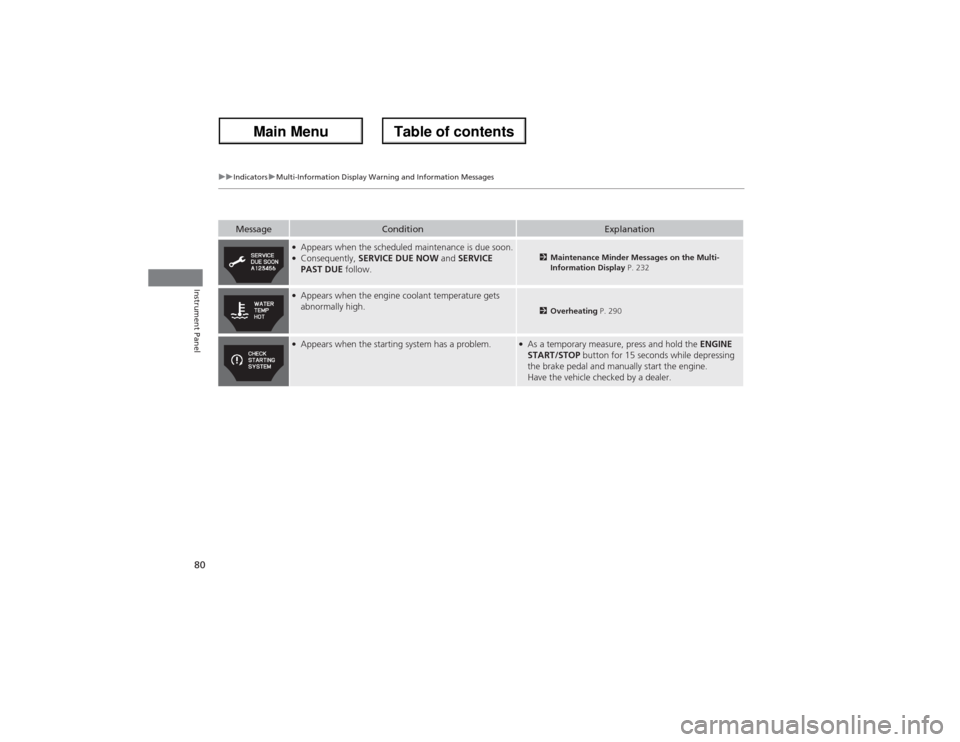

80
uuIndicatorsuMulti-Information Display Warning and Information Messages
Instrument Panel
Message
Condition
Explanation
●Appears when the scheduled maintenance is due soon.●Consequently, SERVICE DUE NOW and SERVICE
PAST DUE follow.
2Maintenance Minder Messages on the Multi-
Information Display P. 232
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 290
●Appears when the starting system has a problem.
●As a temporary measure, press and hold the ENGINE
START/STOP button for 15 seconds while depressing
the brake pedal and manually start the engine.
Have the vehicle checked by a dealer.

83

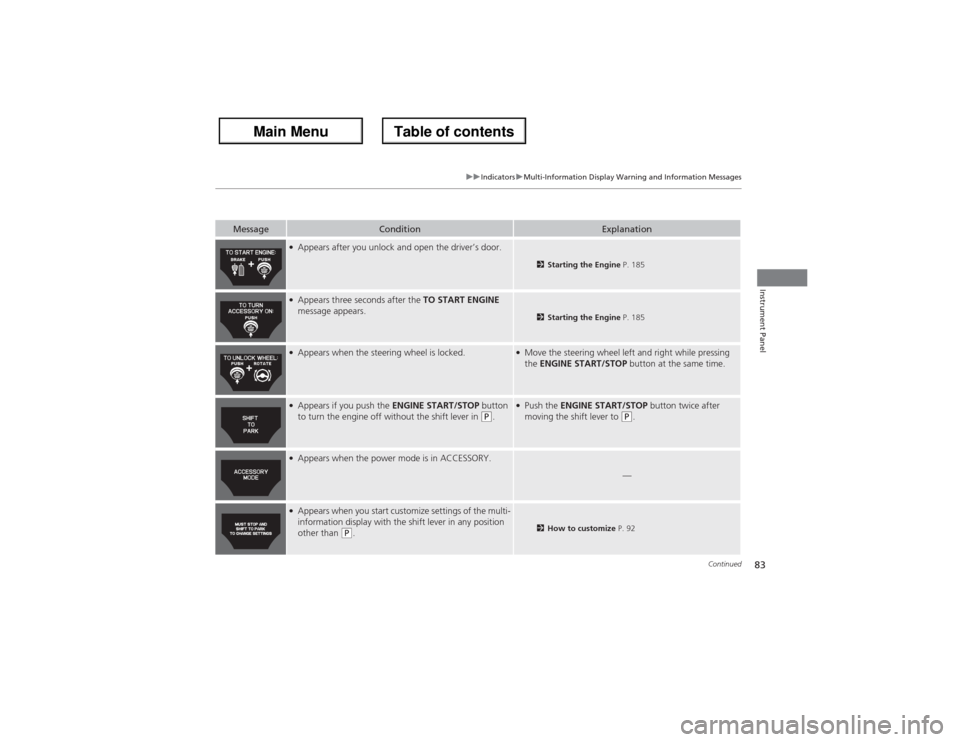

uuIndicatorsuMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
Message
Condition
Explanation
●Appears after you unlock and open the driver’s door.
2Starting the Engine P. 185
●Appears three seconds after the TO START ENGINE
message appears.
2Starting the Engine P. 185
●Appears when the steering wheel is locked.
●Move the steering wheel left and right while pressing
the ENGINE START/STOP button at the same time.
●Appears if you push the ENGINE START/STOP button
to turn the engine off without the shift lever in
(P.
●Push the ENGINE START/STOP button twice after
moving the shift lever to
(P.
●Appears when the power mode is in ACCESSORY.
—
●Appears when you start customize settings of the multi-
information display with the shift lever in any position
other than
(P.
2How to customize P. 92

84

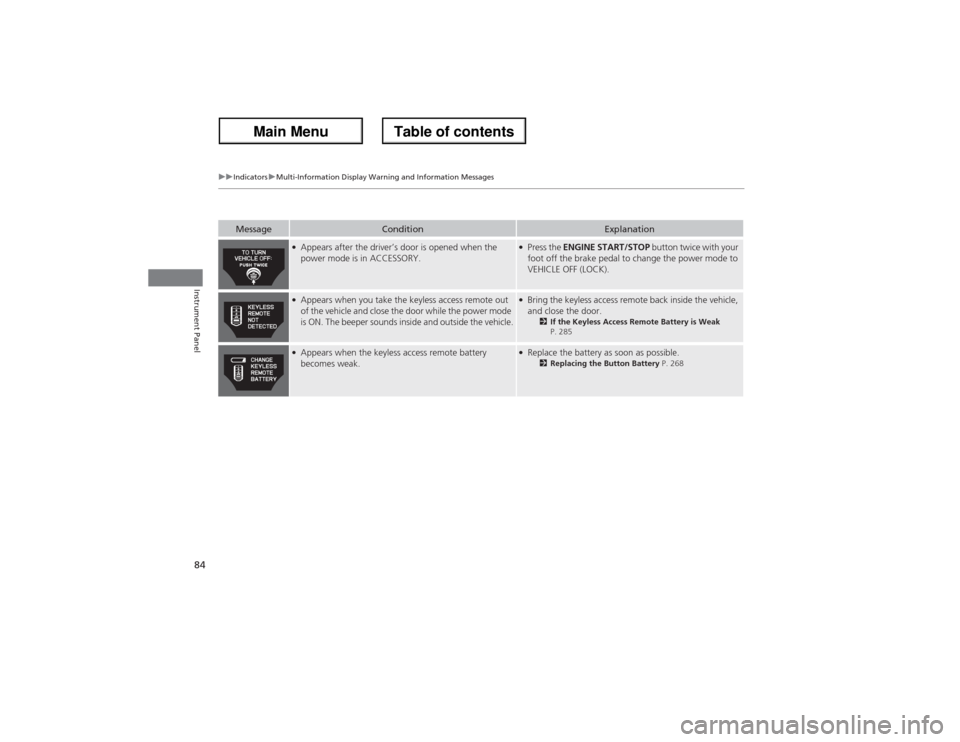

uuIndicatorsuMulti-Information Display Warning and Information Messages
Instrument Panel
Message
Condition
Explanation
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.
●Press the ENGINE START/STOP button twice with your
foot off the brake pedal to change the power mode to
VEHICLE OFF (LOCK).
●Appears when you take the keyless access remote out
of the vehicle and close the door while the power mode
is ON. The beeper sounds inside and outside the vehicle.
●Bring the keyless access remote back inside the vehicle,
and close the door.
2If the Keyless Access Remote Battery is Weak
P. 285
●Appears when the keyless access remote battery
becomes weak.
●Replace the battery as soon as possible.
2Replacing the Button Battery P. 268

85

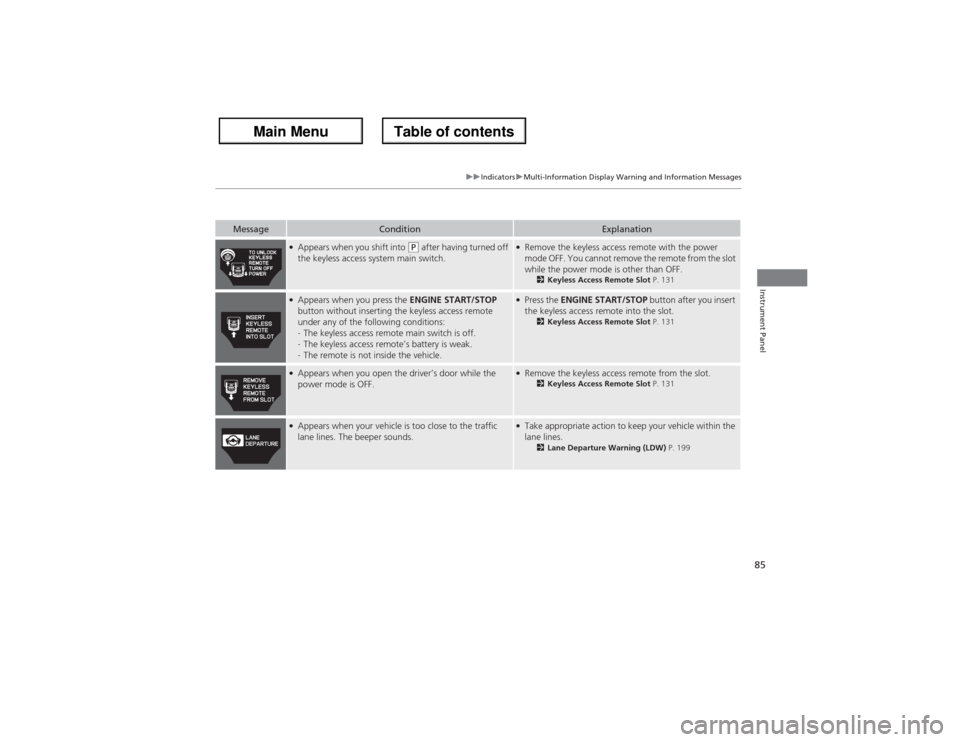

uuIndicatorsuMulti-Information Display Warning and Information Messages
Instrument Panel
Message
Condition
Explanation
●Appears when you shift into
(P after having turned off
the keyless access system main switch.
●Remove the keyless access remote with the power
mode OFF. You cannot remove the remote from the slot
while the power mode is other than OFF.
2Keyless Access Remote Slot P. 131
●Appears when you press the ENGINE START/STOP
button without inserting the keyless access remote
under any of the following conditions:
-The keyless access remote main switch is off.
-The keyless access remote’s battery is weak.
-The remote is not inside the vehicle.
●Press the ENGINE START/STOP button after you insert
the keyless access remote into the slot.
2Keyless Access Remote Slot P. 131
●Appears when you open the driver’s door while the
power mode is OFF.
●Remove the keyless access remote from the slot.
2Keyless Access Remote Slot P. 131
●Appears when your vehicle is too close to the traffic
lane lines. The beeper sounds.
●Take appropriate action to keep your vehicle within the
lane lines.
2Lane Departure Warning (LDW) P. 199

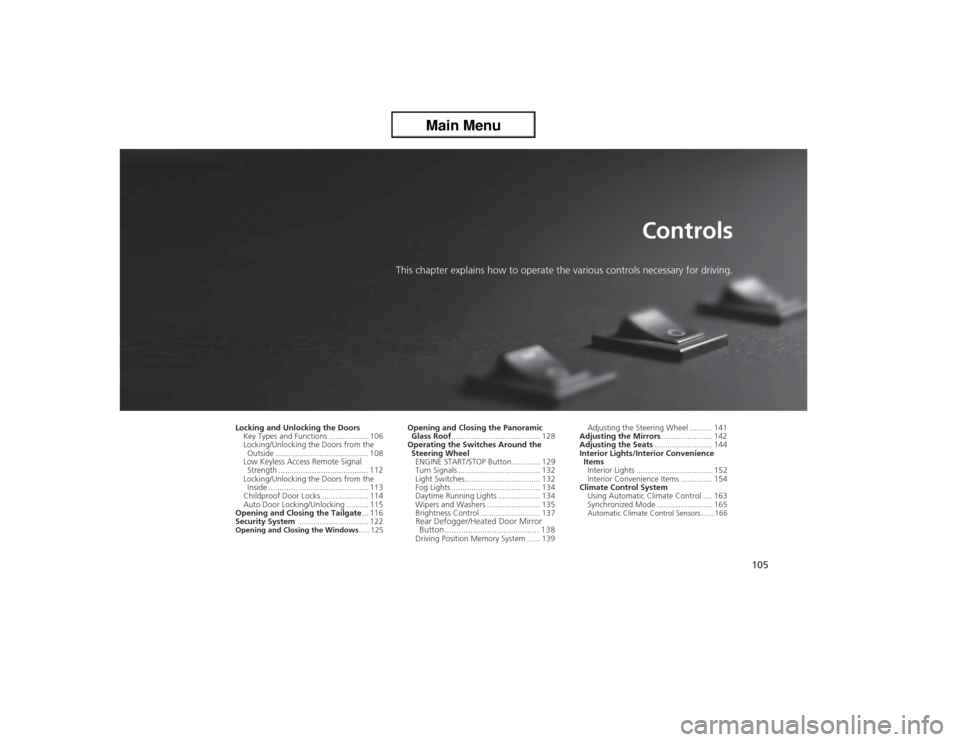

105
Controls
This chapter explains how to operate the various controls necessary for driving.
Locking and Unlocking the Doors
Key Types and Functions .................. 106
Locking/Unlocking the Doors from the
Outside .......................................... 108Low Keyless Access Remote Signal
Strength ........................................ 112Locking/Unlocking the Doors from the
Inside ............................................. 113
Childproof Door Locks ..................... 114
Auto Door Locking/Unlocking .......... 115
Opening and Closing the Tailgate... 116
Security System................................ 122Opening and Closing the Windows..... 125
Opening and Closing the Panoramic
Glass Roof........................................ 128
Operating the Switches Around the
Steering Wheel
ENGINE START/STOP Button............. 129
Turn Signals ..................................... 132
Light Switches.................................. 132
Fog Lights ........................................ 134
Daytime Running Lights ................... 134
Wipers and Washers ........................ 135
Brightness Control ........................... 137Rear Defogger/Heated Door Mirror
Button........................................ 138Driving Position Memory System ...... 139Adjusting the Steering Wheel .......... 141
Adjusting the Mirrors....................... 142
Adjusting the Seats.......................... 144
Interior Lights/Interior Convenience
Items
Interior Lights .................................. 152
Interior Convenience Items .............. 154
Climate Control System
Using Automatic Climate Control .... 163
Synchronized Mode ......................... 165
Automatic Climate Control Sensors ...... 166

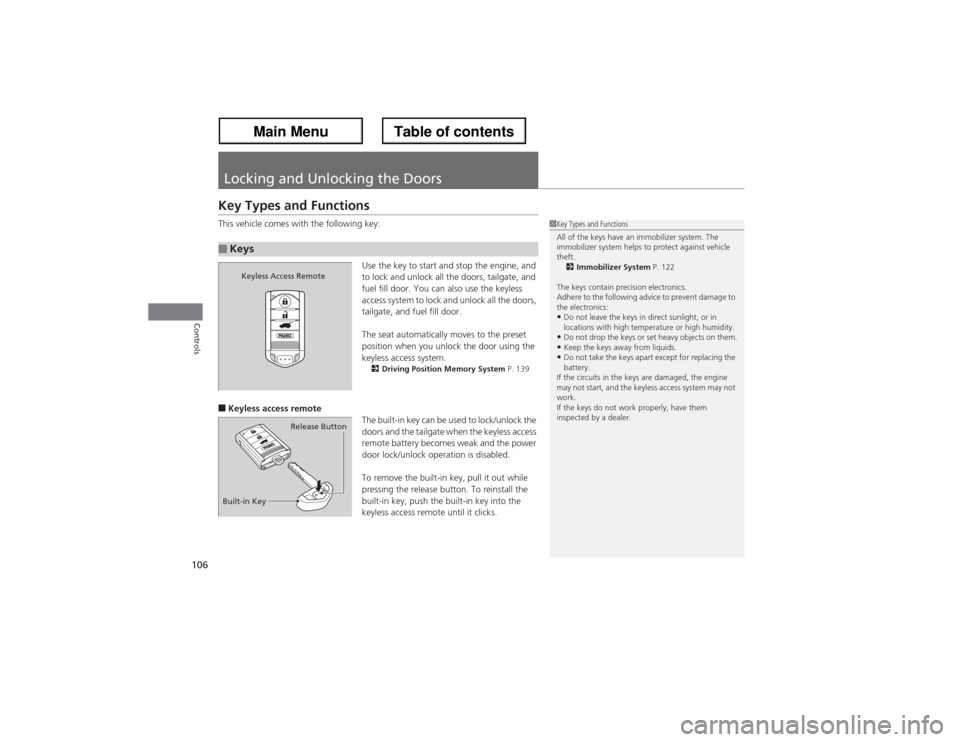

106Controls
Locking and Unlocking the DoorsKey Types and FunctionsThis vehicle comes with the following key:
Use the key to start and stop the engine, and
to lock and unlock all the doors, tailgate, and
fuel fill door. You can also use the keyless
access system to lock and unlock all the doors,
tailgate, and fuel fill door.
The seat automatically moves to the preset
position when you unlock the door using the
keyless access system.
2Driving Position Memory System P. 139
■Keyless access remote
The built-in key can be used to lock/unlock the
doors and the tailgate when the keyless access
remote battery becomes weak and the power
door lock/unlock operation is disabled.
To remove the built-in key, pull it out while
pressing the release button. To reinstall the
built-in key, push the built-in key into the
keyless access remote until it clicks.■Keys
1Key Types and Functions
All of the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.
2Immobilizer System P. 122
The keys contain precision electronics.
Adhere to the following advice to prevent damage to
the electronics:•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids.•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the keyless access system may not
work.
If the keys do not work properly, have them
inspected by a dealer.
Keyless Access Remote
Built-in KeyRelease Button

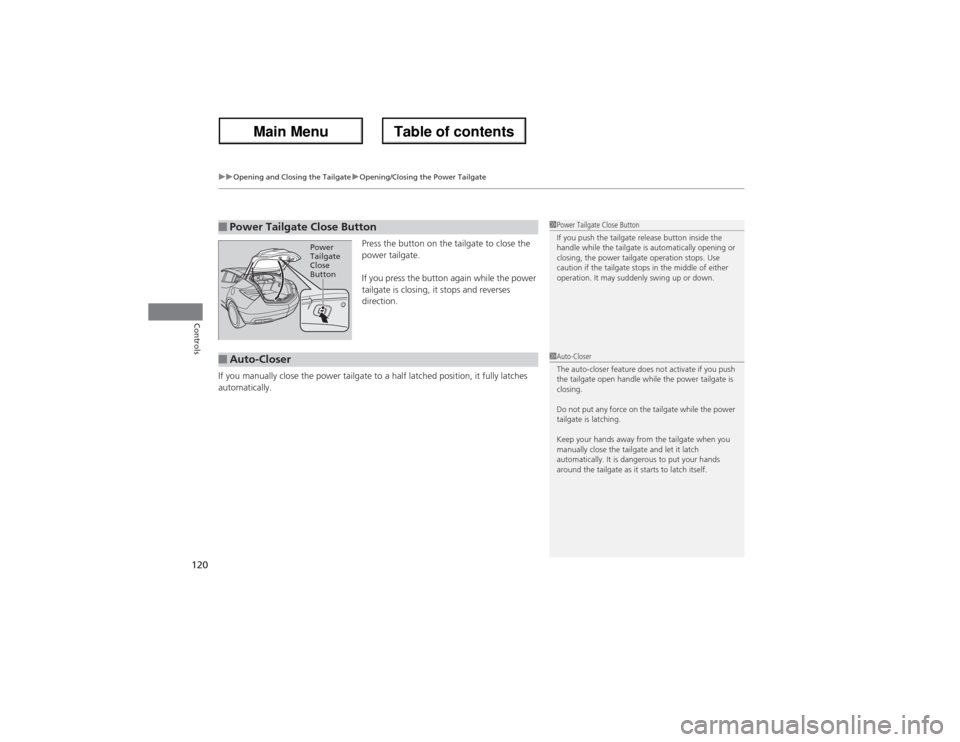

uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate
120Controls
Press the button on the tailgate to close the
power tailgate.
If you press the button again while the power
tailgate is closing, it stops and reverses
direction.
If you manually close the power tailgate to a half latched position, it fully latches
automatically.
■Power Tailgate Close Button
1Power Tailgate Close Button
If you push the tailgate release button inside the
handle while the tailgate is automatically opening or
closing, the power tailgate operation stops. Use
caution if the tailgate stops in the middle of either
operation. It may suddenly swing up or down.
Power
Tailgate
Close
Button
■Auto-Closer
1Auto-Closer
The auto-closer feature does not activate if you push
the tailgate open handle while the power tailgate is
closing.
Do not put any force on the tailgate while the power
tailgate is latching.
Keep your hands away from the tailgate when you
manually close the tailgate and let it latch
automatically. It is dangerous to put your hands
around the tailgate as it starts to latch itself.
