stop start Alfa Romeo 147 2006 Owner handbook (in English)

VEHICLE MAINTENANCE
237

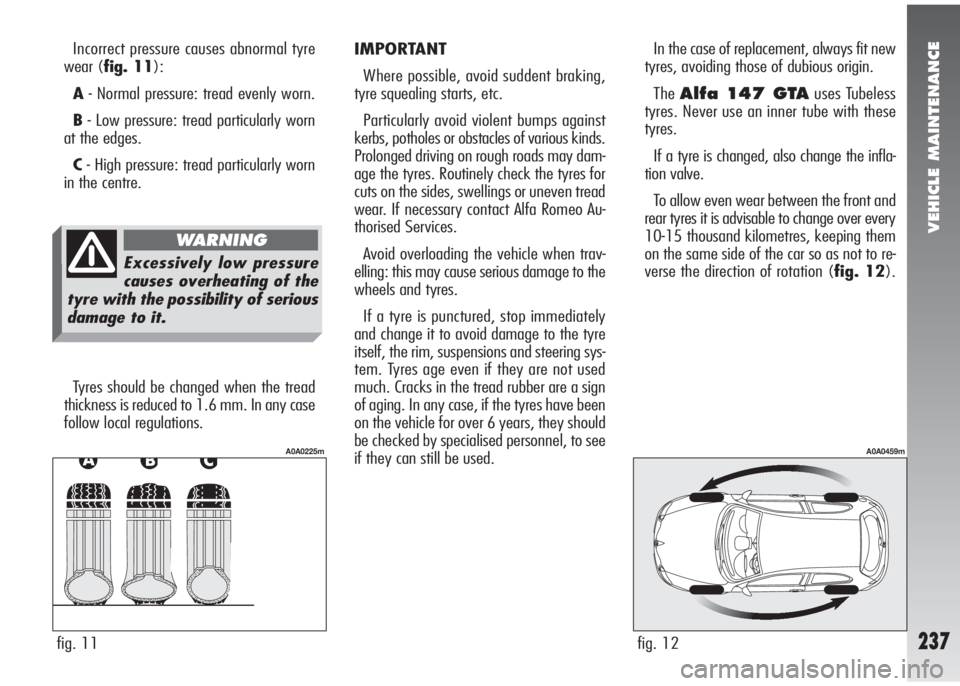

Incorrect pressure causes abnormal tyre
wear (fig. 11):
A- Normal pressure: tread evenly worn.
B- Low pressure: tread particularly worn
at the edges.
C- High pressure: tread particularly worn
in the centre.
Tyres should be changed when the tread
thickness is reduced to 1.6 mm. In any case
follow local regulations.
fig. 11
A0A0225m
IMPORTANT
Where possible, avoid suddent braking,
tyre squealing starts, etc.
Particularly avoid violent bumps against
kerbs, potholes or obstacles of various kinds.
Prolonged driving on rough roads may dam-
age the tyres. Routinely check the tyres for
cuts on the sides, swellings or uneven tread
wear. If necessary contact Alfa Romeo Au-
thorised Services.
Avoid overloading the vehicle when trav-
elling: this may cause serious damage to the
wheels and tyres.
If a tyre is punctured, stop immediately
and change it to avoid damage to the tyre
itself, the rim, suspensions and steering sys-
tem. Tyres age even if they are not used
much. Cracks in the tread rubber are a sign
of aging. In any case, if the tyres have been
on the vehicle for over 6 years, they should
be checked by specialised personnel, to see
if they can still be used.In the case of replacement, always fit new
tyres, avoiding those of dubious origin.
The
Alfa 147 GTAuses Tubeless
tyres. Never use an inner tube with these
tyres.
If a tyre is changed, also change the infla-
tion valve.
To allow even wear between the front and
rear tyres it is advisable to change over every
10-15 thousand kilometres, keeping them
on the same side of the car so as not to re-
verse the direction of rotation (fig. 12).
fig. 12
A0A0459m
Excessively low pressure
causes overheating of the
tyre with the possibility of serious
damage to it.
WARNING

RIGHT HAND DRIVE VERSION
271
BONNET
The bonnet opening lever is under the left
end of the dashboard.
To open:
– pull the lever (A-fig. 23) until the bon-
net clicks open.
– press the safety lever (A-fig. 24) up-
wards.
– raise the bonnet.
IMPORTANTBonnet raising is aided by
two gas springs. Do not tamper with these
springs and accompany the bonnet while
raising it.
fig. 23
A0A0481m
fig. 24
A0A0437m
To close:
– lower the bonnet until approx. 20 cm
from the engine compartment and then let
it drop, ensuring that it is fully closed and
not just held in position by the safety catch.
If the bonnet does not close properly do
not push it down but open it again and re-
peat the above procedure.
Scarves, ties and other
loose clothing might be
pulled by moving parts.
WARNING
Do this only with the car
stationary.
WARNING
For safety reasons the
bonnet shall always be
perfectly closed when travelling.
Always check for proper bonnet
locking. If the bonnet is left inad-
vertently open, stop the car im-
mediately and close the bonnet.
WARNING
DANGER-SERIOUS INJURY.
When carrying out checks
or maintenance operations in the
engine compartment, take special
care not to bump the head on the
raised bonnet.
WARNING
If checks are needed in the
engine compartment, when
it is still hot, do not approach the
fan: it might start working also
with the ignition key removed.
Wait for the engine to cool down.
WARNING

ALPHABETICAL INDEX
274
A A
L L
P P
H H
A A
B B
E E
T T
I I
C C
A A
L L
I I
N N
D D
E E
X X
ABS (Antilock braking system) ..... 134
Accessories purchased by the user... 125
Additional operations
(maintenance) .......................... 224
Additional stop light (third stop) ..... 205
Air bags, front and side ............ 35
- deactivating passenger’s
side air bags ...................... 37
- front air bags ..................... 36
- general cautions ...................... 40
- passenger’s front air bag........... 37
- right hand drive version ............ 259
- side air bags
(side bag - window bag)........... 38
Air cleaner................................... 232
Air re-circulation ........................... 102
Air vents ..................................... 90
Alfa Romeo CODE system .............. 6- operation................................ 9
Annual inspection programme
(maintenance) .......................... 224
Armrest (front) ........................... 18
Armrest (rear) ............................ 21
Ashtray
- front ...................................... 122
- rear ....................................... 123
ASR (system) .............................. 138
Battery ..................................... 233
- advice for preserving
the charge .............................. 235
- charging.......................... 216-234
- checking the charge ................. 234
- replacement............................ 235
- starting with an auxiliary
battery ................................... 216
Body (cleaning) ........................... 240Body marking.............................. 243
Body versions .............................. 244
Bonnet ................................ 130
Boot
- capacity ................................. 253
- extension ........................... 19-20
- lighting .................................. 129
- luggage net ............................ 21
- opening from inside ................. 128
- opening with remote
control ............................... 8-128
- restraining the load .................. 129
- tailgate closing ........................ 129
- warnings for carrying luggage.... 129
Boot light
- changing bulbs ........................ 208
Bose HI-FI system ........................ 172
