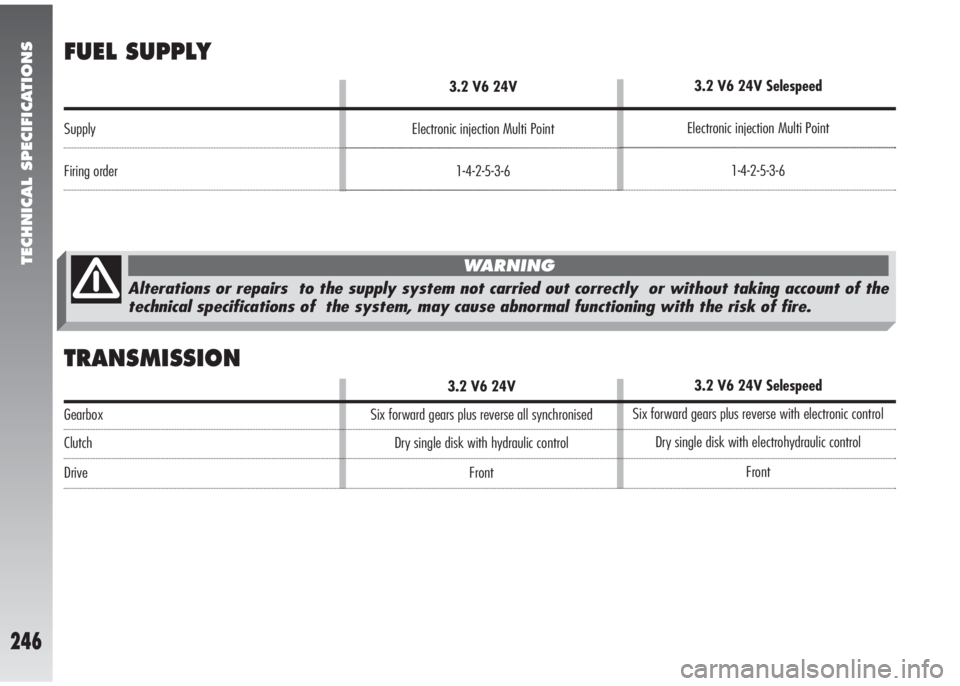

TECHNICAL SPECIFICATIONS
246
Supply
Firing order
FUEL SUPPLY
TRANSMISSION
3.2 V6 24V
Electronic injection Multi Point
1-4-2-5-3-6
Gearbox
Clutch
Drive
3.2 V6 24V
Six forward gears plus reverse all synchronised
Dry single disk with hydraulic control
Front
3.2 V6 24V Selespeed
Electronic injection Multi Point
1-4-2-5-3-6
3.2 V6 24V Selespeed
Six forward gears plus reverse with electronic control
Dry single disk with electrohydraulic control
Front
Alterations or repairs to the supply system not carried out correctly or without taking account of the
technical specifications of the system, may cause abnormal functioning with the risk of fire.
WARNING

TECHNICAL SPECIFICATIONS
247
SPARK PLUGS
Clean, intact spark plugs are determinant
with regard to engine efficiency and for re-
ducing the emission of pollutants.Spark plugs should be re-
placed at the intervals
specified in the Scheduled
maintenance programme. Only use
spark plugs of the specified type:
if the thermal capacity is inade-
quate or if the envisaged life is not
guaranteed inconveniences may en-
sue.
BRAKES
Service brakes: – front
– rear
Parking brake
If examined by an expert eye, the ap-
pearance of a spark plug is a sound clue
for locating a fault, even if not involving the
ignition system. Therefore if you are expe-
riencing any engine problems, it is impor-
tant to have the spark plugs checked by Al-
fa Romeo Authorized Services.
STEERING
Type
Turning radius (between pavements)
3.2 V6 24V - 3.2 V6 24V Selespeed
Disk self-ventilated
Disk
3.2 V6 24V 3.2 V6 24V Selespeed
Rack and pinion.
Hydraulic power steering with fluid reservoir in engine compartment
12.1 m 12.1 m Wheel anti-look system (ABS) with electronic braking distribution.
Servo-brake. Electronic control with brake pad wear sensors. Gaskets of ecological type.
Controlled by hand lever operating rear brakes.

TECHNICAL SPECIFICATIONS
248
WHEELS
Standard fittings
Rims
Tyres
Optional items
Rims
Tyres
Winter tyres
(*)IMPORTANTChainable tyres; see paragraph "Snow chains" in section "Correct use of the car".
(▼) Size certified and admitted only for YOKOHAMA.3.2 V6 24V - 3.2 V6 24V Selespeed
7,5J x 17“
225/45 ZR17“ 91Y(unchainable tyres)
8J x 18”
235/35 R18” 90Y (▼) (unchainable tyres)
215/45 R17” 87W (*)
215/45 ZR17” 87W (*)
225/45 ZR17“ 91Q (M+S) (unchainable tyres)
TYRES INFLATION PRESSURES COLD
With the tyre hot the inflating pressure should be +0.3 bar compared with the specified rating. Recheck pressure value with cold tyres.
With winter tyres the inflation pressure should be +0.2 bar compared with the specified rating.
Tyres
215/45 ZR17“ 87W
front rear
2.5 2.3
2.8 2.6Tyres
215/45 R17“ 87W
front rear
2.5 2.3
2.8 2.6Tyres
235/35 R18“ 90Y
front rear
2.5 2.3
2.8 2.6Tyres
225/45 ZR17“ 91Y
front rear
2.5 2.3
2.8 2.6
Reduced load
bar
(2 occupants)
Full load bar

TECHNICAL SPECIFICATIONS
249
RIMS AND TYRES
Alloy rims.
Radial Tubeless tyres.
The Log book shows all the homologated
tyres.
IMPORTANTIn the event of any dis-
crepancies between this Handbook and the
vehicle Log Book, only the latter should be
considered.
While the specified dimensions remain the
same, for driving safety, the vehicle must be
fitted with tyres of the same brand and type
on all wheels.
IMPORTANTDo not use inner tubes
with Tubeless tyres.
CORRECT TYRE
READING
(fig. 5)
Below are the instructions necessary to
know the meaning of the code stamped on
the tyre.
The code may be like one of the examples
given below.Load index (capacity)
60= 250 kg
61= 257 kg
62= 265 kg
63= 272 kg
64= 280 kg
65= 290 kg
66= 300 kg
67= 307 kg
68= 315 kg
69= 325 kg
70= 335 kg
71= 345 kg
72= 355 kg
73= 365 kg
74= 375 kg
75= 387 kg
76= 400 kg
77= 412 kg
78= 425 kg
79= 437 kg
80= 450 kg
81= 462 kg
82= 475 kg
83= 487 kg84= 500 kg
85= 515 kg
86= 530 kg
87= 545 kg
88= 560 kg
89= 580 kg
90= 600 kg
91= 615 kg
92= 630 kg
93= 650 kg
94= 670 kg
95= 690 kg
96= 710 kg
97= 730 kg
98= 750 kg
99= 775 kg
100= 800 kg
101= 825 kg
102= 850 kg
103= 875 kg
104= 900 kg
105= 925 kg
106= 950 kg
Example:
225/45 ZR17 91Y
225= Nominal width (S, distance
in mm between sides).
45= Percentage height/width ratio
(H/S).
ZR= Radial tyre with speed above
240 kph.
17= Rim diameter in inches (Ø).
91= Load index (capacity).
Y= Maximum speed index.

TECHNICAL SPECIFICATIONS
250
Example:
7.5 J x 17 H2 ET 43
Maximum speed index
Q= up to 160 km/h
R= up to 170 km/h
S= up to 180 km/h
T= up to 190 km/h
U= up to 200 km/h
H= up to 210 km/h
V= up to 240 km/h
W= up to 270 km/h
Y= up to 300 km/h
Maximum speed index
for snow tyres
Q M + S= up to 160 km/h
T M + S= up to 190 km/h
H M + S= up to 210 km/hCORRECT RIM READING
Below are the instructions necessary to
know the meaning of the code stamped on
the rim, as shown in fig. 5.
fig. 5
A0M0465m
7.5= rim width in inches (1)
J= rim drop centre outline (side pro-
jection where the tyre bead rests
(2)
17= rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) (3=Ø)
H2= “hump“ shape and number (relief
on the circumference holding the
Tubeless tyre bead on the rim)
ET 43= camber angle (distance be-
tween disk/rim line and wheel
rim centre line)

TECHNICAL SPECIFICATIONS
251
PERFORMANCE
Maximum speed
Acceleration from 0-100 km/h
Kilometer with standing start
3.2 V6 24V
246 km/h
6.3 s
26.1 s
WHEEL GEOMETRY
3.2 V6 24V - 3.2 V6 24V Selespeed
– 0° 24´ ± 20´
4° 6´ ± 30´
–2 ± 0.6 mm (*) (–18 ± 5)
– 1° 12´ ± 20´
+2.5 ± 1 mm (*) (23´ ± 9)
3.2 V6 24V Selespeed
246 km/h
6.3 s
26.1 s
– camber
Front wheels: – caster
– toe-in
Rear wheels:– camber
– toe-in
(*) The toe-in value, primes to mm conversion, is always calculated taking into account a 15" rim regardless of rims actually used. Should it be impossible
to set the 15" rim at the test bench, refer to primes value. The toe-in value, tolerance included, shall always be evenly distributed between the two wheels.

TECHNICAL SPECIFICATIONS
252
DIMENSIONS
fig. 6
A0M0463m
ABCDE FGH I
4213 925 2546 742 1412 1516 1890 1764 1504
Dimensions are expressed in mm - Height indicated is for an unladen car

TECHNICAL SPECIFICATIONS
253
LUGGAGE COMPARTMENT- SALOON VERSIONS
WEIGHTS
Capacity dm3
Capacity with rear seat back rest folded dm3
3.2 V6 24V
280
1030
Kerb weight kg
Max. permitted weight (*) kg
Payload including driver (**) kg
(*) Weight not to be exceeded. The Driver must arrange the goods in the luggage compartment and/or load surface so that they comply with these limits.
(**) If special equipment is fitted (sunroof etc.) the unladen weight increases, thus reducing the payload as specified in the maximum weight allowed.
3.2 V6 24V
1360
1880
520
3.2 V6 24V Selespeed
280
1030
3.2 V6 24V Selespeed
1360
1880
520

3.2 V6 24V
63
7
9.2
5.90
2
–
2.5
5.3
TECHNICAL SPECIFICATIONS
254
REFILLING
Specified fuels
Recommended products
Unleaded petrol with no less than 95 R.O.N
(Specification EN228)
Mixture of distilled water and PARAFLU 11
(blue) at 50% or PARAFLU UP(red) at 50%
SELENIA RACING
TUTELA CAR MATRYX
TUTELA CAR CS SPEED
Mixture of water and liquid
TUTELA PROFESSIONAL SC 35
3.2 V6 24V
Selespeed
63
7
9.2
5.90
2
0.6
2.5
5.3
Fuel tank: litres
– including a reserve of litres
Engine cooling
system litres
Oil sump and filter litres
Mechanical gearbox/
differential litres
Selespeed hydraulic control system litres
Windscreen washer and rearscreen
washer fluid reservoir: litres
– with headlamp washer litres

TECHNICAL SPECIFICATIONS
255
FLUIDS AND LUBRICANTS
USABLE PRODUCTS AND THEIR SPECIFICATIONS
IMPORTANTDo not top up with oil with different specifications that the oil already in the engine. Use Quality features of fluids and lubricants Recommended fluids Applications
for correct vehicle operation and lubricants
Lubricants for
petrol engines
SAE 10W-60 engine oil synthetic lubricant
SELENIA RACING
