IN AN EMERGENCY
189
STARTING
WITH AN AUXILIARY BATTERY
If the battery is flat, (for battery with op-
tical hydrometer: dark colour without green
area in the centre), it is possible to start the
engine using an auxiliary battery with the
same capacity or a little higher than the flat
one.
Proceed as follows (fig. 1):
1) Remove the protective cover on the pos-
itive battery post, pressing on the opening
catches (front), then connect the positive
terminals (+sign next to the terminal) of
the two batteries using a special cable.
2) Connect the end of the second jump
lead to the negative terminal (–) of the
auxiliary battery with an earth point
Eon
the engine or gearbox of the vehicle to be
started.IMPORTANTDo not directly connect the
negative terminals of the two batteries: any
sparks may ignite the detonating gas which
could come out of the battery. If the auxil-
iary battery is installed on another car, avoid
metal parts touching accidentally between
this car and the one with the flat battery.
3) Start the engine.
4) When the engine has started, remove
the cables, reversing the sequence followed
for connection.
If after a few attempts the engine does not
start, do not insist but contact the nearest Al-
fa Romeo Authorised Service.
fig. 1
A0A0492m
Never use a battery
charger to start the engine
as this could damage the
electronic systems of your vehicle,
particularly the ignition and fuel
supply control units.
This starting procedure
must be carried out by
qualified personnel because incor-
rect operations may cause electri-
cal discharge of considerable in-
tensity. The liquid contained in the
battery is poisonous and corrosive.
Avoid contact with the skin and
eyes. Keep naked flames and light-
ed cigarettes away from the bat-
tery and do not cause sparks.
WARNING

IN AN EMERGENCY
190
IMPORTANTThe car is equipped with
“Kit for tyre quick repair Fix&Go“, see the
instructions contained in the following chap-
ter.
STARTING BY INERTIAIN THE EVENT OF A PUNCTURE
Never push, tow or coast
start the vehicle. This could
cause fuel to flow into the
catalyst damaging it irreversibly.
Remember that the engine
brake and power steering
are not operational until the engine
is started, therefore, much greater
effort than usual is needed on the
brake pedal and steering wheel.
WARNING
Signal the presence of the
stationary vehicle according
to the current regulations: hazard
warning lights, reflecting triangle,
etc. Any passengersshould leave
the car.
WARNING
Should the type of wheels
used be changed (alloy
rims instead of steel), it is also nec-
essary to replace the complete kit
of fastening bolts with others of
suitable size.
WARNING

IN AN EMERGENCY
191
FIX&GO KIT FOR
QUICK TYRE
REPAIRING
The car is equipped with a tyre quick re-
pairing kit called FIX&GO.
fig. 11
A0A0374m
fig. 12
A0A0375m
fig. 13
A0A0376m
The quick repairing kit is placed in the boot
inside the appropriate container (A-fig. 11).
The quick repairing kit includes (fig. 12):
–a tool (A) to remove the valve body;
–a compressor (B) with pressure gauge
and fittings;
–a bottle (C) containing sealer and fit-
ted with a filling pipe;
–a “spout” (D) to be connected to the
filling pipe;
–a sticker bearing the notice “max 80
km/h”, to be placed in a position visible
to the driver (on the instrument panel) af-
ter fixing the tyre.IMPORTANTIn the event of a puncture
caused by foreign bodies, it is possible to fix
tyres having cracks with maximum diame-
ter up to 4 mm.
In (fig. 13) it is possible to identify:
A- tyre area which can be fixed (holes
or cracks with diameter of max 4 mm);
B- areas which CANNOT be fixed.
Signal the presence of the
stationary vehicle accord-
ing to the current regulations: haz-
ard warning lights, reflecting tri-
angle, etc.
WARNING

IN AN EMERGENCY
192

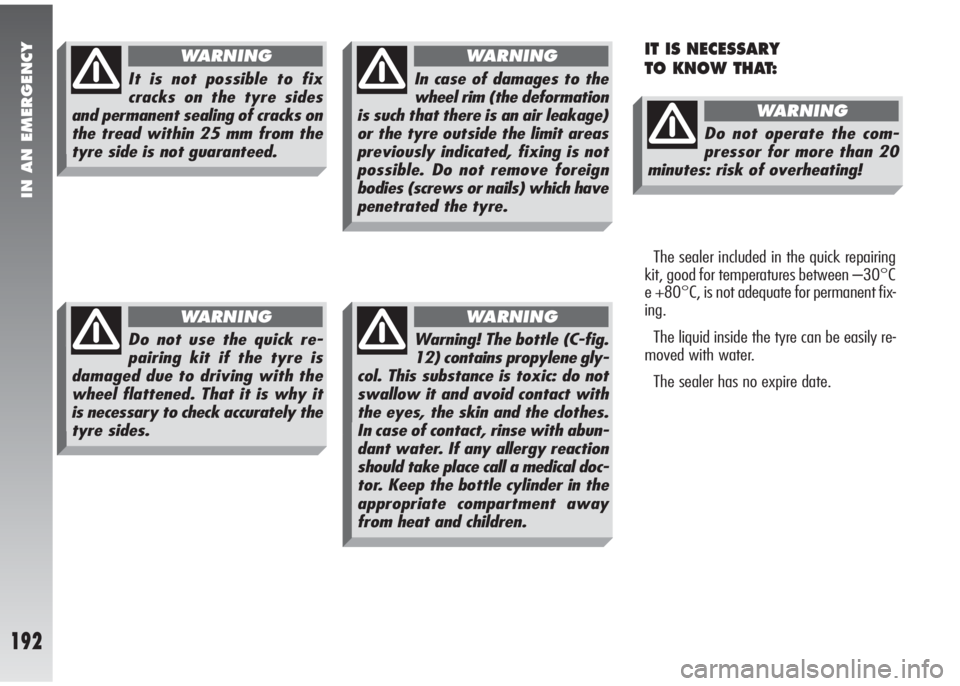

IT IS NECESSARY
TO KNOW THAT:
The sealer included in the quick repairing
kit, good for temperatures between –30°C
e +80°C, is not adequate for permanent fix-
ing.
The liquid inside the tyre can be easily re-
moved with water.
The sealer has no expire date.
It is not possible to fix
cracks on the tyre sides
and permanent sealing of cracks on
the tread within 25 mm from the
tyre side is not guaranteed.
WARNING
Do not use the quick re-
pairing kit if the tyre is
damaged due to driving with the
wheel flattened. That it is why it
is necessary to check accurately the
tyre sides.
WARNING
Do not operate the com-
pressor for more than 20
minutes: risk of overheating!
WARNING
In case of damages to the
wheel rim (the deformation
is such that there is an air leakage)
or the tyre outside the limit areas
previously indicated, fixing is not
possible. Do not remove foreign
bodies (screws or nails) which have
penetrated the tyre.
WARNING
Warning! The bottle (C-fig.
12) contains propylene gly-
col. This substance is toxic: do not
swallow it and avoid contact with
the eyes, the skin and the clothes.
In case of contact, rinse with abun-
dant water. If any allergy reaction
should take place call a medical doc-
tor. Keep the bottle cylinder in the
appropriate compartment away
from heat and children.
WARNING

IN AN EMERGENCY
193
INFLATING PROCEDURE
– Place the wheel in the position illustrated
in the figure (A-fig. 14) for the operation
with the valve, then engage the hand-
brake.
– Screw the filling pipe (B-fig. 15) to
the bottle (C).
– Unscrew the tyre valve plug, remove the
element inside the valve by using the ap-
propriate tool (D-fig. 16); be careful not
to place it on the sand or on a dirty surface.
– Introduce the filling pipe (B-fig. 17)
in the tyre valve, keep the bottle (C) with
the pipe directed downwards, then press the
bottle so that the whole sealer can get into
the tyre.– Screw again the element inside the
valve with the tool (D-fig. 18).
– Use the appropriate lever (E-fig. 19)
to insert and clamp the air compressor pipe
(F) to the tyre valve.
– Start the engine, insert the plug (G-
fig. 20) in the lighter (or current socket,
where fitted) and inflate the tyre according
to the right pressure value (see “Cold infla-
tion pressures” in the “Technical specifica-
tion”). You are advised to check the tyre
pressure value on the pressure gauge (H-
fig. 19) with the compressor off, in order
to have a more accurate reading.If it is not possible to reach the prescribed
pressure, move the car forwards or back-
wards for about 10 metres, so that the seal-
er is distributed inside the tyre, then repeat
inflation.
If, in spite of the last operation, the pre-
scribed pressure is not achieved, do not
move the vehicle and contact Alfa Romeo
Authorized Services.
Once the correct tyre pressure has been
reached, start driving immediately so that
the sealer is distributed evenly inside the
tyre.
fig. 14
A0A0447m
fig. 15
A0A0378m
fig. 16
A0A0448m

IN AN EMERGENCY
194fig. 17
A0A0449m
fig. 18
A0A0450m
fig. 19
A0A0451m
After about 10 minutes, stop and check
the tyre pressure once again; remember to
engage the handbrake.
Place the sticker in a posi-
tion where it can be clear-
ly seen by the driver as a notice
that the tyre has been treated with
the quick repairing kit. Drive care-
fully especially in a bend. Do not
overcome 80 km/h. Avoid sudden
acceleration or braking.
WARNING
If the pressure is below
1,3 bars do not drive any
further: the quick repairing kit can-
not guarantee proper hold because
the tyre is too much damaged. Con-
tact Alfa Romeo Authorized Ser-
vices.
Conversely, if at least 1,3 bars are
detected, restore the correct pres-
sure (with the engine running and
the handbrake engaged) and start
driving the car with great care.
WARNING
If, during the pressure
restoring operation, it is
not possible to reach at least 1,8
bars, do not drive any further be-
cause the tyre is too much dam-
aged and the quick repairing kit
cannot guarantee proper hold. Con-
tact Alfa Romeo Authorized Ser-
vices.
WARNING

IN AN EMERGENCY
195
Drive carefully to the nearest Alfa Romeo
Authorized Service to check the tyre condi-
tions, then have it fixed or replaced.
It is absolutely necessary to communicate
that the tyre has been fixed with the quick
repairing kit.

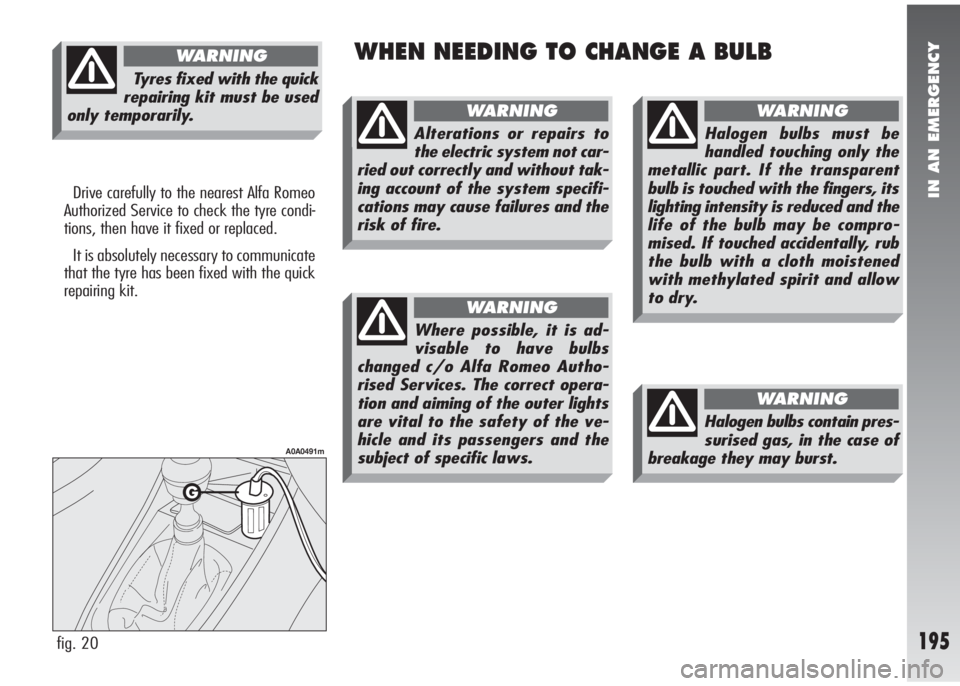

WHEN NEEDING TO CHANGE A BULB
fig. 20
A0A0491m
Tyres fixed with the quick
repairing kit must be used
only temporarily.
WARNING
Halogen bulbs contain pres-
surised gas, in the case of
breakage they may burst.
WARNING
Alterations or repairs to
the electric system not car-
ried out correctly and without tak-
ing account of the system specifi-
cations may cause failures and the
risk of fire.
WARNING
Where possible, it is ad-
visable to have bulbs
changed c/o Alfa Romeo Autho-
rised Services. The correct opera-
tion and aiming of the outer lights
are vital to the safety of the ve-
hicle and its passengers and the
subject of specific laws.
WARNING
Halogen bulbs must be
handled touching only the
metallic part. If the transparent
bulb is touched with the fingers, its
lighting intensity is reduced and the
life of the bulb may be compro-
mised. If touched accidentally, rub
the bulb with a cloth moistened
with methylated spirit and allow
to dry.
WARNING

IN AN EMERGENCY
196
D.-E. Halogen bulbs
To remove, free it from the clip on
its housing.GENERAL INSTRUCTIONS
– When a light is not working, check that
the corresponding fuse is intact before
changing a bulb.
– For the location of fuses, refer to the
paragraph “In the event of a burnt fuse”
in this chapter.
– Before changing a bulb check the con-
tacts for oxidation.
– Burnt bulbs must be replaced by oth-
ers of the same type and power.
– Always check headlight aiming after
changing a bulb to ensure they are safe.
TYPES OF BULBS (fig. 21)
Various types of bulbs are fitted to your ve-
hicle:
A. All glass bulbs
These are pressed on. Pull to remove.
B. Bayonet type bulbs
Press the bulb, turn counter-clockwise
to remove this type of bulb from its
holder.
C. Tubular bulbs
Free them from their contacts to re-
move.
fig. 21
A0A0453m

IN AN EMERGENCY
197
BULBS
High beam
Low beam
Front sidelights
Foglight
Front direction indicators
Side direction indicators
Rear direction indicators
Rear sidelights - braking lights
Third stop (additional braking lights)
Reversing light
Rear fog guards
Number plate light
Puddle lights
Front roof light
Rear roof light
Courtesy mirror light
Glovebox light
Boot lightFIGURE 21
D
D
B
E
B
A
B
B
A
B
B
A
C
C
C
A
A
CPOWER
55W
55W
6W
55W
21W
5W
21W
5W/21W
2.3W
21W
21W
5W
5W
10W
10W
1.2W
5W
5W TYPE
H7
H7
H6W
H1
H21W
W5W
P21W
P21/5W
W2.3W
P21W
P21W
W5W
C5W
C10W
C10W
W1.2W
W5W
C5W

IN AN EMERGENCY
198
The front light units contain the front side-
light, dipped beam, main beam and fog
light bulbs.
The bulbs are arranged inside the light unit
as follows (fig. 22a):
(A) Main beam headlights
(B) Sidelights
(C) Xenon dipped beam headlights
(D) Fog lights.
Hereafter you will find, as information on-
ly, the description of the correct procedure
to replace a Xenon light.
To change the bulbs of the sidelights,
dipped beams and main beams it is nec-
essary to remove the cover (A-fig. 22b)
releasing the locking screws (B).
To change the fog lights, remove the cov-
er (C) turning it counter-clockwise.
After replacement, refit
the covers correctly check-
ing that they are properly
secured.
IF AN EXTERIOR
LIGHT GOES OUT
XENON LIGHTS
Xenon lights have a very long life, there-
fore breakdowns are unlikely.
fig. 22a
A0A0504m
fig. 22b
A0A0498m
If necessary, have the sys-
tem checked and repaired
only by Alfa Romeo Authorised
Services.
WARNING
Any operation regarding
the front light units shall be
carried out with the lights turned
off and the ignition key removed
from the ignition switch: risk of
electric discharges.
WARNING
