GETTING TO KNOW YOUR CAR
6
THE ALFA ROMEO
CODE SYSTEM
To increase protection against attempted
theft, the car is fitted with an electronic en-
gine lock system (Alfa Romeo CODE) which
is activated automatically when the key is
removed from the ignition. In fact the grip
of each key contains an electronic device
which modulates the radio frequency signal
transmitted when the engine is started by a
special aerial incorporated in the ignition
switch. This modulated signal is the “pass-
word” by which the control unit recognises
the key and only in this condition can the
engine be started.
KEYS
Two keys are delivered together with the
car, (A-fig. 2) with metal insert and re-
mote control function.
The key remote control operates:
– Centralised door unlocking/locking
– Tailgate opening
– Electronic alarm on/off (if existing)
– Window and sunroof (if existing) un-
locking/locking.
G G
E E
T T
T T
I I
N N
G G
T T
O O
K K
N N
O O
W W
Y Y
O O
U U
R R
C C
A A
R R
fig. 2
A0A0002m
fig. 1
A0A0411m
SYMBOLS
On some of the components making up
your
Alfa 147 GTA, or near to them,
special coloured labels have been attached.
These labels bear symbols that remind you
of the precautions to be taken as regards that
particular component.
A summary list of the symbols (fig. 1) is
to be found under the bonnet.

GETTING TO KNOW YOUR CAR
8
To insert the metal insert in the key grip,
keep the button (F) pressed and turn the
insert in the direction shown by the arrow
until hearing the click as it locks into place.
Then release the button (F).
To unlock the doors by remote control,
press button (B), the doors unlock and the
direction indicators flash twice. To lock the
doors by remote control, press button (C),
the doors lock and the direction indicators
flash once. Pressing button (B) the doors
are released, if within the next 60 seconds
a door or the tailgate are not opened, the
system automatically locks everything
again.
On cars fitted with electronic alarm system,
pressing button (B) turns it off, pressing but-
ton (C) turns it on while the transmitter
sends the code to the receiver. This code
(rolling code) varies at each transmission.
IMPORTANTIf when pressing button
(B,CorD) the control is rejected or is not
performed, the battery should be replaced
by a new one of the same type to be found
c/o normal retailers.OPENING THE TAILGATE
The tailgate can be opened from outside
by remote control pressing button (D), even
if the electronic alarm is on. Opening of the
tailgate is accompanied by the direction in-
dicators flashing twice; closing is accompa-
nied by a single flash.
If the electronic alarm is fitted, when the
tailgate is opened the alarm system switch-
es off volumetric protection and the tailgate
control sensor, the system (with the excep-
tion of versions for certain markets) “beeps”
twice. The metal insert (A) of the key operates:
– the ignition switch
– the driver's door lock and, optional for
versions/markets where applicable, the pas-
senger's door lock
– the passenger’s side Air bag deactivat-
ing switch
– the fuel cap lock.
When pressing the button
(F), take care to prevent
the metal insert from causing harm
or damage when it comes out. The
button (F) should only be pressed
when the key is away from the
body, in particular from the eyes,
and from objects that can be spoilt
(clothes for instance). Make sure
the key can never be touched by
others, especially children, who
may inadvertently press the but-
ton (F).
WARNING

The codes of any keys not
presented during the mem-
orising procedure are
erased. The reason for this is to en-
sure that any lost or stolen keys
cannot be used to start the engine.
GETTING TO KNOW YOUR CAR
9
Closing the tailgate again, the control func-
tions are restored, the system (with the ex-
ception of versions for certain markets)
“beeps” twice.
OPERATION
Each time the ignition key is turned to the
STOPposition, the Alfa Romeo CODE sys-
tem deactivates the functions of the engine
electronic control unit.
Each time the car is started turning the ig-
nition key to MAR, the Alfa Romeo CODE
control unit sends a recognition code to the
engine control unit to deactivate the in-
hibitor. The code is crypted and variable be-
tween over four billion possible combina-
tions, and it is sent only if the system con-
trol system has recognised the code trans-
mitted from the key which contains an elec-
tronic transmitter, through an aerial wound
around the ignition switch.IMPORTANTTurning on of the Alfa
Romeo CODE warning light (
Y) when trav-
elling with the ignition key at MAR:
1) If the warning light turns on, this means
that the system is running a self-test (for ex-
ample for a voltage drop). At the first stop,
it will be possible to test the system: switch
off the engine turning the ignition key to
STOP; then turn the ignition key to MAR
again: the warning light turns on and should
go off in about one second. If the warning
light stays on repeat the procedure described
previously leaving the key at STOPfor over
30 seconds. Should the inconvenience per-
sist, contact Alfa Romeo Authorised Services. If the code has not been recognised cor-
rectly, the Alfa Romeo CODE warning light
(
Y) on the cluster turns on.
In this case, the key should be moved to
theSTOPposition and then back to MAR;
if the lock continues, possibly try again with
the other key provided with the car. If it is
still not possible to start the car, follow the
instructions given in the “In an emergency”
chapter and then contact Alfa Romeo Au-
thorised Services.
IMPORTANTEvery key has its own
code, which must be memorised by the sys-
tem control unit. To memorise new keys, up
to a maximum of eight, apply solely to Al-
fa Romeo Authorised Services taking with
you all the keys in your possession,the CODE
card, a personal identity document and the
car’s ownership documents.

GETTING TO KNOW YOUR CAR
12
Surveillance
After switching on, the flashing of the de-
terrent led (A-fig. 7) on the dashboard,
indicates the system surveillance mode. The
led flashes throughout this period.
IMPORTANTOperation of the electronic
alarm is adapted at the origin to the rules
of the different countries.Self-diagnostic functions
and door, bonnet, boot control
If, after engaging the alarm, a second
“beep” is sounded, switch off the system
pressing the button (B-fig. 6), check that
the doors, bonnet and tailgate are properly
shut, then switch the system on again press-
ing the button (C).
Otherwise, the door, bonnet or tailgate that
is not shut properly will be excluded from
the alarm system control.
If the doors, bonnet and boot are shut cor-
rectly and the control signal is repeated, the
system self-diagnostics has detected a sys-
tem operating fault. It is therefore necessary
to contact Authorised Alfa Romeo Services.HOW TO DEACTIVATE THE
ALARM
To deactivate the alarm press the button (B-
fig. 6) of the key with remote control. The
system will react as follows (with the ex-
ception of certain markets):
– two brief flashes of the direction indi-
cators
– two brief “beeps” of the siren
– door unlocking.
IMPORTANTIf when the system is
turned off the deterrent led (A-fig. 7) on
the dashboard stays on (maximum 2 min-
utes or until the ignition key is set to MAR)
the following should be borne in mind:
fig. 7
A0A0005m

GETTING TO KNOW YOUR CAR
13
– if the led continues flashing, but at dif-
ferent intervals than normal, this means that
different attempts to break in have occurred.
Through the number of flashes it is possi-
ble to identify the type of attempt:
1 flash:one or more doors
2 flashes:tailgate
3 flashes:bonnet
4 flashes:ultrasounds
5 flashes:abnormal vehicle lift-
ing/sloping (for ver-
sions/markets where ap-
plicable)
6 flashes:tampering with car starting
cables
7 flashes:tampering with battery ca-
bles or cutting emergency
key cables
8 flashes:connection line to sensors
and siren
9 flashes:at least three causes of
alarm.WHEN THE ALARM
IS TRIGGERED
When the system is on, the alarm comes
into action in the following cases:
– opening of one of the doors, bonnet or
tailgate;
– disconnection of the battery or section-
ing of electric cables;
– intrusion in the passenger compartment,
for example breakage of windows (volu-
metric protection);
– attempt to start the engine (key in
MARposition);
– abnormal car lifting/sloping (for ver-
sions/markets where applicable).
Depending on the markets, the cutting in
of the alarm causes operation of the siren
and hazard warning lights (for about 26 sec-
onds). The ways of operating and the num-
ber of cycles may vary depending on the
markets.
A maximum number of cycles is however
envisaged.
Once the alarm cycle has ended, the sys-
tem resumes its normal control function.
VOLUMETRIC PROTECTION
To make sure that the protection system
works correctly the side windows and sun-
roof (if fitted) must be properly shut.
The function can be cut off (if, for exam-
ple, leaving animals in the car) carrying out
the following operations in rapid succession:
starting from the condition with the igni-
tion key at MAR, move the key to STOP,
then immediately back to MARand then
toSTOPagain, then remove the ignition
key.
The deterrent led (A-fig. 7) on the dash-
board lights up for about 2 seconds to con-
firm that the function has been cut off.
To restore volumetric protection, move and
keep the ignition key at MARfor over 30
seconds.
If, with the volumetric protection function
deactivated, an electric control controlled by
the ignition key at MARis required (e.g.
power windows) turn the key to MAR, op-
erate the control and move the key to
STOPin a maximum time of 30 seconds.
This way volumetric protection is not re-
stored.

GETTING TO KNOW YOUR CAR
50
DASHBOARD
1. Side swivel air vents - 2. Fixed side window air vents - 3. Outer light control lever - 4. Speedometer with mileage recorder and trip recorder
and headlamp aiming display - 5. Fuel level gauge with reserve warning light - 6. Multifunction display - 7. Engine coolant fluid temperature
gauge - 8. Rev counter - 9. Tailgate release button - 10. Card holder - 11. Radio - 12. Centre swivel air vents - 13. Fixed upper vent - 14.
Glass holder - 15. Fog lamp button - 16. Hazard warning light switch - 17. Rear fog guard button - 18. Passenger’s front Air bag - 19. Glove-
box - 20. Door locking button - 21. Controls for heating, ventilation and climate control - 22. Cigar lighter - 23. Ashtray - 24. Temperature
sensor - 25. Windscreen/rearscreen wiper control lever - 26. Ignition key and switch - 27. Horn - 28. Steering wheel locking/release lever -
29. Driver’s front Air bag - 30. Set of controls: trip meter reset, headlamp aiming device, trip computer - 31. Bonnet opening lever. fig. 66
A0A0426m

GETTING TO KNOW YOUR CAR
79

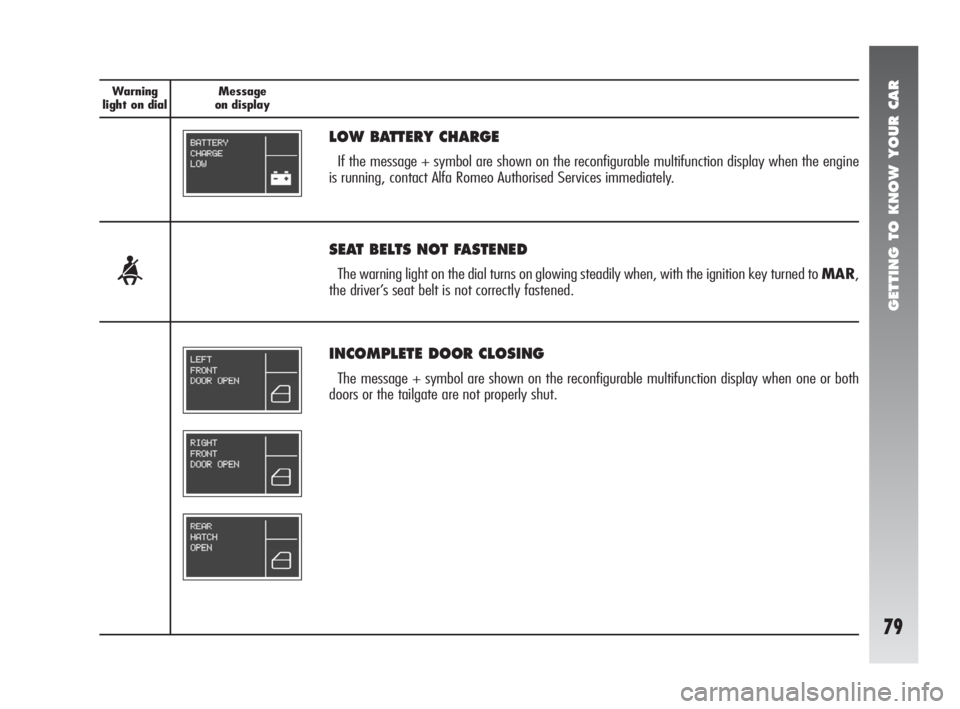

Warning
light on dialMessage
on display
INCOMPLETE DOOR CLOSING
The message + symbol are shown on the reconfigurable multifunction display when one or both
doors or the tailgate are not properly shut.
LOW BATTERY CHARGE
If the message + symbol are shown on the reconfigurable multifunction display when the engine
is running, contact Alfa Romeo Authorised Services immediately.
<
SEAT BELTS NOT FASTENED
The warning light on the dial turns on glowing steadily when, with the ignition key turned to MAR,
the driver’s seat belt is not correctly fastened.

GETTING TO KNOW YOUR CAR
106
CONTROLS
TAILGATE OPENING (fig. 91)
Electric tailgate release is only allowed with
the ignition key in the ignition switch at
MARvehicle stationary, at STOPor
PARKfor 3 minutes without opening/clos-
ing a door. To release the tailgate, press but-
ton (A) on the centre console panel.
FOG LIGHTS (fig. 91)
These are turned on pressing button (B)
on the centre console panel, when the out-
er lights are already on, at the same time
the led on the button itself turns on.
Turning the ignition key to STOPthe fog
lights are turned off automatically and do
not come on the next time the engine is
started without pressing button (B).
Press button (B) again to switch off.
IMPORTANTThe front foglights should
be used in compliance with local traffic laws.
fig. 91
A0A0091m
HAZARD WARNING LIGHTS
(fig. 91)
These are switched on by pressing button
(C), on the centre console panel, regardless
of the position of the ignition key.
When the hazard warning lights are
switched on, the switch itself begins to flash
together with the direction indicators and
the direction indicator warning lights on the
instrument cluster. This function is switched
off by pressing the button again.
Use the hazard warning
lights in compliance with
local regulations.
WARNING

GETTING TO KNOW YOUR CAR
122
PUDDLE LIGHTS (fig. 113)
(for versions/markets
where applicable)
The light (A) housed in the doors turns on
when the associated door is opened, re-
gardless of the position of the ignition key.DETERRENT LED (fig. 114)
The led (A) on the instrument cluster
comes into operation when the doors are
locked (ignition key at STOPor removed)
and it remains in the “deterrence” condition,
flashing with a red light until the next time
the doors are unlocked.
IMPORTANTIf a door or the tailgate
are not closed perfectly, the deterrent led
flashes at a higher frequency for 4 seconds
and then flashes at normal frequency again.FRONT ASHTRAY AND CIGAR
LIGHTER
(fig. 115)
To use the ashtray open the lid (A).
To use the ashtray, with the key at MAR,
press button (B); after a few seconds the
button will return automatically to its initial
position and the cigar lighter is ready for use.
Remove the tray to empty and clean the
ashtray (C).
The position of the cigar lighter in relation
to the ashtray and viceversa, may vary de-
pending on the trim level.
fig. 113
A0A0243m
fig. 114
A0A0005m
fig. 115
A0A0433m

GETTING TO KNOW YOUR CAR
128
OPENING FROM INSIDE
(fig. 126)
Tailgate is released electrically and this can
be performed only when the ignition key
is in positionMARwith car at a standstill
or in STOPorPARKposition for 3 min-
utes without unlocking/locking one of the
doors.
To unlock the tailgate, press button (A)
on the centre console panel.
Tailgate raising is facilitated by the gas
shock springs.
OPENING WITH REMOTE
CONTROL
(fig. 127)
The tailgate can be opened by remote con-
trol from outside pressing the button (A),
also when the electronic alarm is engaged.
Opening of the tailgate is accompanied by
a double flash of the direction indicators;
closing is accompanied by a single flash.
If an electronic alarm is fitted, with the
opening of the tailgate, the alarm system
switches off volumetric protection and the
tailgate control sensor, the system “beeps”
twice (with the exception of certain mar-
kets).
Closing the tailgate again, the control func-
tions are restored, the system “beeps” twice
(with the exception of certain markets).
The gas springs are cali-
brated to ensure correct
tailgate raising with the
weights foreseen by the manufac-
turer. The arbitrary addition of
items (such as spoilers, etc.) may
compromise the correct operation
and safety of the actual tailgate.
fig. 127
A0A0131m
LUGGAGE
COMPARTMENT
The tailgate can be opened:
from the outside of the car - by a
remote control impulse;
from the inside of the door - by de-
pressing the button (A-fig. 126).
IMPORTANTThe non perfect hatchback
closure is shown by the
´symbol being
turned on as the same time as the dedicat-
ed message on the re-configurable multi-
function display.
fig. 126
A0A0129m
