Alfa Romeo 159 2005 Owner handbook (in English)

199
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY

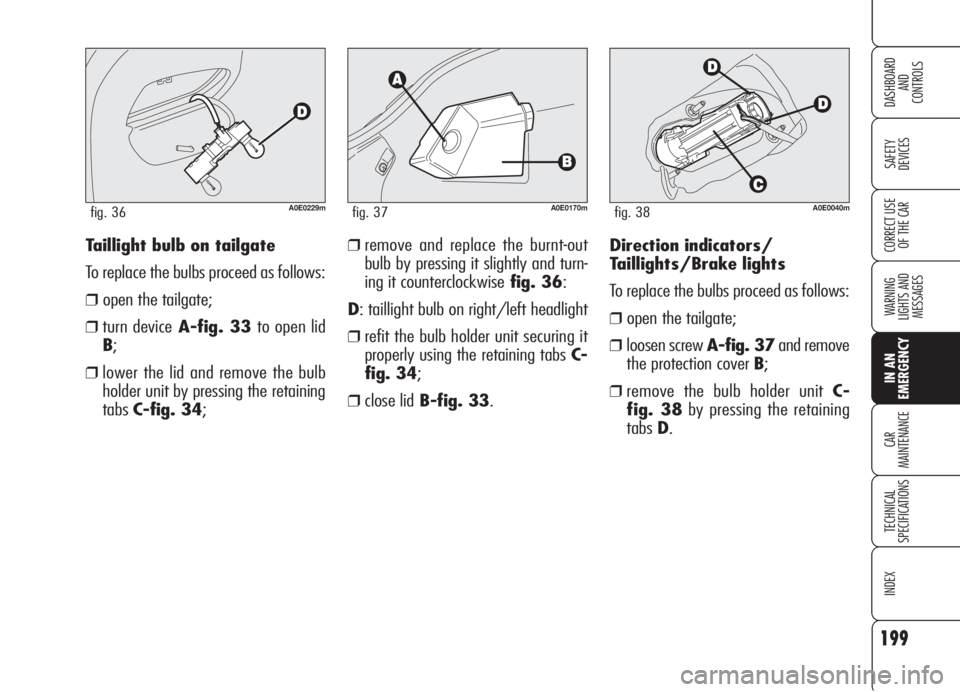

Direction indicators/
Taillights/Brake lights
To replace the bulbs proceed as follows:
❒open the tailgate;
❒loosen screw A-fig. 37and remove
the protection cover B;
❒remove the bulb holder unit C-
fig. 38by pressing the retaining
tabsD.
A0E0170mfig. 37
Taillight bulb on tailgate
To replace the bulbs proceed as follows:
❒open the tailgate;
❒turn deviceA-fig. 33 to open lid
B;
❒lower the lid and remove the bulb
holder unit by pressing the retaining
tabsC-fig. 34;
A0E0229mfig. 36
❒remove and replace the burnt-out
bulb by pressing it slightly and turn-
ing it counterclockwisefig. 36:
D: taillight bulb on right/left headlight
❒refit the bulb holder unit securing it
properly using the retaining tabs C-
fig. 34;
❒close lidB-fig. 33.
A0E0040mfig. 38

200
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
Additional brake light
(third stop)
Contact Alfa Romeo Authorized Services
to have the third brake light replaced. ❒remove and replace the burnt-out
bulb by pressing it slightly and turn-
ing it counter-clockwisefig. 39:
Etaillight/brake light bulb;
Fdirection indicator bulb.
❒refit the bulb holder unit securing it
properly using the retaining tabs D-
fig. 38;
❒refit the protection cover B-fig. 37
and tighten screw A.Number plate light
To replace the bulbs proceed as follows:
❒operate with a flat blade screwdriver pro-
tected by a soft cloth on device A-fig.
40to remove the light unit B;
❒remove the bulb holderC-fig. 41by
turning it slightly and replace the snap-
fitted bulb D.
A0E0041mfig. 39A0E0168mfig. 40A0E0169mfig. 41

201
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY

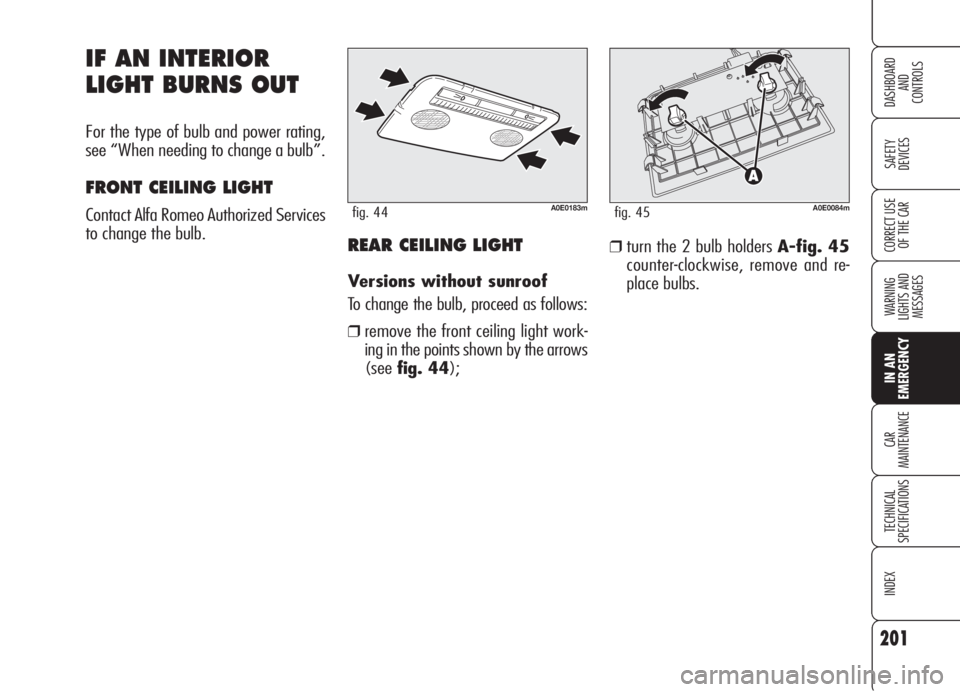

IF AN INTERIOR
LIGHT BURNS OUT
For the type of bulb and power rating,
see “When needing to change a bulb”.
FRONT CEILING LIGHT
Contact Alfa Romeo Authorized Services
to change the bulb.
❒turn the 2 bulb holders A-fig. 45
counter-clockwise, remove and re-
place bulbs.
A0E0183mfig. 44A0E0084mfig. 45
REAR CEILING LIGHT
Versions without sunroof
To change the bulb, proceed as follows:
❒remove the front ceiling light work-
ing in the points shown by the arrows
(seefig. 44);

202
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
Versions with sunroof
To replace the bulbs proceed as follows:
❒remove the ceiling light A-fig. 46
working in the points shown by the ar-
rows;
❒replace the bulb B-fig. 47releas-
ing it from the side contacts making
sure that the new bulb is correctly
clamped between the contacts.
A0E0098mfig. 46A0E0099mfig. 47
COURTESY MIRROR LIGHTS
(where provided)
To change the bulb, proceed as follows:
❒open the mirror cover A-fig. 48;
❒remove the bulb Blevering in the
points shown by the arrows;
A0E0118mfig. 48

203
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
❒close protection B-fig. 51on light
unitA-fig. 50;
❒refit the light unit inserting first one
side and then the other one until
hearing the locking click.
GLOVEBOX LIGHT
To change the bulb, proceed as follows:
❒open the glovebox;
❒remove the light unit A-fig. 50lev-
ering in the point shown by the ar-
row;
❒raise protectionB-fig. 51and re-
place the snap-fitted bulb;
A0E0172mfig. 50A0E0173mfig. 51
❒replace the bulb C-fig. 49releas-
ing it from the side contacts making
sure that the new bulb is correctly
clamped between the contacts.
A0E0171mfig. 49

204
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
BOOT LIGHT
To change the bulb, proceed as follows:
❒open the tailgate;
❒remove the light unit A-fig. 52lev-
ering in the point shown by the ar-
row;
❒open the protection cover B-fig. 53
and replace the bulb releasing it from
the side contacts making sure that
the new bulb is correctly clamped be-
tween the contacts;
❒re-close the protective cover B;
❒refit the light unit inserting first one
side and then the other one until
hearing the locking click.
❒close protection B-fig. 55on light
unitA-fig. 54;
❒refit the light unit inserting first one
side and then the other one until
hearing the locking click.
A0E0205mfig. 52A0E0075mfig. 54A0E0204mfig. 53
PUDDLE LIGHT
To change the bulb, proceed as follows:
❒open the door and remove lens A-
fig. 54levering in the point shown
by the arrow;
❒raise protectionB-fig. 55and re-
place the snap-fitted bulb;
A0E0235mfig. 55

205
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
IF A FUSE BLOWS
GENERAL
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse. The conductor el-
ement must be intact; if not, replace the
fuse with one of the same amp rating
(same colour).
A:undamaged fuse
B:fuse with damaged filament.
To replace a fuse, use the pliers C
hooked to the fusebox on the dash-
board.
A0E0119mfig. 56
Never replace a broken
fuse with anything oth-
er than a new fuse.
Never change a fuse
with another with a
higher amp rating, danger of
fire.
WARNING
If a general fuse
(MEGA-FUSE, MAXI-
FUSE) cuts in, do not attempt
any repair and contact Alfa
Romeo Authorized Services.
Before changing a fuse, check
the ignition key has been re-
moved and that all the other
electric devices have been
turned off/disabled.
WARNING
If the fuse blows again,
contact Alfa Romeo Au-
thorized Services.
WARNING

206
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
FUSE LOCATION
Fuses are grouped into four fuse boxes
to be found respectively on the dash-
board, on the battery positive pole, near
the battery and inside the boot (right-
hand side).
Fuse box on the dashboard
To gain access to the fuses in the fuse
box on the dashboard, loosen the fas-
tening screw A-fig. 57and remove
the cover B.
A0E0157mfig. 57
A0E0124mfig. 58

207
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
Fuse box on the battery
positive pole
To gain access to the fuses in the fuse
box on the battery positive pole press
the retainers A-fig. 59and remove
the protection cover B.
A0E0126mfig. 59
A0E0125mfig. 60

208
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
Fuse box near the battery
To gain access to the fuses, loosen the
two fastening screws A-fig. 61 and
remove the protection cover B.
A0E0128mfig. 61
A0E0123mfig. 62
