COLD TYRE INFLATION PRESSURE
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
Inflate tyres to full load pressures if driving at continuous speed exceeding 160 km/h.
average load bar
full load barSpace-saver
spare wheel
T125/80 R17
4.2 Tyres
215/55 R16 93V
front rear
2.3 2.3
2.6 2.6 Tyres
205/55 R16 91V
front rear
2.3 2.3
2.6 2.6Tyres
225/50 R17 98W
front rear
2.5 2.5
2.7 2.7Tyres
235/45 R18 95W
front rear
2.7 2.5
2.8 2.6

256
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
– camber
Front wheels: – caster
– half toe-in
(per wheel)
– camber
Rear wheels:
– half toe-in
(per wheel)
WHEEL GEOMETRY
All types
20’ ± 18’
max. difference right/left: 18’
4° 15’ ± 18’
–8’ ± 4’
max. difference right/left: 4’
–40’ ± 18’
max. difference right/left: 18’
13’ ±4’
max. difference right/left: 4’

257
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
Versions A B C D E F G H
1.9 JTS - 2.2 JTS -
3.2 JTS - 1.9 JTD
M8v -4660 1000 2700 960 1422 1578 1828 1555
1.9 JTDM16v - 2.4 JTDM1417 (■) 1593 (■) 1573 (■)

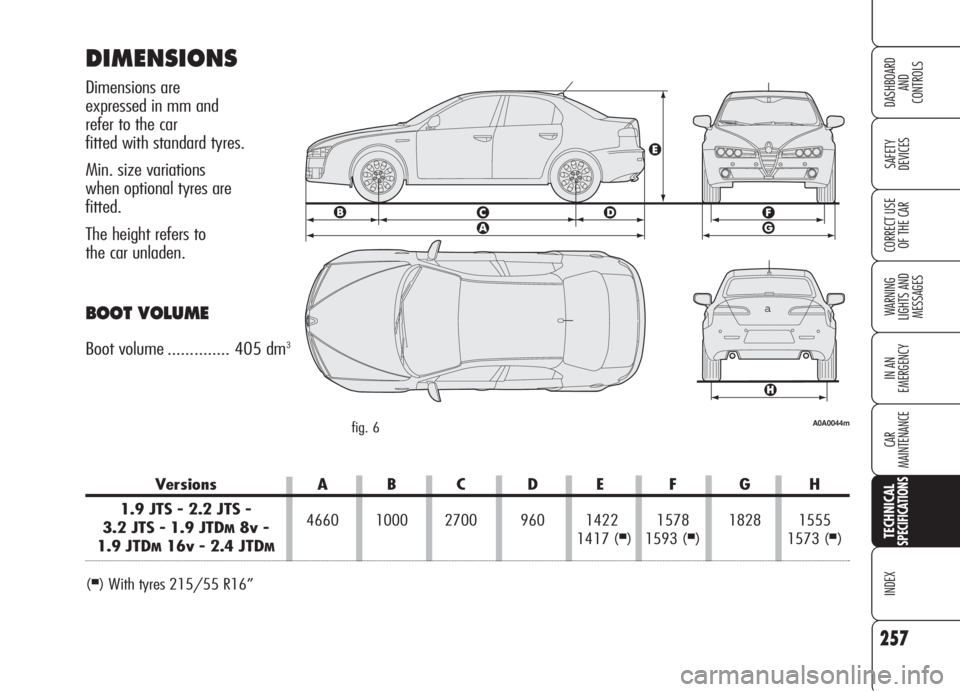

DIMENSIONS
a
Dimensions are
expressed in mm and
refer to the car
fitted with standard tyres.
Min. size variations
when optional tyres are
fitted.
The height refers to
the car unladen.
BOOT VOLUME
Boot volume .............. 405 dm3
A0A0044mfig. 6
(■) With tyres 215/55 R16”

258
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
PERFORMANCE
Top speed Acceleration Kilometer with standing start
from 0-100 km/h
km/h sec. sec.
1.9 JTS212 9.7 30.7
2.2 JTS222 8.8 29.6
3.2 JTS240 7.0 27.5
1.9 JTDM8v191 11.0 32.8
1.9 JTDM16v210 9.4 30.8
2.4 JTDM228 8.4 29.2

259
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
2.2 JTS
1490
1200
1100
2010
520
1500
70
80
3.2 JTS
1740
1300
1100
2260
520
1800
70
80
1.9 JTDM8v
1525
1200
1100
2045
520
1500
70
80
1.9 JTDM16v
1535
1200
1100
2055
520
1500
70
80
2.4 JTDM
1630
1300
1100
2150
520
1500
70
80
1.9 JTS
1480
1200
1100
2000
520
1500
70
80
WEIGHTS
Weights (kg)
Kerb weight
Maximum admitted load (*)
– front axle
– rear axle
– total
Payload including
driver (**)
Towable loads
Max. load on ball
Maximum load on roof (***)
(*) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot an/or on the roof so
that they comply with these limits.
(**) If special equipment is fitted (sunroof, tow hitch etc.) the unladen weight increases, thus reducing the payload as specified in
the maximum weight allowed.
(***) Lineaccessori Alfa Romeo roof rack, max capacity: 50 kg.

260
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
CAPACITIES
1.9 JTDM8v
70❍10❍
7.5
4.6
❑
2.3
6.0
1.9 JTDM16v
70❍10❍
7.5
4.6
❑
2.3
6.0
2.4 JTDM
70❍10❍
7.35
6.4
❑
2.8
6.0
1.9 JTS
70●10●
8.15
5.4
■
2.3
6.0
2.2 JTS
70●10●
8.15
5.4
■
2.3
6.0
3.2 JTS
69●10●
10.3
5.4
■
2.8
6.0
Fuel tank: litres
– including a reserve of litres
Engine cooling systemlitres
Lubrication system litres
engine
Mechanical gearbox/
differential litres
Windscreen/headlight
washer fluid reservoir: litres
Specified fuels
Recommended products
●Unleaded petrol
with no less than
95 R.O.N.
(EN228 Specification)
❍Diesel fuel for motor vehi-
cles (EN590 Specification)
Mixture of 50%
water and
PARAFLU UP
■SELENIA StAR
❑SELENIA WR
TUTELA CAR MATRYX
Mixture of water and liquid
TUTELA
PROFESSIONAL SC 35

261
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS

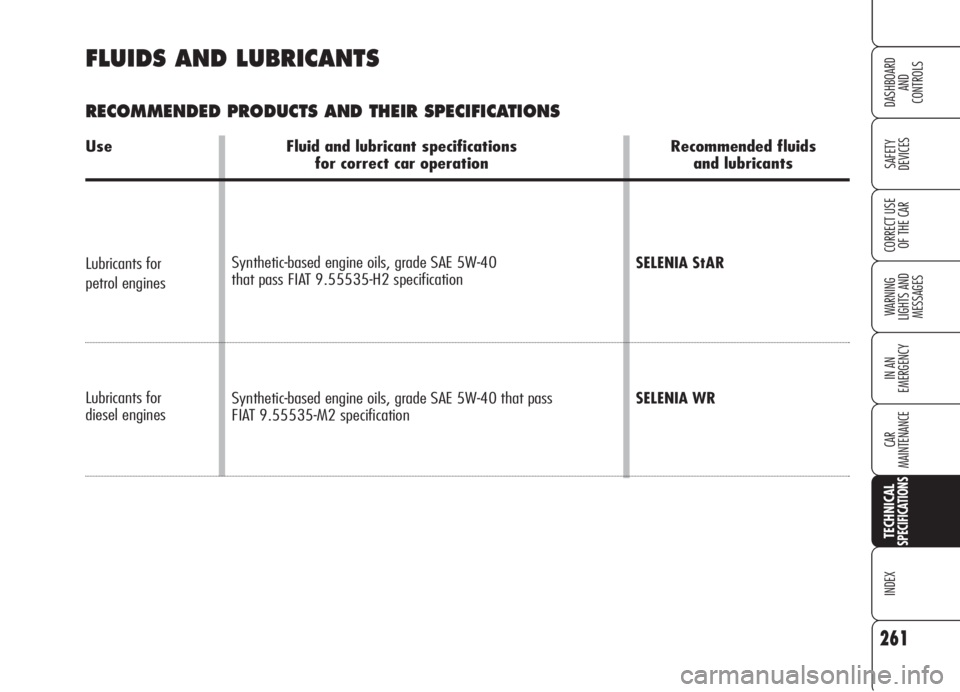

FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Fluid and lubricant specifications Recommended fluids
for correct car operation and lubricants
Lubricants for
petrol engines
Lubricants for
diesel engines
Synthetic-based engine oils, grade SAE 5W-40
that pass FIAT 9.55535-H2 specification
Synthetic-based engine oils, grade SAE 5W-40 that pass
FIAT 9.55535-M2 specificationSELENIA StAR
SELENIA WR

262
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
Synthetic-based oil, grade SAE 75W-85
that passes API GL 4 specifications
Lubricant for hydrostatic transmissions that passes
“ATF DEXRON III” specification
Lithium-soap-based grease with molybdenum bisulphate.
Consistency NLGI 2
Lithium soap based grease. NLGI 0 consistency
Synthetic fluid FMVSS no. 116, DOT 4, ISO 4925, SAE J-1704
CUNA NC 956-01
Protective with antifreeze action, red colour based on inhibited
monoethylen glycol and organic formula,
that passes CUNA NC 956-16, ASTM D 3306 specifications
Mixture of alcohol, water and surfactants CUNA NC 956-11TUTELA CAR
MATRYX
TUTELA GI/E
TUTELA STAR 500
TUTELA
MRM ZERO
TUTELA TOP 4
PARAFLU UP
TUTELA
PROFESSIONAL
SC 35Mechanical gearbox and
differential
Power steering
CV joints
on wheel side
CV joints
on differential side
Hydraulic brake and
clutch controls
Cooling
circuits
Proportion:
50% water and
50% Paraflu UP
To be used diluted
or undiluted
Brake fluid
Windscreen/
headlight washer
fluid
Use Fluid and lubricant specifications Recommended fluids Applications
for correct car operation and lubricants
Protective agent for
radiators Lubricants and
greases
for transmission

263
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
–extra-urban cycle: frequent ac-
celerating in all gears, simulating ex-
traurban use of the car; the speed varies
between 0 and 120 km/h;
–combined consumption: is cal-
culated weighing about 37% of urban
cycle consumption and about 63% of
extraurban consumption.IMPORTANT The type of route,
traffic situations, weather condi-
tions, driving style, general con-
ditions of the car, trim level/
equipment/accessories, load, cli-
mate control system, roof rack,
other situations that affect air
drag may lead to different fuel
consumption levels than those
measured.FUEL CONSUMPTION
The fuel consumption figures given in
the table below are determined on the
basis of the homologation tests set
down by specific European Directives.
The procedures below are followed for
measuring consumption:
–urban cycle: cold starting followed
by driving that simulates urban use of
the car;
Fuel consumption according to Urban Extra-urban Combined
1999/100/ECDirective (litres x 100 km)
1.9 JTS12.2 6.6 8.7
2.2 JTS13.0 7.3 9.4
3.2 JTS 15.9 8.5 11.5
1.9 JTDM8v7.8 4.9 5.9
1.9 JTDM16v8.1 4.8 6.0
2.4 JTDM9.3 5.4 6.8

264
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
CO2EMISSIONS
The CO2emission levels given in the following table refer to combined consumption.
CO2EMISSIONS ACCORDING TO 1999/100/EC DIRECTIVE (g/km)
1.9 JTS 2.2 JTS 3.2 JTS 1.9 JTDM8v 1.9 JTDM16v 2.4 JTDM
205 221 270 157 159 179
