engine Alfa Romeo 159 2006 Owner handbook (in English)

255
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
FUEL FEED/IGNITION
1.9 JTS - 2.2 JTS - 3.2 JTS1.9 JTDM8V-1.9 JTDM16v
2.4 JTDM
Fuel feed Direct injection Direct injection, Common Rail
Modifications or repairs to the fuel feed system that are not carried out properly or do not
take the system’s technical specifications into account can cause malfunctions leading to
the risk of fire.
TRANSMISSION
Gearbox
Clutch
Drive
IMPORTANTIn the event of difficult disengagement, due to significant difference of grip between front and rear axle, do
not insist with heavy accelerations: it is actually more effective an attempt of disengagement at medium slow engine rpm,
with pauses of a few seconds if several attempts are necessary.
1.9 JTS - 2.2 JTS - 1.9 JTDM8V
1.9 JTDM16v - 2.4 JTDM
Six forward gears + reverse and
synchronisers for speeds
Dry single disk
with hydraulic control
Front3.2 JTS
Six forward gears + reverse and
synchronisers for speeds
Dry single disk
with hydraulic control
Four-wheel drive

266
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
CAPACITIES
1.9 JTDM8v
70❍10❍
7.5
4.6
❑
2.3
6.0
1.9 JTDM16v
70❍10❍
7.5
4.6
❑
2.3
6.0
2.4 JTDM
70❍10❍
7.35
6.4
❑
2.8
6.0
1.9 JTS
70●10●
8.15
5.4
■
2.3
6.0
2.2 JTS
70●10●
8.15
5.4
■
2.3
6.0
3.2 JTS
69●10●
10.3
5.4
■
2.8 (Õ)
6.0
Specified fuels and
original lubricants
●Unleaded petrol
with no less than
95 R.O.N.
(EN228 Specification)
❍Diesel fuel for motor vehi-
cles (EN590 Specification)
Mixture of 50%
water and
PARAFLU UP
■SELENIA StAR
❑SELENIA WR
TUTELA CAR MATRYX
(Õ) TUTELA
CAR MULTIAXLE
Mixture of water and liquid
TUTELA
PROFESSIONAL SC 35
Fuel tank: litres
– including a reserve of litres
Engine cooling systemlitres
Lubrication system litres
engine
Mechanical gearbox/
differential litres
Windscreen/headlight
washer fluid reservoir: litres

267
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICALSPECIFICATIONS
FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Fluid and lubricant specifications Original fluids Change
for correct car operation and lubricants
Lubricants for
petrol engines
Lubricants for
diesel engines
Synthetic-based oils, grade SAE 5W-40,
FIAT 9.55535-H2qualification.
Synthetic-based oils, grade SAE 5W-40,
FIAT 9.55535-M2qualification.SELENIA StAR
SELENIA WRAccording to Service
Schedule
According to Service
Schedule
For regular operation of Multijet versions with DPF, use only original oil. In an emergency (lacking the original product) only top up with max. 0,5 l
and then drive immediately to the nearest to contact Alfa Romeo Authorized Services.
If using non original SAE 5W-40 products, oils with minimum ACEA A3 specifications for petrol engines and ACEA B4 specifications for Diesel engines
are admitted; in this event top engine performance is not guaranteed.
Use of products with low-quality properties than ACEA A3 and ACEA B4 could cause damages to the engine that are not covered by the warranty.
For very cold climate conditions, ask to contact Alfa Romeo Authorized Services for the appropriate Seleniaproduct to use.

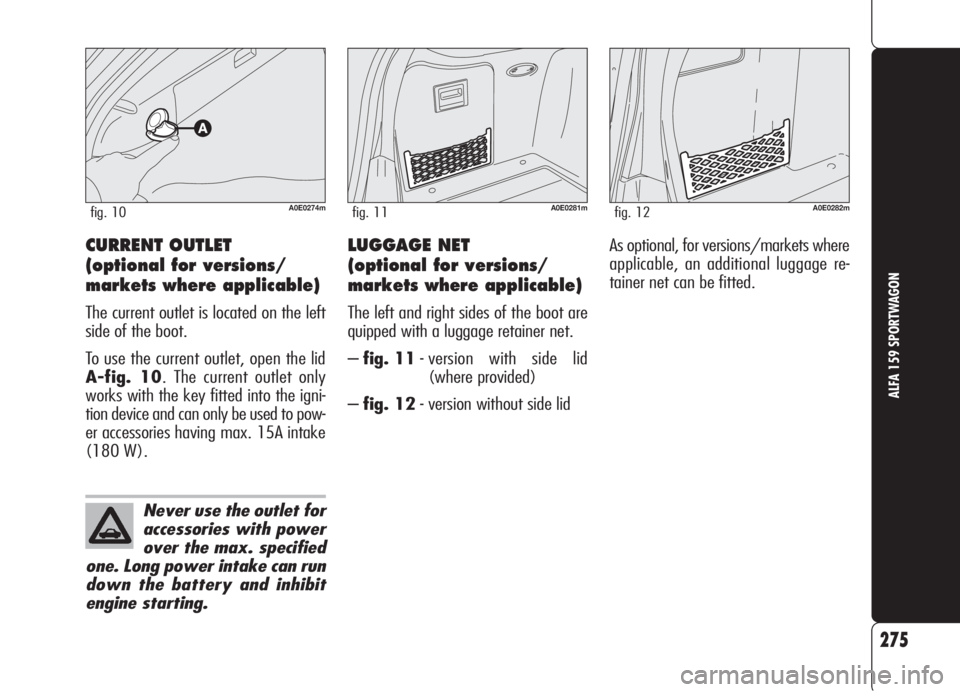

CURRENT OUTLET
(optional for versions/
markets where applicable)
The current outlet is located on the left
side of the boot.
To use the current outlet, open the lid
A-fig. 10. The current outlet only
works with the key fitted into the igni-
tion device and can only be used to pow-
er accessories having max. 15A intake
(180 W).
275
ALFA 159 SPORTWAGON
A0E0274mfig. 10
Never use the outlet for
accessories with power
over the max. specified
one. Long power intake can run
down the battery and inhibit
engine starting.
A0E0281mfig. 11 A0E0282mfig. 12
LUGGAGE NET
(optional for versions/
markets where applicable)
The left and right sides of the boot are
quipped with a luggage retainer net.
–fig. 11- version with side lid
(where provided)
–fig. 12- version without side lidAs optional, for versions/markets where
applicable, an additional luggage re-
tainer net can be fitted.

289
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
INDEX
– specifications ...................... 266
Engine starting ......................... 152
Environment protection ............. 127
EOBD system ........................... 115
External lights .......................... 70
Eyeglasses holder ..................... 87
Fix &Go automatic (device) ...... 190
Flashing the headlights ............. 70
Fluid level checks ..................... 230
Fluids and lubricants ................. 267
Follow me home (device) ......... 71
Front air bags .......................... 141
Front ceiling lights
– bulb replacement ................ 205
– control ............................... 78
Front fog lights
– bulb replacement ................ 201
– control ............................... 72
Fuel
– consumption ...................... 269
– fuel cut-off switch ................ 81
– fuel gauge ......................... 22Fuel cut-off and power supply
switches ................................ 81
Fuel feed ................................ 255
Fuel filler cap ........................... 126
Fuses (replacement) .......... 209-287
Gearbox (use) ........................ 156
Glass/can holder ...................... 87
Glove compartment .................. 85
Glove compartment light
– bulb replacement ................ 207
Handbrake .............................. 155
Hazard lights ........................... 72
Head restraints .................. 48-49
Headlight washer
– control ............................... 73
– fluid level ........................... 233
Headlights ............................... 65
– adjusting headlight beam ..... 106
– headlight adjustment abroad 107
– headlight aiming device ....... 106
– front fog light adjustment ..... 107
Hill Holder system .................... 111
Homelink ................................ 89 Courtesy mirror light
– bulb replacement ................ 206
Cruise Control .......................... 76
Dashboard and controls.... 6
Dashboard buttons ................... 72
Diesel fuel filter ........................ 236
Dimensions ............................. 261
Dipped beam headlights
– bulb replacement ................ 200
– control ............................... 70
Direction indicators
– bulb replacement 200-201-203
– control ............................... 70
Doors ..................................... 96
Electronic key .......................... 11
Engine
– identification code ............... 252
– marking ............................. 251
– technical data ..................... 253
Engine oil
– consumption ...................... 231
– level check ......................... 230

fig. 1
1.Adjustable swivel side air vents -2.Front side window demisting/defrosting vents -3.Passenger’s air bag - 4.Fuel lev-
el gauge/engine coolant temperature gauge/engine oil temperature gauge (petrol versions) or turbocharger pressure
gauge (diesel versions) - 5.Adjustable swivel centre air vents - 6.Upper central vent - 7.External lights control lever -
8.Driver’s air bag and horn - 9.Instrument panel - 10.Windscreen wiper control lever - 11.Front side window demist-
ing/defrosting vents - 12.Adjustable swivel side air vents - 13.Switches for external lights, trip meter reset and headlamp
aiming device. - 14.Dashboard fusebox lid - 15.Bonnet opening lever - 16. Sound system controls on the steering wheel
(where provided) - 17.Driver’s knees air bag - 18.Cruise Control lever (where provided) - 19.Ignition device - 20.En-
gine START/STOP button - 21.Heating/ventilation/climate controls - 22.Sound system (where provided) - 23.Glove
box - 24.Passenger’s knees air bag (where provided)
DASHBOARD
292
RIGHT HAND DRIVE VERSION

ENGINE OIL REPLEACEMENT (litres)
REFUELLING (litres)
QUALITYASSISTENZA TECNICA - INGEGNERIA ASSISTENZIALE
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Fiat Auto S.p.A.
Publication no. 60431542 - 1
stEdition - 11/2005All rights reserved. Reproduction, even in part is prohibited without written permission
from Fiat Auto S.p.A.
SERVICE
1.9 JTS - 2.2 JTS - 3.2 JTS 1.9 JTDM8v 2.4 JTDM1.9 JTDM16v
Lubrication system
engine5.4 4.6 6.4
Do not discard used oil in the environment.
COLD TYRE INFLATION PRESSURE
Tyres
205/55 R16 91V
front rear
2.3 2.3
2.6 2.6Tyres
215/55 R16 93V
front rear
2.3 2.3
2.6 2.6Tyres
225/50 R17 98W
front rear
2.5 2.5
2.7 2.7Tyres
235/45 R18 98W
front rear
2.7 2.5
2.8 2.6
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
Inflate tyres to full load pressures if driving at continuous speed exceeding 160 km/h.Space-saver
spare wheel
T125/80 R17
4.2
average load bar
full load bar
1.9 JTS - 2.2 JTS - 1.9 JTDM8v - 1.9 JTDM16v - 2.4 JTDM3.2 JTS
Fuel tank capacity 70 69
Reserve 10 10
For cars with petrol engine, only use unleaded petrol with over 95 R.O.N. (Specification EN228).
For cars with diesel engine only use Diesel fuel for motor vehicles (Specification EN590).
