ALFA 159 SPORTWAGON
BOOT LIGHT
To change the bulb, proceed as follows:
❒open the tailgate;
❒remove the light unit A-fig. 38lev-
ering in the point shown by the ar-
row;
❒replace the bulb B-fig. 39releas-
ing it from the side contacts mak-
ing sure that the new bulb is cor-
rectly clamped between the con-
tacts;
❒refit the light unit inserting first one
side and then the other one until
hearing the locking click.
IF AN INTERIOR
LIGHT BURNS OUT
For the type of bulb and power rating,
see paragraph “When needing to
change a bulb" in section "In an emer-
gency".
IMPORTANTBefore changing a bulb,
read carefully the instructions given in
section "In an emergency".
A0E0299mfig. 38A0E0300mfig. 39

❒replace the bulb B-fig. 41releas-
ing it from the side contacts mak-
ing sure that the new bulb is cor-
rectly clamped between the con-
tacts;
❒refit the light unit inserting first one
side and then the other one until
hearing the locking click.

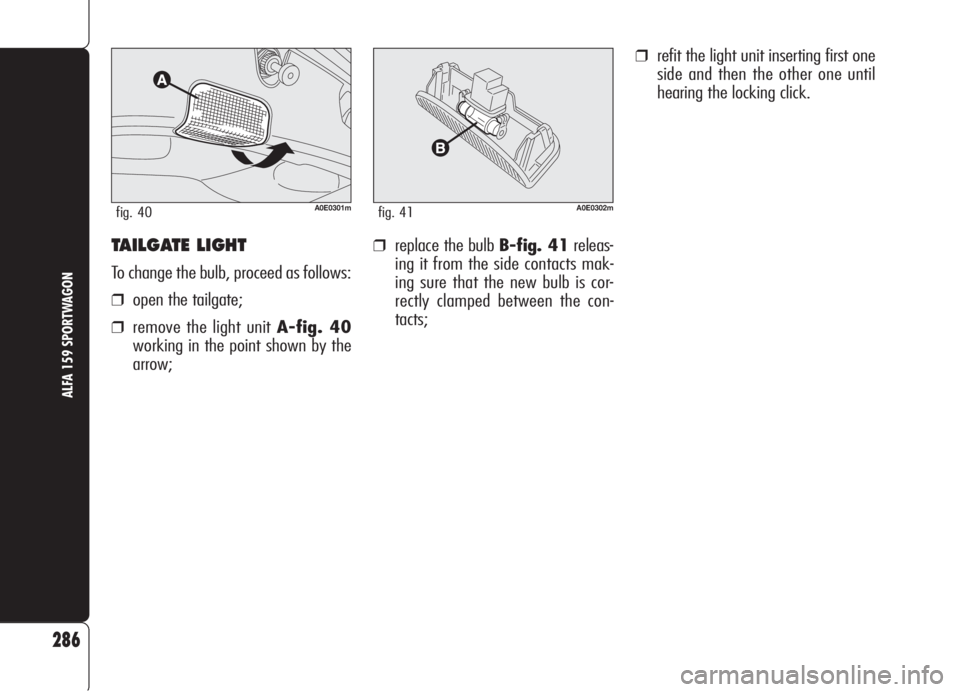

TAILGATE LIGHT
To change the bulb, proceed as follows:
❒open the tailgate;
❒remove the light unit A-fig. 40
working in the point shown by the
arrow;
286
ALFA 159 SPORTWAGON
A0E0301mfig. 40A0E0302mfig. 41

IF A FUSE BLOWS
The fuse specific for the Sportwagon ver-
sion is located in the fuse box at the
right side of the boot (see “In an emer-
gency” chapter).
IMPORTANTBefore changing a bulb,
read carefully the instructions given in
section "In an emergency".
287
ALFA 159 SPORTWAGON
A0E0303mfig. 42A0E0304mfig. 43
To open the fuse box, proceed as fol-
lows:
❒use handle Bto open the right lid
(where provided) A-fig. 42;
COMPONENT FUSE AMPERE
Cigar lighter outlet F55 15
❒open the fuse box lid C-fig. 43
working in the point shown by the
arrow.
