ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical accessories (that will gradually drain the battery), contact Al-
fa Romeo Authorized Services. They can calculate the overall electrical requirement and check that the car’s elec-
tric system can support the required load.

CODE CARD (for version/markets where applicable)
Keep the code card in a safe place, not in the car.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring it stays in tip-top condition and safeguards its safety fea-
tures, its environmental friendliness and low running costs for a long time to come.
THE OWNER’S MANUAL CONTAINS…
…information, tips and important warnings regarding the safe, correct driving of your car, and its mainte-
nance. Pay particular attention to the symbols
"(personal safety) #(environmental protection) â(car well-be-
ing).
001-045 Alfa 159 GB 4-06-2008 9:38 Pagina 3

Any queries concerning servicing should be forwarded to the showroom from which the car was purchased, the sub-
sidiary company or to our branch offices or any point of the Alfa Romeo Network.
Warranty Booklet
The Warranty Booklet is delivered together with every new car and contains the regulations tied to the services giv-
en by Alfa Romeo Services and to the warranty conditions.
Correctly carrying out the scheduled services specified by the manufacturer is the best way to maintain the perfor-
mance, safety characteristics and low running costs of your car. It is also necessary to maintain warranty cover.
“Service” guide
This contains the Alfa Romeo Authorized Services. The services can be recognized by the presence of the Alfa Romeo
badge and logo.
The Alfa Romeo organization in Italy can be found in the telephone book under the letter “A” Alfa Romeo.
Not all the models described in this booklet are available in all countries. Only some of the fittings described in this
booklet are fitted as standard to the car. The list of available accessories should be requested from the Alfa Romeo
Dealers.
001-045 Alfa 159 GB 4-06-2008 9:38 Pagina 4

ENGINE OIL LEVEL
INDICATION
Fitting the electronic key into the igni-
tion device, the display will show for a
few seconds the engine oil level. At this
stage, to clear this indication and to go
to next screen, press button MENU.
Low oil level will be indicated by a ded-
icated warning message on the display.
IMPORTANT Check the proper en-
gine oil level on the dipstick (see para-
graph “Checking levels” in section “Car
maintenance”).
IMPORTANTProper engine oil level
shall be checked with the car on level
ground.
IMPORTANT To read the correct oil
level after fitting the electronic key, wait
for about 2 seconds before starting the
engine.
IMPORTANT Engine oil level could in-
crease after a long stop. Scheduled servicing
IMPORTANTThe Service schedule in-
cludes car maintenance every 35,000
km (or 21,000 mi); this is shown au-
tomatically, with the electronic key in-
to the ignition device starting from
2,000 km (or 1,240 mi) from this
deadline and it will be displayed in km
or miles according to the unit set. When
a scheduled service interval (“coupon”)
is near to come, fitting the electronic key
into the ignition device will display a
message followed by the number of
km/mi to go before car servicing. Con-
tact Alfa Romeo Authorized Services to
carry out any service operation provid-
ed by the Service schedule or by the An-
nual inspection plan, and to reset the
display.
28
SAFETY
DEVICES
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
Distance unit (UNIT)
With this function it is possible to set the
required distance unit (km or mi).
To set the distance unit, proceed as fol-
lows:
❒press button MENUuntil selecting
UNIT: the display will show UNIT
and “km” or “mi”;
❒press again button MENU: “km”
(or “mi”) will flash;
❒press buttons +/–to set the re-
quired distance unit.
001-045 Alfa 159 GB 4-06-2008 9:38 Pagina 28

Reactivating the S.B.R.
(Seat Belt Reminder) buzzer
(Beep Seatb.) (where provided)
This function is displayed only after the
system has been deactivated by Alfa
Romeo Authorized Services.
Exit Menu (Quit setup)
Selecting this option will bring back to
standard screen.
ILLUMINATION OF REV
COUNTER/INSTRUMENTS
(NIGHT PANEL)
This function enables to turn on/off
(ON/OFF) the lights of the rev counter
and instruments. This function can be ac-
tivated (only with electronic key fitted in-
to ignition device, external lights on, and
speedometer built-in sensor in poor out-
side light setting), by pressing for long but-
ton–. When this function is on, the dis-
play will show a warning message. Once
on, the NIGHT PANELfunction can be
deactivated as follows:
❒by long press on button +(also with
external lights off);
❒removing the electronic key from the
ignition device.
When function is off the display will show
a warning message.
Messages stay on the display for a few
seconds, then they will go off. To stop
displaying before time, briefly press but-
tonMENU. Scheduled Servicing (Service)
Through this function it is possible to dis-
play information connected to proper car
servicing.
Proceed as follows:
❒briefly press button MENU: service
in km or mi, according to previous
setting, will be displayed (see para-
graph “Units”);
❒briefly press buttonMENUto go
back to the menu screen or press the
button for long to go back to the stan-
dard screen.
IMPORTANTThe Service schedule in-
cludes car maintenance every 35,000 km
(or 21,000 mi); this is shown automat-
ically, with the electronic key into the ig-
nition device starting from 2,000 km (or
1,240 mi) from this deadline and it will
be displayed in km or miles according to
the unit set. When a scheduled service in-
terval (“coupon”) is near to come, fitting
the electronic key into the ignition device
will display a message followed by the
number of km/mi to go before car ser-
vicing. Contact Alfa Romeo Authorized Ser-
vices to carry out any service operation
provided by the Service schedule or by the
Annual inspection plan, and to reset the
display.
40
SAFETY
DEVICES
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
001-045 Alfa 159 GB 4-06-2008 9:38 Pagina 40

68
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
POLLEN FILTER/ ACTIVATED
CARBON POLLEN FILTER
According to versions, the car can be fit-
ted with pollen filter or activated carbon
pollen filter (where provided). The filter
has the specific capability of admitting to
the passenger compartment purified air,
free from particles such as dust, pollen,
etc. The filtering action takes place un-
der all air inlet conditions and it is clear-
ly most effective with the windows shut.
Have the conditions of the filter checked
by Alfa Romeo Authorized Services at
least once a year, preferably at the on-
set of summer.
If the car is used mainly in polluted or
dusty areas it should be checked and if
necessary replaced at shorter intervals
than specified in the Service Schedule
(see section “Car Maintenance”). AQS function (Air Quality
System) (where provided)
The AQS function turns on automatical-
ly air recirculation when it detects the
presence of polluted air (e.g. in queues
and tunnels).
IMPORTANTWith AQS function on,
after a preset time with recirculation on,
the compressor will enable outside air
inlet (for about 1 minute) to change air
inside the passenger compartment, re-
gardless of outside air pollution level.
IMPORTANTThe AQS function is dis-
abled when the outside temperature is
cold to prevent window misting up. To
reactivate this function, press button
v. Led “A” on button vwill
turn on to indicate that the function is
on.
Failure to replace the fil-
ter may considerably re-
duce the effectiveness of
the climate control system up to
blocking the air flow from the
outlets and vents.
046-082 Alfa 159 GB 4-06-2008 9:40 Pagina 68

223
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
CAR
MAINTENANCE
CC C
A A
R R
M M
A A
I I
N N
T T
E E
N N
A A
N N
C C
E E
SCHEDULED SERVICING...................................... 224
SERVICE SCHEDULE........................................... 225
PERIODICAL CHECKS.......................................... 227
USE OF THE CAR UNDER HEAVY CONDITIONS ........ 227
CHECKING FLUID LEVELS.................................... 228
AIR FILTER/POLLEN FILTER ................................ 236
DIESEL FUEL FILTER .......................................... 236
BATTERY .......................................................... 237
WHEELS AND TYRES.......................................... 241
RUBBER HOSES................................................ 243
WINDSCREEN WIPER ........................................ 243
BODYWORK..................................................... 245
INTERIORS....................................................... 247
223-248 Alfa 159 GB 4-06-2008 9:44 Pagina 223

224
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
CAR
MAINTENANCE
SCHEDULED
SERVICING
Correct maintenance is essential for en-
suring long car life under the best condi-
tions.
This is why Alfa Romeo has programmed
a series of checks and maintenance op-
erations every 35,000 km (or 21,000
mi).
IMPORTANTAt 2,000 km from the
scheduled service, the display will show
a dedicated message.
It is however important to remember that
scheduled servicing does not completely
cover all the car’s requirements: also in
the initial period before 35,000 km (or
21,000 mi) service coupon and later, be-
tween one coupon and another, ordinary
care is still required such as for example
routine check and topping up the level of
fluids, tyre pressure check, etc...IMPORTANTThe Programmed Main-
tenance coupons are specified by the
Manufacturer. The failure to have them
carried out may invalidate the warranty.
Scheduled Servicing is performed by all
Alfa Romeo Authorized Services, at pre-
established times.
If during whatever service operation, in
addition to the ones programmed, the
need arises for further replacements or
repairs, these may be carried out only
with the explicit agreement of the Cus-
tomer.IMPORTANTYou are advised to con-
tact Alfa Romeo Authorized Services in
the event of any minor operating faults,
without waiting for the next service
coupon.
If your car is used frequently for towing,
the interval between one service coupon
and the other must be reduced.
223-248 Alfa 159 GB 4-06-2008 9:44 Pagina 224

225
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
CAR
MAINTENANCE
35 70 105 140 175
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●
●●
●
●
SERVICE SCHEDULE
Thousands of km
Check tyre conditions/wear and adjust pressure if required
Check light system operation (headlights, direction indicators, hazard lights,
boot lights, passenger compartment lights, glovebox lights, warning lights, etc.)
Check windscreen wiper/washer operation,adjust nozzles if required
Check windscreen/rear window blade position/wear
Check front disk brake pad conditions and wear and wear indicator operation
Check rear disk brake pad conditions and wear
Sight inspect the conditions of: body external parts, underbody protection,
pipes and hoses (exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanness of locks, bonnet and boot and lever cleanness
and lubrication
Check and top up, if required, fluid levels (brakes/hydraulic clutch,
power steering, windscreen washer, battery, engine coolant, etc.)
Check and adjust handbrake lever stroke
Sight inspect accessory drive belt conditions (except 1.8 version)
Sight inspect accessory drive belt conditions (1.8 version)
Sight inspect timing belt conditions (1.8 version)
223-248 Alfa 159 GB 4-06-2008 9:44 Pagina 225

227
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
CAR
MAINTENANCE
USE OF THE CAR
UNDER HEAVY
CONDITIONS
Should prevailing use of the car be un-
der one of the following specially heavy
conditions:
❒ trailer or caravan towing;
❒ dusty roads;
❒ short distances (less than 7-8 km)
and repeated with external temper-
atures below zero;
❒ frequently idling engines or long dis-
tance low speed driving (e.g.: door-
to-door deliveries) or in case of a long
term inactivity;
❒ urban routes;
carry out checks more frequently than
required on Service Schedule:
❒ check front disk brake pad conditions
and wear;
❒ check cleanness of bonnet and boot
locks and lever cleanness and lubri-
cation;
❒ sight inspect the conditions of: en-
gine, gearbox, transmission, pipes
and hoses (exhaust - fuel - brakes),
rubber parts (boots, sleeves, bushes,
etc.);
❒ check battery charge and fluid level
(electrolyte);
❒ visual check on various drive belt con-
ditions;
❒ change engine oil and oil filter, if re-
quired;
❒ check and replace pollen filter, if re-
quired;
❒ check and replace air cleaner, if re-
quired.
PERIODICAL CHECKS
Every 1,000 km or before long jour-
neys, check and top up if required:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒ tyre pressure and conditions.
❒ check light system operation (head-
lights, direction indicators, hazard
lights, etc.);
❒ check windscreen wiper/washer op-
eration and windscreen/rear window
blade position/wear;
Every 3,000 km check and top up if re-
quired: engine oil level.
You are recommended to use FL Se-
leniaproducts, designed and produced
specifically for Alfa Romeo cars (see
table “Capacities” in section “Techni-
cal specifications”).
223-248 Alfa 159 GB 4-06-2008 9:44 Pagina 227

235
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
CAR
MAINTENANCE
IMPORTANTFor this operation it is
however recommended to always con-
tact Alfa Romeo Authorized Services.
Do not allow the pow-
er steering fluid to
touch the hot parts of the en-
gine: it is inflammable.
WARNING

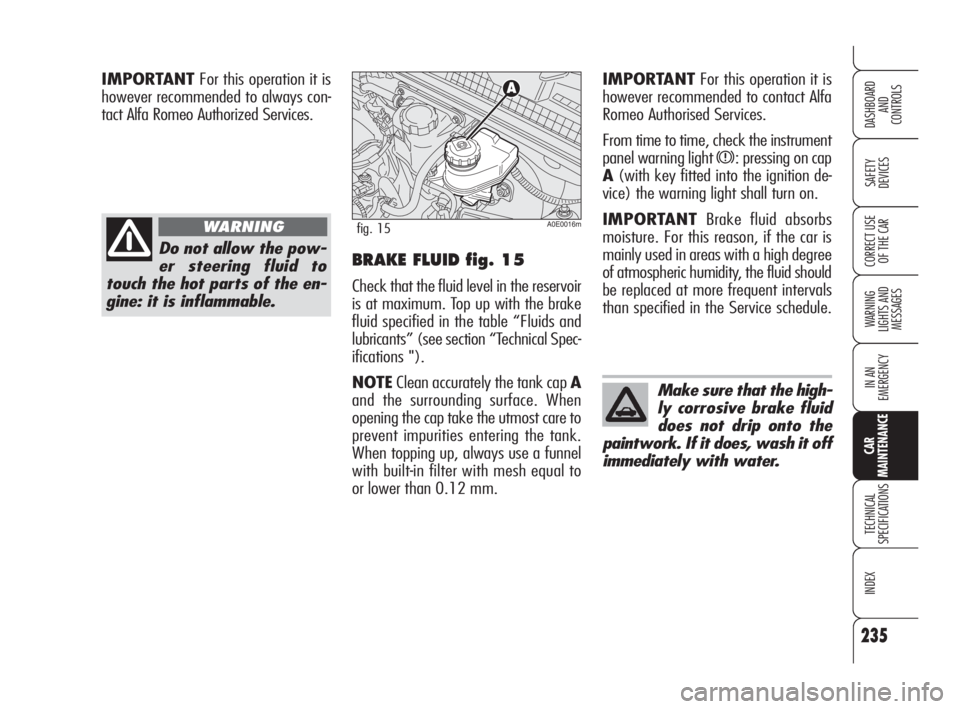

BRAKE FLUID fig. 15
Check that the fluid level in the reservoir
is at maximum. Top up with the brake
fluid specified in the table “Fluids and
lubricants” (see section “Technical Spec-
ifications ").
NOTEClean accurately the tank cap A
and the surrounding surface. When
opening the cap take the utmost care to
prevent impurities entering the tank.
When topping up, always use a funnel
with built-in filter with mesh equal to
or lower than 0.12 mm.
A0E0016mfig. 15
Make sure that the high-
ly corrosive brake fluid
does not drip onto the
paintwork. If it does, wash it off
immediately with water.
IMPORTANTFor this operation it is
however recommended to contact Alfa
Romeo Authorised Services.
From time to time, check the instrument
panel warning light
x: pressing on cap
A(with key fitted into the ignition de-
vice) the warning light shall turn on.
IMPORTANTBrake fluid absorbs
moisture. For this reason, if the car is
mainly used in areas with a high degree
of atmospheric humidity, the fluid should
be replaced at more frequent intervals
than specified in the Service schedule.
223-248 Alfa 159 GB 4-06-2008 9:44 Pagina 235
