A0E0169mfig. 41
IF AN INTERIOR
LIGHT BURNS OUT
For the type of bulb and power rating,
see “When needing to change a bulb”.
FRONT CEILING LIGHT
Contact Alfa Romeo Authorized Services
to change the bulb.
REAR CEILING LIGHT
Versions without sunroof
To change the bulb, proceed as follows:
❒remove the front ceiling light work-
ing in the points shown by the arrows
(see fig. 42);
A0E0183mfig. 42
A0E0084mfig. 43
❒turn the 2 bulb holders A-fig. 43
counter-clockwise, remove and re-
place bulbs.
181-222 Alfa 159 GB 3-12-2009 14:10 Pagina 205

206
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
Versions with sunroof
To replace the bulbs proceed as follows:
❒remove the ceiling light A-fig. 44
working in the points shown by the ar-
rows;
❒replace the bulb B-fig. 45releas-
ing it from the side contacts making
sure that the new bulb is correctly
clamped between the contacts.
A0E0098mfig. 44A0E0099mfig. 45
COURTESY MIRROR LIGHTS
(where provided)
To change the bulb, proceed as follows:
❒open the mirror cover A-fig. 46;
❒remove the bulb Blevering in the
points shown by the arrows;
A0E0118mfig. 46
181-222 Alfa 159 GB 3-12-2009 14:10 Pagina 206

207
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
❒close protection B-fig. 49on light
unitA-fig. 48;
❒refit the light unit inserting first one
side and then the other one until
hearing the locking click.
GLOVEBOX LIGHT
To change the bulb, proceed as follows:
❒open the glovebox;
❒remove the light unit A-fig. 48lev-
ering in the point shown by the ar-
row;
❒raise protectionB-fig. 49and re-
place the snap-fitted bulb;
A0E0172mfig. 48A0E0173mfig. 49
❒replace the bulb C-fig. 47releas-
ing it from the side contacts making
sure that the new bulb is correctly
clamped between the contacts.
A0E0171mfig. 47
181-222 Alfa 159 GB 3-12-2009 14:10 Pagina 207

208
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
BOOT LIGHT
To change the bulb, proceed as follows:
❒open the tailgate;
❒remove the light unit A-fig. 50lev-
ering in the point shown by the ar-
row;
❒open the protection cover B-fig. 51
and replace the bulb releasing it from
the side contacts making sure that
the new bulb is correctly clamped be-
tween the contacts;
❒re-close the protective cover B;
❒refit the light unit inserting first one
side and then the other one until
hearing the locking click.
❒close protection B-fig. 53on light
unitA-fig. 52;
❒refit the light unit inserting first one
side and then the other one until
hearing the locking click.
A0E0205mfig. 50A0E0075mfig. 52A0E0204mfig. 51
PUDDLE LIGHT
To change the bulb, proceed as follows:
❒open the door and remove lens A-
fig. 52levering in the point shown
by the arrow;
❒raise protectionB-fig. 53and re-
place the snap-fitted bulb;
A0E0235mfig. 53
181-222 Alfa 159 GB 3-12-2009 14:10 Pagina 208

209
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY

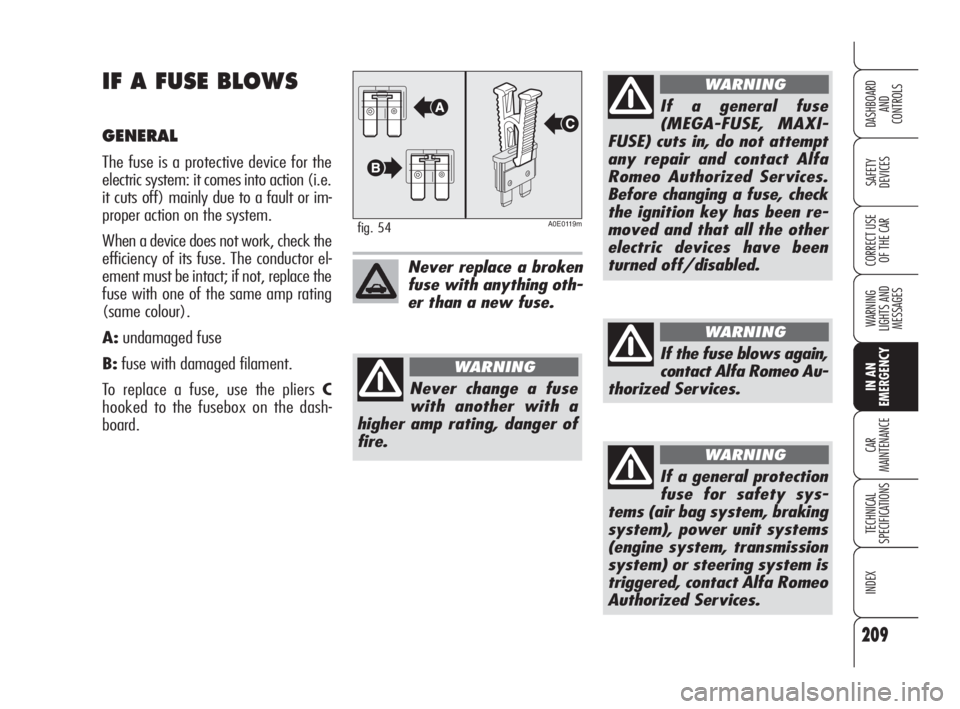

IF A FUSE BLOWS
GENERAL
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse. The conductor el-
ement must be intact; if not, replace the
fuse with one of the same amp rating
(same colour).
A:undamaged fuse
B:fuse with damaged filament.
To replace a fuse, use the pliers C
hooked to the fusebox on the dash-
board.
A0E0119mfig. 54
Never replace a broken
fuse with anything oth-
er than a new fuse.
Never change a fuse
with another with a
higher amp rating, danger of
fire.
WARNING
If a general fuse
(MEGA-FUSE, MAXI-
FUSE) cuts in, do not attempt
any repair and contact Alfa
Romeo Authorized Services.
Before changing a fuse, check
the ignition key has been re-
moved and that all the other
electric devices have been
turned off/disabled.
WARNING
If the fuse blows again,
contact Alfa Romeo Au-
thorized Services.
WARNING
If a general protection
fuse for safety sys-
tems (air bag system, braking
system), power unit systems
(engine system, transmission
system) or steering system is
triggered, contact Alfa Romeo
Authorized Services.
WARNING
