isofix Alfa Romeo 159 2010 Owner handbook (in English)

129
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
SAFETY
DEVICES
S S
A A
F F
E E
T T
Y Y

D D
E E
V V
I I
C C
E E
S S
SEAT BELTS ...................................................... 130
S.B.R. SYSTEM ................................................ 131
PRETENSIONERS............................................... 132
CARRYING CHILDREN SAFELY .............................. 135
PRESETTING FOR MOUNTING THE
“UNIVERSAL ISOFIX”CHILD RESTRAINT SYSTEM..... 140
FRONT AIR BAGS............................................... 142
SIDE AIR BAGS (Side bag - Window bag) ............. 145
129-148 Alfa 159 GB 8-04-2009 10:50 Pagina 129

140
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
SAFETY
DEVICES
Mount the child restraint
system only with the car
stationary. The Isofix child re-
straint system is properly an-
chored to the mounting brackets
when clicks are heard. In any
case, keep to the installation in-
structions that must be provid-
ed by the child restraint system
Manufacturer.
WARNING
PRESETTING FOR
MOUNTING THE
“UNIVERSAL
ISOFIX” CHILD
RESTRAINT SYSTEM
This car is preset for mounting the Uni-
versal Isofix child restraint system, a
new European standardised system for
carrying children safely.
Fig. 11/ashows an example of child
restraint system. The Universal Isofix
child’s seat covers weight group: 1.
Due to its different anchoring system,
the Universal Isofix child's seat shall be
anchored to the proper lower metal rings
A-fig.12, set between rear seat back
and cushion. The upper belt (provided
with the child's seat) shall be then se-
cured to fasteners B-fig.13set behind
head restraints.
It is possible to mount at the same time
both the traditional restraint system and
the “Universal Isofix” one.
Remember that in case of Universal Isofix
child’s seat, you can only use all those
seats approved with the marking ECE
R44/03 “Universal Isofix”.At Lineaccessori Alfa Romeo is available
the “Universal Isofix” “Duo Plus” child’s
seat shown in.
For any further installation/use detail,
refer to the “Instructions Manual” that
must be provided by the child restraint
system Manufacturer.A0E0174mfig. 12
fig.
11/aA0E0241mA0E0190mfig. 13
129-148 Alfa 159 GB 8-04-2009 10:50 Pagina 140

141
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
SAFETY
DEVICES
PASSENGER SEAT COMPLIANCE WITH REGULATIONS ON UNIVERSALS ISOFIX CHILD’S
SEAT USE
The table below, according to ECE 16 European Directive, shows the different installation possibilities of Isofix restraint sys-
tems on seats fitted with Universals Isofix fasteners.
IUF: suitable for Isofix child restraint systems to be set facing forwards, universal class (fitted with third upper fastener), approved for
the weight group.
IL: suitable for Isofix Type child restraint systems, specific and approved for this type of car. The child's seat can be installed by moving
forward the front seat
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing forwards
Facing forwards
Facing forwardsE
E
D
C
D
C
B
BI
AIL
IL
IL
IL
IL
IL
IUF
IUF
IUF Range of weight Child’s seat Isofix Isofix position
direction size group side rear
Group 0 - 0 to 10 kg
Group 0+ - 0 to 13 kg
Group I - 9
to 18 kg
129-148 Alfa 159 GB 8-04-2009 10:50 Pagina 141

A A
L L
F F
A A

1 1
5 5
9 9

S S
P P
O O
R R
T T
W W
A A
G G
O O
N N
REARSCREEN WIPER ......................................... 276
BOOT .............................................................. 277
ROOF RACK/SKI RACK ...................................... 284
PRESETTING FOR MOUNTING THE
"UNIVERSAL ISOFIX" CHILD RESTRAINT SYSTEM ... 285
IF AN EXTERIOR LIGHT BURNS OUT ..................... 288
IF AN INTERIOR LIGHT BURNS OUT ..................... 290
IF A FUSE BLOWS ............................................. 292
275
ALFA 159 SPORTWAGON
271-292 Alfa 159 GB 8-04-2009 10:55 Pagina 275

286
ALFA 159 SPORTWAGON
PRESETTING FOR
MOUNTING THE
"UNIVERSAL
ISOFIX" CHILD
RESTRAINT SYSTEM

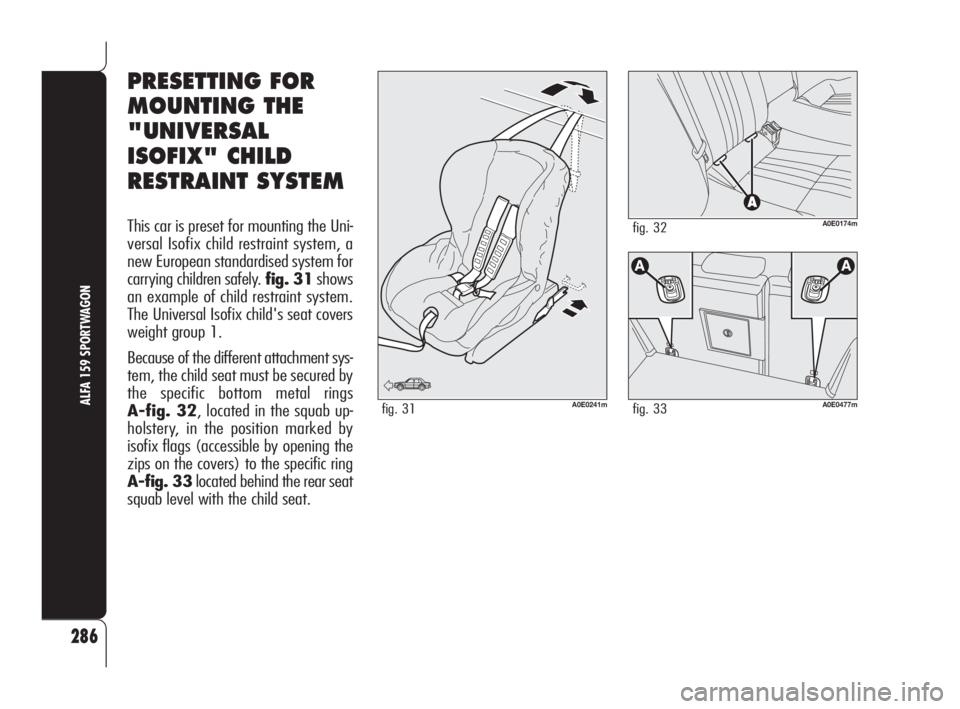

This car is preset for mounting the Uni-
versal Isofix child restraint system, a
new European standardised system for
carrying children safely. fig. 31shows
an example of child restraint system.
The Universal Isofix child's seat covers
weight group 1.
Because of the different attachment sys-
tem, the child seat must be secured by
the specific bottom metal rings
A-fig. 32, located in the squab up-
holstery, in the position marked by
isofix flags (accessible by opening the
zips on the covers) to the specific ring
A-fig. 33located behind the rear seat
squab level with the child seat.A0E0174mfig. 32
A0E0477mfig. 33
fig. 31A0E0241m
271-292 Alfa 159 GB 8-04-2009 10:56 Pagina 286

It is possible to mount both the tradi-
tional restraint system and the "Univer-
sal Isofix" one. Remember that in case
of Universal Isofix child's seats, you can
only use all those seats approved with
the ECE R44/03 writing "Universal
Isofix".
At Lineaccessori Alfa Romeo you can find
the "Universal Isofix" "Duo Plus" child's
seat.
For any further detail on installation
and/or use, refer to the “Instructions
Manual” that must be provided by the
child restraint system's Manufacturer. To use fastener A-fig. 33, proceed as
follows:
❒tilt the rear set backrest (see para-
graph "Extending the boot" in this
section);
❒pull up fastener Aand then secure
the belt to the fastener.
287
ALFA 159 SPORTWAGON
Mount the child re-
straint system only
with the car stationary. The
Universal Isofix child restraint
system is properly anchored to
the mounting brackets when
clicks are heard. In any case,
keep to the installation in-
structions that must be pro-
vided by the child restraint
system's Manufacturer.
WARNING
271-292 Alfa 159 GB 8-04-2009 10:56 Pagina 287

319
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
INDEX
– useful advice for
lengthening the life ............. 239
Bodywork (cleaning) ................ 244
Bonnet ................................... 105
Boot ...............................101-277
– light replacement ................ 208
Brakes ................................... 256
Bulb (replacement) .................. 196
– general instructions ............. 196
– types of bulbs .................... 197
Capacities .............................. 266
Car inactivity ........................... 164
Car maintenance................ 223
– periodical checks ................ 227
– use of the car under heavy
conditions .......................... 227
– service Schedule ................. 225
– scheduled service ................ 224
Carrying children safely ............. 135
– child restraint systems ......... 138
– passenger’s seat compliance . 138
– presetting for mounting the
“Universal Isofix” child restraint
system .......................140-285Ceiling lights
– front ................................. 78
– rear .................................. 80
Checking fluid levels ................. 228
Child lock device ...................... 97
Cigar lighter ............................ 85
Climate control system .............. 53
– automatic two-/three-zone .. 58
– manual ............................. 55
CO
2emissions ......................... 270
CODE card .............................. 12
Containing running costs ........... 157
Controls ................................. 81
Correct use of the car........ 149
Courtesy mirror light
– bulb replacement ................ 206
Cruise Control .......................... 76
Dashboard and controls.... 6
Dashboard buttons ................... 72
Dimensions ............................. 261
Dipped beam headlights
– bulb replacement ................ 201
– control .............................. 70 ABS system ............................ 108
Accessories purchased
by the owner ........................ 116
Additional heater ..................... 69
Air bags ...........................141-145
Air/pollen filter ........................ 237
Air vents ................................. 54
Alarm ..................................... 17
Alfa Romeo CODE system .......... 10
Alfa 159 Sportwagon....... 275
Armrest
– central .............................. 82
– rear ........................... 83-84
Ashtray .................................. 87
ASR system ............................ 112
At the filling station .................. 125
Automatic headlight sensor ........ 71
Automatic two/three-zone
climate control system ............ 58
Battery
– checking the charge ............ 237
– jump starting ..................... 182
– recharging ......................... 219
– replacing ........................... 238
I I
N N
D D
E E
X X
319-328 Alfa 159 GB 3-12-2009 15:53 Pagina 319

320
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
INDEX
– fuel gauge ......................... 22
Fuel cut-off and power supply
switches ............................... 81
Fuel feed ................................ 255
Fuel filler cap .......................... 126
Fuses (replacement) .......... 209-292
Gearbox (use) ........................ 156
Glass/can holder ..................... 87
Glove compartment .................. 85
Glove compartment light
– bulb replacement ................ 207
Handbrake ............................. 155
Hazard lights ........................... 72
Head restraints ................. 48-49
Headlight washer
– control .............................. 73
– fluid level .......................... 232
Headlights .............................. 65
– adjusting headlight beam ..... 106
– headlight adjustment abroad 107
– headlight aiming device ....... 106
– front fog light adjustment ..... 107
Hill Holder system .................... 111
Homelink ............................... 89
Identification data .................... 250
If an exterior light burns out .. 196-288
If an interior light burns out .. 205-290
Ignition device ......................... 19In an emergency................ 181
Inactivity of the car .................. 164
Inertial fuel cut-off switch .......... 80
Installation of electric/
electronic devices ................... 117
Instrument panel ..................... 7-8
Instruments ............................ 21
Interior fittings ......................... 83
Interiors ................................. 247
Isofix universal
(child's seat) ..................140-286
Jacking the car ........................ 220
Labels
– identification data ............... 250
– bodywork paint .................. 251
Level checks ........................... 230
Main beam headlights
– bulb replacement ................ 199
– control .............................. 70
Manual climate control system ... 55
MSR system ........................... 114
Multifunction display ................ 25
Number plate light .................. 204
Oddments compartments .......... 88
Paint ..................................... 246
Parking .................................. 155 Direction indicators
– bulb replacement 200-201-204
– control .............................. 70
Doors ..................................... 96
Electronic key .......................... 12
Engine
– identification code ............... 252
– marking ............................ 251
– technical data .................... 253
Engine oil
– consumption ...................... 232
– level check ........................ 231
– specifications ..................... 266
Engine starting ........................ 150
Environment protection ............. 127
EOBD system .......................... 115
External lights ......................... 70
Eyeglasses holder .................... 87
Fix&Go automatic (device) ....... 190
Flashing the headlights ............. 70
Fluid level checks ..................... 230
Fluids and lubricants ................. 267
Follow me home (device) ......... 71
Front ceiling lights
– bulb replacement ................ 205
– control .............................. 78
Front fog lights
– bulb replacement ................ 202
– control .............................. 72
Fuel
– consumption ...................... 269
– fuel cut-off switch ............... 81
319-328 Alfa 159 GB 3-12-2009 15:53 Pagina 320
