steering Alfa Romeo 159 2010 Owner handbook (in English)

6
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
D D
A A
S S
H H
B B
O O
A A
R R
D D

A A
N N
D D

C C
O O
N N
T T
R R
O O
L L
S S
CRUISE CONTROL ............................................. 76
CEILING LIGHTS................................................ 78
CONTROLS....................................................... 81
INTERIOR FITTINGS............................................ 83
SUNROOF........................................................ 93
DOORS ........................................................... 96
POWER WINDOWS ........................................... 99
BOOT .............................................................. 101
BONNET.......................................................... 105
ROOF RACK/SKI RACK ...................................... 106
HEADLIGHTS..................................................... 106
ABS SYSTEM ................................................... 108
VDC SYSTEM ................................................... 110
EOBD SYSTEM ................................................. 115
SOUND SYSTEM PRESETTING .............................. 116
ACCESSORIES PURCHASED BY THE OWNER .......... 116
INSTALLATION OF ELECTRIC/ELECTRONIC DEVICES .. 117
PARKING SENSORS ........................................... 118
TYRE PRESSURE MONITORING SYSTEM
(T.P.M.S.) ........................................................ 122
AT THE FILLING STATION .................................... 125
PROTECTING THE ENVIRONMENT ........................ 127 DASHBOARD.................................................... 7
INSTRUMENT PANEL ......................................... 8
SYMBOLS ....................................................... 9
ALFA ROMEO CODE SYSTEM ............................... 9
ELECTRONIC KEY .............................................. 11
ALARM ........................................................... 17
IGNITION DEVICE............................................... 19
INSTRUMENTS.................................................. 21
MULTIFUNCTION DISPLAY ................................... 25
RECONFIGURABLE MULTIFUNCTION DISPLAY .......... 30
SEATS ............................................................ 45
HEAD RESTRAINTS............................................. 48
STEERING WHEEL ............................................. 49
REARVIEW MIRRORS ......................................... 50
CLIMATE CONTROL SYSTEM ............................... 53
MANUAL CLIMATE CONTROL SYSTEM ................... 55
AUTOMATIC TWO-/THREE-ZONE
CLIMATE CONTROL SYSTEM ............................... 58
ADDITIONAL HEATER ......................................... 69
EXTERNAL LIGHTS............................................. 70
WINDOW WASHING ......................................... 73
001-045 Alfa 159 GB 8-04-2009 10:48 Pagina 6

7
SAFETY
DEVICES
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
DASHBOARD
A0E0056mfig. 1
1.Adjustable swivel side air vents - 2. Front side window demisting/defrosting vents - 3.External lights control lever - 4.In-
strument panel - 5.Driver’s air bag and horn -6.Windscreen wiper control lever - 7.Upper central vent - 8.Adjustable swiv-
el centre air vents - 9.Fuel level gauge/engine coolant temperature gauge/engine oil temperature gauge (petrol versions)
or turbocharger pressure gauge (diesel versions) - 10.Passenger’s air bag - 11.Passenger’s knees air bag (for ver-
sions/markets, where provided) - 12.Glove box - 13.Sound system (for versions/markets, where provided) - 14.Heat-
ing/ventilation/climate controls - 15. Engine START/STOPbutton - 16.Ignition device - 17.Driver’s knees air bag -
18.Sound system controls on the steering wheel (where provided) - 19.Cruise Control lever (for versions/markets,
where provided) - 20.Bonnet opening lever - 21.Dashboard fusebox lid - 22.Switches for external lights, trip meter re-
set and headlamp aiming device.
001-045 Alfa 159 GB 8-04-2009 10:48 Pagina 7

19
SAFETY
DEVICES
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
IGNITION DEVICE
The ignition device is located on the
dashboard and it consists of the follow-
ing:
❒electronic key reading device A-
fig. 14 (set near the steering wheel);
❒button START/STOP(set under the
electronic key reading device).
IMPORTANTTo prevent running
down the battery do not leave the elec-
tronic key into the ignition device when
the engine is off.
HOW TO CUT OFF
THE ALARM SYSTEM
To deactivate the alarm system com-
pletely (for instance during prolonged
inactivity of the car) simply lock the car
by rotating the metal insert (provided
inside the electronic key) into the dri-
ver’s door lock.
MINISTERIAL
HOMOLOGATION
In keeping with the laws in force in each
country on the subject of radio fre-
quency, for markets in which the trans-
mitter needs to be marked the certifi-
cation number is given on the compo-
nent. For certain versions/markets, the
code may also be marked on the trans-
mitter and/or on the receiver.
A0E0219mfig. 14
If the ignition device is
tampered with (for ex-
ample during an attempted
break-in) have it checked over
by Alfa Romeo Authorized Ser-
vices before travelling again.
WARNING
When leaving the car
always remove the
electronic key from the ignition
device to prevent any passen-
ger in the car from inadver-
tently activating the controls.
Remember to engage the
handbrake and if the car is fac-
ing uphill, first gear and if the
car is facing downhill, reverse.
Never leave children unat-
tended in the car.
WARNING
001-045 Alfa 159 GB 8-04-2009 10:48 Pagina 19

21
SAFETY
DEVICES
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
ed) (or as an alternative, on certain ver-
sions, a symbol and a message are dis-
played). In this event contact Alfa
Romeo Authorized Services.
IMPORTANTIf after trying to turn on
the instrument panel and/or to start the
engine, the instrument panel warning
light
>(where provided) (or as an al-
ternative, on certain versions the mes-
sage "Vehicle protection system not
available" is displayed), repeat the op-
eration moving the steering wheel in or-
der to release the steering lock. The dis-
played warning message will not impair
steering lock operation.
INSTRUMENTS
REV. COUNTER
Rev counter shows engine rpm. The red
zone at the scale bottom indicates that
the engine is running at excessive rpm
dangerous for mechanical components.
Do not drive with the pointer in this area.
IMPORTANTThe electronic injection
control system gradually shuts off the
flow of fuel when the engine is “over-
revving” (rev counter pointer in the red
area) resulting in a gradual loss of en-
gine power, in order to bring engine rpm
below to the safety limit.
The rev counter may, when the engine
is idling, indicate gradual or sudden in-
crease of engine revs as the case may
be; such behaviour is normal and must
not be interpreted as a faulty condition
as it occurs during normal operation, for
instance when climate control or electric
fan are switched on. In particular, slow
revs variation helps keep the battery
charged.

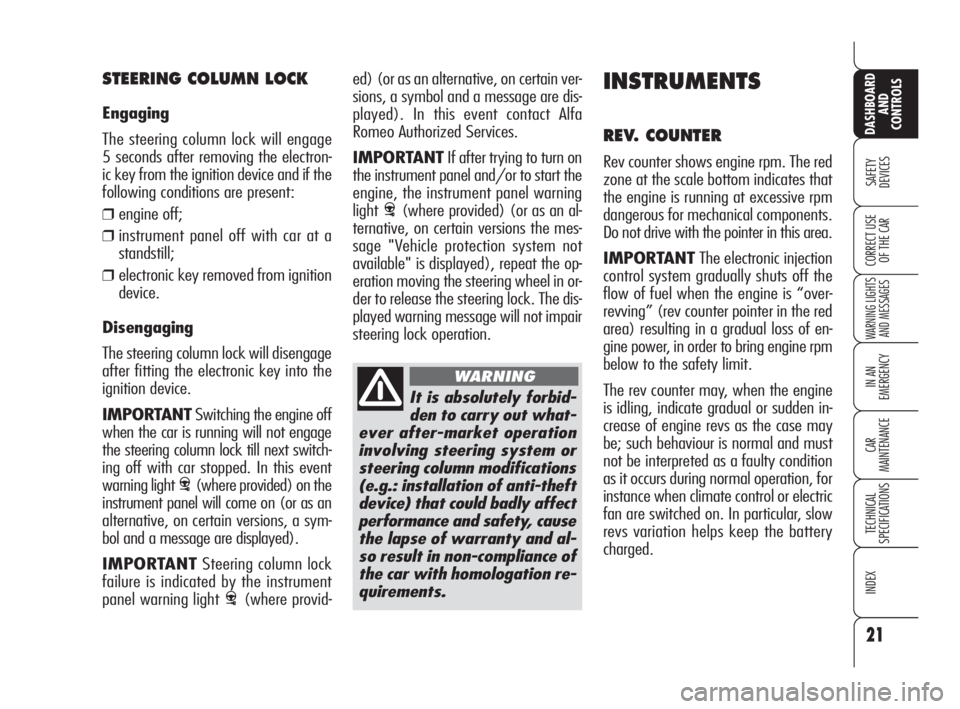

STEERING COLUMN LOCK
Engaging
The steering column lock will engage
5 seconds after removing the electron-
ic key from the ignition device and if the
following conditions are present:
❒engine off;
❒instrument panel off with car at a
standstill;
❒electronic key removed from ignition
device.
Disengaging
The steering column lock will disengage
after fitting the electronic key into the
ignition device.
IMPORTANTSwitching the engine off
when the car is running will not engage
the steering column lock till next switch-
ing off with car stopped. In this event
warning light
>(where provided) on the
instrument panel will come on (or as an
alternative, on certain versions, a sym-
bol and a message are displayed).
IMPORTANTSteering column lock
failure is indicated by the instrument
panel warning light
>(where provid-
It is absolutely forbid-
den to carry out what-
ever after-market operation
involving steering system or
steering column modifications
(e.g.: installation of anti-theft
device) that could badly affect
performance and safety, cause
the lapse of warranty and al-
so result in non-compliance of
the car with homologation re-
quirements.
WARNING
001-045 Alfa 159 GB 8-04-2009 10:48 Pagina 21

43
SAFETY
DEVICES
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARButton TRIPshall also be used to reset
the “Trip A” and “Trip B” functions to
start a new mission:
❒short push: to display the different
values;
❒long push: to reset and then start
a new mission.
To scroll the Trip Computer options,
briefly press buttons
-and ..
IMPORTANT“Trip A” reset will also
reset the “Trip B” function, whereas
“Trip B” reset will only reset the infor-
mation associated with this function.
New mission (reset)
Reset can be:
❒“manual” reset is performed by the
driver by pressing button TRIP;
❒“automatic” reset is performed when
the trip distance reaches 9999.9 km
(or mi), when travel time reaches
99.59 (99 hours and 59 minutes)
or after disconnecting and then re-
connecting the battery.
TRIP BUTTON
Button TRIP fig. 28, set on the right
steering column stalk shall be used (with
electronic key into ignition device) to en-
ter the “Trip A” and “Trip B” function.
To scroll the values of each option use
buttons set aside the stalk.
A0E0076mfig. 28
Every Trip computer screen displays two
options of the active Trip (Trip A or Trip
B); one option is displayed at the top of
the screen, the other one at the bottom
(see fig. 29).
In the same screen it is not possible to
have displayed at the same time the
same option at the top and at the bot-
tom of the screen.
A0E0052mfig. 29
001-045 Alfa 159 GB 8-04-2009 10:48 Pagina 43

49
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
STEERING WHEEL
The steering wheel can be adjusted both
axially and in height.
Release the lever A-fig. 36pushing it
downwards, then adjust the steering
wheel as required. To lock the steering
wheel, push lever Aupwards.
It is absolutely forbid-
den to carry out what-
ever after-market operation
involving steering system or
steering column modifications
(e.g.: installation of anti-theft
device) that could badly affect
performance and safety, cause
the lapse of warranty and al-
so result in non-compliance of
the car with homologation re-
quirements.
WARNING
A0E0136mfig. 36
Any adjustment of the
steering wheel position
must be carried out only with
the car stationary and the en-
gine turned off.
WARNING
046-082 Alfa 159 GB 8-04-2009 14:22 Pagina 49

70
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
EXTERNAL LIGHTS

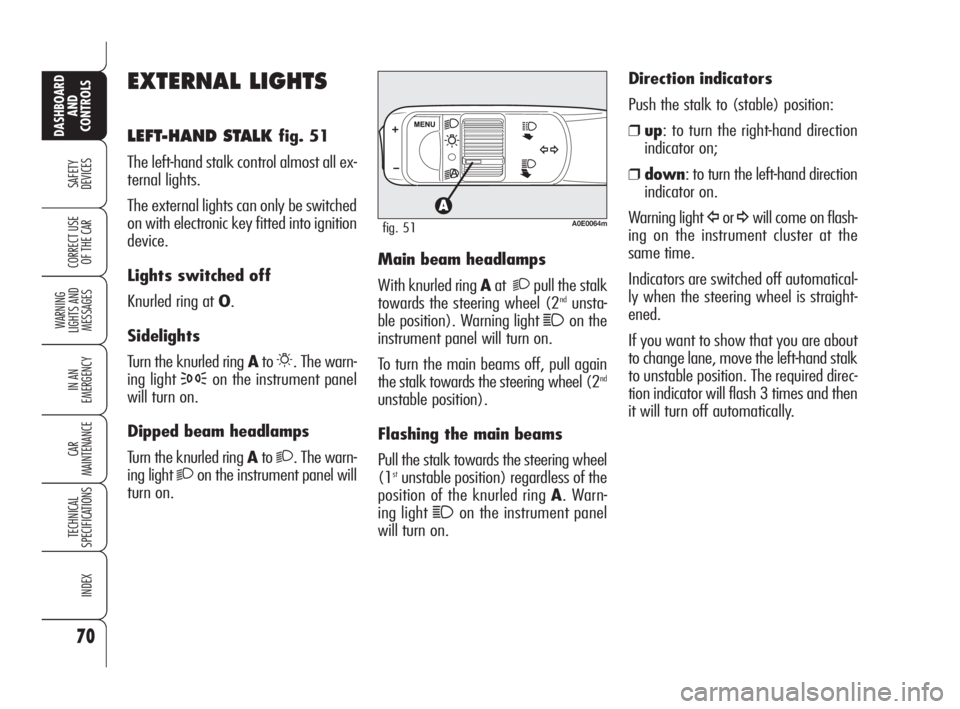

LEFT-HAND STALK fig. 51
The left-hand stalk control almost all ex-
ternal lights.
The external lights can only be switched
on with electronic key fitted into ignition
device.
Lights switched off
Knurled ring at O.
Sidelights
Turn the knurled ring Ato
6. The warn-
ing light
3on the instrument panel
will turn on.
Dipped beam headlamps
Turn the knurled ring Ato
2. The warn-
ing light
2on the instrument panel will
turn on.Main beam headlamps
With knurled ring Aat
2pull the stalk
towards the steering wheel (2ndunsta-
ble position). Warning light
1on the
instrument panel will turn on.
To turn the main beams off, pull again
the stalk towards the steering wheel (2
nd
unstable position).
Flashing the main beams
Pull the stalk towards the steering wheel
(1
stunstable position) regardless of the
position of the knurled ring A. Warn-
ing light
1on the instrument panel
will turn on. Direction indicators
Push the stalk to (stable) position:
❒up: to turn the right-hand direction
indicator on;
❒down: to turn the left-hand direction
indicator on.
Warning light
Îor ¥will come on flash-
ing on the instrument cluster at the
same time.
Indicators are switched off automatical-
ly when the steering wheel is straight-
ened.
If you want to show that you are about
to change lane, move the left-hand stalk
to unstable position. The required direc-
tion indicator will flash 3 times and then
it will turn off automatically.A0E0064mfig. 51
046-082 Alfa 159 GB 8-04-2009 14:22 Pagina 70

71
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS

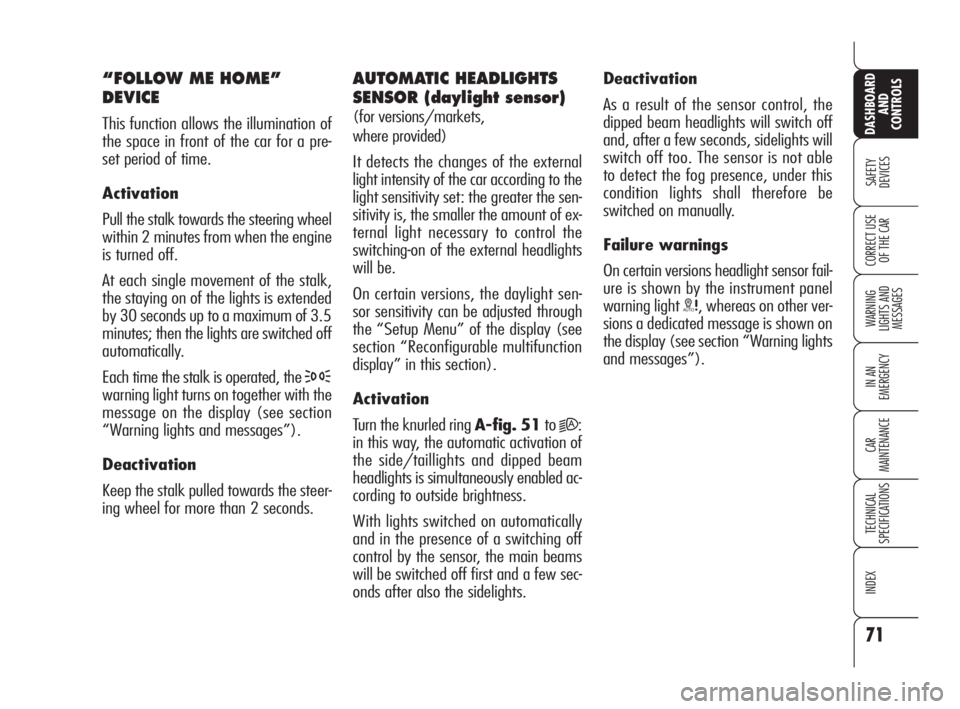

“FOLLOW ME HOME”
DEVICE
This function allows the illumination of
the space in front of the car for a pre-
set period of time.
Activation
Pull the stalk towards the steering wheel
within 2 minutes from when the engine
is turned off.
At each single movement of the stalk,
the staying on of the lights is extended
by 30 seconds up to a maximum of 3.5
minutes; then the lights are switched off
automatically.
Each time the stalk is operated, the
3
warning light turns on together with the
message on the display (see section
“Warning lights and messages”).
Deactivation
Keep the stalk pulled towards the steer-
ing wheel for more than 2 seconds.
AUTOMATIC HEADLIGHTS
SENSOR (daylight sensor)
(for versions/markets,
where provided)
It detects the changes of the external
light intensity of the car according to the
light sensitivity set: the greater the sen-
sitivity is, the smaller the amount of ex-
ternal light necessary to control the
switching-on of the external headlights
will be.
On certain versions, the daylight sen-
sor sensitivity can be adjusted through
the “Setup Menu” of the display (see
section “Reconfigurable multifunction
display” in this section).
Activation
Turn the knurled ring A-fig. 51to
2A:
in this way, the automatic activation of
the side/taillights and dipped beam
headlights is simultaneously enabled ac-
cording to outside brightness.
With lights switched on automatically
and in the presence of a switching off
control by the sensor, the main beams
will be switched off first and a few sec-
onds after also the sidelights.Deactivation
As a result of the sensor control, the
dipped beam headlights will switch off
and, after a few seconds, sidelights will
switch off too. The sensor is not able
to detect the fog presence, under this
condition lights shall therefore be
switched on manually.
Failure warnings
On certain versions headlight sensor fail-
ure is shown by the instrument panel
warning light
1, whereas on other ver-
sions a dedicated message is shown on
the display (see section “Warning lights
and messages”).
046-082 Alfa 159 GB 8-04-2009 14:22 Pagina 71

74
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
Turning the knurled ringA-fig. 54it
is possible to increase the sensitivity of
the rain sensor, obtaining a quicker
change from stationary (no wiping)
when the windscreen is dry, to first con-
tinuous speed (continuous, slow). A fur-
ther stroke will confirm operation.
Operating the windscreen washer with
the rain sensor activated (stalk at posi-
tion 1-fig. 54) the normal washing
cycle is performed at the end of which
the rain sensor resumes its normal au-
tomatic function.
Removing the electronic key from the
ignition device, the rain sensor is deac-
tivated and the next time the engine is
started it will not be reactivated even if
the stalk has remained in position 1-
fig. 54. In this case to activate the rain
sensor, simply move the stalk to 0or 2
and then back to 1.
When the rain sensor is reactivated in
this way, the wiper performs one stroke,
even if the windscreen is dry, to indicate
that reactivation has occurred. “Smart washing” function
Pulling the lever towards the steering
wheel (unstable position) operates the
windscreen washer.
Keeping the stalk pulled with just one
movement it is possible to operate the
washer jet and the wiper at the same
time; the wiper actually comes into op-
eration automatically when the stalk is
pulled for more than half a second.
The wiper stops working 3 strokes after
releasing the stalk; a further stroke af-
ter about 6 seconds will complete the
wiping operation.
RAIN SENSOR
(for versions/markets,
where provided)
The rain sensor A-fig. 55, located be-
hind the driving mirror, is an electronic de-
vice combined with the windscreen wiper
which has the purpose of automatically
adjusting the number of wipes to intensi-
ty of the rain. All the other functions con-
trolled by the right-hand stalk remain un-
changed.
The rain sensor is activated automati-
cally moving the right-hand stalk to po-
sition 1-fig. 54and it has a range of
adjustment that gradually varies be-
tween wiper stationary (no wiping)
when the windscreen is dry, to wiper
at second speed (continuous, medium
wiping) with heavy rain.
A0E0227mfig. 55
046-082 Alfa 159 GB 8-04-2009 14:23 Pagina 74

107
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
In this event, to adjust the headlight
slant use control A-fig. 101set on the
button control panel near the steering
wheel.
If the car is fitted with bixenon head-
lights, headlight aiming is electronic and
therefore control Ais not present.Control has four positions corresponding
to the loads given below:
❒position 0: one or two passenger on
front seats and kerb weight (includ-
ing full fuel tank, tools and acces-
sories);
❒position 1: five passengers;
❒position 2: five passengers and boot
fully loaded (about 50 kg);
❒position 3: driver plus 300 kg load
completely stored into the boot.
IMPORTANT Check headlight slant
each time the transported load changes.
FRONT FOG LIGHT
ADJUSTMENT
Contact Alfa Romeo Authorized Services
to have the headlights correctly adjusted.
A0E0226mfig. 101
HEADLIGHT ADJUSTMENT
ABROAD
The dipped beam headlights are adjust-
ed for circulation in the country in which
the car is marketed. In countries with
opposite circulation, to avoid glaring on-
coming vehicles, proceed as follows:
❒remove headlight cover (see para-
graph “Dipped beam headlights” in
section “In an emergency”);
❒move lever A-fig. 102aside;
A0E0050mfig. 102
083-128 Alfa 159 GB 3-12-2009 14:09 Pagina 107
