dashboard Alfa Romeo 166 2006 Owner handbook (in English)

254254 DASHBOARD
fig. 1
A0D0124 m

258
381PGSmA0D0149M
fig. 4 fig. 5
DASHBOARD LIGHTING
ADJUSTMENT
(fig. 4)
When the outside lights are on, the
dashboard lighting is adjusted turning but-
ton (A).
FUEL CUT-OFF SWITCH AND
CIRCUIT BREAKER
The car is fitted with two safety switch-
es that come into operation in the case of
an accident to block fuel supply and pow-
er, thereby stopping the engine and the
car electric utilities.
To reactivate the fuel cut-off switch press
button under the passenger’s seat (fig. 5).
Before resetting fuel cut-
off switch and circuit
breaker, carefully read the related
paragraph in chapter “Getting to
know your car”.
WARNING
Circuit breaker is located on the left side
of the boot, inside a box directly set and
connected to the battery positive terminal.

259
707PGSm
fig. 6
DEACTIVATING THE FRONT
PASSENGER’S AIR BAG
(fig. 6)
Should it be absolutely necessary to car-
ry a child on the front seat, the passen-
ger’s Air bag on the vehicle must be deac-
tivated.
Deactivation takes place using the car
ignition key to operate the special switch
on the left hand side of the dashboard.
Access to the switch is gained only with
the door open.The key-operated switch has two posi-
tions:
1) Passenger’s Air bag activated. (ON
position
P) warning light on instrument
cluster off; it is absolutely prohibited to
carry a child on the front seat.
2) Passenger’s Air bag deactivated
(OFFposition
F) warning light on in-
strument cluster on; it is possible to carry
a child protected by special restraint sys-
tem on the front seat.
The warning light
Fon the cluster s-
tays on permanently until the passenger’s
Air bag is reactivated.
When the door is open, the key can be
inserted and removed in both positions.
Deactivation of the passenger’s front Air
bag inhibits too the left-hand side Air bag
(if present).
Operate the switch only
when the engine is not
running and the ignition key is re-
moved.
WARNING
Deactivation/reactivation takes place
with ignition key at STOPand operating
it in the special key switch on the right-
hand side of the dashboard (fig. 6).
You can reach the switch only if the
door is opened.

260

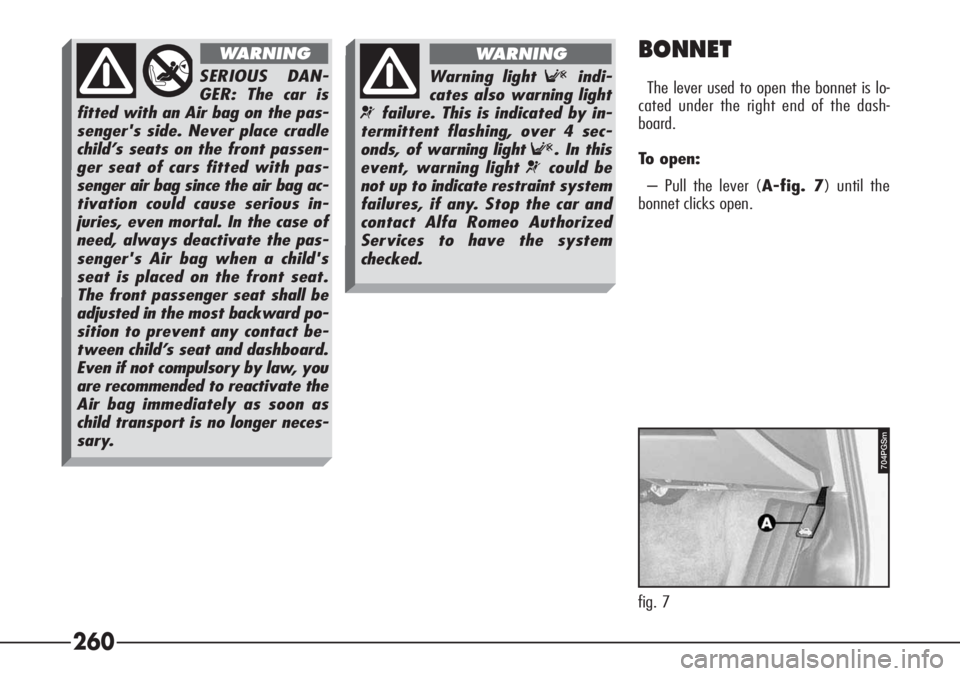

704PGSm
fig. 7
BONNET
The lever used to open the bonnet is lo-
cated under the right end of the dash-
board.
To open:
– Pull the lever (A-fig. 7) until the
bonnet clicks open.Warning light Findi-
cates also warning light
¬failure. This is indicated by in-
termittent flashing, over 4 sec-
onds, of warning light
F. In this
event, warning light
¬could be
not up to indicate restraint system
failures, if any. Stop the car and
contact Alfa Romeo Authorized
Services to have the system
checked.
WARNING
SERIOUS DAN-
GER: The car is
fitted with an Air bag on the pas-
senger's side. Never place cradle
child’s seats on the front passen-
ger seat of cars fitted with pas-
senger air bag since the air bag ac-
tivation could cause serious in-
juries, even mortal. In the case of
need, always deactivate the pas-
senger's Air bag when a child's
seat is placed on the front seat.
The front passenger seat shall be
adjusted in the most backward po-
sition to prevent any contact be-
tween child’s seat and dashboard.
Even if not compulsory by law, you
are recommended to reactivate the
Air bag immediately as soon as
child transport is no longer neces-
sary.
WARNINGAIRBAG

263
ABS (system) ..............................114
Additional heater ..............................91
Air bags, front and side ....................50
Air cleaner ....................................218
Air conditioner ................................83
Air conditioning ................................80
Alfa Romeo CODE system ..................16
Alfa Romeo I.C.S. system ................14
Ashtray ..........................................99
ASR (system) ................................117
At the filling station ........................124
Automatic fuel cut-off switch
and power supply ......................127
Battery ......................................219
Body maintenance..........................225
Boot ............................................105
Boot light......................................185Brake Assist ............................116-141
Brakes..........................................241
Bulb replacement ....................165-181
Car maintenance......................201
Carrying children safety ....................45
Central locking ................................29
Changing the bulb
- Bulb types ........................165-166
- General instructions ..................165
Child safety ....................................30
Child safety device (doors) ................45
Cigar lighter ....................................98
CO
2emissions ................................241
Coin holder......................................98
Controls ..........................................93
Correct use of the car..............133
Courtesy light ................................101Cruise Control ..................................64
Dashboard ....................................68
Data plates....................................232
Diesel filter....................................219
Dimensions ..................................234
Direction indicators ..........................59
Door lights ....................................102
Doors ............................................28
Dust/pollen filter ......................90-219
Electronic alarm system ..................22
Electronic control units ....................223
Emission control devices ..................129
Engine ..........................................235
Engine codes – Body versions ..........233
Engine coolant temperature gauge ......74
Engine oil consumption ..................236
ALPHABETICAL INDEX
