dimensions Alfa Romeo 166 2006 Owner handbook (in English)

231
The following pages give the various specifications of the vehicle.
These pages will probably represent the main reference point in
this booklet for the “experts and enthusiasts”.
This section should be consulted in order to identify the main cha-
racteristics of your vehicle referred to in the previous chapters.IDENTIFICATION DATA...............................................................................page 232
ENGINE CODES-BODY VERSIONS
.....................................................................233
DIMENSIONS
...........................................................................................................234
ENGINE
......................................................................................................................235
SERVICING
................................................................................................................236
ENGINE OIL CONSUMPTION
..............................................................................236
LUGGAGE COMPARTMENT
..................................................................................237
WEIGHTS
...................................................................................................................237
FUEL SUPPLY - IGNITION
....................................................................................238
PERFORMANCE
.......................................................................................................239
FUEL CONSUMPTION
............................................................................................240
CO
2EMISSIONS......................................................................................................241
BRAKES
.....................................................................................................................241
STEERING
..................................................................................................................242
TRANSMISSION
.......................................................................................................242
FLUIDS AND LUBRICANTS
..................................................................................243
RIM AND TYRES
....................................................................................................245
TYRE INFLATION PRESSURE
...............................................................................247
RADIO FREQUENCY REMOTE CONTROL:
MINISTERIAL HOMOLOGATIONS
.....................................................................251
TECHNICAL SPECIFICATIONS

234 DIMENSIONS
fig. 6
99527001025
1416
1554
47201800
1542
A0D0106m
– The dimensions are expressed in mm – The height indicated is for an unladen car

247

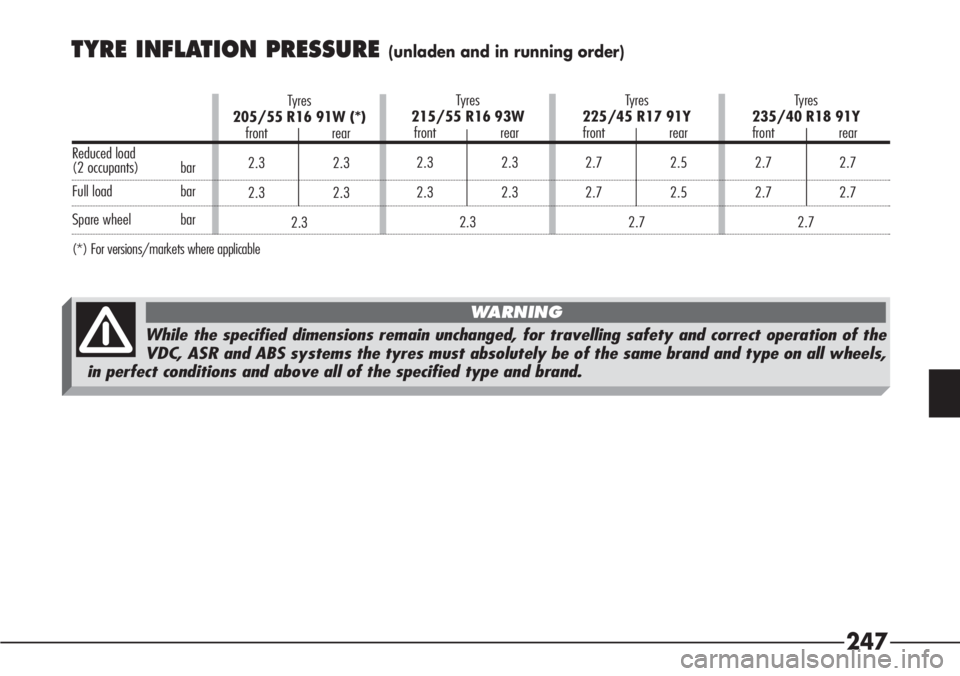

TYRE INFLATION PRESSURE (unladen and in running order)
Tyres
215/55 R16 93W
front rear
2.3 2.3
2.3 2.3
2.3 Tyres
205/55 R16 91W (*)
front rear
2.3 2.3
2.3 2.3
2.3Tyres
225/45 R17 91Y
front rear
2.7 2.5
2.7 2.5
2.7Tyres
235/40 R18 91Y
front rear
2.7 2.7
2.7 2.7
2.7
Reduced load(2 occupants) bar
Full load bar
Spare wheel bar
(*) For versions/markets where applicable
While the specified dimensions remain unchanged, for travelling safety and correct operation of the
VDC, ASR and ABS systems the tyres must absolutely be of the same brand and type on all wheels,
in perfect conditions and above all of the specified type and brand.
WARNING

263
ABS (system) ..............................114
Additional heater ..............................91
Air bags, front and side ....................50
Air cleaner ....................................218
Air conditioner ................................83
Air conditioning ................................80
Alfa Romeo CODE system ..................16
Alfa Romeo I.C.S. system ................14
Ashtray ..........................................99
ASR (system) ................................117
At the filling station ........................124
Automatic fuel cut-off switch
and power supply ......................127
Battery ......................................219
Body maintenance..........................225
Boot ............................................105
Boot light......................................185Brake Assist ............................116-141
Brakes..........................................241
Bulb replacement ....................165-181
Car maintenance......................201
Carrying children safety ....................45
Central locking ................................29
Changing the bulb
- Bulb types ........................165-166
- General instructions ..................165
Child safety ....................................30
Child safety device (doors) ................45
Cigar lighter ....................................98
CO
2emissions ................................241
Coin holder......................................98
Controls ..........................................93
Correct use of the car..............133
Courtesy light ................................101Cruise Control ..................................64
Dashboard ....................................68
Data plates....................................232
Diesel filter....................................219
Dimensions ..................................234
Direction indicators ..........................59
Door lights ....................................102
Doors ............................................28
Dust/pollen filter ......................90-219
Electronic alarm system ..................22
Electronic control units ....................223
Emission control devices ..................129
Engine ..........................................235
Engine codes – Body versions ..........233
Engine coolant temperature gauge ......74
Engine oil consumption ..................236
ALPHABETICAL INDEX
