PERFORMANCEVersionsTop speed (km/h)Acceleration from 0-100
km/h (sec)
1750 Turbo Petrol 2584,5
168
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 168

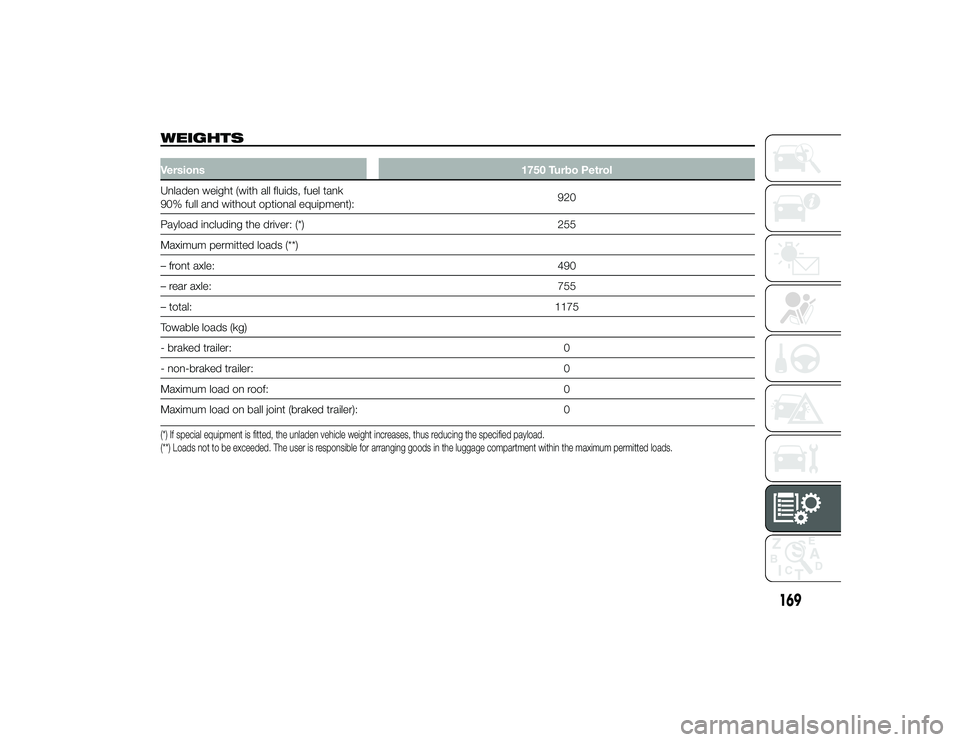

WEIGHTSVersions1750 Turbo Petrol
Unladen weight (with all fluids, fuel tank
90% full and without optional equipment): 920
Payload including the driver: (*) 255
Maximum permitted loads (**)
– front axle: 490
– rear axle: 755
– total: 1175
Towable loads (kg)
- braked trailer: 0
- non-braked trailer: 0
Maximum load on roof: 0
Maximum load on ball joint (braked trailer): 0(*) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment within the maximum permitted loads.
169
24-9-2013 11:50 Pagina 169

REFUELLING
1750 Turbo PetrolPrescribed fuels / Original fluids
and lubricants
litres kg
Fuel tank 40-
Unleaded petrol not less than 95
RON (EN 228 specification)
including a reserve of 4 - 5-
Engine cooling system 10.69.4Mixture of 50% demineralised water
and 50% PARAFLU
UP
(*)
Engine sump 5.44.6
SELENIA SPORT POWER
Engine sump and filter 5.85.0
Transmission/differential casing: 1.881.6TUTELA TRANSMISSION
GEARTECH
Transmission hydraulic activation system 1.45 1.2 TUTELA CS SPEED
Hydraulic brake circuit with ABS 0.520.56 TUTELA TOP 4
Windscreen washer fluid reservoir 1.91.7Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
170
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 170

FLUIDS AND LUBRICANTSYour car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the
Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONS
UseFluid and lubricant specifications for a correct
use of the car Genuine fluids and
lubricants Replacement interval
Lubricant for
petrol engines
29)
SAE 5W-40 ACEA C3 grade totally synthetic
lubricant.
FIAT 9.55535-GH2 classification. SELENIA SPORT
POWER
Contractual Technical
Reference No. F052.H12According to
Scheduled Servicing
Plan
In case of emergency, if lubricants with the prescribed specifications are not available, products with the minimum indicated
ACEA performance can be used for topping up; in this case optimal performance of the engine is not guaranteed.
IMPORTANT
29) The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.
171
24-9-2013 11:50 Pagina 171

UseFluid and lubricant specifications for a correct
use of the car Genuine fluids and
lubricants Applications
Lubricants and
greases for drive
transmission SAE 75W 85 grade synthetic lubricant
FIAT 9.55550-MZ3 classification.
TUTELA
TRANSMISSION
GEARTECH
Contractual Technical
Reference No. F704.C08TCT automatic
transmission
Specific fluid for electro-hydraulic ratio selector
actuators
FIAT 9.55550-SA1 classification TUTELA CS SPEED
Contractual Technical
Reference No. F005.F98
Lubricant for electro-
hydraulic actuator
Molybdenum disulphide grease, for use at high
temperatures. NL.G.I. 1-2 consistency
FIAT 9.55580 classification TUTELA ALL STAR
Contractual Technical
Reference No. F702.G07
Wheel side constant
velocity joints
Grease for constant velocity joints with low friction
coefficient. NL.G.I. 0-1 consistency
FIAT 9.55580 classification TUTELA STAR 700
Contractual Technical
Reference No. F701.C07
Differential side
constant velocity joints
Brake fluid Synthetic fluid for brake and clutch systems.
Exceeds specifications: FMVSS no. 116 DOT 4,
ISO 4925, SAE J1704.
FIAT 9.55597 classification TUTELA TOP 4
Contractual Technical
Reference No. F001.A93
Hydraulic brakes and
hydraulic clutch
controls
172
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 172

UseFluid and lubricant specifications for a correct
use of the car Genuine fluids and
lubricants Applications
Protective agent
for radiators Red protective agent with antifreeze action, based
on inhibited monoethylene glycol with organic
formula. Exceeds CUNA NC 956-16, ASTM D
3306 specifications.
FIAT 9.55523 classification PARAFLU
UP
(*)
Contractual Technical
Reference No. F101.M01 Usage percentage:
50% demineralised
water 50%
PARAFLU
UP
(**)
Windscreen
washer fluid Mixture of alcohol, water and surfactants CUNA
NC 956-11
FIAT 9.55522 classification TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in
windscreen/rear
window washer/wiper
systems
(*)IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%
PARAFLU
UPand 40% demineralised water.
173
24-9-2013 11:50 Pagina 173
Adhesive for
glassesMS Polymer
base adhesive
FIAT 9.55738/C classification SIMSON ISR 70-08 APSticking the glasses on
the body

FUEL CONSUMPTIONThe fuel consumption values given in the table below are determined on the basis of the type-approval tests laid down by
specific European Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒ extra-urban cycle: frequent acceleration in all gears, simulating extra-urban use of the car: speed varies between 0 and
120 km/h;
❒ combined consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban
cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim level/
equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that adversely
affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)Versions UrbanExtra-urban Combined
1750 Turbo Petrol 9,85,06,8
174
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 174

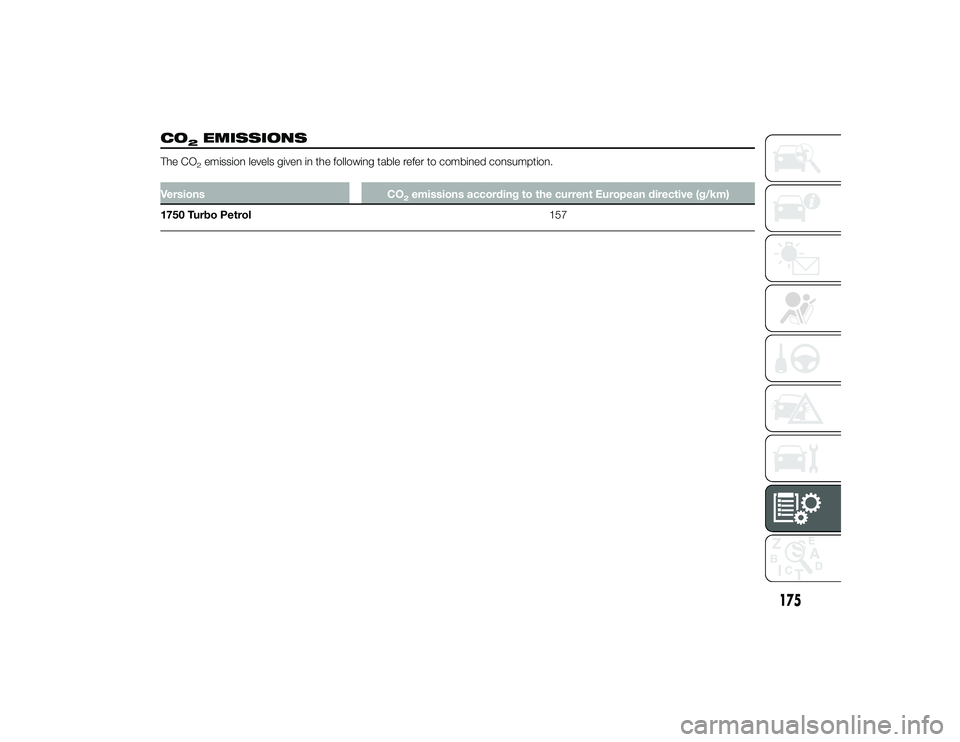

CO
2
EMISSIONS
The CO
2emission levels given in the following table refer to combined consumption.
VersionsCO
2emissions according to the current European directive (g/km)
1750 Turbo Petrol 157
175
24-9-2013 11:50 Pagina 175

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFEFor years, Alfa Romeo has pursued a global commitment to protect and respect the environment by continually improving its
production processes and developing increasingly eco-compatible products. To ensure its customers the best possible service
in compliance with environmental standards and in response to obligations arising out of European Directive 2000/53/EC on
end of life vehicles, Alfa Romeo offers its customers the chance to hand back their vehicles (*) at the end of their life cycle at no
additional cost.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any expenses
as a result of its market value. In particular, in almost all European Union countries, until 1 January 2007, vehicles registered
after 1 July 2002 will be collected free of charge, whilst from 2007 collection will be free of charge irrespective of the year of
registration as long as the vehicle contains its basic components (in particular, the engine and bodywork) and has no additional
waste.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships or an Alfa Romeo authorised
collection and scrapping centre. These centres have been carefully chosen to offer high quality service for the collection,
treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from dedicated Alfa Romeo Dealerships, by
calling the freephone number 00800 2532 4200 or on the Alfa Romeo website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
176
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 176

WHAT TO DO IF
FaultPossible solution
... A TYRE IS PUNCTURED. Use the Fix&Go tyre repair kit.See page 115.
... A TYRE DEFLATES. Restore the correct pressure. See page 166.
... THE BATTERY IS FLAT. -See page 129 or contact a
dedicated Alfa Romeo Dealership.
... THE INTERNAL ROOF LIGHT DOES NOT SWITCH ON. Replace the bulb.See page 125 or contact a
dedicated Alfa Romeo Dealership.
... THE LUGGAGE COMPARTMENT ROOF LIGHT DOES NOT SWITCH ON. Replace the bulb.See page 125 or contact a
dedicated Alfa Romeo Dealership.
... AN EXTERNAL BULB (main beam, dipped beam headlights...) DOES NOT COME ON. -
Contact a dedicated Alfa
Romeo Dealership.
Replace the bulb. See page 122 or contact a
dedicated Alfa Romeo Dealership.
... THE REMOTE CONTROL DOES NOT WORK. Replace the batteries inside the remote
control. See page 12.
... AN ELECTRIC WINDOW DOES NOT WORK. Check the relevant protection fuse.
See page 126 or contact a
dedicated Alfa Romeo Dealership.
Have the relevant window raising / lowering motor checked Contact a dedicated Alfa
Romeo Dealership.
