Alfa Romeo 4C 2015 Owner handbook (in English)

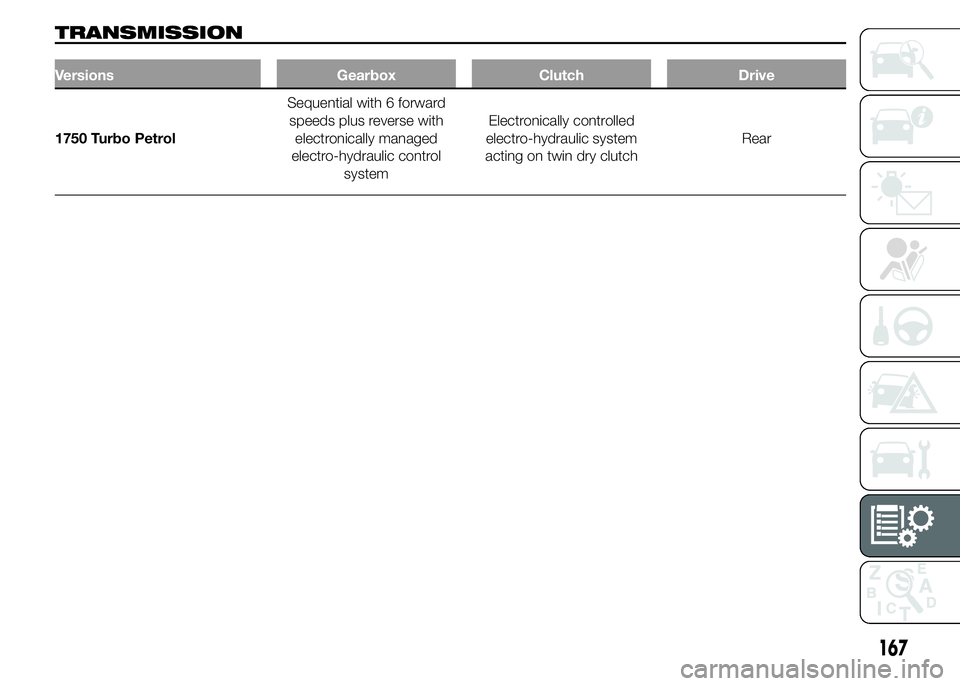

TRANSMISSION
Versions Gearbox Clutch Drive
1750 Turbo PetrolSequential with 6 forward
speeds plus reverse with
electronically managed
electro-hydraulic control
systemElectronically controlled
electro-hydraulic system
acting on twin dry clutchRear
167

BRAKES
Versions Front brakes Rear brakes Parking brake
1750 Turbo PetrolSelf-ventilating discs Self-ventilating discsControlled by hand lever,
acting on the rear brakes
IMPORTANT Water, ice and salt spread on the roads may deposit on the brake discs, reducing braking efficiency the first time
the brakes are applied.
168
TECHNICAL SPECIFICATIONS

SUSPENSION
Versions Front Rear
1750 Turbo PetrolSuperimposed triangles with anti-roll bar Advanced MacPherson system
169

STEERING
Versions Turning circle, kerb to kerb (m) Type
1750 Turbo Petrol11 Rack and pinion
170
TECHNICAL SPECIFICATIONS

WHEELS
RIMS AND TYRES
Alloy rims. Tubeless radial carcass
tyres. All approved tyres are listed in the
Registration Document.
IMPORTANT If there are any
discrepancies between the Owner
Handbook and the Registration
Document, take the information from
the latter.
For safe driving, the car must be fitted
with tyres of the same make and type
on all wheels.
IMPORTANT Do not use air chambers
with tubeless tyres.
READING THE TYRE
CODE
Example fig. 137:
205/45 R 17 88Y
205Rated width (S, distance in mm
between sidewalls)
45Height/width ratio (H/S) as a
percentage
RRadial tyre
17Rim diameter in inches (Ø)
88Load rating (capacity)
YMaximum speed ratingMaximum speed rating
Qup to 160 km/h
Rup to 170 km/h
Sup to 180 km/h
Tup to 190 km/h
Uup to 200 km/h
Hup to 210 km/h
Vup to 240 km/h
Wup to 270 km/h
Yup to 300 km/h
Maximum speed index
for snow tyres
QM+Sup to 160 km/h
TM+Sup to 190 km/h
HM+Sup to 210 km/h
Load rating (capacity)
60= 250 kg76= 400 kg
61= 257 kg77= 412 kg
62= 265 kg78= 425 kg
63= 272 kg79= 437 kg
64= 280 kg80= 450 kg
65= 290 kg81= 462 kg
66= 300 kg82= 475 kg
67= 307 kg83= 487 kg
68= 315 kg84= 500 kg
69= 325 kg85= 515 kg
70= 335 kg86= 530 kg
71= 345 kg87= 545 kg
72= 355 kg88= 560 kg
73= 365 kg89= 580 kg
74= 375 kg90= 600 kg
75= 387 kg91= 615 kg
137A0L0114
171

READING THE RIM CODE
Example fig. 137:7Jx
17 H2 ET 33
7rim width in inches (1).
Jrim drop centre outline (side
projection where the tyre bead rests)
(2).
17rim fitting diameter in inches
(corresponds to the diameter of the
tyre to be mounted) (3 = Ø).
H2shape and number of humps
(circumference measurement which
keeps the bead of tubeless tyres
in position on the rim).
ET 33wheel compensation (distance
between the disc/rim support
plane and the wheel rim centre
line).
172
TECHNICAL SPECIFICATIONS

RIMS AND TYRES PROVIDED
141)
Rims Tyres provided Snow tyres
Front tyres7JX17 H2 ET 33 205/45 R17 88Y XL 205/45 R17 88Y XL M+S
7JX18 H2 ET 33 205/40 R18 86Y XL 205/40 R18 86Y XL M+S
Rear tyres8JX18 H2 ET 44 235/40 R18 95Y XL 235/40 R18 95Y XL M+S
8.5JX19 H2 ET 49 235/35 R19 91Y XL 235/35 R19 91Y XL M+S
Reduced size snow chains with a maximum projection of 7 mm beyond the tyre profile can be fitted only on 235/40 R18 rear
tyres.
235/35 R19 rear tyres cannot be fitted with chains.
WARNING
141) If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed
the maximum speed corresponding to the speed rating of the tyres used.
173

COLD TYRE INFLATION PRESSURE (bar)
Tyres provided Inflation pressure (bar)
Front tyres205/45 R17 88Y XL 1.8
205/40 R18 86Y XL 1.8
Rear tyres235/40 R18 95Y XL 2.0
235/35 R19 91Y XL 2.0
When the tyres are warm, add +0.3 bar to the pressure value prescribed. However, check that the value is correct with cold
tyres.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
If it is necessary to raise the car, refer to the "Raising the car" paragraph in the "In an emergency" chapter.
174
TECHNICAL SPECIFICATIONS

DIMENSIONS
Dimensions are expressed in mm and refer to the car equipped with its standard-supplied tyres. Height is measured with car
unladen.
LUGGAGE COMPARTMENT VOLUMEUnladen capacity (V.D.A. standards): = 110 dm
3
AB C D EFGH L
3990 864 2380 746 1184 1639 1868 1606 2090
Small variations with respect to the reported values are possible depending on the dimensions of the rims.
138A0L0119
175

PERFORMANCE
Versions Top speed (km/h)Acceleration from 0-100
km/h (sec)
1750 Turbo Petrol258 4,5
176
