103)The vehicle's driving characteristics
will be modified with the space-saver wheel
fitted. Avoid violent acceleration and
braking, abrupt steering and fast cornering.
The overall duration of the space-saver
wheel is about 3000 km, after which the
relevant tyre must be replaced with another
one of the same type. Never install a
standard tyre on a rim that is designed for
use with a space-saver wheel. Have the
wheel repaired and refitted as soon as
possible. Using two or more space-saver
wheels at the same time is forbidden. Do
not grease the threads of the stud bolts
before fitting them: they might slip out.
104)The jack is a tool developed and
designed only for changing a wheel, if a
tyre gets punctured or damaged, on the
vehicle with which it is supplied or on other
vehicles of the same model. Any other use,
e.g. to jack up other vehicle models or
different things, is strictly prohibited. Never
use it to carry out maintenance or repairs
under the vehicle or to change
summer/winter wheels and vice versa.
Never position yourself under a jacked
vehicle. If any work under the vehicle is
necessary, contact the Alfa Romeo Service
Network. Incorrectly positioning the jack
may cause the vehicle to fall: use it only in
the positions indicated. Do not use the jack
for loads higher than the one shown on its
label. Never start the engine with vehicle
raised. If the vehicle is raised more than
necessary, everything can become more
unstable, with the risk of the vehicle
dropping violently. Thus, lift the vehicle only
as needed in order to access the spare
tyre.
105)The space-saver wheel cannot be
fitted with snow chains.IMPORTANT
14)Contact a dedicated Alfa Romeo
Dealership as soon as possible to have the
correct tightening of the wheel stud bolts
checked.
15)When turning the jack handle make
sure that it can turn freely without scraping
your hand against the ground. The moving
components of the jack ("worm screw" and
joints) can also cause injuries: avoid
touching them. If you come into contact
with lubricating grease, clean yourself
thoroughly.
CHANGING A BULB
16)
106) 107) 108)
GENERAL
INSTRUCTIONS
Before changing a bulb check the
contacts for oxidation;
replace blown bulbs with others of
the same type and power;
after replacing a headlight bulb,
always check its alignment;
when a light is not working, check
that the corresponding fuse is intact
before changing the bulb. For the
location of fuses, refer to the paragraph
“If a fuse blows” in this chapter.
IMPORTANT When the weather is cold
or damp or after heavy rain or washing,
the surface of headlights or rear lights,
may steam up and/or form drops of
condensation on the inside. This is a
natural phenomenon due to the
difference in temperature and humidity
between the inside and the outside of
the glass which does not indicate a
fault and does not compromise the
normal operation of lighting devices.
The mist disappears quickly when the
lights are turned on, starting from the
centre of the diffuser, extending
progressively towards the edges.
112
IN AN EMERGENCY

REPLACING
EXTERIOR BULBS
FRONT LIGHT CLUSTERS
These contain the bulbs for the side
lights/daytime running lights (DRL),
dipped beam headlights, main beam
headlights and direction indicators. The
bulbs are arranged as follows fig. 98:
To replace the bulbs for the dipped and
main beam headlights and for the
direction indicators open the
corresponding protective flaps on the
inner wheel arch fig. 99 that can be
located by steering the wheel
completely.
A - direction indicator bulb protective
flapB - dipped/main beam headlight bulb
protective flap
Side lights/daytime
running lights (DRL)
These are LEDs. For the replacement,
contact the dedicated Alfa Romeo
Dealership.
DIPPED/MAIN BEAMS
To replace the bulb, proceed as follows:steer the wheel completely;
open the protective flap B fig. 99 by
rotating the fixing screw;
take out the electric connector A
fig. 100 and then rotate the bulb holder
B clockwise and remove it;
extract the bulb and replace it;
refit the new bulb, making sure that it
is locked correctly, and reconnect the
connector A;
close the protective flap B fig. 99.
Direction indicators
Front
To change the bulb, proceed as follows:
steer the wheel completely;
open the protective flap A fig. 99 by
rotating the fixing screw;
take out the electric connector A
fig. 101 and then rotate the bulb holder
B clockwise and remove it;
98A0L0091
99A0L0092
100A0L0093
116
IN AN EMERGENCY
ASide lights/daytime running lights
BDipped/main beam headlights
CDirection indicators

ENGINE COMPARTMENT FUSE BOXfig. 114
DEVICE PROTECTEDFUSE AMPERE
Headlight beam switch (for versions/markets, where provided) F09 5
Single tone hornF10 10
12 V socket / cigar lighter F86 15
External mirror defrosters F88 7.5
DASHBOARD FUSE BOXfig. 116
DEVICE PROTECTEDFUSE AMPERE
Central lockingF38 15
Two-way windscreen washer pump F43 20
+30 Driver side electric windows F47 20
+30 Passenger side electric windows F48 20
WARNING
110)If a fuse blows again, contact a dedicated Alfa Romeo Dealership.
111)Never replace a fuse with another with a higher amp rating; DANGER OF FIRE.
112)If a general protective fuse (MAXI-FUSE, MEGA-FUSE, MIDI-FUSE) blows, contact a dedicated Alfa Romeo Dealership.
113)Before replacing a fuse, make sure that the ignition key has been removed and that all the other services are switched off and/or
disengaged.
114)Contact a dedicated Alfa Romeo Dealership if a safety system (airbags, brakes), transmission system (engine, gearbox) or steering
system general protection fuse blows.
122
IN AN EMERGENCY

IMPORTANT
19)Be careful to position the lift arms
correctly at the points illustrated, in order to
prevent damage to the carbon fibre chassis
and the bodywork components.
20)To avoid damage to the carbon fibre
chassis, the car cannot be raised with
standard hydraulic jacks, only with suitable
lowered hydraulic jacks. Contact a
dedicated Alfa Romeo Dealership.
TOWING THE CAR
21)
The tow hook provided with the car is
located in the tool box in the luggage
compartment.
ATTACHING THE TOW
HOOK
Take tow hook A and tighten it fully onto
the threaded pin fig. 120.
115) 116) 117)
IMPORTANT
21)The tow hook attachment is only
available at the front end of the car.
WARNING
115)Before towing, turn the key to MAR
and then to STOP without extracting it. The
steering column will automatically lock
when the key is removed and the wheels
cannot be steered. Also check that the
transmission is in neutral (N)
116)When towing, remember that the
assistance of the brake servo is absent.
Consequently, more force is required at the
pedal in order to brake. Do not use flexible
cables when towing and avoid jerky
movements. Make sure not to damage
parts in contact with the car while towing.
When towing the vehicle, you must comply
with all specific traffic regulations and
adopt an appropriate driving behaviour. Do
not start the engine while towing the car.
Before tightening the ring, clean the
threaded housing thoroughly. Make sure
that the ring is fully screwed into the
housing before towing the car.
117)The tow hook must be used
exclusively for roadside assistance
operations. You are allowed to tow the
vehicle for short distances using an
appropriate device in accordance with the
highway code (a rigid bar), to move the
vehicle on the road in readiness for towing
or transport via a tow truck. Tow hooks
MUST NOT be used to tow vehicles off the
road or where there are obstacles and/or
for towing operations using cables or other
non-rigid devices. In compliance with the
above conditions, towing must take place
with the two vehicles (one towing, the other
towed) aligned as much as possible along
the same centre line.
120A0L0107
125

INTERIORS
137) 138)
Periodically check the cleanliness of the
interior, beneath the mats, also to
prevent damage to carbon parts.
To remove and reposition the mats in
the passenger compartment, proceed
as follows:
undo the screws with folding ring A
fig. 135, driver side and passenger side;
separate the Velcro fabric strips B in
the front area under the mats, lifting
them from the floor.
Reposition the mats on the floor,
making sure that the holes at the back
of the mats coincide with the screw
housings on the floor.
To reposition, proceed as follows:
tighten the screws with folding ring A
fig. 135 in the housings on the floor;
unite the Velcro fabric strips of themats with those on the floor, taking care
to apply light pressure and ensure that
the fastening is efficient.
139)
SEATS AND FABRIC OR
MICROFIBRE PARTS
Remove dust with a soft brush or a
vacuum cleaner. For better cleaning of
microfibre trim (including the steering
wheel, for versions/markets, where
provided) we advise you to moisten the
brush. Rub the seats with a sponge
moistened with a solution of water and
neutral detergent.
LEATHER SEATS
(for versions/markets, where provided)
Remove the dry dirt with a chamois or
slightly damp cloth, without exerting too
much pressure. Remove any liquid or
grease stains using an absorbent dry
cloth, without rubbing. Then clean with
a soft cloth or chamois moistened with
water and mild soap. If the stain
persists, use specific products and
observe the instructions carefully.
IMPORTANT Never use alcohol. Make
sure that the cleaning products used
contain no alcohol or alcohol
derivatives, even in small quantities.
PLASTIC, CARBON AND
COATED PARTS
Clean interior plastic and visible carbon
parts with a damp cloth (if possible
made from microfibre), and a solution of
water and neutral, non-abrasive
detergent. To clean oily or persistent
stains, use specific products free from
solvents and designed to maintain the
original appearance and colour of the
components.
Remove any dust using a microfibre
cloth, if necessary moistened with
water. The use of paper tissues is not
recommended as these may leave
residues.
IMPORTANT Do not use alcohol,
petrols or derivatives to clean the
instrument panel display.
LEATHER PARTS
(for versions/markets, where provided)
Use only water and neutral soap to
clean these parts. Never use alcohol or
alcohol-based products. Before using a
specific product for cleaning interiors,
make sure that it does not contain
alcohol and/or alcohol based
substances.
135A0L0143
143

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your car is made
and works is contained in this chapter
and illustrated with data, tables and
graphics. For the enthusiasts and the
technician, but also just for those who

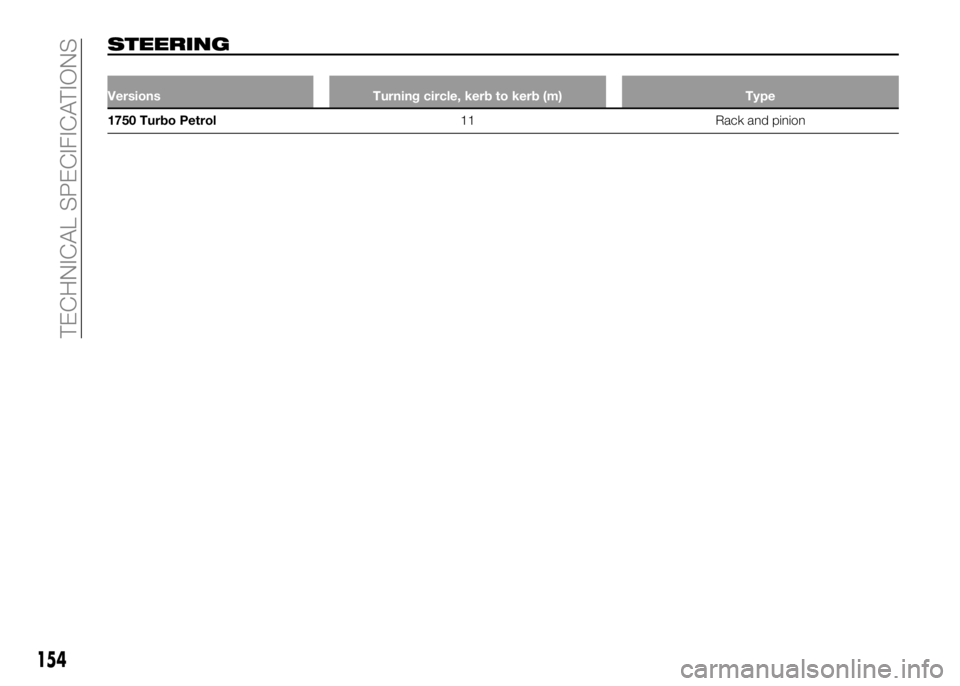

want to know every detail of their car.IDENTIFICATION DATA.........146
ENGINE CODE - BODYWORK
VERSIONS................148
ENGINE..................149
FUEL SUPPLY..............150
TRANSMISSION.............151
BRAKES..................152
SUSPENSION..............153
STEERING................154
RIMS AND TYRES...........155
DIMENSIONS..............159
PERFORMANCE............160
WEIGHTS................161
REFUELLING...............162
FLUIDS AND LUBRICANTS......163
FUEL CONSUMPTION.........166
CO2 EMISSIONS............167
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE....................168
145

STEERING
Versions Turning circle, kerb to kerb (m) Type
1750 Turbo Petrol11 Rack and pinion
154
TECHNICAL SPECIFICATIONS

Driver's side front airbag.........90
Driving style................101
DTC (Drag Torque Control) system . .41
EBD system................41
Electric windows..............37
Engine
engine cooling system fluid level......................134
identification codes.........148
marking................147
technical data............149
Engine codes...............148
Engine compartment
checking levels............132
washing................142
Engine coolant indicator.........60
Engine cover
Closing..................39
Opening.................38
Engine oil
consumption.............134
level check..............134
EOBD system...............46
ESC (Electronic Stability Control)
system..................40
Exterior lights................28
Extinguisher.................35
Filling the tank...............54
Fitting "Universal" child restraint
system..................87Fix&Go automatic kit..........106
Flashing...................29
Fluids and lubricants
(specifications)............163
Front airbags................90
Fuel consumption............166
Fuel cut-off system............33
Fuel level gauge..............60
Fuel supply................150
Fuses (replacement)...........120
Gear Shift Indicator...........60
Handbrake.................96
Hazard warning lights...........32
HBA system................42
Headlights..................39
Adjusting the headlights abroad.......................39
bulb replacement..........116
Light beam direction.........39
Heating and ventilation..........24
Hill Holder system.............42
Identification data
bodywork paint plate........147
chassis marking...........146
engine marking............147
identification data plate.......146
Ignition switch...............18
Steering lock..............18
Installing electrical/electronic
devices................5,47Instrument panel..............58
Interior fittings...............33
Interiors (cleaning)............143
Jack....................109
Lavacristallo
livello liquido lavacristallo......134
Light clusters
front light clusters (changing a
bulb)..................116
rear light clusters (changing a
bulb)..................117
Lubricants (specifications).......163
Luce plafoniera
sostituzione lampada........119
Luggage compartment
Opening.................38
Luggage compartment / Engine
cover...................38
Main beam headlights..........28
bulb replacement..........116
Maintenance and care
heavy-duty use of the car.....131
periodic checks...........131
scheduled servicing.........127
scheduled servicing plan......128
Manual climate control..........26
Menu.....................61
Menu options................61
Number plate lights
bulb replacement..........118
INDEX

Oddments pocket............34
On-board instruments
display..................58
engine coolant temperature
indicator.................60
fuel level gauge............60
On-board instruments........58
rev counter...............60
Speedometer..............60
Parking...................96
Handbrake...............96
Parking lights................28
Parking sensors..............48
Passenger side front airbag.......90
Passenger side front airbag and
child restraint systems........91
Performance...............160
Plafoniera bagagliaio
sostituzione lampada........119
Plugs (type)................149
Power socket................34
Pre-Fill system (RAB - Ready Alert
Brake)...................43
Pretensioners................86
Load limiters..............86
Protecting the environment.......56
Pulsante TRIP RESET..........66
Radio system...............47
Radio transmitters and mobile
phones................5,48Raising the car..............124
Rear direction indicators........117
Rear fog light................32
Rear fog light/reversing light......118
Rear view mirrors.............20
Internal mirror.............20
Refuelling.................162
Refuelling the car.............54
Rev counter.................60
Rims
dimensions..............157
rims and tyres............155
wheels and tyres...........139
Roof lights..................31
Front roof light.............31
Ruote....................155
Saving fuel................101
SBR system (Seat Belt Reminder) . . .85
Scheduled Servicing Plan.......128
Screen wiper/washer...........29
“Smart washing” function......30
Seat belts..................84
Use ....................84
Seats.....................18
Setup menu.................60
Side lights/brake lights.........117
Side lights/daytime running lights
(DRL)
bulb replacement..........116Side lights/dipped headlights......28
Snow chains...............103
Snow tyres................102
Speedometer................60
Speedometer (speed indicator).....60
Starting the engine.........95,105
Bump starting............105
Jump starting.............105
Steering..................154
Steering lock................18
Steering wheel...............20
Storage compartments..........33
Sun visors..................35
Suspension................153
Symbols...................14
Technical data..............146
The keys...................15
Key with remote control.......15
Key without remote control.....15
Third brake lights
bulb replacement..........118
Towing the car..............125
Attaching the tow hook......125
TPMS (Tyre Pressure Monitoring
System)..................50
Transmission...............151
Trip Computer...............65
Ty r e s
Fix&Go automatic (kit).......106
