Alfa Romeo 4C 2016 Owner handbook (in English)

Warning lights on
panelWhat it means What to do
red
amber
EBD FAILURE
The simultaneous switching on of the
(red) and
(amber) warning lights with the engine on, indicates
either a failure of the EBD system or that the system is
not available. In this case, the rear wheels may suddenly
lock and the vehicle may swerve when braking sharply.
The display shows the dedicated message.Drive very carefully to the nearest dedicated Alfa Romeo
Dealership to have the system inspected immediately.
redAIRBAG FAILURE
When the key is turned to MAR-ON, the warning light
switches on but should switch off after a few seconds.
The warning light stays on constantly if there is a fault in
the airbag system.
The display shows the dedicated message.
redSEAT BELTS NOT FASTENED
(for versions/markets, where provided)
The warning light switches on constantly with the car
stationary if the driver’s seat belt is not fastened.
The warning light flashes and a buzzer will sound if the
car is in motion and the driver’s seat belt is not correctly
fastened.For permanent deactivation of the SBR (Seat Belt
Reminder) system buzzer, contact the dedicated Alfa
Romeo Dealership. The system can be reactivated
using the Setup Menu.
WARNING
59)If thewarning light does not switch on when the key is turned to MAR or if it stays on when driving (together with the message on the
display), there may be a fault in the restraint systems; in this case, the airbags or pretensioners may not deploy in the event of an accident or,
in a lower number of cases, they could deploy erroneously. Before proceeding, contact a dedicated Alfa Romeo Dealership to have the
system checked immediately.
68
KNOWING THE INSTRUMENT PANEL
59)60)

60)Failure of thewarning light is signalled by the flashing for longer than the usual 4 seconds of thewarning light. In addition, the
airbag system automatically disables the passenger side airbag. In this case, thewarning light may not indicate a possible problem with
the airbag restraint system. Before proceeding, contact a dedicated Alfa Romeo Dealership to have the system checked immediately.
Warning lights on
panelWhat it means What to do
amberABS FAILURE
When the key is turned to MAR-ON, the warning light
switches on but should switch off after a few seconds.
The warning light switches on to indicate a system fault.
In this case the braking system will work as normal, but
without the extra performance offered by the ABS.
The display shows the dedicated message.Drive carefully and contact the dedicated Alfa Romeo
Dealership as soon as possible.
amberPASSENGER AIRBAG DEACTIVATED
The
switches on when the front passenger airbag is
deactivated.
With the front passenger airbag enabled, when the
ignition key is turned to MAR-ON, the
warning light
switches on constantly for about 4 seconds then
switches off.
If the warning light flashes, this indicates an airbag
warning light failure.Before proceeding, contact the dedicated Alfa Romeo
Dealership to have the system checked immediately.
69
) 61

Warning lights on
panelWhat it means What to do
amberINJECTION/EOBD SYSTEM FAILURE
In normal conditions, when the ignition key is turned to MAR-ON
the warning light switches on, but should switch off as soon as
the engine is started.
The operation of the
warning light may be checked by the traffic police using specific
devices. Comply with the laws and regulations of the country
where you are driving.
If the warning light stays on or switches on when driving, it means
that the injection system is not working properly; in particular, if
the warning light comes on constantly, this indicates a
malfunction in the supply/ignition system that could cause
excessive exhaust emissions, a possible loss of performance,
poor driveability and high fuel consumption.
On some versions, the display shows the dedicated
message.
The warning light switches off if the malfunction
disappears, but it is still stored by the system.
Under these conditions, you may continue
travelling at a moderate speed without
demanding excessive effort from the engine.
Prolonged use of the car with the warning light
on constantly may cause damage.
Contact the dedicated Alfa Romeo Dealership
as soon as possible.
If the warning light flashes, it means that the catalytic converter
may be damaged.In this case, it is necessary to release the
accelerator pedal to lower the speed of the
engine until the warning light stops flashing.
Continue the journey at moderate speed, trying
to avoid driving conditions that may cause
further flashing and contact the dedicated Alfa
Romeo Dealership as soon as possible.
70
KNOWING THE INSTRUMENT PANEL
5)

Warning lights on
panelWhat it means What to do
amberTPMSIMPORTANT Do not continue driving with one or more
flat tyres as handling may be compromised. Stop the
car, avoiding sharp braking and steering. Repair
immediately using the dedicated kit (see "Repairing a
wheel" paragraph in the "In an emergency" chapter)
and contact the dedicated Alfa Romeo Dealership as
soon as possible.
TPMS failure
The warning light switches on when a fault is
detected in the TPMS.
Should one or more wheels be fitted without
sensors, the display will show a warning message
until initial conditions are restored.
In this case, contact the dedicated Alfa Romeo
Dealership as soon as possible.
Low tyre pressure - See manual
The warning light switches on, together with a
dedicated message on the display, to indicate that
the tyre pressure is lower than the recommended
value and/or that slow pressure loss is occurring. In
these circumstances, optimal tyre duration and fuel
consumption may not be guaranteed.
Should two or more tyres be in the condition
mentioned above, the display will show the
indications corresponding to each tyre in sequence.
In any situation in which the message on the display is
"See manual", it is ESSENTIAL to refer to the contents
of the "Wheel" paragraph in the "Technical data"
chapter, strictly complying with the indications that
you find there.
71

Warning lights on
panelWhat it means What to do
amberELECTRONIC STABILITY CONTROL (ESC) SYSTEM
When the ignition key is turned to MAR-ON, the
warning light switches on, but should switch off as soon
as the engine is started.
Intervention by the system is indicated by the flashing of
the warning light: it indicates that the car is in critical
stability and grip conditions.
If the warning light does not switch off, or if it stays on
with the engine running, ESC system malfunction has
been detected.Contact the dedicated Alfa Romeo Dealership as soon
as possible to have the problem diagnosed and
resolved.
Hill Holder failure
The warning light switches on together with the
digital warning light and corresponding message on the
display to indicate Hill Holder system failure.In this case, contact the dedicated Alfa Romeo
Dealership as soon as possible.
amberASR FUNCTION DEACTIVATED WARNING LIGHT
When the ignition key is turned to MAR-ON, the
warning light switches on, but should switch off as soon
as the engine is started.
The
warning light switches on when the ASR function of the
electronic stability control (ESC) system is deactivated
(by selecting "Race" mode). When the ASR function is
reactivated, the warning light switches off.
72
KNOWING THE INSTRUMENT PANEL

IMPORTANT
5)If, turning the ignition key to MAR, thewarning light does not turn on or if it turns on steadily or flashing when travelling (on certain
versions together with the message on the display), contact the dedicated Alfa Romeo Dealership as soon as possible.
WARNING
61)A failure of thewarning light is indicated by thewarning light switching on. In addition, the airbag system automatically disables the
passenger side airbag.
Warning lights on
panelWhat it means What to do
greenSIDE LIGHTS AND DIPPED HEADLIGHTS
The warning light switches on when the side lights or
dipped headlights are turned on.
FOLLOW ME HOME
The warning light switches on (together with a
message shown on the display) when this device is
in use (see "Follow me home device" paragraph in
"Exterior lights" in the "Knowing your car" chapter).
greenLEFT DIRECTION INDICATOR
The warning light switches on when the direction
indicator control lever is moved downwards or, together
with the right indicator, when the hazard warning light
button is pressed.
73

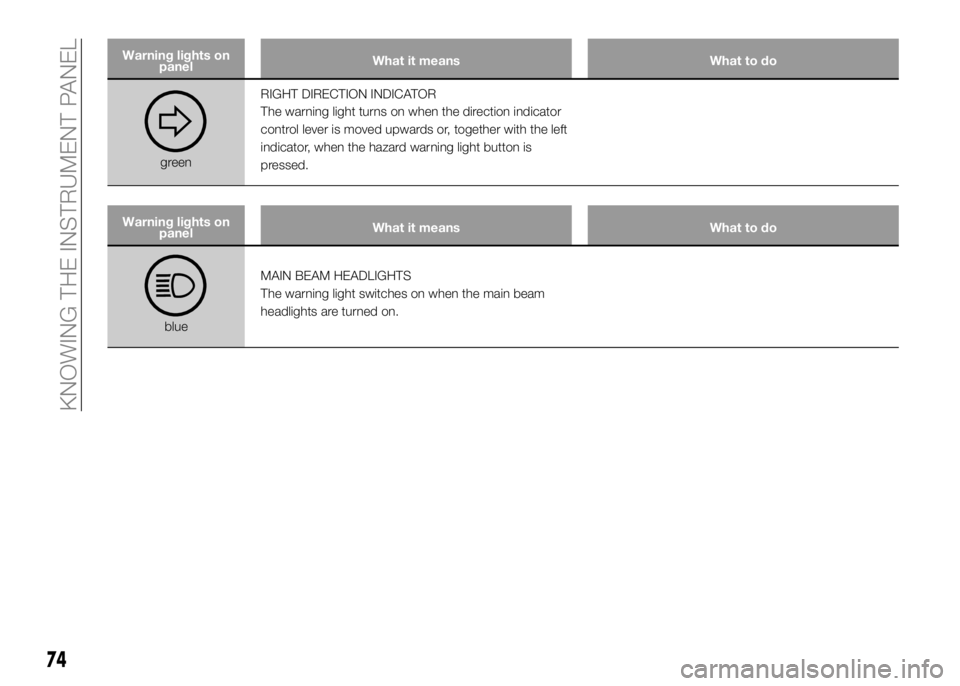

Warning lights on
panelWhat it means What to do
greenRIGHT DIRECTION INDICATOR
The warning light turns on when the direction indicator
control lever is moved upwards or, together with the left
indicator, when the hazard warning light button is
pressed.
Warning lights on
panelWhat it means What to do
blueMAIN BEAM HEADLIGHTS
The warning light switches on when the main beam
headlights are turned on.
74
KNOWING THE INSTRUMENT PANEL

WARNING LIGHTS ON DISPLAY
Warning lights on
displayWhat it means What to do
redLOW ENGINE OIL PRESSURE
When the key is turned to MAR, the digital warning light switches on, but it should
switch off as soon as the engine is started.
The digital warning light switches on constantly together with the message in the
display when the system detects that the engine oil pressure is insufficient.
6)
ENGINE OIL DETERIORATED
(for versions/markets, where provided)
The digital warning light will flash and a specific message will appear on the
display (for versions/markets, where provided).
The digital warning light may flash in the following ways, depending on the
versions:
- for 1 minute every two hours;
- for 3 minute cycles with the warning light off for intervals of 5 seconds until
oil is changed.
After the initial warning, each time the engine is started up, the digital
warning light will continue to flash in the same mode, until the oil is
changed. A specific message will appear on the display (for versions/
markets, where provided) in addition to the warning light. If the digital
warning light flashes, this does not mean that the car is defective, but
simply informs the driver that it is now necessary to change the oil as a
result of regular vehicle use. Remember that the deterioration of engine oil
is accelerated by using the car for short drives, preventing the engine from
reaching operating temperature.
Contact a dedicated Alfa
Romeo Dealership as soon
as possible.
62)
75

Warning lights on
displayWhat it means What to do
redENGINE COOLANT TEMPERATURE TOO HIGH
The digital warning light switches on when the
key is turned to MAR-ON, but it should switch off
after a few seconds. The warning light turns on
when the engine is overheated.
The display shows the dedicated message.In normal driving conditions: stop the car, switch off the engine
and check that the water level in the reservoir is not below the
MIN mark. In this case, wait for the engine to cool down, then
slowly and carefully open the cap, top up with coolant and
check that the level is between the MIN and MAX marks on
the reservoir itself. Also check visually for any fluid leaks.
Should the warning light turn on again at the next start-up,
contact a dedicated Alfa Romeo Dealership.
If the car is used under demanding conditions (e.g. in
high-performance driving): slow down and, if the warning light
stays on, stop the car. Wait for 2 or 3 minutes with the engine
running and slightly accelerated to further favour the coolant
circulation. Then stop the engine. Check that the coolant level
is correct as described above.
IMPORTANT Over demanding routes, it is advisable to keep
the engine on and slightly accelerated for a few minutes before
switching it off.
Warning lights on
displayWhat it means What to do
redALTERNATOR FAILURE
The digital warning light switches on, only with engine
started, when an alternator fault is detected.Contact a dedicated Alfa Romeo Dealership as soon as
possible.
76
KNOWING THE INSTRUMENT PANEL

Warning lights on
displayWhat it means What to do
redGEARBOX FAILURE
The digital warning light switches on when the key is
turned to MAR-ON, but it should switch off after a few
seconds.
The digital warning light flashes (together with a
message in the display and an acoustic signal) to
indicate that the transmission is faulty.
The digital warning light can light up even in the event of
transmission overheating, after a particularly demanding
use. In this case an engine performance limitation is
carried out.Contact a dedicated Alfa Romeo Dealership as soon as
possible.
If it is necessary to start the engine with a
gearbox/transmission failure, follow the procedure
described in the "Using the gearbox/transmission"
paragraph, "Starting the engine" section in the "Starting
and driving" chapter.
redDOOR OPEN
(for versions/markets, where provided)
The digital warning light on the display switches on
when one or more doors are not properly shut. An
acoustic signal is activated with the doors open and the
car moving.
amberBRAKE PAD WEAR
(for versions/markets, where provided)
The digital warning light on the display switches on
when the front or rear brake pads are worn.
The display shows the dedicated message.Have them replaced as soon as possible.
amberALFA ROMEO CODE SYSTEM FAILURE
(for versions/markets, where provided)
The digital warning light switches on in the display
(together with a message) to indicate Alfa Romeo CODE
system failure.Contact a dedicated Alfa Romeo Dealership as soon as
possible.
77
