Page 55 of 182
interfere with the signals of the radio
waves.
Presence of snow or ice on the
wheels or the wheel arches.
Use of snow chains.
Use of wheels/tyres not equipped
with TPM sensors.
52
GETTING TO KNOW YOUR CAR
Application of tinted films which
Page 97 of 182
STARTING AND DRIVING
Let’s get to the core of the vehicle:
seeing how you can exploit all of its
potential to the full.
We’ll look at how to drive it safely in any
situation, so that it can be a welcome
companion, with our comfort and our
wallets in mind.STARTING THE ENGINE........95
PARKING..................96
USING THE TRANSMISSION.....96
SAVING FUEL..............101
SNOW TYRES..............102
SNOW CHAINS.............103
CAR INACTIVITY............103
94
STARTING AND DRIVING
Page 106 of 182
SNOW CHAINS
Reduced size snow chains with a
maximum projection of 7 mm beyond
the tyre profile can be fitted only on
235/40 R18 rear tyres.
The use of snow chains should be in
compliance with local regulations. Snow
chains can be fitted on the tyres of the
rear wheels (drive wheels) only. 19" rear
tyres cannot be fitted with chains.
Check the tension of the snow chains
after the first few metres have been
driven.
11)
IMPORTANT Snow chains cannot be
fitted to the space-saver wheel (for
versions/markets, where provided).
IMPORTANT
11)Keep your speed down when snow
chains are fitted; do not exceed 50 km/h
(or the equivalent in miles). Avoid potholes,
do not drive over steps or sidewalks and do
not drive long distances over roads without
snow, to avoid damaging both your vehicle
and the road surface.
CAR INACTIVITY
If the vehicle is to be left inactive for
longer than a month, observe the
following precautions:
park the car in covered, dry and if
possible well-ventilated premises and
slightly open the windows;
check that the handbrake is not
engaged;
disconnect the negative battery
terminal and check the battery charge.
Repeat this check once every three
months during storage. For optimum
preservation of the battery charge, it is
advisable to use the charge-holder (for
versions/markets, where provided, or
alternatively, available from
Lineaccessori). For more details on its
operation, refer to the attached
Supplement;
if the battery is not disconnected
from the electrical system, checks its
state of charge every thirty days;
clean and protect the painted parts
using protective wax;
sprinkle talcum powder on the
rubber blade of the windscreen wiper
and lift it off the glass (for the correct
lifting procedure, refer to the
"Windscreen wiper" paragraph in the
"Maintenance and care" chapter);
cover the car with a cloth or
perforated plastic sheet. Do not use
sheets of non-perforated plastic as theydo not allow moisture on the car body
to evaporate;
inflate tyres to +0.5 bar above the
standard prescribed pressure and
check it periodically;
do not drain the engine cooling
system;
every time the car is left inactive for
two weeks or longer, run the air
conditioning system for about 5
minutes, set to outside air and with fan
set to maximum, with the engine idling;
this operation will ensure adequate
lubrication to minimise the possibility of
damage to the compressor when the
system is put back into operation;
ensure that the air intake directly in
front of the windscreen is not
obstructed by leaves or other foreign
bodies; any leaves in the air intake
could reduce the air flow and, if they
enter the reservoir, could prevent water
drainage. In winter months, make sure
that the air intake is not obstructed by
ice, mud or snow.
IMPORTANT After turning the ignition
key to STOP and having closed the
driver side door, wait at least one
minute before disconnecting the
electrical supply from the battery. When
reconnecting the electrical supply to the
battery, make sure that the ignition key
is in the STOP position and the driver
side door is closed.
103
Page 115 of 182
103)The vehicle's driving characteristics
will be modified with the space-saver wheel
fitted. Avoid violent acceleration and
braking, abrupt steering and fast cornering.
The overall duration of the space-saver
wheel is about 3000 km, after which the
relevant tyre must be replaced with another
one of the same type. Never install a
standard tyre on a rim that is designed for
use with a space-saver wheel. Have the
wheel repaired and refitted as soon as
possible. Using two or more space-saver
wheels at the same time is forbidden. Do
not grease the threads of the stud bolts
before fitting them: they might slip out.
104)The jack is a tool developed and
designed only for changing a wheel, if a
tyre gets punctured or damaged, on the
vehicle with which it is supplied or on other
vehicles of the same model. Any other use,
e.g. to jack up other vehicle models or
different things, is strictly prohibited. Never
use it to carry out maintenance or repairs
under the vehicle or to change
summer/winter wheels and vice versa.
Never position yourself under a jacked
vehicle. If any work under the vehicle is
necessary, contact the Alfa Romeo Service
Network. Incorrectly positioning the jack
may cause the vehicle to fall: use it only in
the positions indicated. Do not use the jack
for loads higher than the one shown on its
label. Never start the engine with vehicle
raised. If the vehicle is raised more than
necessary, everything can become more
unstable, with the risk of the vehicle
dropping violently. Thus, lift the vehicle only
as needed in order to access the spare
tyre.
105)The space-saver wheel cannot be
fitted with snow chains.IMPORTANT
14)Contact a dedicated Alfa Romeo
Dealership as soon as possible to have the
correct tightening of the wheel stud bolts
checked.
15)When turning the jack handle make
sure that it can turn freely without scraping
your hand against the ground. The moving
components of the jack ("worm screw" and
joints) can also cause injuries: avoid
touching them. If you come into contact
with lubricating grease, clean yourself
thoroughly.
CHANGING A BULB
16)
106) 107) 108)
GENERAL
INSTRUCTIONS
Before changing a bulb check the
contacts for oxidation;
replace blown bulbs with others of
the same type and power;
after replacing a headlight bulb,
always check its alignment;
when a light is not working, check
that the corresponding fuse is intact
before changing the bulb. For the
location of fuses, refer to the paragraph
“If a fuse blows” in this chapter.
IMPORTANT When the weather is cold
or damp or after heavy rain or washing,
the surface of headlights or rear lights,
may steam up and/or form drops of
condensation on the inside. This is a
natural phenomenon due to the
difference in temperature and humidity
between the inside and the outside of
the glass which does not indicate a
fault and does not compromise the
normal operation of lighting devices.
The mist disappears quickly when the
lights are turned on, starting from the
centre of the diffuser, extending
progressively towards the edges.
112
IN AN EMERGENCY
Page 160 of 182

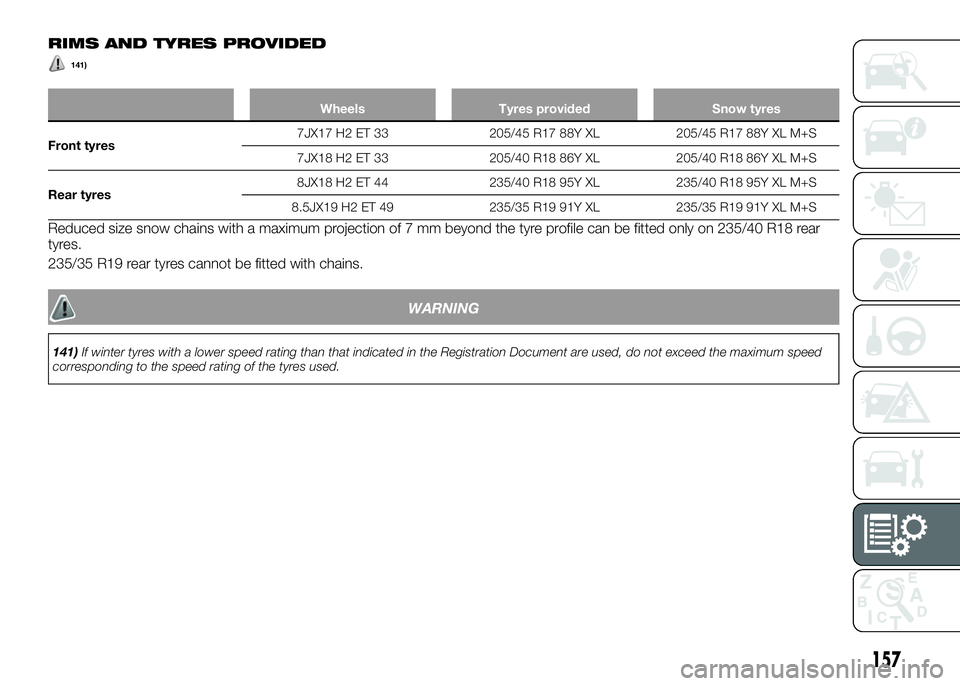

RIMS AND TYRES PROVIDED
141)
Wheels Tyres provided Snow tyres
Front tyres7JX17 H2 ET 33 205/45 R17 88Y XL 205/45 R17 88Y XL M+S
7JX18 H2 ET 33 205/40 R18 86Y XL 205/40 R18 86Y XL M+S
Rear tyres8JX18 H2 ET 44 235/40 R18 95Y XL 235/40 R18 95Y XL M+S
8.5JX19 H2 ET 49 235/35 R19 91Y XL 235/35 R19 91Y XL M+S
Reduced size snow chains with a maximum projection of 7 mm beyond the tyre profile can be fitted only on 235/40 R18 rear
tyres.
235/35 R19 rear tyres cannot be fitted with chains.
WARNING
141)If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
157
