Traffic and road conditions
Rather high consumption levels are
linked to situations with heavy traffic, for
instance when travelling in queues with
frequent use of the lower gears or in
cities with many traffic lights.
Stops in traffic
During prolonged hold-ups (e.g. level
crossings) the engine should be
switched off.SNOW TYRES
Use snow tyres of the same size as the
normal tyres provided with the car: the
dedicated Alfa Romeo Dealership will
be able to advise you on the most
appropriate tyre to use.
Only use these tyres in the event of ice
or snow on the roads. In these
conditions it is recommended to select
the "All Weather" mode of the Alfa DNA
system.
For the type of tyre to be used, inflation
pressures and the specifications of
snow tyres, follow the instructions given
in the "Wheels" paragraph in the
"Technical specifications" chapter.
90)
The performance of these tyres on
low-grip surfaces are reduced
considerably when the tread depth is
below 4 mm. They should be replaced
in this case.
Due to the specific characteristics of
snow tyres, in normal weather
conditions and dry asphalt or on long
motorway journeys, the performance of
these tyres is lower than that of
standard tyres. Their usage should
therefore be restricted in accordance
with their type approval.
IMPORTANT When using snow tyres
with a maximum speed index below the
one that can be reached by the car
(increased by 5%), place a notice in the
passenger compartment, plainly in view,
which states the maximum speedallowed by the snow tyres (as per EC
Directive).
All four tyres should be the same brand
to ensure greater safety when driving
and braking as well as making the car
more responsive. It is inadvisable to
change the rotation direction of tyres.
Refer to the "Raising the car" section in
the "In an emergency" chapter for
further details on how to raise the car
correctly.
WARNING
90)The maximum speed for snow tyres
marked “Q” is 160 km/h, while it is
190 km/h for “T” tyres and 210 km/h for
"H" tyres. The highway code speed limits
must however always be complied with.
102
STARTING AND DRIVING

IMPORTANT
16)Halogen bulbs must be handled
holding the metallic part only. Touching the
transparent part of the bulb with your
fingers may reduce the intensity of the
emitted light and even reduce the lifespan
of the bulb. In the event of accidental
contact, wipe the bulb with a cloth
moistened with alcohol and let the bulb dry.
WARNING
106)Modifications or repairs to the electric
system that are not carried out properly or
do not take the system technical
specifications into account can cause
malfunctions leading to the risk of fire.
107)Halogen bulbs contain pressurised
gas, in the case of breakage they may
burst causing glass fragments to be
projected outwards.
108)Due to the high power supply voltage,
gas discharge bulbs (Bi-Xenon) should only
be replaced by specialised personnel:
danger of death! Contact a dedicated Alfa
Romeo Dealership.
113

Thousands of kilometres 20 40 60 80 100 120
Months 12 24 36 48 60 72
Check condition and wear of rear brake pads and discs, and
operation of pad wear indicator●●●●●●
Check and, if necessary, top-up fluid levels (engine cooling,
brakes, windscreen washer, etc.)●●●●●●
Visually inspect condition of the accessory drive belt(s)●
Inspect the conditions of toothed timing drive belt●
Check handbrake lever travel and adjust, if necessary (or every 12
months)●●●●●●
Use the diagnosis socket to check supply/engine and automatic
transmission management system operation and engine oil
degradation
●●●●●●
Check and possible top up of oil level for the dual clutch
automatic transmission●
Replace spark plugs (#)●●
Replace accessory drive belt(s)●
Replace toothed timing drive belt (*)●
Replace the air cleaner cartridge●●●●●●
(#) The following are essential to ensure correct operation and prevent serious damage to the engine: only use spark plugs of the same make and type whichare
specially certified for such engines (see the information in the “Engine” paragraph in the “Technical specifications” section); strictly comply with the spark plug
replacement interval given in the Scheduled Servicing Plan; for spark plug replacement, it is advisable to contact the dedicated Alfa Romeo Dealership.
(*) Irrespective of the mileage, the timing drive belt must be changed every 4 years for heavy-duty use (cold climates, town use, long periods of idling) or at least
every 5 years.
129

ENGINE OIL
Check that the oil level is between the
MIN and MAX marks on the dipstick A
fig. 121.
For this check, take out the dipstick
from its seat, clean it with a lint-free
cloth, reinsert the dipstick; take it out
again and check the oil level.
121)
If the level of the oil is close to or below
the MIN mark, add oil via the filler fitting
B fig. 121 until the MAX mark is
reached.
23)
To unscrew and re-tighten the filler cap
it is necessary to use the tool A shown
in fig. 123, found in the car.
Take out the engine oil dipstick A, clean
it with a lint-free cloth and reinsert it.
Extract the engine oil dipstick again and
check that the level is between the MIN
and MAX marks on the dipstick.
121)
WARNING Make sure that the oilcap is tightened properly in its seat
after topping the oil up.
Once the cap has been tightened,
before closing the engine bonnet,
remove the tool A fig. 123and
replace it in its housing to prevent losing
it or damaging the engine.
The range between the MIN and MAX
levels corresponds to approximately 1
litre of oil.
Engine oil consumption
24)3)
The maximum engine oil consumption
is usually 400 grams every 1000 km.
When the car is new, the engine needs
to be run in; therefore the engine oil
consumption can only be considered
stabilised after the first 5,000 -
6,000 km.
IMPORTANT After adding or changing
the oil, let the engine run for a few
seconds and wait a few minutes after
stopping it before you check the level.
ENGINE COOLANT
122)
The coolant level must be checked
when the engine is cold and must
range between the MIN and MAX
marks on the reservoir.
If the level is too low, unscrew reservoir
plug C fig. 121 and add the fluid
described in the "Fluids and lubricants"
paragraph of the "TechnicalSpecifications" chapter.
WINDSCREEN WASHER
FLUID
123) 124)
To check the windscreen washer fluid
level, proceed as follows:
to avoid any interference during the
procedure, lift the windscreen wiper
blade according to the "Windscreen
wiper" paragraph in the "Maintenance
and care" chapter;
loosen the 4 self-tapping screws A
fig. 124 using the supplied screwdriver.
Remove the engine cover grille;
release the plug from the opening;
leaving the plug close to the opening,
put a finger on the central hole B
fig. 125 in the plug and remove it: the
level can be seen on the control pipe C
fig. 126 due to capillarity;
123A0L0231124A0L0130
134
SERVICING AND MAINTENANCE
25)

IMPORTANT
28)Incorrect installation of electric and
electronic devices may cause severe
damage to your car. Contact a dedicated
Alfa Romeo Dealership if you want to install
accessories (anti-theft systems, etc.) after
purchasing the car. They can suggest the
most suitable devices and above all advise
you whether a higher capacity battery
needs to be installed.
IMPORTANT
4)Batteries contain substances which are
very dangerous for the environment. For
battery replacement, contact a dedicated
Alfa Romeo Dealership.
WHEELS AND TYRES
Before embarking on a long trip, and
every two weeks, check the tyre
inflation pressure. Check the tyres when
cold.
131) 132) 133) 134) 135)
It is normal for the pressure to increase
when the car is used; for the correct
tyre inflation pressure, see “Wheels” in
the “Technical specifications” section.
Incorrect pressure causes abnormal
tyre wear fig. 131:
Anormal pressure: tread evenly worn;
Blow pressure: tread particularly worn
at the edges;
Chigh pressure: tread particularly worn
in the centre.
The tyres must be replaced when the
tread is less than 1.6 mm thick. In anycase, follow the laws in force in the
country where you are driving.
IMPORTANT NOTES
For versions/markets, where provided,
the 4C may be equipped with
high-performance tyres able to
guarantee superior grip; this results,
however, in increased wear. Alfa
Romeo, together with Pirelli, has indeed
developed special tyres for 4C: a
dedicated series of Pirelli PZero,
initialled AR, meeting the technical
specifications necessary to get the car
best performance.
Take the following precautions to
prevent damage to the tyres:
avoid violent impact against the
kerb, potholes or obstacles as well as
driving for extended periods on uneven
road surfaces;
periodically check that the tyres have
no cuts in the side wall, abnormal
swelling or irregular tread wear;
avoid travelling with the vehicle
overloaded. If a tyre is punctured, stop
immediately and change it;
tyres age even if they are not used
much. Cracks in the tread and on the
sidewalls are a sign of ageing. Have the
tyres checked by specialised personnel
if they have been fitted for longer than 6
years;
in the case of replacement, always
fit new tyres, avoiding those of
131A0L0085
139

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your car is made
and works is contained in this chapter
and illustrated with data, tables and
graphics. For the enthusiasts and the
technician, but also just for those who
want to know every detail of their car.IDENTIFICATION DATA.........146
ENGINE CODE - BODYWORK
VERSIONS................148
ENGINE..................149

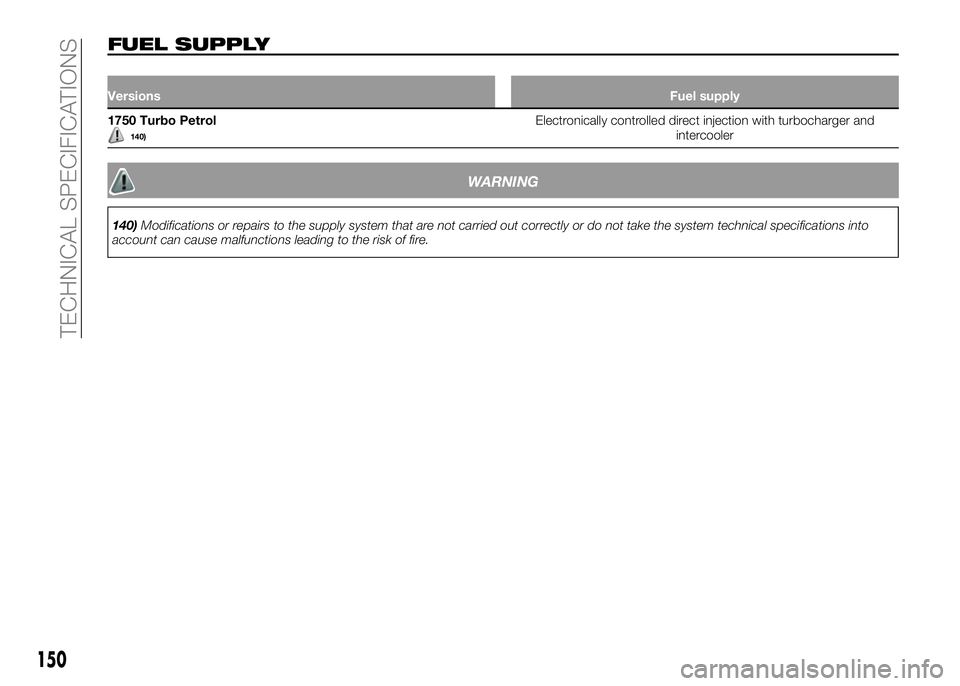

FUEL SUPPLY..............150
TRANSMISSION.............151
BRAKES..................152
SUSPENSION..............153
STEERING................154
RIMS AND TYRES...........155
DIMENSIONS..............159
PERFORMANCE............160
WEIGHTS................161
REFUELLING...............162
FLUIDS AND LUBRICANTS......163
FUEL CONSUMPTION.........166
CO2 EMISSIONS............167
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE....................168
145

IDENTIFICATION
DATA
The identification data of the car are:VIN plate;
Chassis marking;
Bodywork paint identification plate;
Engine marking.
VIN PLATE
This is located on the body behind the
driver side seat backrest and bears the
following data fig. 136:
BType-approval number.
CVehicle type identification code.
DChassis serial number.
EMaximum permitted weight of vehicle
fully laden.
FMaximum authorised weight of
vehicle fully laden plus trailer.
GMaximum permitted weight on first
(front) axle.
HMaximum permitted weight on
second (rear) axle.
IEngine type.
LBodywork version code.
MNumber for spare parts.
NCorrect fume coefficient value.
CHASSIS
IDENTIFICATION
VIN (Vehicle Identification Number)
plate
This is located on the dashboard at the
bottom of the windscreen fig. 137.
Marking
Marking A fig. 138 is printed on the
passenger compartment floor panel,
near the passenger side seat.The marking includes:type of vehicle;
chassis serial number.
136A0L0088
137A0L0158
138A0L0089
146
TECHNICAL SPECIFICATIONS

ENGINE CODE - BODYWORK VERSIONS
Versions Engine code Bodywork versions
1750 Turbo Petrol960A1000 960CXB1A 01
148
TECHNICAL SPECIFICATIONS

FUEL SUPPLY
VersionsFuel supply
1750 Turbo Petrol140)Electronically controlled direct injection with turbocharger and
intercooler
WARNING
140)Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
150
TECHNICAL SPECIFICATIONS
