REPLACING FUSES
GENERAL INFORMATION
Fuses protect the electrical system:
they intervene (blow) in the event of a
fault or improper action on the system.
When a device does not work, check
the condition of its fuse: the filament A
fig. 112 must be intact.
If it is not, replace the blown fuse with
another with the same amperage (same
colour).
110) 111) 112) 113) 114)17)
B = intact fuse;
C = fuse with damaged filament.
FUSE LOCATION
The fuses are grouped in two fuse
boxes located in the engine and
passenger compartments.
Engine compartment fuse box
This is located next to the battery
fig. 113: to access the fuses, undo
screws A and remove cover B.The number identifying the electrical
component corresponding to each fuse
is shown on the back of the cover.
After replacing the fuse, make sure you
close cover B on the fuse box.
18)
Dashboard fuse box
This is located under the dashboard in
the area in front of the passenger seat.
To access the fuse box fig. 116 remove
the protective panel, following the
procedure described below:
undo the four screws A fig. 115;
to locate the fifth locking screw,
remove block B and remove plastic
cover C;
at this point undo the fifth screw D
and remove the protective panel to
112A0L0102
113A0L0137
114A0L0104
120
IN AN EMERGENCY
locate the fuse box.

ENGINE COMPARTMENT FUSE BOXfig. 114
DEVICE PROTECTEDFUSE AMPERE
Headlight beam switch (for versions/markets, where provided) F09 5
Single tone hornF10 10
12 V socket / cigar lighter F86 15
External mirror defrosters F88 7.5
DASHBOARD FUSE BOXfig. 116
DEVICE PROTECTEDFUSE AMPERE
Central lockingF38 15
Two-way windscreen washer pump F43 20
+30 Driver side electric windows F47 20
+30 Passenger side electric windows F48 20
WARNING
110)If a fuse blows again, contact a dedicated Alfa Romeo Dealership.
111)Never replace a fuse with another with a higher amp rating; DANGER OF FIRE.
112)If a general protective fuse (MAXI-FUSE, MEGA-FUSE, MIDI-FUSE) blows, contact a dedicated Alfa Romeo Dealership.
113)Before replacing a fuse, make sure that the ignition key has been removed and that all the other services are switched off and/or
disengaged.
114)Contact a dedicated Alfa Romeo Dealership if a safety system (airbags, brakes), transmission system (engine, gearbox) or steering
system general protection fuse blows.
122
IN AN EMERGENCY

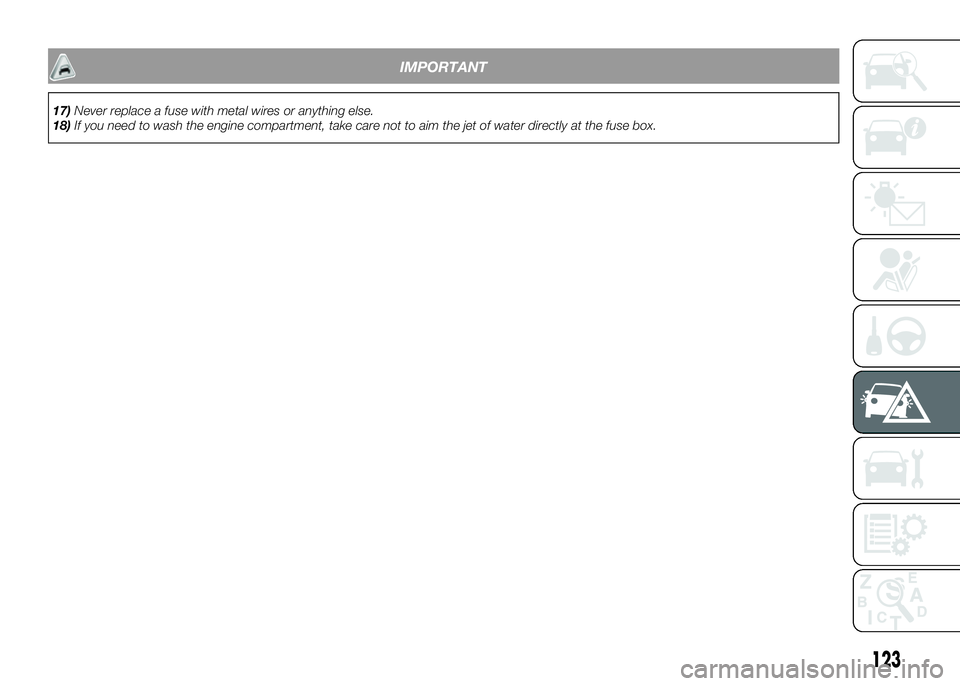

IMPORTANT
17)Never replace a fuse with metal wires or anything else.
18)If you need to wash the engine compartment, take care not to aim the jet of water directly at the fuse box.
123
