Alfa Romeo 4C 2017 Owner's Manual
Manufacturer: ALFA ROMEO, Model Year: 2017, Model line: 4C, Model: Alfa Romeo 4C 2017Pages: 289, PDF Size: 2.61 MB
Page 191 of 289

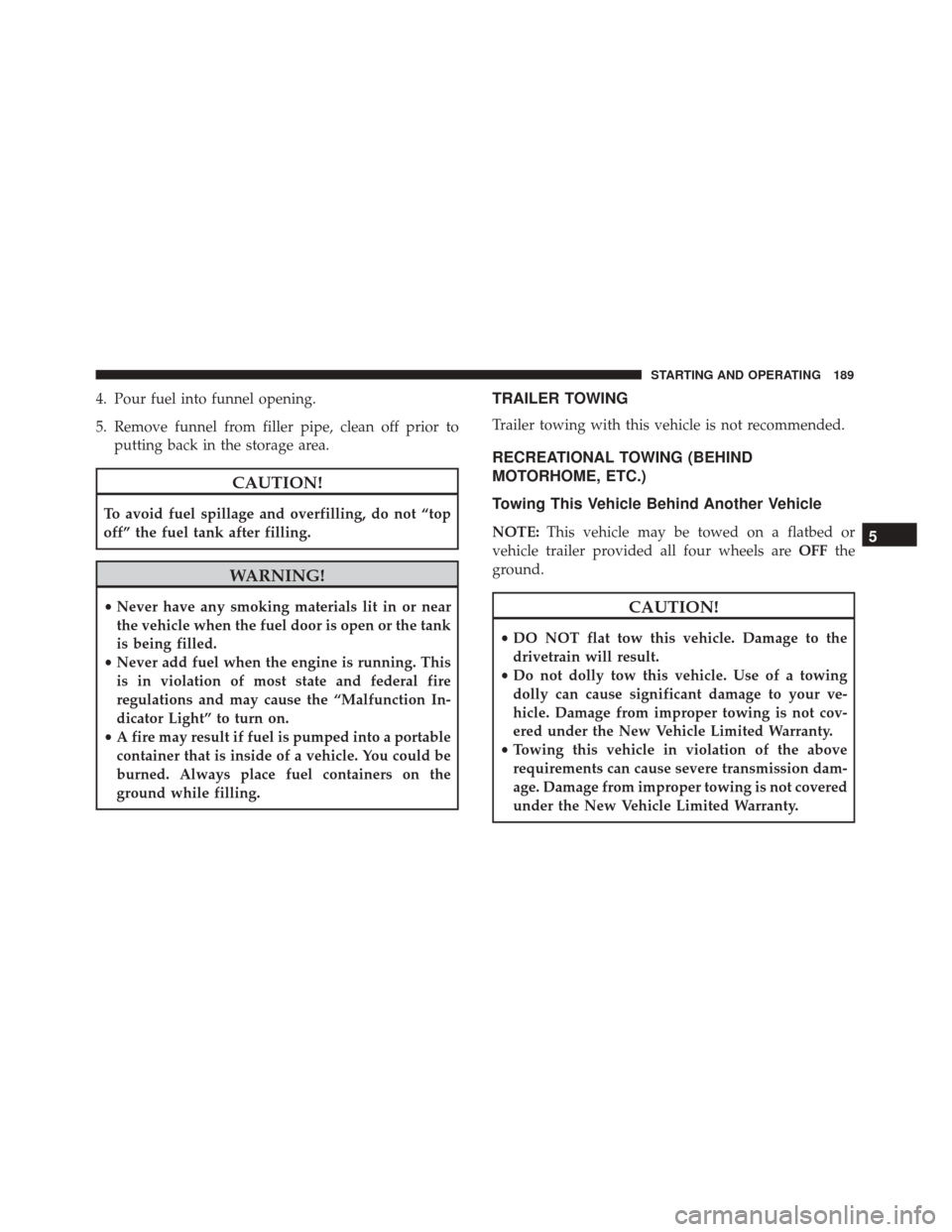

4. Pour fuel into funnel opening.
5. Remove funnel from filler pipe, clean off prior toputting back in the storage area.
CAUTION!
To avoid fuel spillage and overfilling, do not “top
off” the fuel tank after filling.
WARNING!
•Never have any smoking materials lit in or near
the vehicle when the fuel door is open or the tank
is being filled.
• Never add fuel when the engine is running. This
is in violation of most state and federal fire
regulations and may cause the “Malfunction In-
dicator Light” to turn on.
• A fire may result if fuel is pumped into a portable
container that is inside of a vehicle. You could be
burned. Always place fuel containers on the
ground while filling.
TRAILER TOWING
Trailer towing with this vehicle is not recommended.
RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.)
Towing This Vehicle Behind Another Vehicle
NOTE: This vehicle may be towed on a flatbed or
vehicle trailer provided all four wheels are OFFthe
ground.
CAUTION!
• DO NOT flat tow this vehicle. Damage to the
drivetrain will result.
• Do not dolly tow this vehicle. Use of a towing
dolly can cause significant damage to your ve-
hicle. Damage from improper towing is not cov-
ered under the New Vehicle Limited Warranty.
• Towing this vehicle in violation of the above
requirements can cause severe transmission dam-
age. Damage from improper towing is not covered
under the New Vehicle Limited Warranty.
5
STARTING AND OPERATING 189
Page 192 of 289

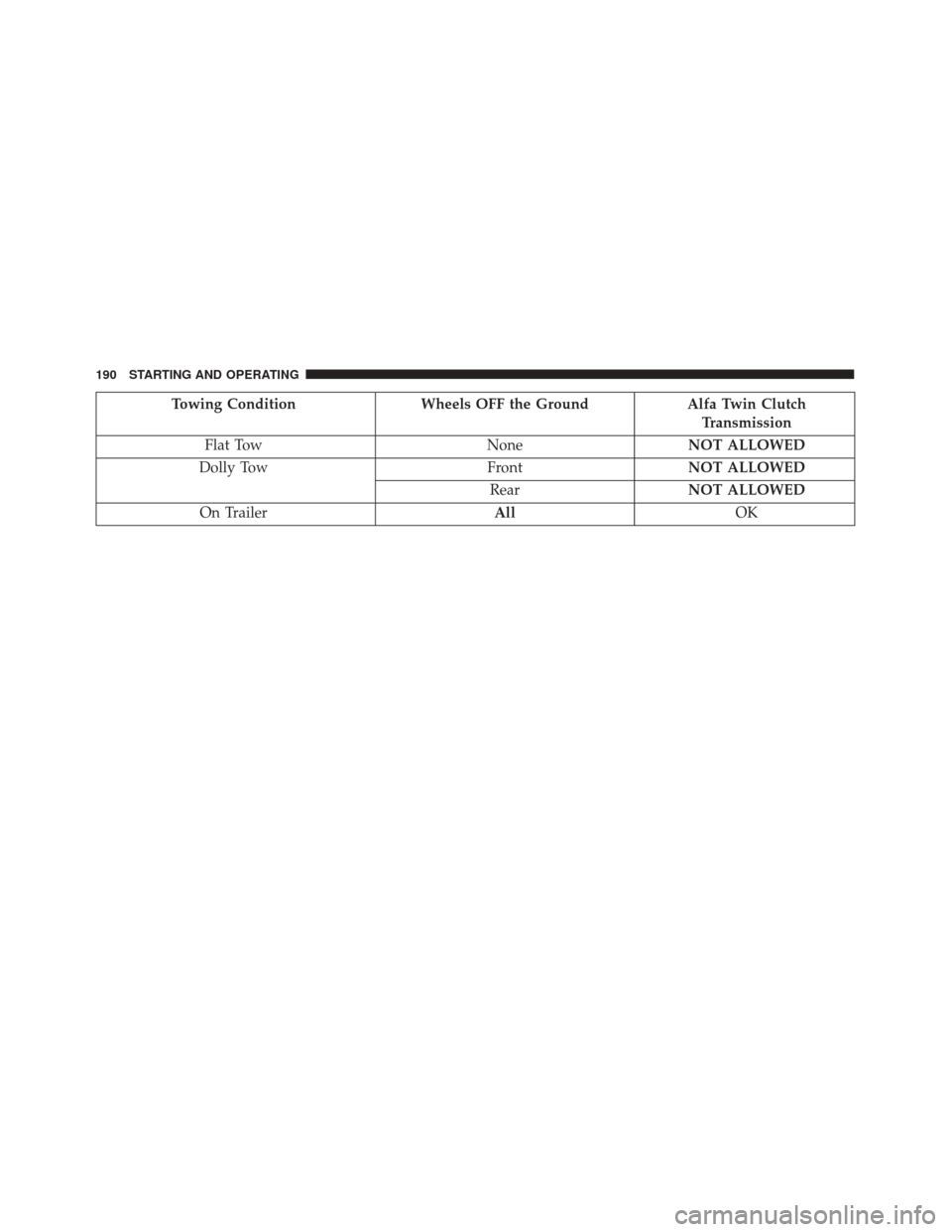

Towing ConditionWheels OFF the Ground Alfa Twin Clutch
Transmission
Flat Tow NoneNOT ALLOWED
Dolly Tow FrontNOT ALLOWED
Rear NOT ALLOWED
On Trailer AllOK
190 STARTING AND OPERATING
Page 193 of 289

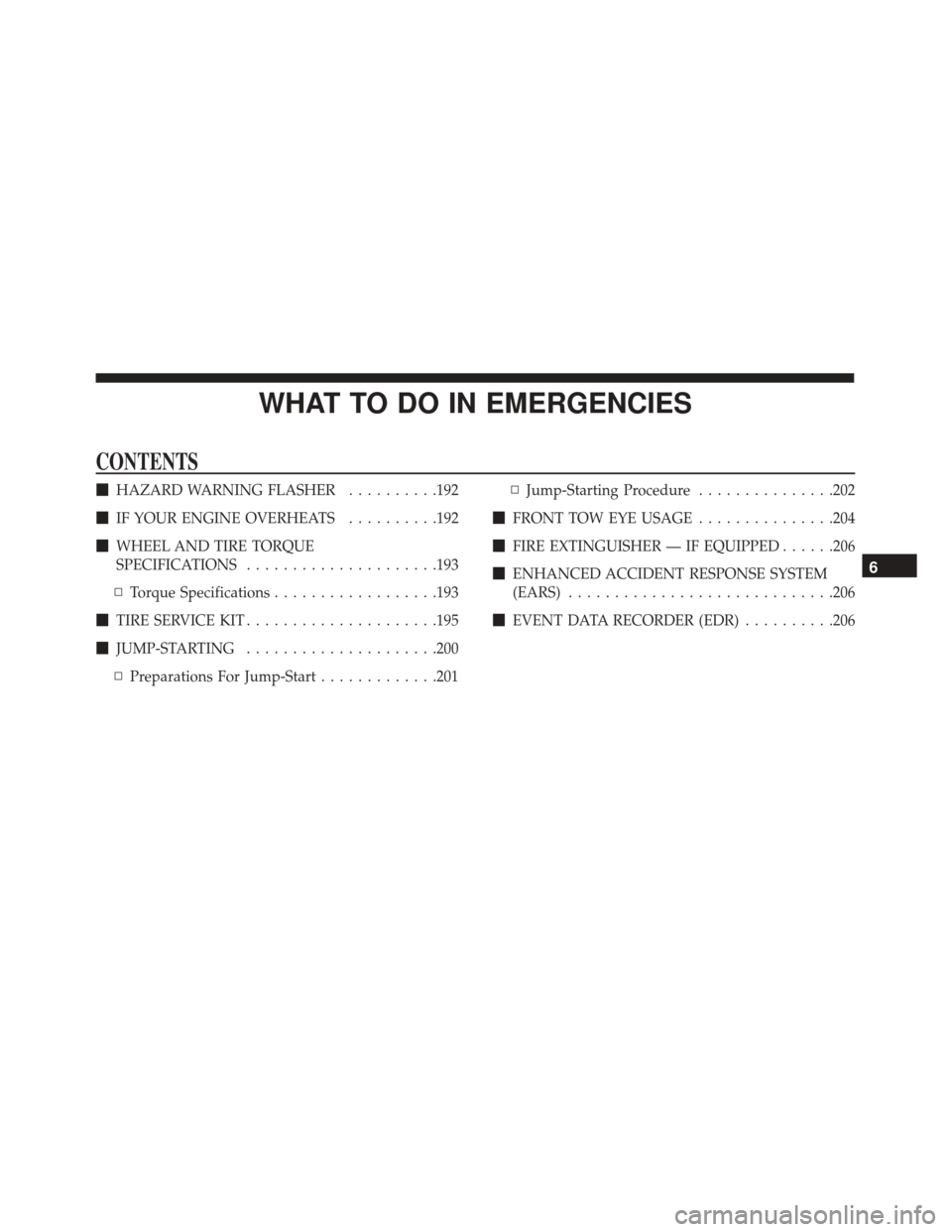

WHAT TO DO IN EMERGENCIES
CONTENTS
HAZARD WARNING FLASHER ..........192
IF YOUR ENGINE OVERHEATS ..........192
WHEEL AND TIRE TORQUE
SPECIFICATIONS .....................193
▫ Torque Specifications ..................193
TIRE SERVICE KIT .....................195
JUMP-STARTING .....................200
▫ Preparations For Jump-Start .............201▫
Jump-Starting Procedure ...............202
FRONT TOW EYE USAGE ...............204
FIRE EXTINGUISHER — IF EQUIPPED ......206
ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS) ............................ .206
EVENT DATA RECORDER (EDR) ..........206
6
Page 194 of 289

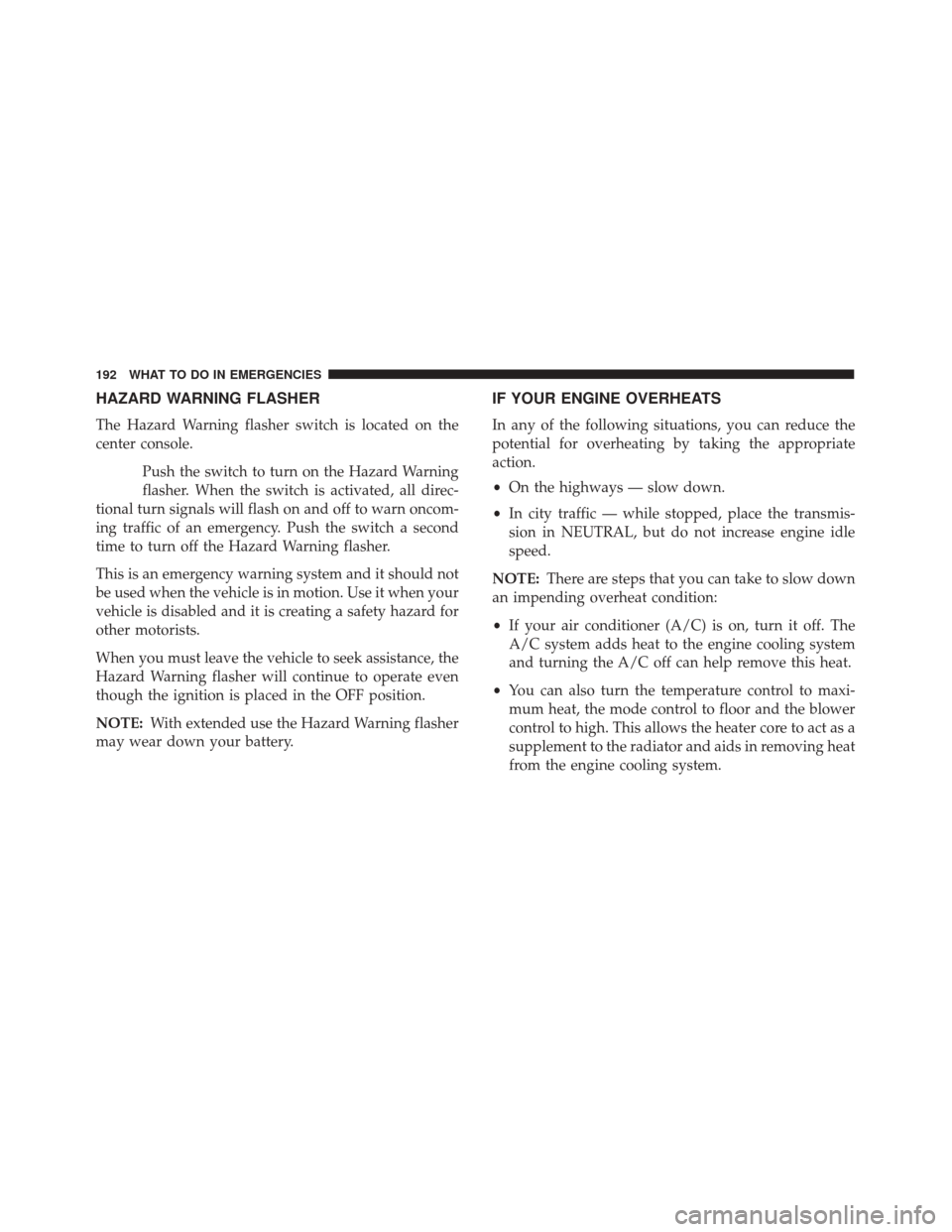

HAZARD WARNING FLASHER
The Hazard Warning flasher switch is located on the
center console.Push the switch to turn on the Hazard Warning
flasher. When the switch is activated, all direc-
tional turn signals will flash on and off to warn oncom-
ing traffic of an emergency. Push the switch a second
time to turn off the Hazard Warning flasher.
This is an emergency warning system and it should not
be used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
Hazard Warning flasher will continue to operate even
though the ignition is placed in the OFF position.
NOTE: With extended use the Hazard Warning flasher
may wear down your battery.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate
action.
• On the highways — slow down.
• In city traffic — while stopped, place the transmis-
sion in NEUTRAL, but do not increase engine idle
speed.
NOTE: There are steps that you can take to slow down
an impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The
A/C system adds heat to the engine cooling system
and turning the A/C off can help remove this heat.
• You can also turn the temperature control to maxi-
mum heat, the mode control to floor and the blower
control to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat
from the engine cooling system.
192 WHAT TO DO IN EMERGENCIES
Page 195 of 289

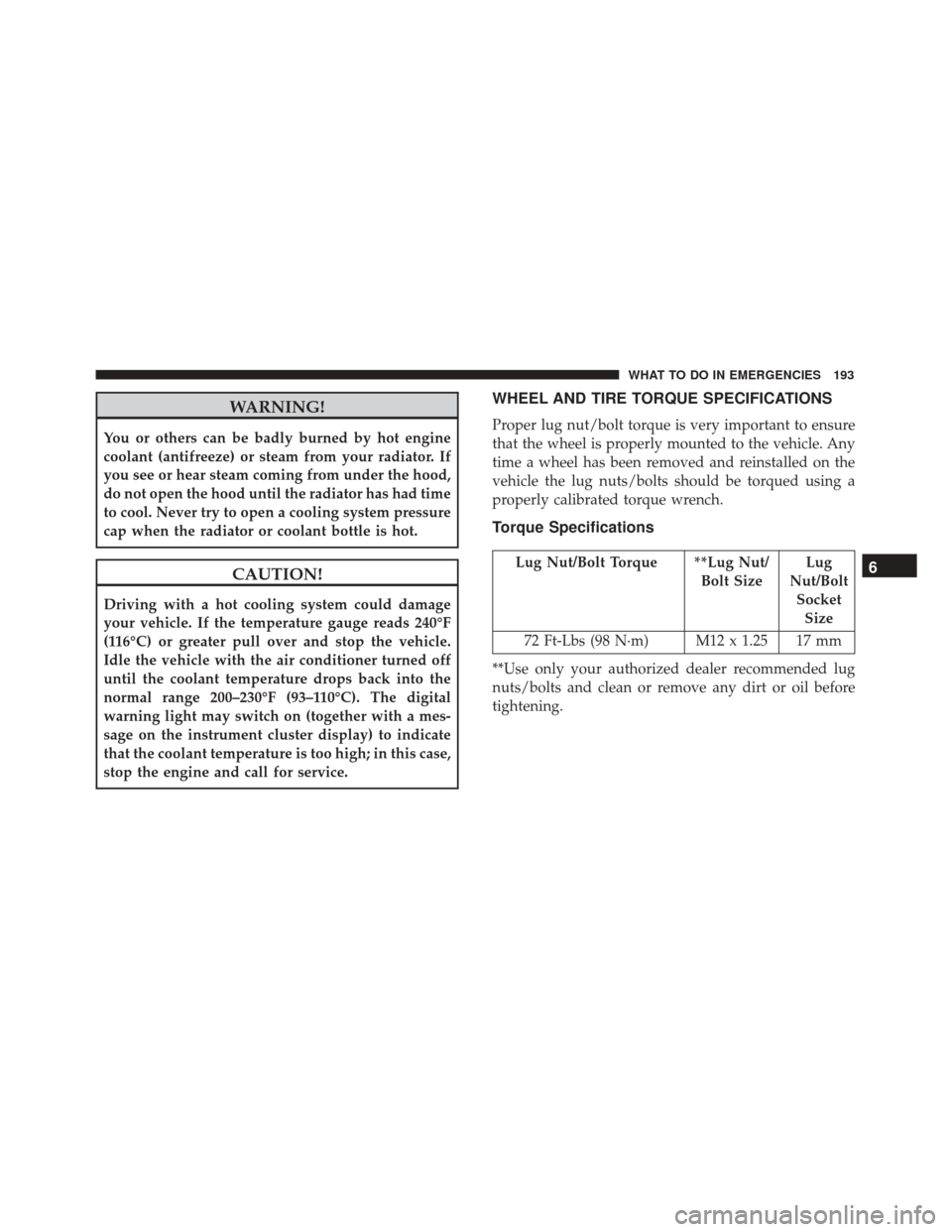

WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads 240°F
(116°C) or greater pull over and stop the vehicle.
Idle the vehicle with the air conditioner turned off
until the coolant temperature drops back into the
normal range 200–230°F (93–110°C). The digital
warning light may switch on (together with a mes-
sage on the instrument cluster display) to indicate
that the coolant temperature is too high; in this case,
stop the engine and call for service.
WHEEL AND TIRE TORQUE SPECIFICATIONS
Proper lug nut/bolt torque is very important to ensure
that the wheel is properly mounted to the vehicle. Any
time a wheel has been removed and reinstalled on the
vehicle the lug nuts/bolts should be torqued using a
properly calibrated torque wrench.
Torque Specifications
Lug Nut/Bolt Torque **Lug Nut/Bolt SizeLug
Nut/Bolt Socket Size
72 Ft-Lbs (98 N·m) M12 x 1.25 17 mm
**Use only your authorized dealer recommended lug
nuts/bolts and clean or remove any dirt or oil before
tightening.6
WHAT TO DO IN EMERGENCIES 193
Page 196 of 289
Inspect the wheel mounting surface prior to mounting
the tire and remove any corrosion or loose particles.
Tighten the lug nuts/bolts in a star pattern until each
nut/bolt has been tightened twice.After 25 miles (40 km) check the lug nut/bolt torque to
be sure that all the lug nuts/bolts are properly seated
against the wheel.
WARNING!
To avoid the risk of forcing the vehicle off the jack,
do not tighten the lug nuts fully until the vehicle
has been lowered. Failure to follow this warning
may result in personal injury.
Wheel Mounting Surface
Torque Patterns
194 WHAT TO DO IN EMERGENCIES
Page 197 of 289
TIRE SERVICE KIT
Small punctures up to 1/4 inch (6 mm) in the tire tread
can be sealed with the Tire Service Kit. Foreign objects
(e.g., screws or nails) should not be removed from the
tire. Tire Service Kit can be used in outside tempera-
tures approximately from -40°F (-40°C) to 122°F (50°C).
This kit will provide a temporary tire seal, allowing you
to drive your vehicle up to a maximum speed of 50 mph
(80 km/h).
Storage Location
The Tire Service Kit is located in the rear storage area
under the decklid.Components And Operation
Tire Service Kit Components (Top View)
1 — Sealant Cartridge Receptacle
2 — Pressure Gauge
3 — Deflation Button
4 — Power Button
6
WHAT TO DO IN EMERGENCIES 195
Page 198 of 289
Tire Service Kit Components (Bottom View)
1 — Power Plug
2 — Air Pump Hose (Black)
Sealant Cartridge Components
1 — Sealant Hose (Clear)
2 — Sealant Cartridge
3 — Sealant Cartridge Inlet
196 WHAT TO DO IN EMERGENCIES
Page 199 of 289

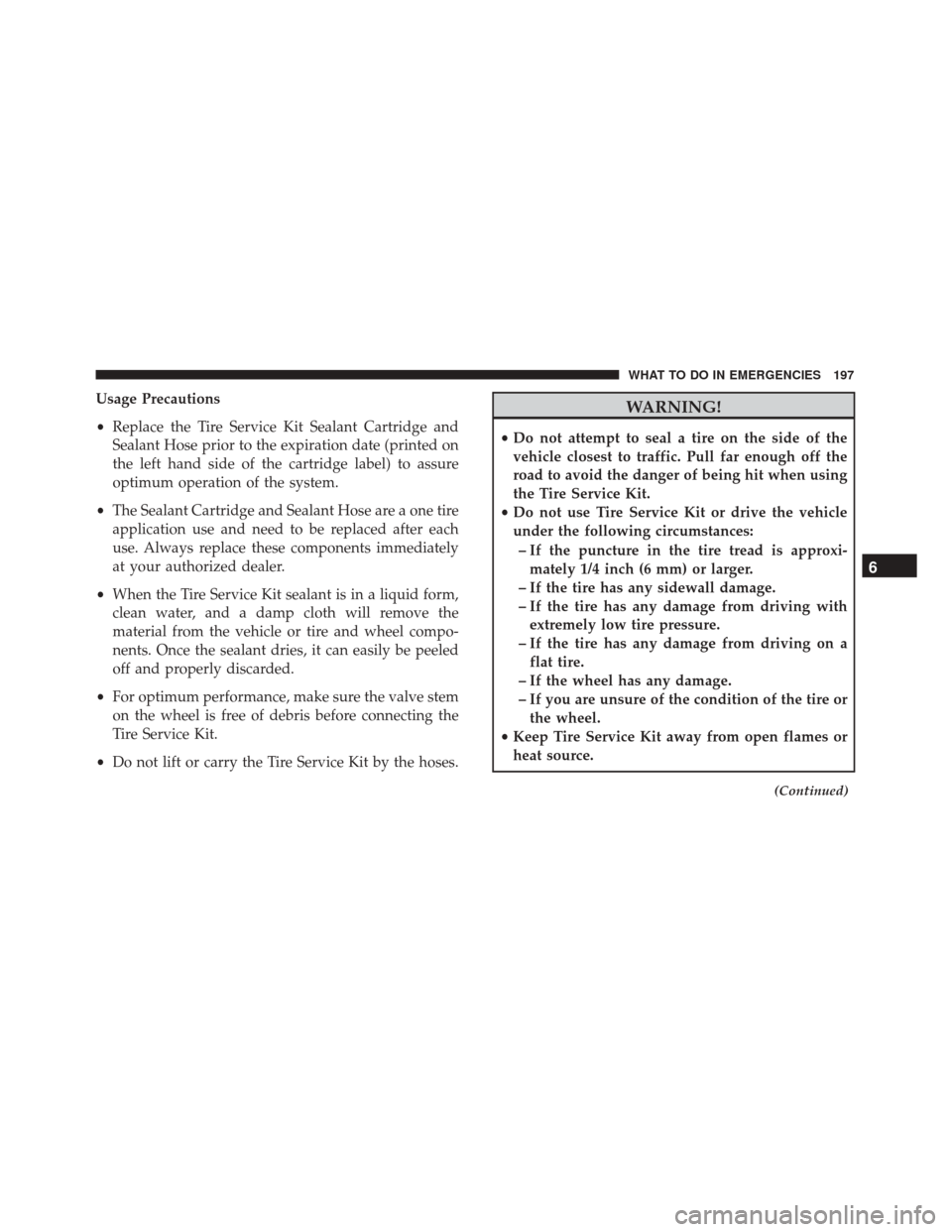

Usage Precautions
•Replace the Tire Service Kit Sealant Cartridge and
Sealant Hose prior to the expiration date (printed on
the left hand side of the cartridge label) to assure
optimum operation of the system.
• The Sealant Cartridge and Sealant Hose are a one tire
application use and need to be replaced after each
use. Always replace these components immediately
at your authorized dealer.
• When the Tire Service Kit sealant is in a liquid form,
clean water, and a damp cloth will remove the
material from the vehicle or tire and wheel compo-
nents. Once the sealant dries, it can easily be peeled
off and properly discarded.
• For optimum performance, make sure the valve stem
on the wheel is free of debris before connecting the
Tire Service Kit.
• Do not lift or carry the Tire Service Kit by the hoses.WARNING!
•Do not attempt to seal a tire on the side of the
vehicle closest to traffic. Pull far enough off the
road to avoid the danger of being hit when using
the Tire Service Kit.
• Do not use Tire Service Kit or drive the vehicle
under the following circumstances:
– If the puncture in the tire tread is approxi- mately 1/4 inch (6 mm) or larger.
– If the tire has any sidewall damage.
– If the tire has any damage from driving with extremely low tire pressure.
– If the tire has any damage from driving on a flat tire.
– If the wheel has any damage.
– If you are unsure of the condition of the tire or the wheel.
• Keep Tire Service Kit away from open flames or
heat source.
(Continued)
6
WHAT TO DO IN EMERGENCIES 197
Page 200 of 289
WARNING!(Continued)
•A loose Tire Service Kit thrown forward in a
collision or hard stop could endanger the occu-
pants of the vehicle. Always stow the Tire Service
Kit in the place provided. Failure to follow these
warnings can result in injuries that are serious or
fatal to you, your passengers, and others around
you.
• Take care not to allow the contents of Tire Service
Kit to come in contact with hair, eyes, or clothing.
Tire Service Kit sealant is harmful if inhaled,
swallowed, or absorbed through the skin. It
causes skin, eye, and respiratory irritation. Flush
immediately with plenty of water if there is any
contact with eyes or skin. Change clothing as soon
as possible, if there is any contact with clothing.
• Tire Service Kit Sealant solution contains latex. In
case of an allergic reaction or rash, consult a
physician immediately. Keep Tire Service Kit out
of reach of children. If swallowed, rinse mouth
immediately with plenty of water and drink
plenty of water. Do not induce vomiting! Consult
a physician immediately. Whenever You Stop To Use Tire Service Kit
1. Pull over to a safe location and turn on the vehicle’s
Hazard Warning flashers.
2. Verify that the valve stem (on the wheel with the deflated tire) is in a position that is near to the
ground. This will allow the Tire Service Kit Hoses
and to reach the valve stem and keep the Tire Service
Kit flat on the ground. This will provide the best
positioning of the kit when injecting the sealant into
the deflated tire and running the air pump. Move the
vehicle as necessary to place the valve stem in this
position before proceeding.
3. Place the transmission in PARK and place the igni- tion in the OFF position.
4. Set the parking brake.
5. Remove speed limit sticker off of the sealant car- tridge and place it inside the vehicle visually avail-
able for the driver to see.
198 WHAT TO DO IN EMERGENCIES
