3. Remove protective cover from headlamp assembly.
4. Rotate the bulb holder counterclockwise and removeit.
5. Rotate the bulb assembly counter clockwise to re- move from bulb holder.
6. Install the new bulb, making sure that it is locked in correctly, and reinstall into headlamp assembly.
7. Reinstall protective cover in the headlamp assembly and close the protective flap. Side:
1. Adjust the lens in the point shown in to compress the
retaining clip, then pull the cluster outwards.
2. Turn the bulb holder counterclockwise, remove the bulb and replace it.
3. Install the bulb holder in the lens and turn it clock- wise.
4. Install the cluster making sure that the internal clip clicks into position.
Protective Cover
1 — Lens
2 — Bulb Holder
7
MAINTAINING YOUR VEHICLE 249
Page 252 of 289
Front Side Marker
To change the bulb, proceed as follows:
1. Turn the front wheels to gain access and then removethe fastener from the inner wheel liner. 2. Fold back wheel liner door to access bulb housing.
Fastener Location
Bulb Housing Location
250 MAINTAINING YOUR VEHICLE
Page 253 of 289
3. Remove bulb from bulb housing then remove andreplace bulb and reinstall.
Rear Light Clusters
These contain the bulbs for the side lights, direction
indicators and brake lights.
Direction Indicators
To change the bulb, proceed as follows:
1. Remove the protective cap (one for each side) on theside cover of the luggage compartment.
Front Side Marker Bulb
First Protective Cap
7
MAINTAINING YOUR VEHICLE 251
Page 254 of 289
2. Remove the second protective cap insert a handinside the opening.
3. Rotate clockwise to remove the bulb holder remove the bulb from the bulb holder.
4.
Install the bulb by pressing it into bulb holder then turn
install the bulb holder and turn it counterclockwise.
5. Install the previously removed protective caps.
Tail Lights/Brake Lights
These are LEDs. For the replacement, contact the your
local dealer.
Reversing Light
WARNING!
The reversing light are located close to the exhaust
pipes; take the utmost care not to get burnt during
the bulb replacement.
To replace the reversing lights turn the bulb holder
counterclockwise, remove the bulb and replace it.
Second Protective Cap
1 — Reverse Light Location
2 — Reverse Light Location
252 MAINTAINING YOUR VEHICLE
Page 255 of 289
Third Brake Lights
These are LEDs. For the replacement, contact your local
dealer.
License Plate Lights
To replace the bulbs proceed as follows:
1. Position the lens in the point shown laterally tocompress the retaining clip, then pull the license
plate light cluster out.
Reversing Light Bulb Holder
License Plate Lamp Removal
7
MAINTAINING YOUR VEHICLE 253
Page 256 of 289
2. Turn bulb holder (1) counterclockwise, remove bulb(2) and replace it.
Roof Light
To change the bulb, proceed as follows:
1. Remove roof light working at the points indicated bythe arrows. 2. Open protective flap (2) and replace bulb (1), releas-
ing it from the side contacts. Make sure that the new
bulb is correctly secured between the contacts.
1 — Bulb Holder
2 — Bulb
Roof Light
254 MAINTAINING YOUR VEHICLE
Page 257 of 289
3. Close protective flap (2) and install roof light in itshousing, making sure that it is locked in place.
Luggage Compartment Roof Light
To replace the bulb, proceed as follows:
1. Open the luggage compartment and remove luggagecompartment roof light, working in the direction
shown by the arrow. 2. Open light protector (2) and replace the bulb.
3. Close protector on the lens.
4. Install luggage compartment roof light by inserting it
in its correct position, first on one side and then
pressing on the other side until it clicks into place.
1 — Bulb
2 — Protective Flap
1 — Light Cover
2 — Light Protector
7
MAINTAINING YOUR VEHICLE 255
Page 258 of 289

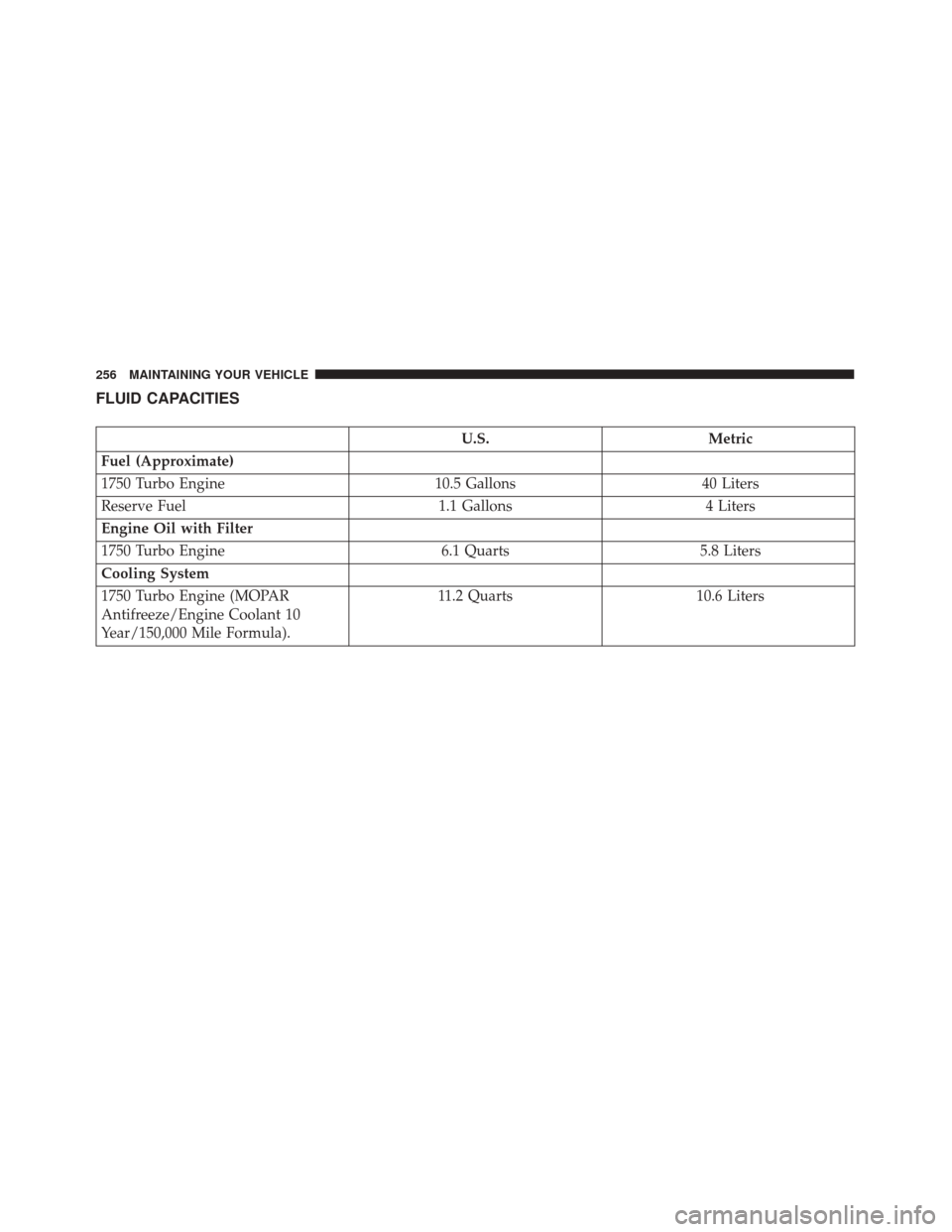

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
1750 Turbo Engine 10.5 Gallons40 Liters
Reserve Fuel 1.1 Gallons4 Liters
Engine Oil with Filter
1750 Turbo Engine 6.1 Quarts5.8 Liters
Cooling System
1750 Turbo Engine (MOPAR
Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula). 11.2 Quarts
10.6 Liters
256 MAINTAINING YOUR VEHICLE
Page 259 of 289
FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant – 1750 Turbo Engine We recommend you use MOPAR Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive
Technology) or equivalent meeting the requirements of
FCA Material Standard MS.90032.
Engine Oil – 1750 Turbo Engine We recommend you use SAE 5W-40 API Certified
Synthetic Engine Oil, meeting the requirements of FCA
Material Standard MS-12991.
Engine Oil Filter – 1750 Turbo Engine We recommend you use MOPAR Engine Oil Filter.
Spark Plugs – 1750 Turbo Engine We recommend you use MOPAR Spark Plugs. *
Fuel Selection – 1750 Turbo Engine Use Only 91 Octane or higher, 0-10% Ethanol.
NOTE: * The following are essential to ensure correct
operation and prevent serious damage to the engine:
only use spark plugs of the same make and type which
are specially certified for such engines strictly comply
with the spark plug replacement interval given in the
maintenance schedule. For spark plug replacement, it is
advisable to contact the dedicated Alfa Romeo Dealer-
ship. Refer to the “Maintenance Schedule” section for
the required spark plug intervals.
7
MAINTAINING YOUR VEHICLE 257
Page 260 of 289

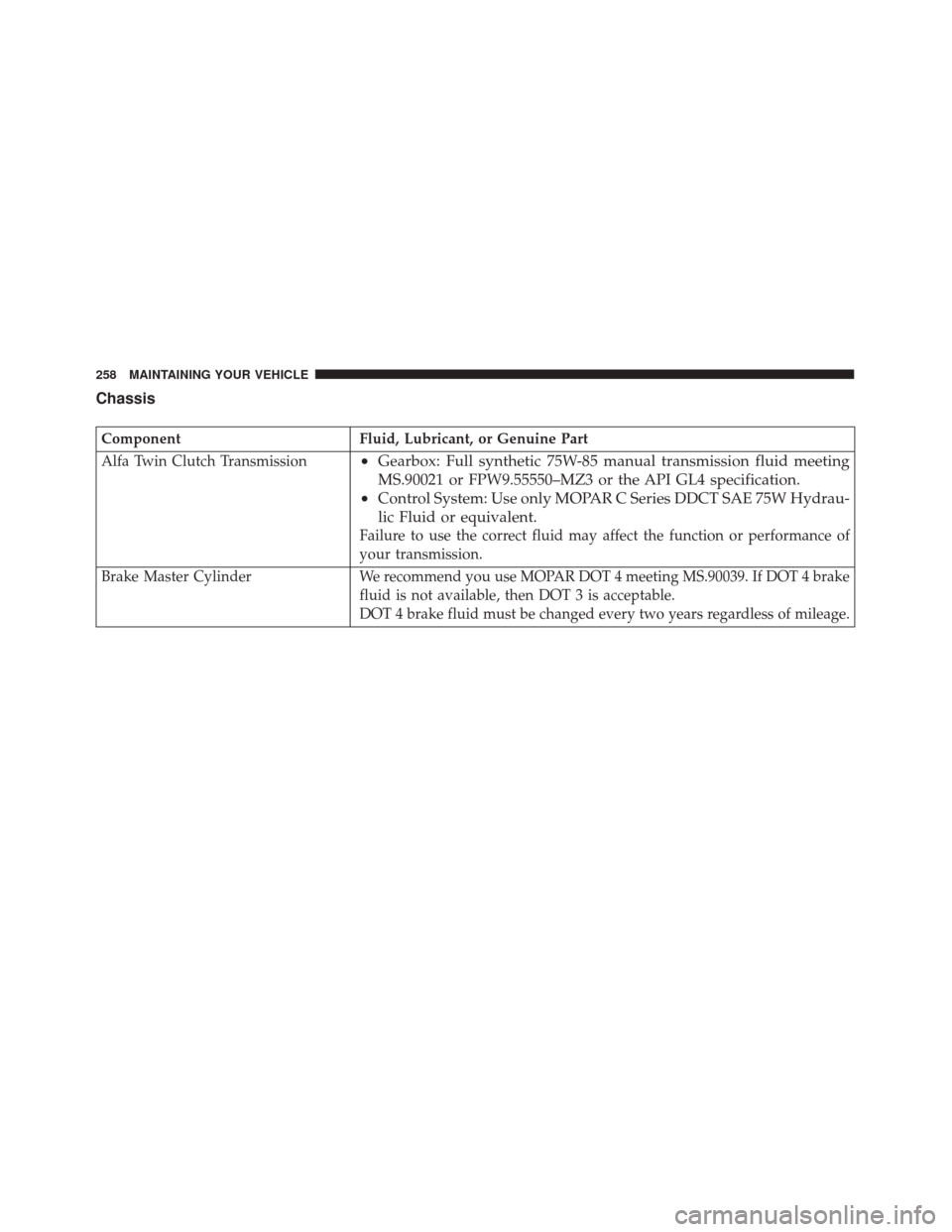

Chassis
ComponentFluid, Lubricant, or Genuine Part
Alfa Twin Clutch Transmission
• Gearbox: Full synthetic 75W-85 manual transmission fluid meeting
MS.90021 or FPW9.55550–MZ3 or the API GL4 specification.
• Control System: Use only MOPAR C Series DDCT SAE 75W Hydrau-
lic Fluid or equivalent.
Failure to use the correct fluid may affect the function or performance of
your transmission.
Brake Master Cylinder We recommend you use MOPAR DOT 4 meeting MS.90039. If DOT 4 brake
fluid is not available, then DOT 3 is acceptable.
DOT 4 brake fluid must be changed every two years regardless of mileage.
258 MAINTAINING YOUR VEHICLE
