Alfa Romeo 4C 2018 Owner's Manual

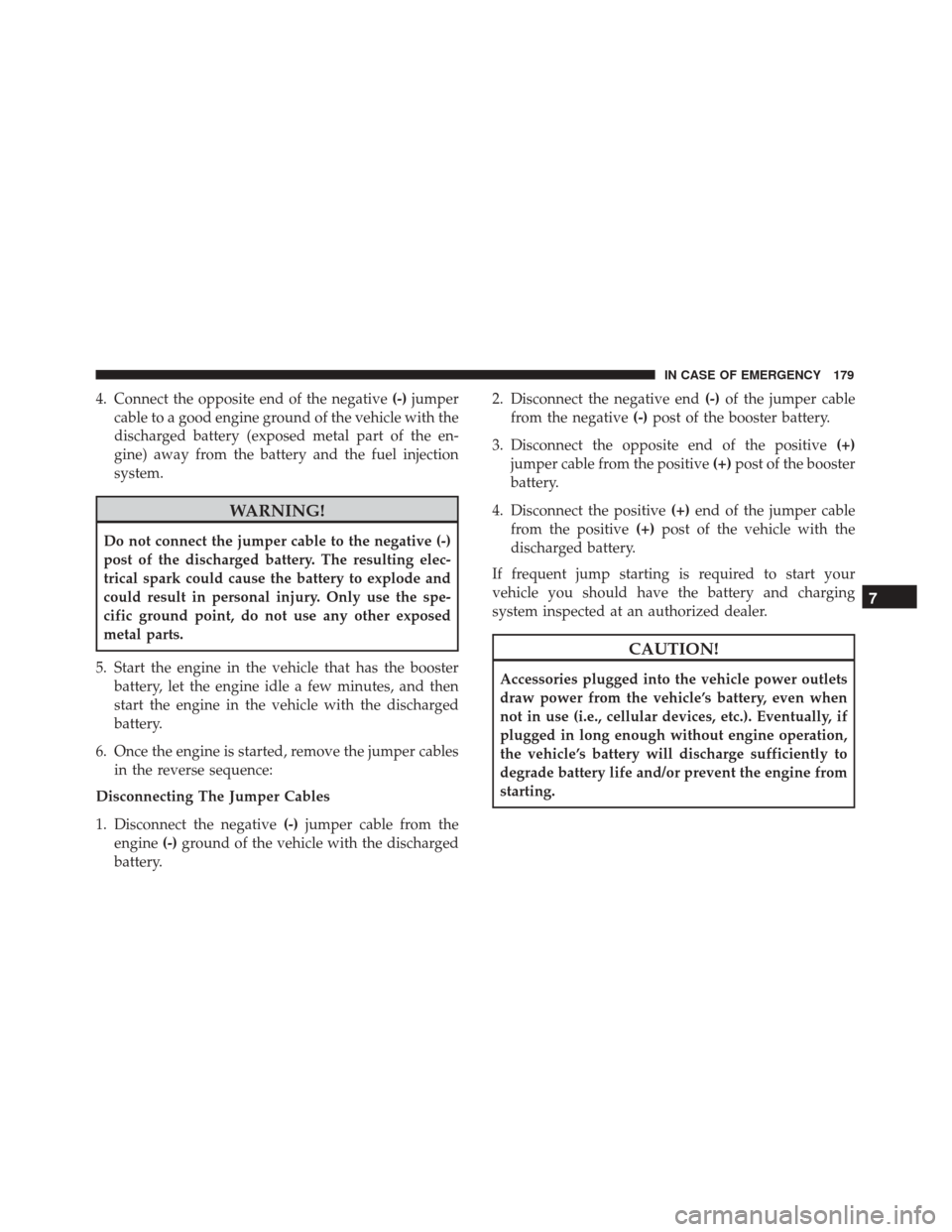

4. Connect the opposite end of the negative(-)jumper
cable to a good engine ground of the vehicle with the
discharged battery (exposed metal part of the en-
gine) away from the battery and the fuel injection
system.
WARNING!
Do not connect the jumper cable to the negative (-)
post of the discharged battery. The resulting elec-
trical spark could cause the battery to explode and
could result in personal injury. Only use the spe-
cific ground point, do not use any other exposed
metal parts.
5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then
start the engine in the vehicle with the discharged
battery.
6. Once the engine is started, remove the jumper cables in the reverse sequence:
Disconnecting The Jumper Cables
1. Disconnect the negative (-)jumper cable from the
engine (-)ground of the vehicle with the discharged
battery. 2. Disconnect the negative end
(-)of the jumper cable
from the negative (-)post of the booster battery.
3. Disconnect the opposite end of the positive (+)
jumper cable from the positive (+)post of the booster
battery.
4. Disconnect the positive (+)end of the jumper cable
from the positive (+)post of the vehicle with the
discharged battery.
If frequent jump starting is required to start your
vehicle you should have the battery and charging
system inspected at an authorized dealer.
CAUTION!
Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when
not in use (i.e., cellular devices, etc.). Eventually, if
plugged in long enough without engine operation,
the vehicle’s battery will discharge sufficiently to
degrade battery life and/or prevent the engine from
starting.
7
IN CASE OF EMERGENCY 179

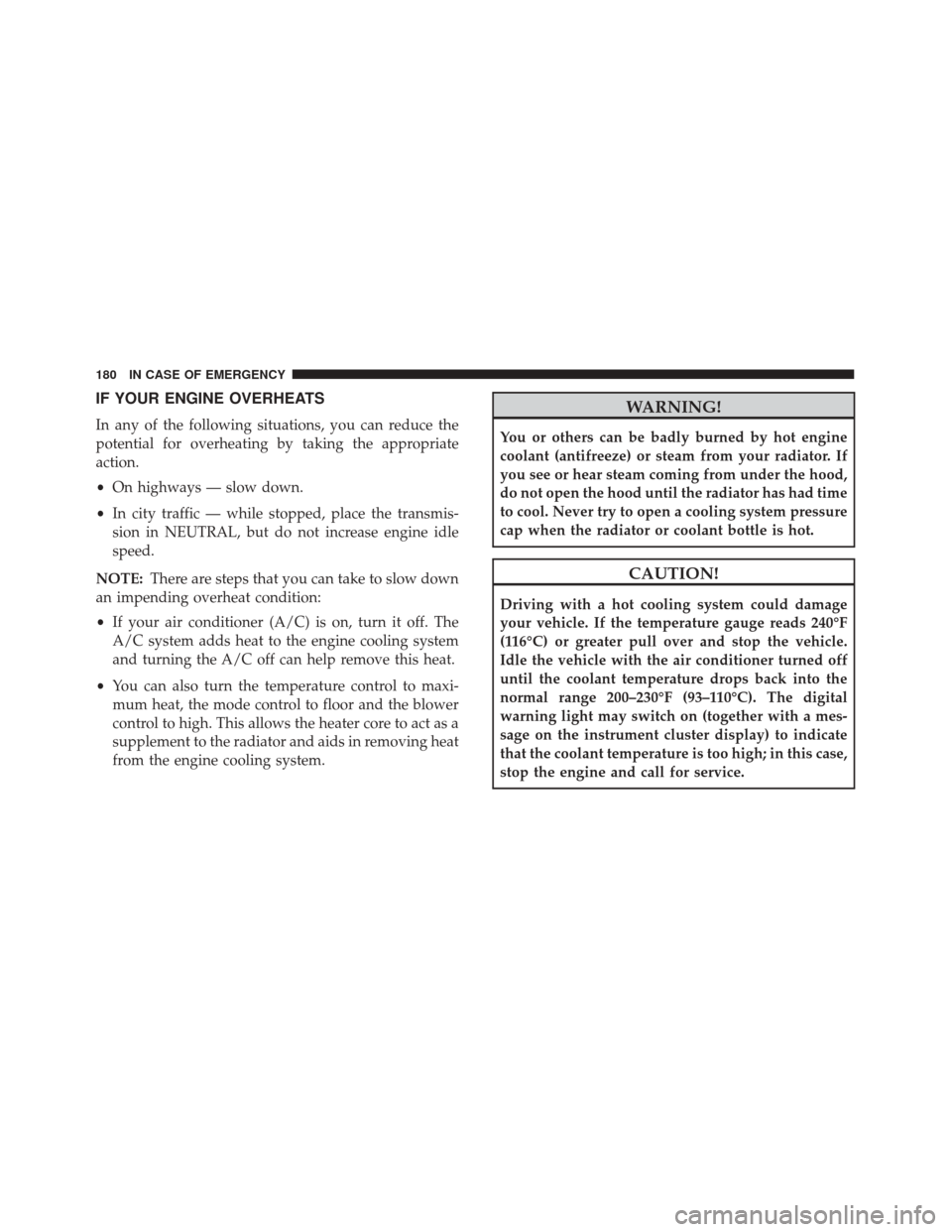

IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate
action.
•On highways — slow down.
• In city traffic — while stopped, place the transmis-
sion in NEUTRAL, but do not increase engine idle
speed.
NOTE: There are steps that you can take to slow down
an impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The
A/C system adds heat to the engine cooling system
and turning the A/C off can help remove this heat.
• You can also turn the temperature control to maxi-
mum heat, the mode control to floor and the blower
control to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat
from the engine cooling system.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads 240°F
(116°C) or greater pull over and stop the vehicle.
Idle the vehicle with the air conditioner turned off
until the coolant temperature drops back into the
normal range 200–230°F (93–110°C). The digital
warning light may switch on (together with a mes-
sage on the instrument cluster display) to indicate
that the coolant temperature is too high; in this case,
stop the engine and call for service.
180 IN CASE OF EMERGENCY

TOWING A DISABLED VEHICLE
Front Tow Eye Usage
Your vehicle is equipped with a tow eye that can be
used to tow a disabled vehicle.
The front tow eye receptacle is located on the lower
right side of the front fascia.
To install the tow eye, thread the tow eye into the
receptacle.
NOTE:The front tow eye is stored inside the Tire
Service Kit storage bag.
Front Tow Eye Installed7
IN CASE OF EMERGENCY 181

When using a tow eye, be sure to follow the “Tow Eye
Usage Precautions” in this section.
Tow Eye Usage Precautions
The transmission must be in NEUTRAL when flat
towing this vehicle. The ignition must be ON in order to
place the transmission in NEUTRAL. Therefore, if the
key is unavailable or the battery is discharged, this
vehicle must be towed with all four wheels OFF the
ground (using a vehicle trailer or flatbed truck).
•Ensure that the tow eye is properly seated and secure
in the mounting receptacle. •
The tow eye is recommended for use with an ap-
proved tow bar and or rope.
• Do not use the tow eye to pull the vehicle onto a
flatbed truck.
• Do not use the tow eye to free a stuck vehicle.
WARNING!
Stand clear of vehicles when pulling with tow eyes.
•Do not use a chain with a tow eye. Chains may
break, causing serious injury or death.
• Do not use a tow strap with a tow eye. Tow straps
may break or become disengaged, causing serious
injury or death.
• Failure to follow proper tow eye usage may cause
components to break resulting in serious injury
or death.
Tow Eye
182 IN CASE OF EMERGENCY

CAUTION!
•The tow eye must be used exclusively for road-
side assistance operations. Only use the tow eye
with an appropriate device in accordance with the
highway code (a rigid bar or rope) to flat tow the
vehicle for a short distance to the nearest service
location.
(Continued)
CAUTION! (Continued)
•Tow eyes MUST NOT be used to tow vehicles off
the road or where there are obstacles.
• In compliance with the above conditions, towing
with a tow eye must take place with two vehicles
(one towing, the other towed) aligned as much as
possible along the same center line. Damage to
your vehicle may occur if these guidelines are not
followed.
• When towing, only use a facility that can tow
vehicles with low ground clearances as extensive
damage can result by using a standard tow truck
platform.
Tow Eye Warning Label7
IN CASE OF EMERGENCY 183

FIRE EXTINGUISHER — IF EQUIPPED
The fire extinguisher is located under the dashboard in
front of the passenger side seat.
ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS)
This vehicle is equipped with an Enhanced Accident
Response System.
Please refer to “Occupant Restraint Systems” in
“Safety” for further information on the Enhanced Acci-
dent Response System (EARS) function.
EVENT DATA RECORDER (EDR)
This vehicle is equipped with an Event Data Recorder
(EDR). The main purpose of an EDR is to record data
that will assist in understanding how a vehicle’s sys-
tems performed under certain crash or near crash-like
situations, such as an air bag deployment or hitting a
road obstacle.
Please refer to “Occupant Restraint Systems” in
“Safety” for further information on the Event Data
Recorder (EDR).
Fire Extinguisher
184 IN CASE OF EMERGENCY

SERVICING AND MAINTENANCE
CONTENTS
SCHEDULED SERVICING ...............187
▫ Maintenance Plan ....................189
 ENGINE COMPARTMENT ...............195
▫ 1750 Turbo Engine ...................195
▫ Checking Oil Level ...................196
▫ Adding Washer Solvent ................196
▫ Maintenance-Free Battery ..............199
 DEALER SERVICE ....................200
▫ Engine Oil ........................ .200
▫ Engine Oil Filter .....................201
▫ Engine Air Cleaner Filter ...............201
▫ Engine Cover ...................... .202
▫ Air Conditioner Maintenance ............202
▫ Body Lubrication ....................203 ▫
Wiper Blades ...................... .204
▫ Windshield Washer Nozzles .............205
▫ Exhaust System .....................206
▫ Cooling System .....................207
▫ Brake System ...................... .212
▫ Alfa Twin Clutch Transmission ..........215
 RAISING THE VEHICLE ................216
 TIRES ............................. .216
▫ Tire Safety Information ................216
▫ Tires — General Information ............226
▫ Tire Types ......................... .232
▫ Spare Tires — If Equipped ..............233
▫ Wheel

And Wheel Trim Care ............236
▫ Tire Chains (Traction Devices) ...........237
8

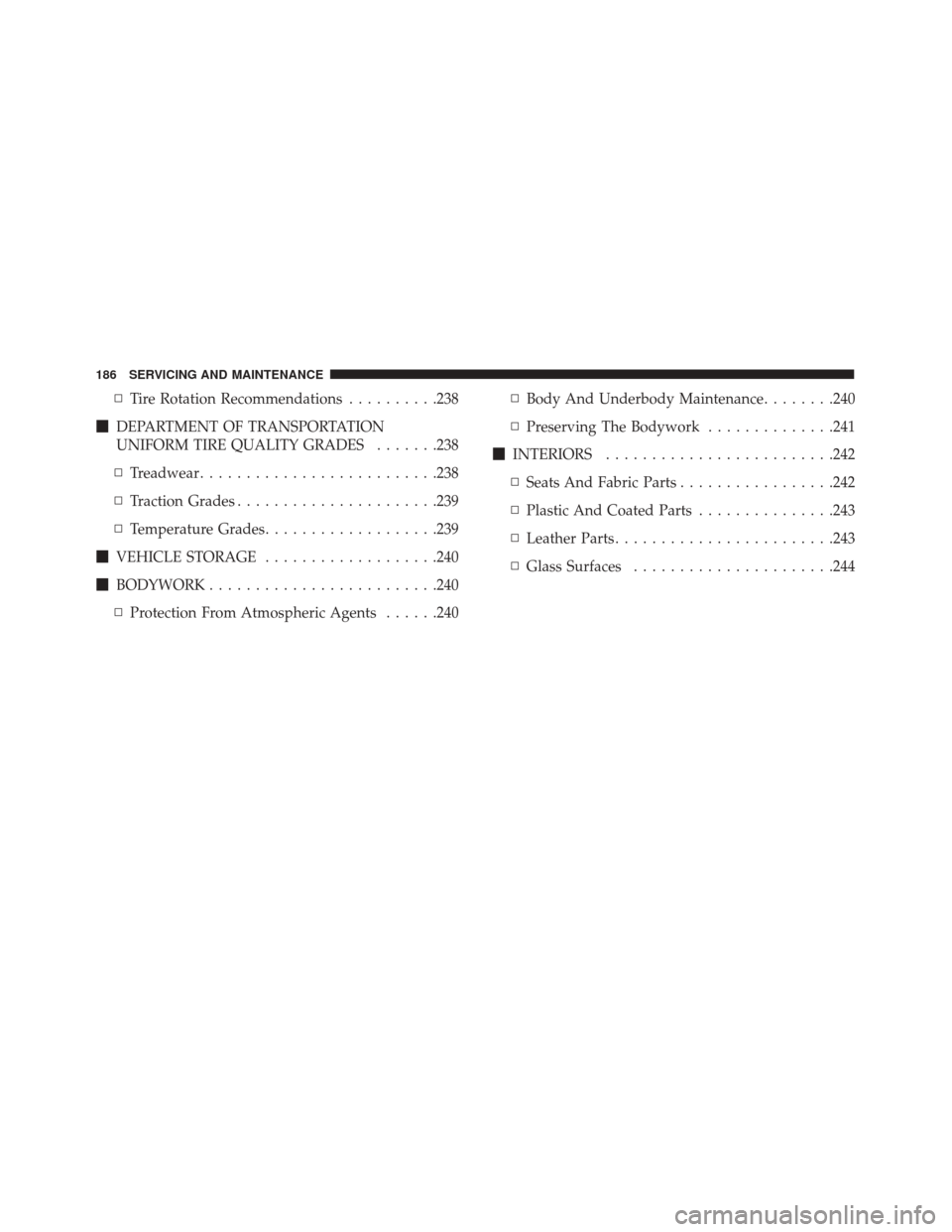

▫Tire Rotation Recommendations ..........238
 DEPARTMENT OF TRANSPORTATION
UNIFORM TIRE QUALITY GRADES .......238
▫ Treadwear ......................... .238
▫ Traction Grades ..................... .239
▫ Temperature Grades ...................239
 VEHICLE STORAGE ...................240
 BODYWORK ........................ .240
▫ Protection From Atmospheric Agents ......240▫
Body And Underbody Maintenance ........240
▫ Preserving The Bodywork ..............241
 INTERIORS ........................ .242
▫ Seats And Fabric Parts .................242
▫ Plastic And Coated Parts ...............243
▫ Leather Parts ....................... .243
▫ Glass Surfaces ..................... .244
186 SERVICING AND MAINTENANCE

SCHEDULED SERVICING
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate in the instrument
cluster. This means that an engine oil and engine oil
filter change is required for your vehicle. Operating
conditions such as frequent short-trips, trailer tow,
extremely hot or cold ambient temperatures will influ-
ence when the “Change Oil” or “Oil Change Required”
message is displayed. Severe Operating Conditions can
cause the change oil message to illuminate as early as
3,500 miles (5,600 km) since last reset. Have your
vehicle serviced as soon as possible, within the next 500
miles (805 km).
The Wrench Warning Light may appear in the cluster as
a service reminder when vehicle maintenance is re-
quired, according to the scheduled maintenance mile-
age. The maintenance schedule intervals are set by the
manufacturer. Failure to have them carried out may
void your New Vehicle Limited Warranty.NOTE:
The actual interval for changing the oil and
replacing the engine oil filter depends on the vehicle
usage conditions and is signalled by the warning light
or message (if present) on the instrument panel or every
12 months.
Severe Duty All Models
In addition, if your vehicle is used under demanding
conditions, including:
• On the track.
• On dusty roads.
• Short, repeated trips (less than 4-5 miles or 7-8 km) at
sub-zero temperatures.
• Allowing the engine to idle for extended periods of
time.
• Driving for long distances at low speeds.
• Allowing the vehicle to sit for long periods of inac-
tivity.
Under any of the above circumstances, the following
checks need to be performed more frequently than
indicated in the Maintenance Plan:
• Check front and rear disc brake pad condition and
wear.
8
SERVICING AND MAINTENANCE 187

•Check cleanliness of tailgate locks.
• Check cleanliness and lubrication of chassis and
steering linkage.
• Visually inspect condition of: engine, gearbox, trans-
mission, pipes and hoses (exhaust - fuel system -
brakes) and rubber elements (gaiters - sleeves -
bushes - etc.).
• Check battery charge and battery fluid level (electro-
lyte).
• Visually inspect condition of the auxiliary drive belts.
• Check and, if necessary, change engine oil and re-
place oil filter.
• Check and, if necessary, replace air cleaner filter.
Using the vehicle on a track should be regarded as an
exception. The vehicle has been designed and manufac-
tured for road use.
Change engine oil at 4,000 miles (6,500 km) if the
vehicle is operated in a dusty and off road environment.
This type of vehicle use is considered Severe Duty. If the vehicle is operated in a dusty or dirty environ-
ment the engine air filter has to be changed every 6,500
miles (10,000 km).
Once A Month Or Before A Long Trip/Periodic
Checks
Every 600 miles (1,000 km) or before long trips, check
and, if necessary, top off the following:
•
Check engine oil level.
• Check brake fluid level.
• Check windshield washer fluid level.
• Check the tire inflation pressures and look for un-
usual wear or damage.
• Check the fluid levels of the coolant reservoir and
brake master cylinder reservoir, and add as needed
• Check function of all interior and exterior lights.
Every 2,000 miles (3,000 km) check and, if necessary, top
up: engine oil level.
188 SERVICING AND MAINTENANCE
