WARNING!(Continued)
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children
to be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake
pedal or the transmission gear selector.
• Do not leave the key fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.

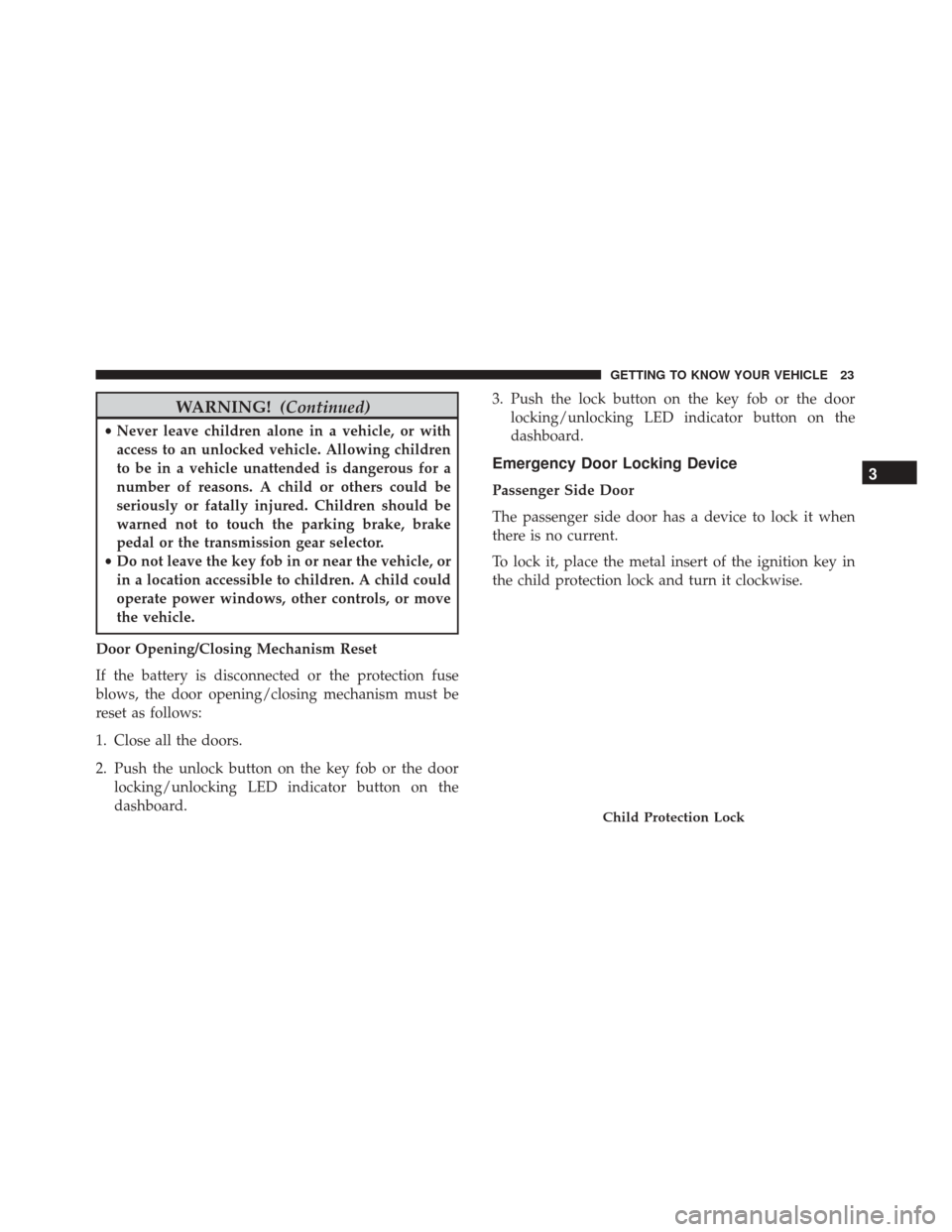

Door Opening/Closing Mechanism Reset
If the battery is disconnected or the protection fuse
blows, the door opening/closing mechanism must be
reset as follows:
1. Close all the doors.
2. Push the unlock button on the key fob or the door locking/unlocking LED indicator button on the
dashboard. 3. Push the lock button on the key fob or the door
locking/unlocking LED indicator button on the
dashboard.
Emergency Door Locking Device
Passenger Side Door
The passenger side door has a device to lock it when
there is no current.
To lock it, place the metal insert of the ignition key in
the child protection lock and turn it clockwise.
Child Protection Lock
3
GETTING TO KNOW YOUR VEHICLE 23

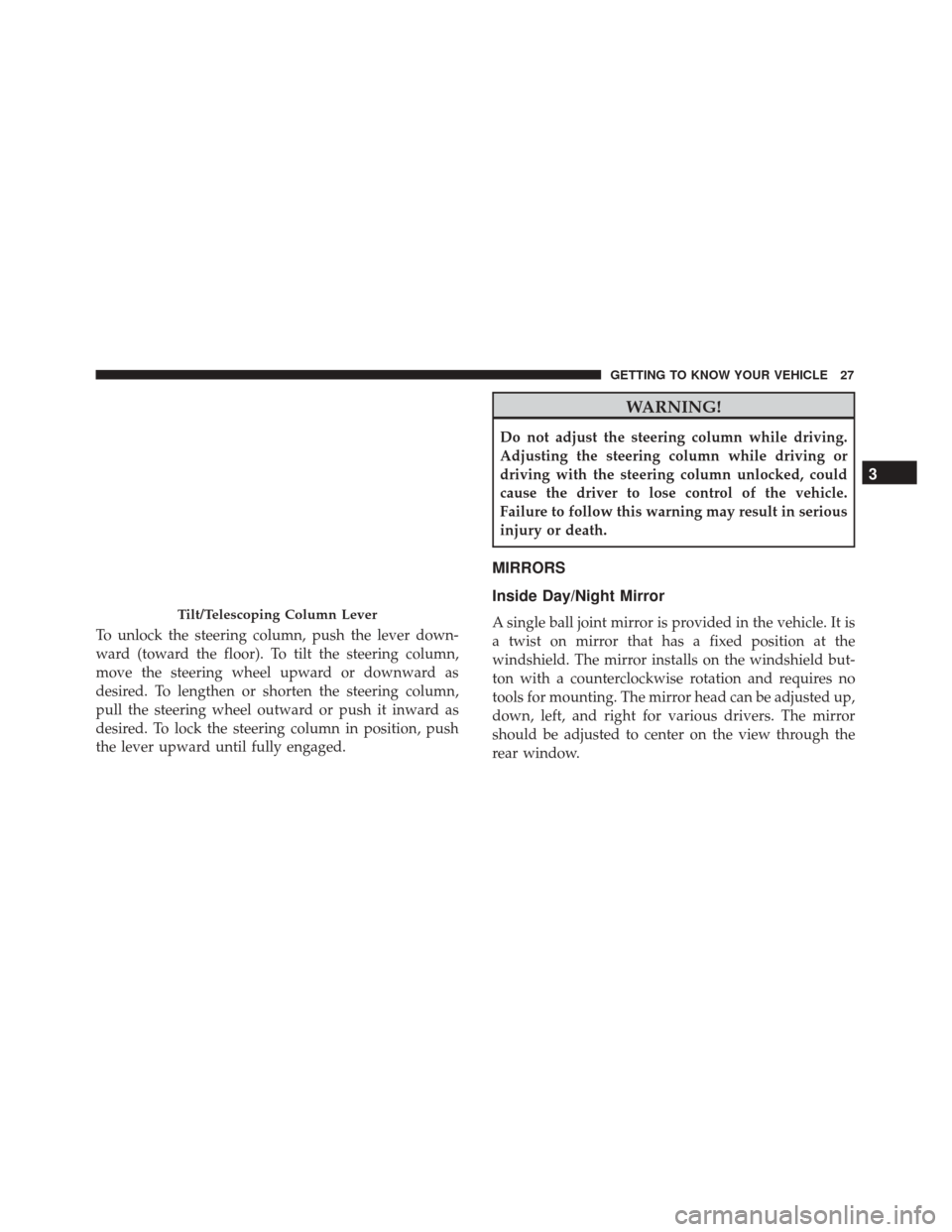

To unlock the steering column, push the lever down-
ward (toward the floor). To tilt the steering column,
move the steering wheel upward or downward as
desired. To lengthen or shorten the steering column,
pull the steering wheel outward or push it inward as
desired. To lock the steering column in position, push
the lever upward until fully engaged.
WARNING!
Do not adjust the steering column while driving.
Adjusting the steering column while driving or
driving with the steering column unlocked, could
cause the driver to lose control of the vehicle.
Failure to follow this warning may result in serious
injury or death.
MIRRORS
Inside Day/Night Mirror
A single ball joint mirror is provided in the vehicle. It is
a twist on mirror that has a fixed position at the
windshield. The mirror installs on the windshield but-
ton with a counterclockwise rotation and requires no
tools for mounting. The mirror head can be adjusted up,
down, left, and right for various drivers. The mirror
should be adjusted to center on the view through the
rear window.Tilt/Telescoping Column Lever
3
GETTING TO KNOW YOUR VEHICLE 27

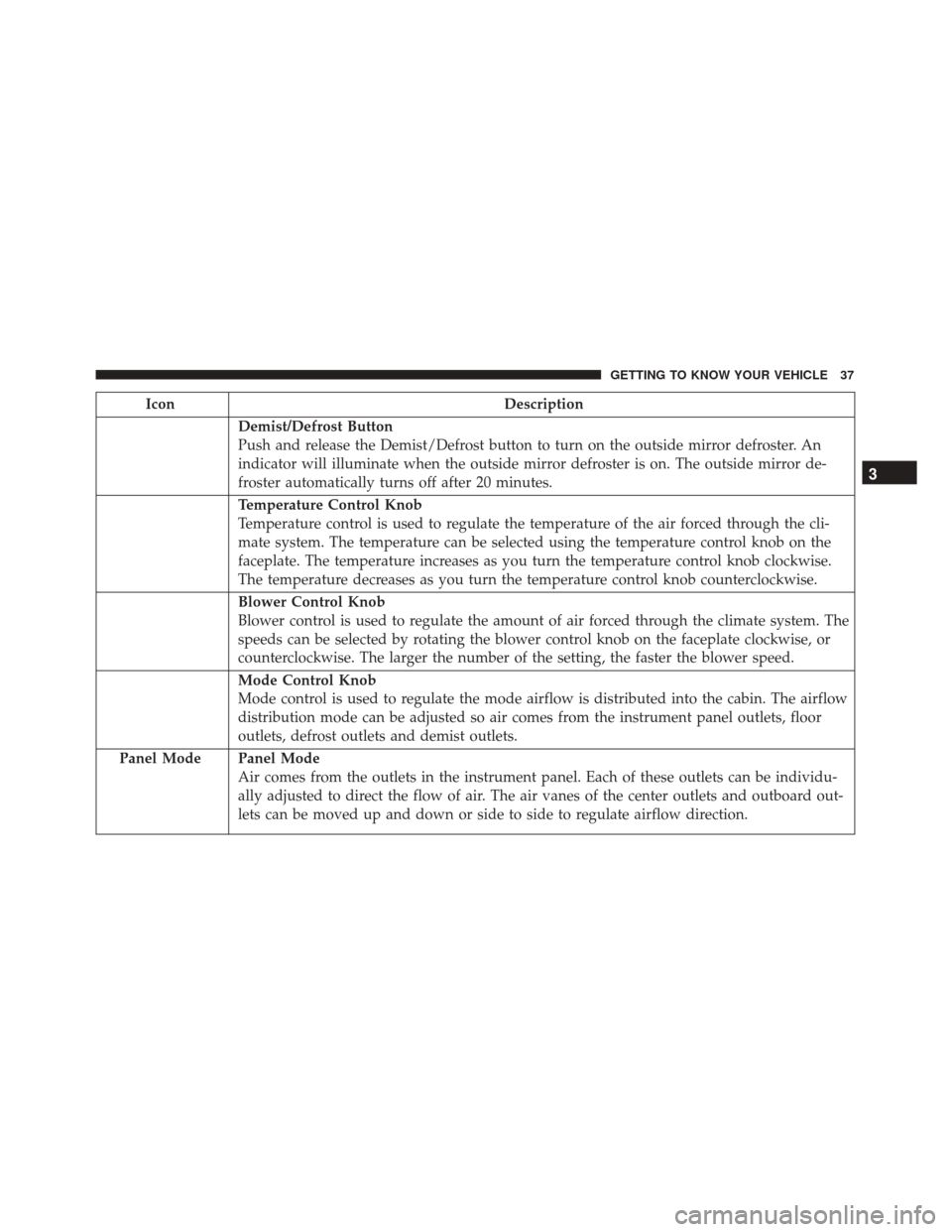

IconDescription
Demist/Defrost Button
Push and release the Demist/Defrost button to turn on the outside mirror defroster. An
indicator will illuminate when the outside mirror defroster is on. The outside mirror de-
froster automatically turns off after 20 minutes.
Temperature Control Knob
Temperature control is used to regulate the temperature of the air forced through the cli-
mate system. The temperature can be selected using the temperature control knob on the
faceplate. The temperature increases as you turn the temperature control knob clockwise.
The temperature decreases as you turn the temperature control knob counterclockwise.
Blower Control Knob
Blower control is used to regulate the amount of air forced through the climate system. The
speeds can be selected by rotating the blower control knob on the faceplate clockwise, or
counterclockwise. The larger the number of the setting, the faster the blower speed.
Mode Control Knob
Mode control is used to regulate the mode airflow is distributed into the cabin. The airflow
distribution mode can be adjusted so air comes from the instrument panel outlets, floor
outlets, defrost outlets and demist outlets.
Panel Mode
Panel Mode
Air comes from the outlets in the instrument panel. Each of these outlets can be individu-
ally adjusted to direct the flow of air. The air vanes of the center outlets and outboard out-
lets can be moved up and down or side to side to regulate airflow direction.
3
GETTING TO KNOW YOUR VEHICLE 37

3. Turn the Blower Control counterclockwise to reducethe fan speed.

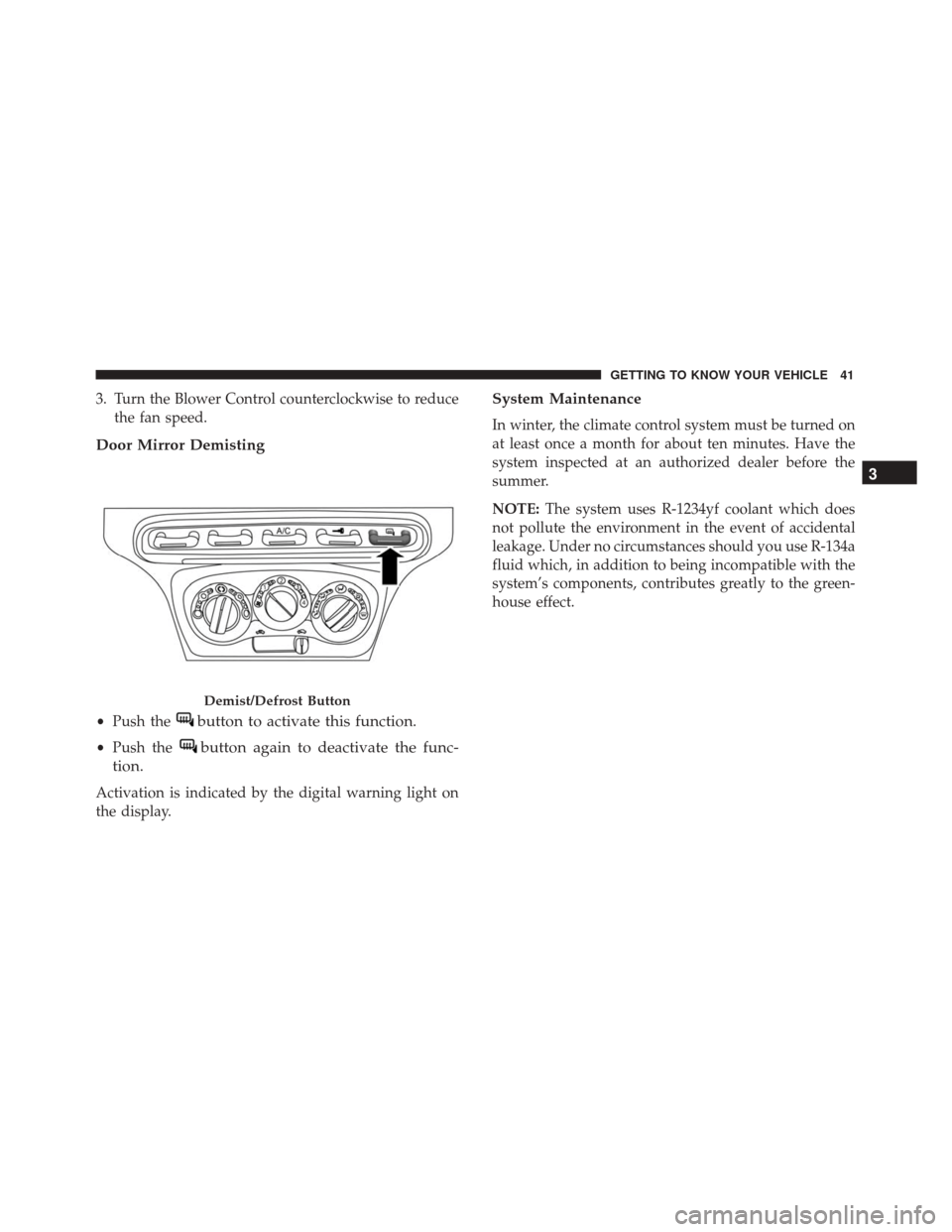

Door Mirror Demisting
•Push thebutton to activate this function.
•Push thebutton again to deactivate the func-
tion.
Activation is indicated by the digital warning light on
the display.
System Maintenance
In winter, the climate control system must be turned on
at least once a month for about ten minutes. Have the
system inspected at an authorized dealer before the
summer.
NOTE: The system uses R-1234yf coolant which does
not pollute the environment in the event of accidental
leakage. Under no circumstances should you use R-134a
fluid which, in addition to being incompatible with the
system’s components, contributes greatly to the green-
house effect.
Demist/Defrost Button
3
GETTING TO KNOW YOUR VEHICLE 41

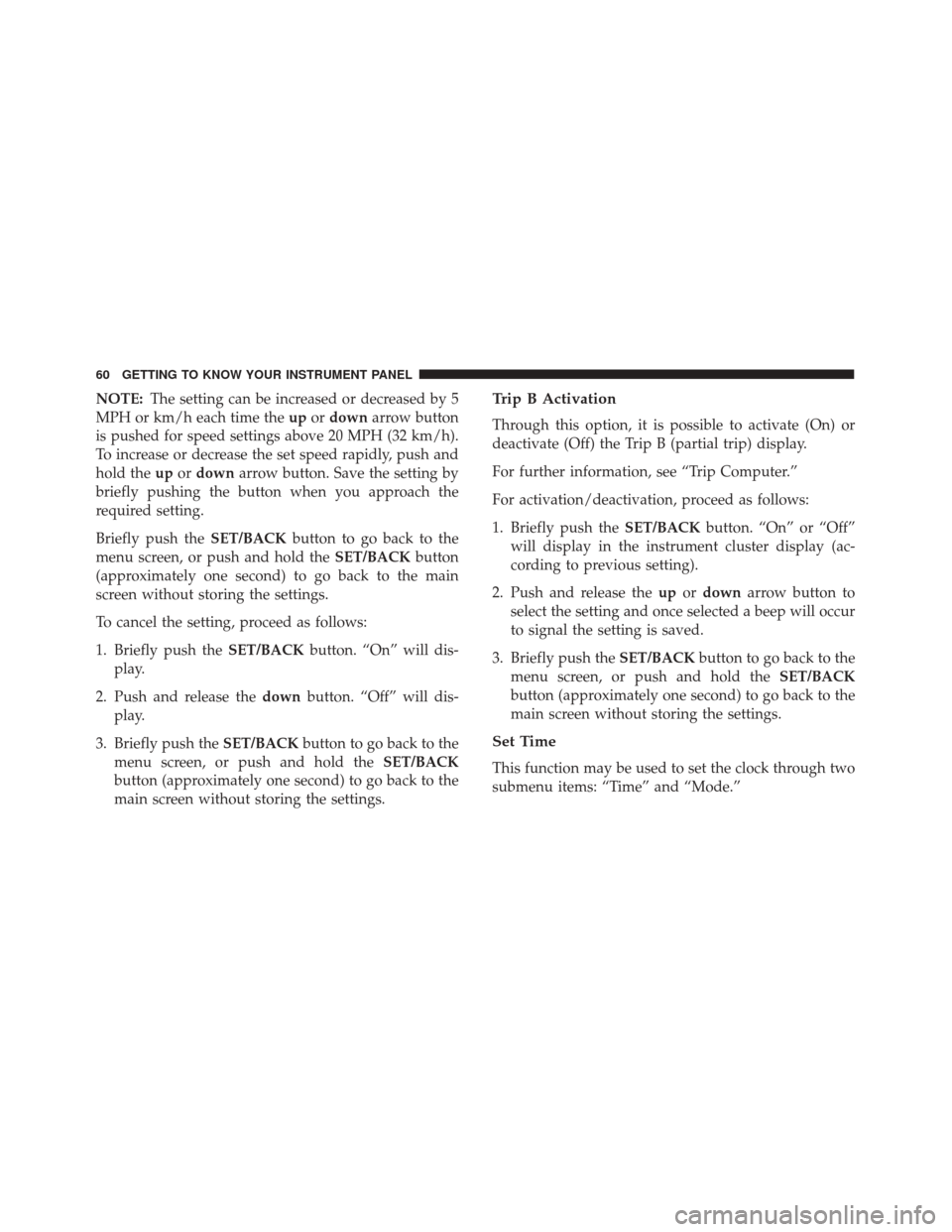

NOTE:The setting can be increased or decreased by 5
MPH or km/h each time the upordown arrow button
is pushed for speed settings above 20 MPH (32 km/h).
To increase or decrease the set speed rapidly, push and
hold the upordown arrow button. Save the setting by
briefly pushing the button when you approach the
required setting.
Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
To cancel the setting, proceed as follows:
1. Briefly push the SET/BACKbutton. “On” will dis-
play.
2. Push and release the downbutton. “Off” will dis-
play.
3. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.Trip B Activation
Through this option, it is possible to activate (On) or
deactivate (Off) the Trip B (partial trip) display.
For further information, see “Trip Computer.”
For activation/deactivation, proceed as follows:
1. Briefly push the SET/BACKbutton. “On” or “Off”
will display in the instrument cluster display (ac-
cording to previous setting).
2. Push and release the upordown arrow button to
select the setting and once selected a beep will occur
to signal the setting is saved.
3. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.
Set Time
This function may be used to set the clock through two
submenu items: “Time” and “Mode.”
60 GETTING TO KNOW YOUR INSTRUMENT PANEL

3. Remove protective cover from headlamp assembly.
4. Remove the electric connector (1) and then rotate thebulb holder (2) clockwise and remove it.
5. Extract the bulb and replace it.
6. Refit the new bulb, making sure that it is lockedcorrectly, and reconnect the electrical connector.
7. Reinstall protective cover in the headlamp assembly and close the protective flap.
Protective Cover
Bulb Holder
1 — Electrical Connector
2 — Bulb Holder
7
IN CASE OF EMERGENCY 159

Low/High Beam HID & LED Headlights
For the replacement, contact an authorized dealer.
Direction Indicators
Front:
1. Turn the steering wheel completely.
2. Open the protective flap by rotating the screw.3. Remove protective cover from headlamp assembly.
4. Rotate the bulb holder counterclockwise and remove
it.
5. Rotate the bulb assembly counter clockwise to re- move from bulb holder.
6. Install the new bulb, making sure that it is locked in correctly, and reinstall into headlamp assembly.
7. Reinstall protective cover in the headlamp assembly and close the protective flap.
Front Fender Liner
1 — Direction Indicator Bulb Protective Flap
2 — Headlamp Bulb Protective Flap
Protective Cover
160 IN CASE OF EMERGENCY

Side:
1. Compress the retaining clip, then pull the sidemarker assembly outwards.
2. Turn the bulb holder counterclockwise, remove the bulb and replace it.
3. Install the bulb holder in the lens and turn it clock- wise. 4. Install the cluster making sure that the internal clip
clicks into position.
Front Side Marker
To change the bulb, proceed as follows:
1. Turn the front wheels to gain access and then removethe fastener from the inner wheel liner.
2. Fold back wheel liner door to access bulb housing.
Side Direction Indicator
1 — Lens
2 — Bulb Holder
Bulb Housing Location
7
IN CASE OF EMERGENCY 161

2. Remove the second protective cap insert a handinside the opening.
3. Rotate clockwise to remove the bulb holder remove the bulb from the bulb holder.
4. Install the bulb by pressing it into bulb holder then turn install the bulb holder and turn it counterclock-
wise.
5. Install the previously removed protective caps.
Tail Lights/Brake Lights
These are LEDs. For the replacement, contact an autho-
rized dealer.
Reversing Light
WARNING!
The reverse lights are located close to the exhaust
pipes; take the utmost care not to get burnt during
the bulb replacement.
To replace the reversing lights, turn the bulb holder
counterclockwise, remove the bulb and replace it.
Second Protective Cap
Rear Of Vehicle
1 — Reverse Light Location
2 — Reverse Light Location
7
IN CASE OF EMERGENCY 163

2. Turn bulb holder counterclockwise, remove bulb andreplace it.Roof Light
To change the bulb, proceed as follows:
1. Remove roof light working at the points indicated bythe arrows.
1 — Bulb Holder
2 — Bulb
Roof Light
7
