Alfa Romeo 4C 2020 Owner handbook (in English)

129
Prescribed fuels /
Fluids and original lubricants1750 Turbo Petrol
kglitres
REFUELLING
Fuel tank 40 –
Unleaded petrol no
including a reserve of 4 - 5 – lower than 95 RON (EN228 specifications)
Engine cooling system 10,6 9,4 50% mixture of distilled water and
PARAFLUUP(*)
Engine sump 5.4 4.6
SELENIA SPORT POWER
Engine sump and filter 5.8 5.0
Gearbox/differential 1.88 1.6 TUTELA TRANSMISSION GEARTECH
Hydraulic gearbox actuator system 1.45 1.2 TUTELA CS SPEED
Hydraulic brake circuit with
0.52 0.56 TUTELA TOP 4 or TUTELA TOP 4/S
ABS anti-locking device
Windscreen washer liquid vessel 1.9 1.7 Water and liquid mixture
PETRONAS DURANCE SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLU
UPand 40% of
demineralised water.

TECHNICAL DATA
130

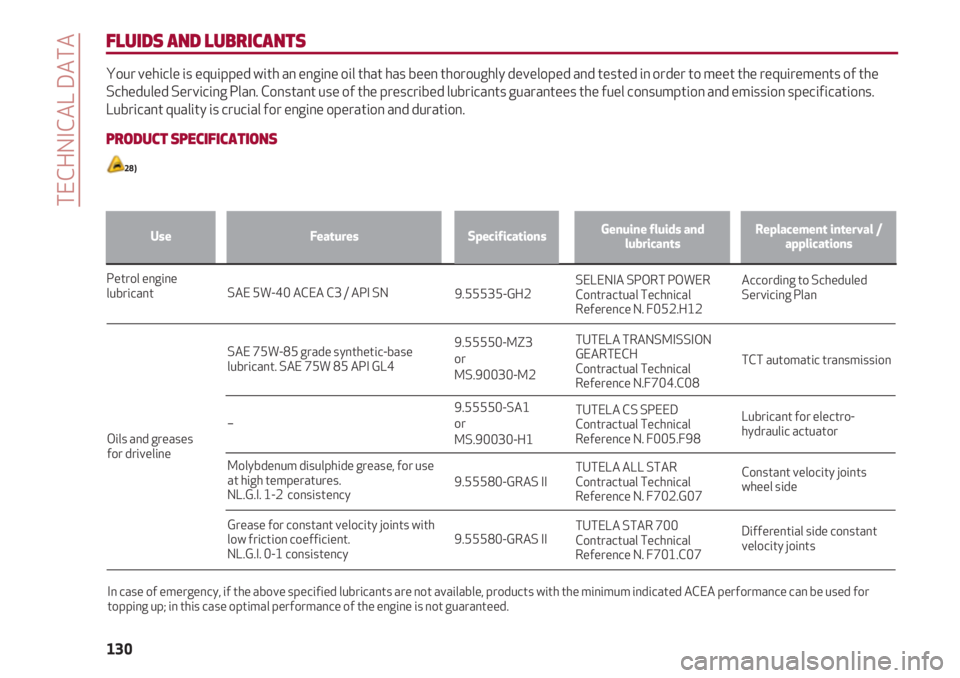

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the
Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications.
Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONS
28)
Petrol engine
lubricant
Replacement interval /
applicationsUseFeatures Genuine fluids and
lubricants
SAE 5W-40 ACEA C3 / API SN SELENIA SPORT POWER
Contractual Technical
Reference N. F052.H12According to Scheduled
Servicing Plan
In case of emergency, if the above specified lubricants are not available, products with the minimum indicated ACEA performance can be used for
topping up; in this case optimal performance of the engine is not guaranteed.SAE 75W-85 grade synthetic-base
lubricant. SAE 75W 85 API GL4TUTELA TRANSMISSION
GEARTECH
Contractual Technical
Reference N.F704.C08TCT automatic transmission
–TUTELA CS SPEED
Contractual Technical
Reference N. F005.F98Lubricant for electro-
hydraulic actuator
Molybdenum disulphide grease, for use
at high temperatures.
NL.G.I. 1-2 consistency TUTELA ALL STAR
Contractual Technical
Reference N. F702.G07Constant velocity joints
wheel side
Grease for constant velocity joints with
low friction coefficient.
NL.G.I. 0-1 consistencyTUTELA STAR 700
Contractual Technical
Reference N. F701.C07 Oils and greases
for driveline
Differential side constant
velocity joints
Specifications
9.55535-GH2
9.55550-MZ3
or
MS.90030-M2
9.55550-SA1
or
MS.90030-H1
9.55580-GRAS II
9.55580-GRAS II

131
(*) IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40% of demineralised
water.Synthetic fluid for brake and clutch
systems. That passes
FMVSS n. 116 DOT 4 specifications,
ISO 4925, SAE J1704 TUTELA TOP 4
Contractual Technical
Reference N° F001.A93
or
TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
Mixture of alcohol, water and
surfactants
CUNA NC 956-11 ^

SC 35
Contractual Technical
Reference N. F201.D02To be used diluted or
undiluted in
windscreen washer/wiper
systems Windscreen
washers liquidRed protective with antifreeze action,
based on inhibited monoethyl glycol
with organic formula. Exceeds CUNA NC
956-16, ASTM D 3306 specifications. PARAFLU
UP(*)
Contractual Technical
Reference N. F101.M01Proportions of use:
50% demineralised water
50% PARAFLU
UP(**) Protective agent
for radiators Brake liquid
Adhesive for glassBasic adhesive MS Polymer
FIAT qualification 9.55738/CSIMSON ISR 70-08 AP Gluing windows to body
Replacement interval /
applicationsUseFeatures Genuine fluids and
lubricants
28)The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.
WARNING
Specifications
9.55597
or
MS.90039
9.55523
or
MS.90032
9.55522
or
MS.90043
–

TECHNICAL DATA
132
PERFORMANCE
Top speed (km/h)Acceleration 0-100 km/h (sec.)
1750 Turbo Petrol 258 4.5
Versions
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
FUEL CONSUMPTION
The fuel consumption figures given in the table below are determined on the basis of the type-approval tests laid down by specific
European Directives.
The following procedures are used to measure the fuel consumption:
❒ urban cycle: cold starting followed by driving that simulates urban use of the car;
❒ extra-urban cycle: driving that simulates extra-urban use of the car, with frequent acceleration in all gears; the speed varies from
0 to 120 km/h;
❒ combined consumption: this is calculated with a weighting of about 37% urban cycle consumption and about 63% extra-urban
consumption.
IMPORTANT The type of route, traffic situations, weather conditions, driving style, general conditions of the car, trim
level/equipment/accessories, load, climate control system, roof rack, other situations that affect air drag may lead to different fuel
consumption levels than those measured.
VersionsUrban Extra-urbanCombined
1750 Turbo Petrol 9.8 5.0 6.8

133
EMISSIONS OF CO2
The CO2emission levels shown in the following table refer to combined fuel consumption.
CO2emissions as per the European directive in force (g/km)
1750 Turbo Petrol 157
Versions

TECHNICAL DATA
134
PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS LIFE (where provided)
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly “eco-compatible”. To grant customers the best possible service in terms
of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of their life, FCA
is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any expenses as a
result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another vehicle
or an FCA-authorised collection and scrapping centre.
These centres have been carefully chosen to offer high quality service for the collection, treatment and recycling of vehicles at their
end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the number in
the Warranty Booklet or by consulting the websites of the various FCA brands.

SPIDER
REMOVABLE SOFT TOP ................................................................................... 136
SCHEDULED SERVICING ................................................................................. 139
IF AN EXTERIOR LIGHT BURNS OUT ........................................................ 140
TECHNICAL DATA ................................................................................................ 142

SPIDER
136
REMOVABLE SOFT TOP
135) 29)
The car is equipped with a soft top
fig. 109 that can be removed manually
and combines ease of use and total
protection against weather agents.
The soft top can be stored in a suitable
container inside the luggage
compartment after having been removed.
To remove the soft top, proceed as
follows:
❒ release the two central locking
devices 1 fig. 110 inside the car by
rotating them by ¼ turn anti-clockwise;
109A0L0200
❒ at the side of the car, with the door
open, press the rail downwards to de-
tension the soft top, then move the two
side devices 2 fig. 111 inwards and lift
the soft top end part releasing it from the
retainers;
❒ package the first side of the soft top
rolling it up to the centre line;
❒ proceed in the same way for the other
side of the soft top;
❒ remove the soft top with both sides
rolled and store it in the suitable
container inside the luggage
compartment.
❒ before placing it in the dedicated
container it is necessary to cover the
central pins 1 Fig. 112 with the
appropriate buffer included in the supply
to prevent damage to the soft top fabric
during the packaging.
110A0L0201
112A0L0198
111A0L0202

137
To position again the soft top on the car,
proceed as follows:
❒ open the doors;
❒ take the soft top from the luggage
compartment and place it in the centre
line; the front side can be recognised by
the presence of the safety visor fig. 110;
❒ unroll the soft top inserting it under
the spoiler and making sure that it is
correctly positioned;
❒ turn the rail upwards and insert in the
side centring pins of the soft top in the
respective housings
fig. 113 on the car being careful to insert
the front pin and the rear pin;❒ press the side devices 2 inwards
fig. 114 and turn the rail downwards;
❒ leave the handles and complete the
rail rotation pressing it until you hear the
closing click of the lock;
❒ check that the devices 2 are
completely closed fig. 115;
❒ proceed in the same way for the other
side of the soft top;
114A0L0220
❒ position the two central devices
1 fig. 110 in the suitable housing inside the
car and rotate them by ¼ turn clockwise
to lock them. Check the correct insertion of
the pins into their seats and make sure the
grab ring is in horizontal position.
The fixing is carried out correctly and the
soft top is ensured only when the ring is
located in a horizontal position
(not vertical, or at 45°).
IMPORTANT NOTES
❒ It is advisable to install the soft top
after parking the car.
The closed top effectively protects the
car from rain and from theft.
115A0L0221
113A0L0203

SPIDER
138
❒ Do not fix a roof rack to the top.
❒ Do not remove ice from the soft top
with sharp items.
❒ Do not place objects on the soft top,
as they could fall causing damage or
injury.
❒ It is advisable to cover the top with a
protective sheet if the car is left parked
in the open for a long time.
❒ Do not keep the soft top folded for a
long time: this could cause folds and
creases in the fabric.
❒ Do not store the soft top in its
compartment when very dirty or wet, to
avoid any mildew or damage.
❒ with soft top installed, when travelling
over 130 km/h the aerodynamic comfort
may not be optimal.WASHING/CLEANING THE SOFT TOP
30)
Use of specific products is recommended
for washing the soft top cloth.
The soft top fabric is treated with a
special water-repellent, waterproof
product.
The water-repellent properties will
degrade in time with exposure to the
weather elements. Observe the following
instructions for washing:
it is recommended to wash by hand.
Remove as much dirt from the surface of
the soft top with a soft brush or vacuum
cleaning before washing it.
This operation will considerably improve
the final result.
In lack of specific products, use water
and mild soap applied with a sponge
(preferably in the shade) for washing.
Rinse the soft top with clean water after
having eliminated all the stains.
Leave the car in the shade after washing
avoiding direct sunlight.
Waterproofing the top
31)
Use specific waterproofing products for
fabric soft-tops.
Interior top fabric
Remove dust with a soft brush.
Avoid using hard brushes made of
synthetic material to prevent damaging
the fabric beyond repair.
Clean the surface with a microfibre cloth
or soft sponge dipped in a solution of
water and mild soap. Clean the entire
surface, including the zones where
cleaning is not needed, to prevent haloes
or staining.
Use common, car care mild stain
removers for more stubborn stains.
Apply by blotting (never rubbing) directly
on the area of the stain.
