boot Alfa Romeo 4C 2020 Owner handbook (in English)

KNOWING YOUR CAR
DASHBOARD  ................................................................................................................ 8
KEYS ................................................................................................................................... 9
IGNITION DEVICE ..................................................................................................... 10
ALFA ROMEO CODE SYSTEM .......................................................................... 11
ALARM ........................................................................................................................... 11
DOORS ........................................................................................................................... 12
SEATS ............................................................................................................................ 13
STEERING WHEEL .................................................................................................. 14
REAR-VIEW MIRRORS .......................................................................................... 15
EXTERNAL LIGHTS ................................................................................................ 16
INTERIOR LIGHTS ................................................................................................... 18
WINDSCREEN WIPER/WASHER ..................................................................... 19
CLIMATE CONTROL SYSTEM ...........................................................................20
ELECTRIC WINDOWS ............................................................................................ 23
BOOT / BONNET ....................................................................................................... 24
HEADLIGHTS ............................................................................................................. 25
“Alfa DNA” SYSTEM ............................................................................................... 27
In-depth knowledge of your new vehicle starts here.
The handbook that you are reading simply and directly
explains how it is made and how it works.
For this reason, we advise you read it sitting comfortably
in your car to allow you to check the illustrated
features directly.

KNOWING YOUR CAR
24
BOOT / BONNET
15)
OPENING
IMPORTANT Temperatures higher than
65°C may be reached in the boot during
normal use. Be careful when transporting
objects which may be damaged by
temperatures like these.
Do not keep aerosol cans in the car: they
might explode. Aerosol cans must not be
exposed to temperatures above 50°C.
Procedure 16) 17))
❒ with driver side door open, pull lever 1
fig. 22, located at the point illustrated in
the figure;
22A0L0037
❒ raise the tailgate and release
supporting rod 2 fig. 23 from its locking
device 3;
❒ insert the end of the rod in housing 4
fig. 24, making sure that the rod engages
in the smallest hole of the retaining clip.
Care must be taken to keep the tailgate
raised until the rod is fixed in the correct
position.
18)
23A0L0038
I
MPORTANT Maintain a tight grip on the
tailgate when raising, in order to prevent
any external occurrence (e.g. a gust of
wind) from suddenly opening the tailgate
to end of travel. Additionally, in order to
prevent any damage to the car or broken
windows, do not force the tailgate
beyond the opening position necessary to
secure the supporting rod 2 in the hole of
the retaining clip.24A0L0039

25
CLOSING
Procedure
19)
❒ hold the tailgate up with one hand and
use the other to remove rod 2 fig. 23
from housing 4 fig. 24 and reinsert it in
its locking device 3 fig. 23;
❒ lower the tailgate to approximately
20 centimetres from the engine
compartment and let it drop. Make sure
that the tailgate is completely closed and
not only fastened in safety position by
trying to open it. If it is not completely
closed, do not press the bonnet down,
but raise it and repeat the procedure.
IMPORTANT Always check that the
tailgate is closed correctly to prevent it
from opening while
the car is travelling.
HEADLIGHTS
LIGHT BEAM DIRECTION
The correct orientation of the headlights
is important for the driver’s comfort and
safety as well as for all other road users.
This is also covered by a specific rule of
the highway code.
The headlights must be correctly
directed to ensure the best visibility
conditions for all drivers.
Contact a dedicated Alfa Romeo
Dealership to have the headlights
checked and adjusted.
ADJUSTING THE HEADLIGHTS ABROAD
The dipped beam headlights are aligned
to comply with the regulations of the
country of purchase.
When in countries where you drive on the
other side of the road, you need to alter
the beam direction in order not to dazzle
the vehicles travelling in the opposite
direction, proceeding as follows:
❒ open the protective flap 1 fig. 25 on
the inner wheel arch; it can be located by
steering the wheel completely;
15)The maximum permitted load in the
luggage compartment, in addition to the
kits provided, is 15 kg.
16)When accessing the rear boot,
take care with parts that may be hot,
owing to the adjacent engine
compartment. Danger of serious burns.
17)Perform these operations only when
the car is stationary.
18)The tailgate may drop
suddenly if the supporting rod
is not positioned correctly.
19)For safety reasons, the tailgate must
always be closed properly while the car is
travelling.
Therefore, always make sure that the
tailgate is closed properly and that the
lock is engaged. If you realise during
travel that the lock is not fully engaged,
stop immediately and close the tailgate in
the correct manner.
IMPORTANT

47
Warning lights on panelMeaningWhat to do
BOOT OPEN
The symbol and the corresponding message are shown on
the display.
POSSIBLE ICE ON ROAD
The symbol and corresponding message appear on the
display when the outside temperature is below or equal to
3°C.
IMPORTANT In the event of outside temperature sensor
failure, the digits that indicate the value are replaced by
dashes.
BRAKE LIGHT FAULT
The symbol and the corresponding message are shown on
the the display when a brake light fault is
detected.The fault may be caused by a burnt bulb, a blown
protection fuse or an interruption of the electric
connection.
PARKING SENSOR FAULT
The symbol and corresponding message appear on the
display if there is a parking sensor failure.
DISPLAY OF SELECTED DRIVING MODE
(Alfa DNA system)
A letter (d, n, or a) corresponding to the active driving
mode (dynamic or race, normal, all weather) and an
associated message are shown on the display.
R
T
t

79

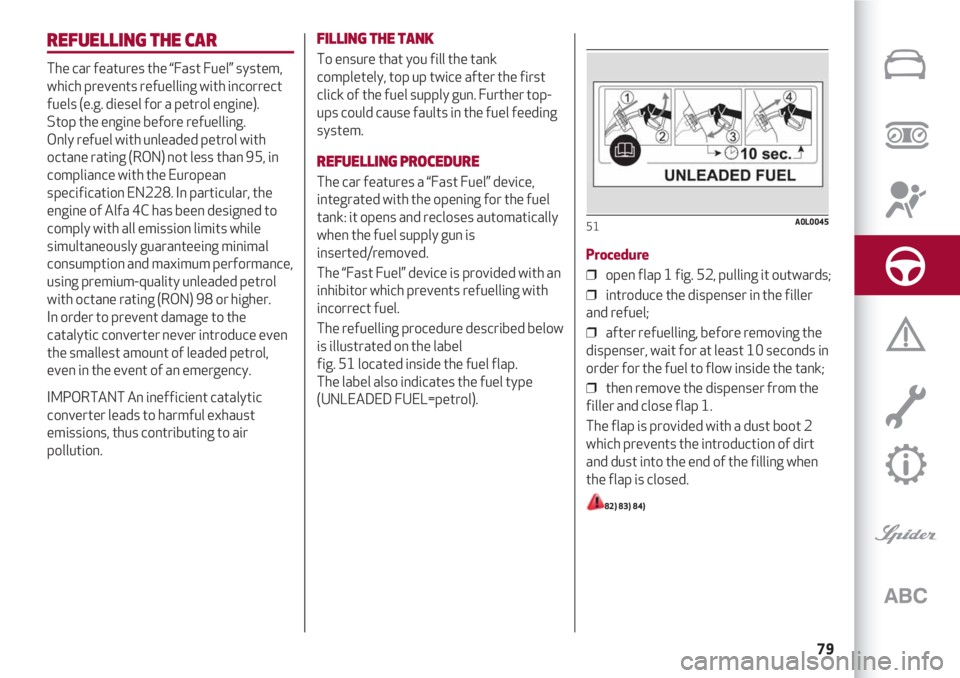

REFUELLING THE CAR
The car features the “Fast Fuel” system,
which prevents refuelling with incorrect
fuels (e.g. diesel for a petrol engine).
Stop the engine before refuelling.
Only refuel with unleaded petrol with
octane rating (RON) not less than 95, in
compliance with the European
specification EN228. In particular, the
engine of Alfa 4C has been designed to
comply with all emission limits while
simultaneously guaranteeing minimal
consumption and maximum performance,
using premium-quality unleaded petrol
with octane rating (RON) 98 or higher.
In order to prevent damage to the
catalytic converter never introduce even
the smallest amount of leaded petrol,
even in the event of an emergency.
IMPORTANT An inefficient catalytic
converter leads to harmful exhaust
emissions, thus contributing to air
pollution.
FILLING THE TANK
To ensure that you fill the tank
completely, top up twice after the first
click of the fuel supply gun. Further top-
ups could cause faults in the fuel feeding
system.
REFUELLING PROCEDURE
The car features a “Fast Fuel” device,
integrated with the opening for the fuel
tank: it opens and recloses automatically
when the fuel supply gun is
inserted/removed.
The “Fast Fuel” device is provided with an
inhibitor which prevents refuelling with
incorrect fuel.
The refuelling procedure described below
is illustrated on the label
fig. 51 located inside the fuel flap.
The label also indicates the fuel type
(UNLEADED FUEL=petrol).
Procedure
❒ open flap 1 fig. 52, pulling it outwards;
❒ introduce the dispenser in the filler
and refuel;
❒ after refuelling, before removing the
dispenser, wait for at least 10 seconds in
order for the fuel to flow inside the tank;
❒ then remove the dispenser from the
filler and close flap 1.
The flap is provided with a dust boot 2
which prevents the introduction of dirt
and dust into the end of the filling when
the flap is closed.
82) 83) 84)
51A0L0045

STARTING AND DRIVING
80
Emergency refuelling
If there is no fuel in the vehicle or the
supply circuit is completely empty,
proceed as follows to reintroduce fuel to
the tank:
❒ take the dedicated funnel fig. 53 from
the tool kit located in the boot;
❒ open the flap 1 fig. 52 by pulling it
outwards;
❒ insert funnel C in the filler as
illustrated in fig. 53 and refuel;
❒ after refuelling, remove the funnel and
close the flap;
❒ finally, put the funnel back in its case
and put this back in the boot.
52A0L0046
IMPORTANT If the filler compartment is
washed with a high pressure jet, keep it at
a distance of at least 20 cm.
Fuel - Vehicle compatibility
identification Graphic symbol for
informing consumers in accordance
with EN16942
The symbols shown below facilitated
recognising the correct fuel type to be
used on your car.
Before refuelling, check the symbols
inside the fuel filler flap (where provided)
and compare them with the symbol on
the fuel pump (where provided).
53A0L0151
82)Do not apply any object/cap to the
end of the filler which is not provided for
the vehicle. The use of non-compliant
objects/caps could cause a pressure
increase inside the tank, resulting in
dangerous situations.
83) Do not bring naked flames or lit
cigarettes near to the fuel tank opening:
risk of fire. Keep your face away from the
fuel filler to prevent breathing in harmful
vapours.
84)Do not use a mobile phone near the
refuelling pump: risk of fire.
IMPORTANT
E5: Unleaded petrol containing up to
2.7% (m/m) oxygen and with maximum
5.0% (V/V) ethanol compliant with
EN228
E10: Unleaded petrol containing up to
3.7% (m/m) oxygen and with maximum
10.0% (V/V) ethanol compliant with
EN228

83
BulbsPowerType
Front side lights/Daytime running lights (DRL) LED –
Rear position LED –
Dipped beam headlights / Main beam headlights (versions with Bi-Halogen headlights)
H7 55W
(where provided)
Dipped beam headlights / Main beam headlights (versions with Bi-Xenon headlights)
D1S 35W
(where provided)
Dipped beam headlights / Main beam headlights (versions with LED headlights)
LED –
(where provided)
Front direction indicators PY21W 21W
Rear direction indicators PY21W 21W
Side direction indicators WY5W 5W
Brake LED –
3rd brake LED –
Number plate W5W 5W
Rear fog light W16W 16W
Reversing light W16W 16W
Ceiling light C10W 10W
Boot ceiling light W5W 5W

85
DIRECTION INDICATORS
Front
To replace the bulb, proceed as follows:
❒ steer the wheel completely;
❒ open the protective flap 1 fig. 56 by
rotating the fixing screw;
❒ take out the electric connector
1 fig. 58 and then rotate the bulb holder 2
clockwise and remove it;
❒ remove the bulb and replace it;
❒ refit the new bulb, making sure that it
is locked correctly, and reconnect the
connector 1;
❒ close the protective flap 1 fig. 56.
58A0L0094
Side
To replace the bulb, proceed as follows:
❒ operate the lens 1 fig. 59 in the point
shown to press in the internal clip,
❒ then pull the unit outwards; turn the
bulb holder 2 anticlockwise, remove the
bulb and replace it;
❒ refit the bulb holder 2 in the lens and
turn it clockwise;
❒ refit the cluster making sure that the
internal clip clicks into position.
59A0L0095
REAR LIGHT CLUSTERS
Contain the bulbs for the direction
indicators, side lights and brake lights.
DIRECTION INDICATORS
To change the bulb, proceed as follows:
❒ remove the protective cap 1 fig. 60
(one on each side) located on the side
boot lining;
60A0L0096

103
2436486072
SCHEDULED SERVICING PLAN
1750 Turbo Petrol VERSIONS
Thousands of km
Months
40
12
206080100120











  Check battery charge status and possibly recharge
Check tyre conditions/wear and adjust pressure, if necessary
Check operation of lighting system (headlights, direction indicators,
hazard warning lights, luggage compartment, passenger compartment,
glove compartment, instrument panel warning lights, etc.)
Check vehicle fastenings
Check mechanical components fastenings
Check operation of windscreen washer system and adjust jets if necessary
Check position/wear of windscreen wiper blade
Check cleanliness of luggage compartment lock, cleanliness and lubrication of linkages
Visually inspect condition of: exterior bodywork, carbon monocoque, aerodynamic
bottom, pipes and hoses (exhaust, fuel supply system, brakes), rubber elements
(boots, driveshaft boots, sleeves, bushes, etc.)
Check condition and wear of front brake pads and discs,
and operation of pad wear indicator
Check condition and wear of rear brake pads and discs,
and operation of pad wear indicator
Check and, if necessary, top up fluid levels (engine cooling, brakes,
windscreen washer, etc.)

105
PERIODIC CHECKS
Every 1,000 km or before long journeys,
check and, if necessary, top up the
following:
❒ engine coolant level;
❒ brake fluid;
❒ windscreen washer fluid;
❒ tyre inflation pressure and condition;
❒ operation of lighting system
(headlights, direction indicators, hazard
warning lights, etc.);
❒ operation of windscreen
washing/wiping system and
positioning/wear of wiper blade.
Every 3,000 km check and top up if
required: engine oil level.
IMPORTANT To find out the correct oil
quantity, always check using the dipstick.
Carry out the check with the vehicle
parked on level ground.
DEMANDING USE OF THE CAR
If the vehicle is used mainly under one of
the following conditions:
❒ trailer or caravan towing;
❒ dusty roads;
❒ short repeated distances (less than
7-8 km) and with external temperatures
below zero;
❒ engine often idling or driving long
distances at low speeds or long periods
of inactivity;
❒ you should perform the following
inspections more frequently than shown
in the Scheduled Servicing Plan:
❒ check front disk brake pad conditions
and wear;
❒ check cleanness of locks, bonnet and
boot and lever cleanness and lubrication;
❒ visually inspect condition of: engine,
gearbox, transmission, pipes and hoses
(exhaust - fuel system - brakes) and
rubber elements (gaiters - sleeves -
bushes - etc.);
❒ check battery charge and battery fluid
level (electrolyte);❒ visually inspect conditions of the
accessory drive belts;
❒ check and, if necessary, change engine
oil and replace oil filter;
❒ check air cleaner and replace it, if
required.
Using the car on track should be regarded
as an exception. The car has been
designed and produced for road use.
