Alfa Romeo 4C Spider 2017 Owner's Manual

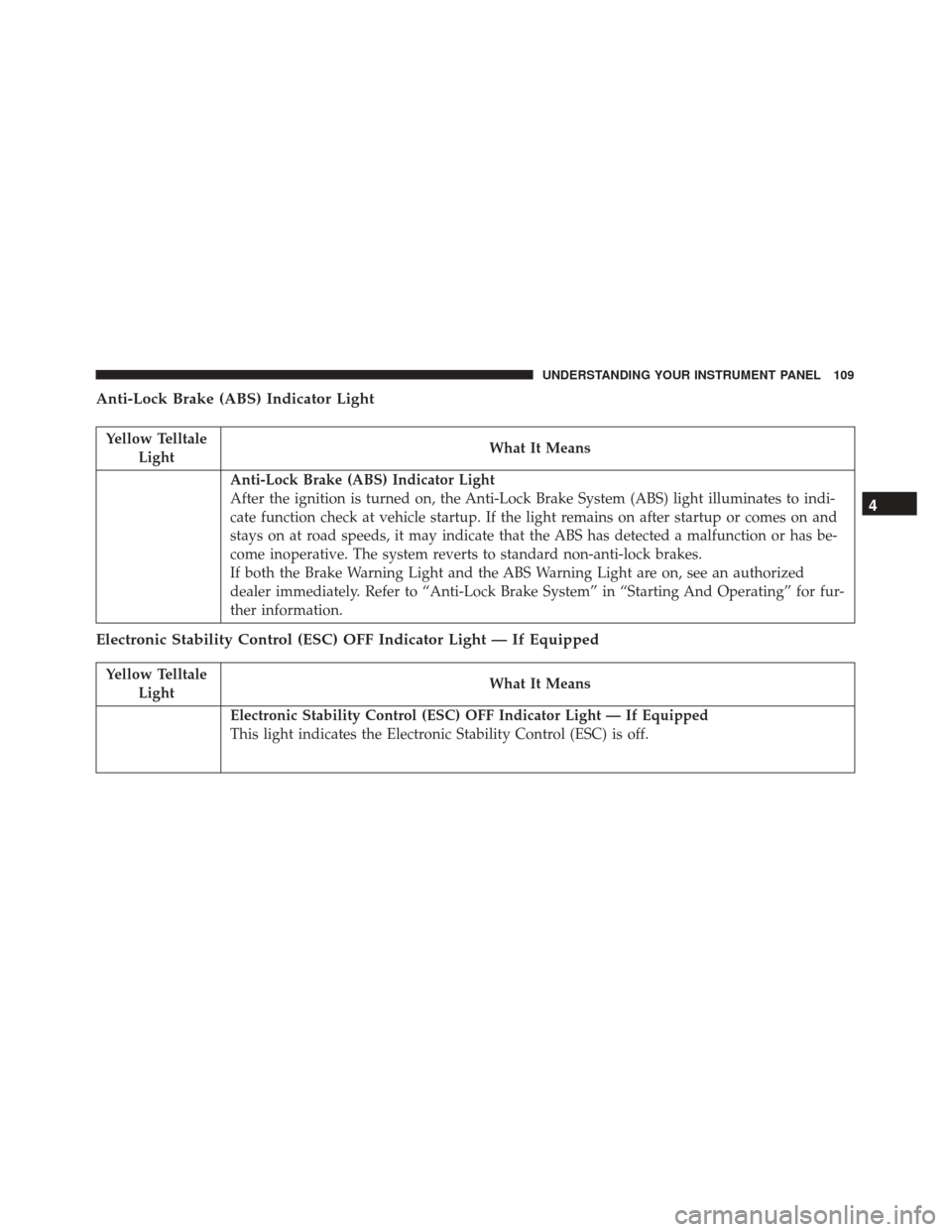

Anti-Lock Brake (ABS) Indicator Light
Yellow TelltaleLight What It Means
Anti-Lock Brake (ABS) Indicator Light
After the ignition is turned on, the Anti-Lock Brake System (ABS) light illuminates to indi-
cate function check at vehicle startup. If the light remains on after startup or comes on and
stays on at road speeds, it may indicate that the ABS has detected a malfunction or has be-
come inoperative. The system reverts to standard non-anti-lock brakes.
If both the Brake Warning Light and the ABS Warning Light are on, see an authorized
dealer immediately. Refer to “Anti-Lock Brake System” in “Starting And Operating” for fur-
ther information.
Electronic Stability Control (ESC) OFF Indicator Light — If Equipped
Yellow Telltale
Light What It Means
Electronic Stability Control (ESC) OFF Indicator Light — If Equipped
This light indicates the Electronic Stability Control (ESC) is off.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 109

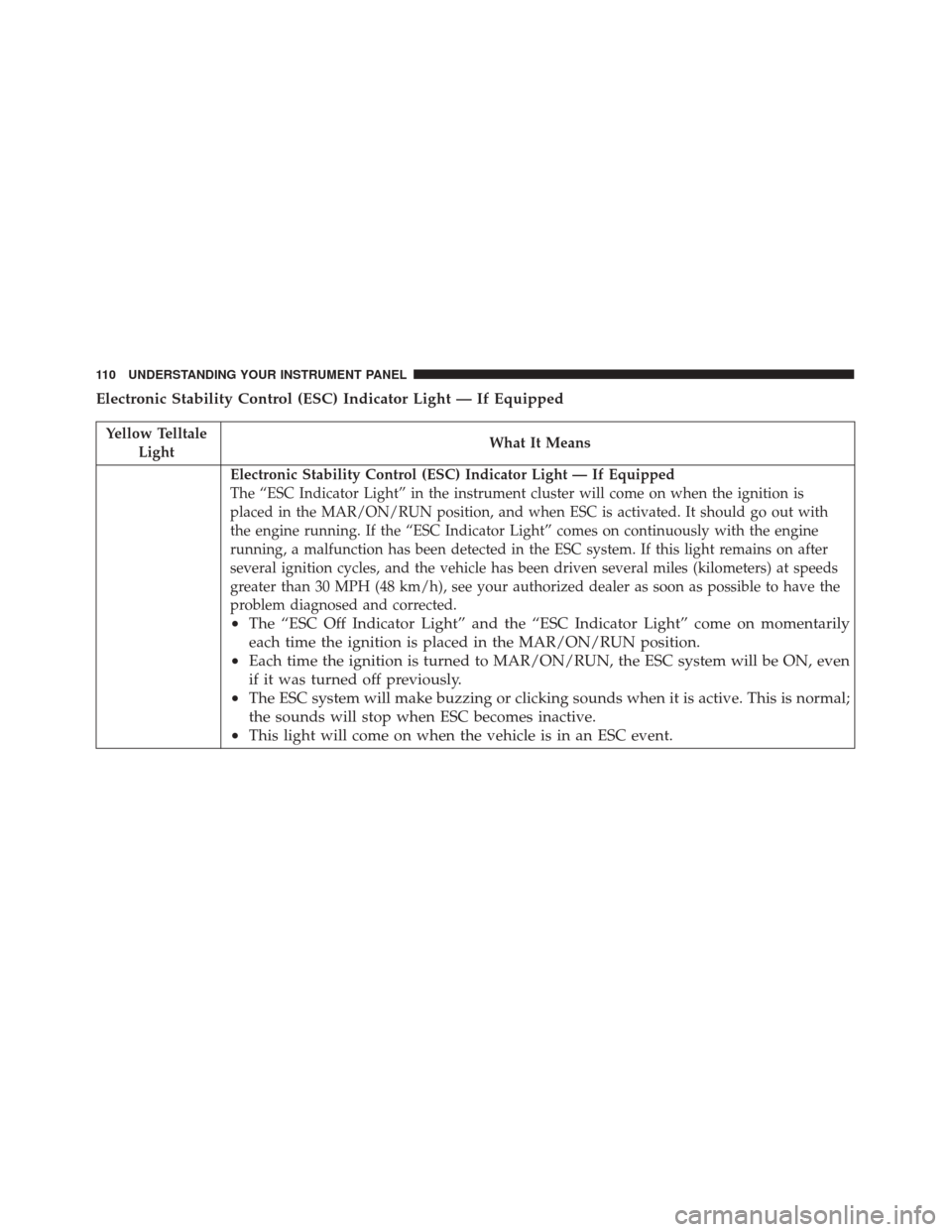

Electronic Stability Control (ESC) Indicator Light — If Equipped
Yellow TelltaleLight What It Means
Electronic Stability Control (ESC) Indicator Light — If Equipped
The “ESC Indicator Light” in the instrument cluster will come on when the ignition is
placed in the MAR/ON/RUN position, and when ESC is activated. It should go out with
the engine running. If the “ESC Indicator Light” comes on continuously with the engine
running, a malfunction has been detected in the ESC system. If this light remains on after
several ignition cycles, and the vehicle has been driven several miles (kilometers) at speeds
greater than 30 MPH (48 km/h), see your authorized dealer as soon as possible to have the
problem diagnosed and corrected.
•
The “ESC Off Indicator Light” and the “ESC Indicator Light” come on momentarily
each time the ignition is placed in the MAR/ON/RUN position.
• Each time the ignition is turned to MAR/ON/RUN, the ESC system will be ON, even
if it was turned off previously.
• The ESC system will make buzzing or clicking sounds when it is active. This is normal;
the sounds will stop when ESC becomes inactive.
• This light will come on when the vehicle is in an ESC event.
110 UNDERSTANDING YOUR INSTRUMENT PANEL

Engine Check/Malfunction Indicator Light (MIL)
Yellow TelltaleLight What It Means
Engine Check/Malfunction Indicator Light (MIL)
The Engine Check/Malfunction Indicator Light (MIL) is a part of an Onboard Diagnostic
System called OBD II that monitors engine and automatic transmission control systems. The
light will illuminate when the ignition is in the MAR/ON/RUN position before engine start.
If the bulb does not come on when turning the key from STOP/OFF/LOCK to MAR/ON/
RUN, have the condition checked promptly.
Certain conditions, such as a loose or missing gas cap, poor quality fuel, etc., may illuminate
the light after engine start. The vehicle should be serviced if the light stays on through sev-
eral typical driving styles. In most situations, the vehicle will drive normally and will not
require towing.
When the engine is running, the MIL may flash to alert serious conditions that could lead to
immediate loss of power or severe catalytic converter damage. The vehicle should be ser-
viced as soon as possible if this occurs.
WARNING!
A malfunctioning catalytic converter, as referenced
above, can reach higher temperatures than in nor-
mal operating conditions. This can cause a fire if
(Continued)
WARNING!
(Continued)
you drive slowly or park over flammable sub-
stances such as dry plants, wood, cardboard, etc.
This could result in death or serious injury to the
driver, occupants or others.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 111

CAUTION!
Prolonged driving with the Malfunction Indicator
Light (MIL) on could cause damage to the engine
control system. It also could affect fuel economy
and driveability. If the MIL is flashing, severe
catalytic converter damage and power loss will soon
occur. Immediate service is required.
Service Warning Indicator Light – If Equipped
Yellow TelltaleLight What It Means
Service Warning Indicator Light
The “Scheduled Servicing Plan” includes vehicle maintenance at fixed intervals, refer to the
Maintenance
chapter. This message is displayed automatically along with the warning light
when the key is turned to MAR/ON/RUN - 1242 miles (2,000 km) before these deadlines
and reappears every 124 miles (200 km). Below 124 miles (200 km) servicing indications are
more frequent. The indication will appear in miles or kilometers according to the Unit Of
Measurement settings. When the next scheduled service is approaching and the key is
turned to MAR/ON/RUN, the word Service will appear on the display, followed by the
number of miles or kilometers left. Contact a dedicated authorized dealership. The opera-
tions in the “Scheduled Servicing Plan” will be performed and the message will be reset.
112 UNDERSTANDING YOUR INSTRUMENT PANEL

Green Telltale Indicator Lights
Turn Signal Indicator Lights
Green TelltaleLight What It Means
Turn Signal Indicator Lights
The instrument cluster directional arrow will flash independently for the LEFT or RIGHT
turn signal as selected, as well as the exterior turn signal lamp(s) (front and rear) as selected
when the multifunction lever is moved down (LEFT) or up (RIGHT).
NOTE:
•A continuous chime will sound if the vehicle is driven more than 1 mile (1.6 km) with
either turn signal on.
•Check for an inoperative outside light bulb if either indicator flashes at a rapid rate.
Front Fog Indicator Light — If Equipped
Green Telltale
Light What It Means
Front Fog Indicator Light — If Equipped
This indicator will illuminate when the front fog lights are on.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 113

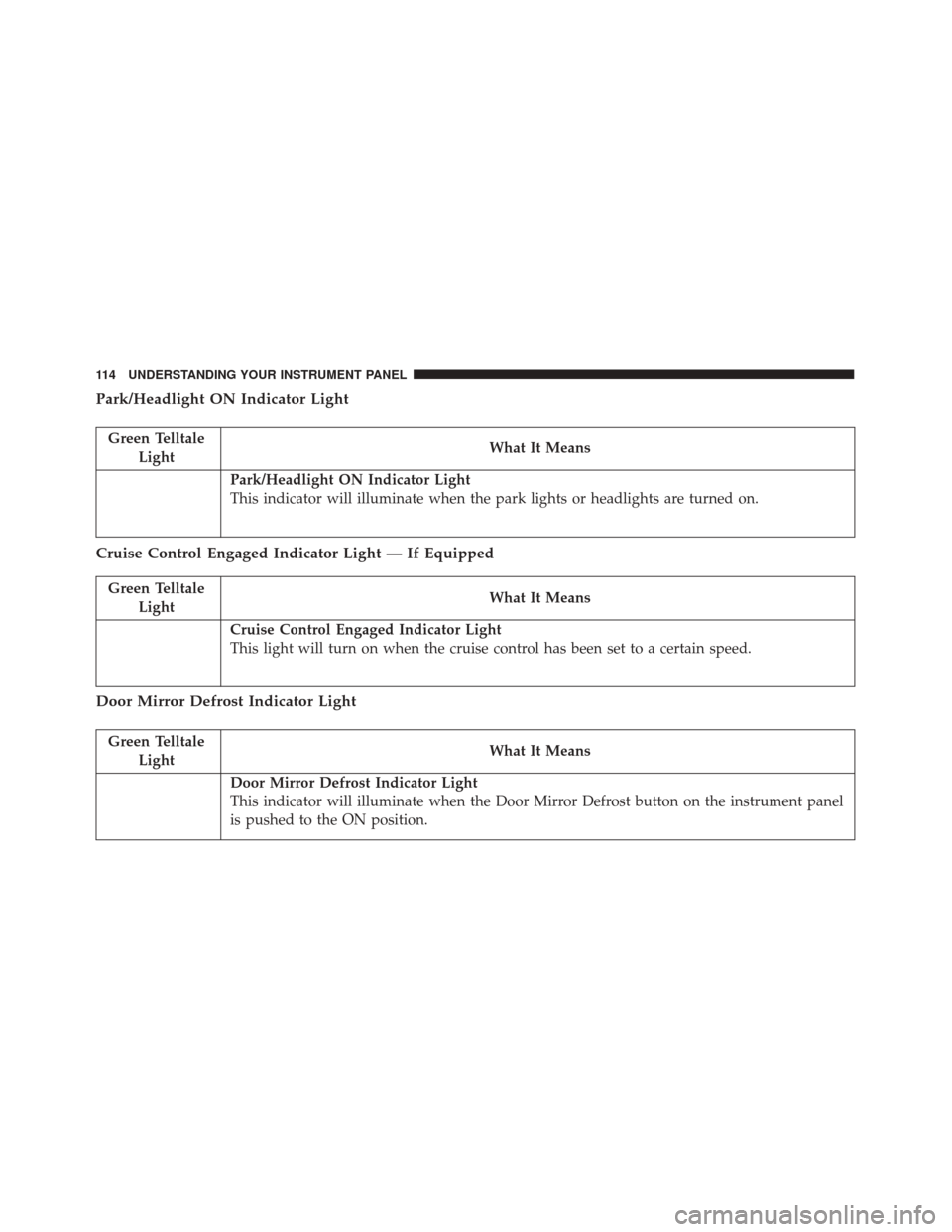

Park/Headlight ON Indicator Light
Green TelltaleLight What It Means
Park/Headlight ON Indicator Light
This indicator will illuminate when the park lights or headlights are turned on.
Cruise Control Engaged Indicator Light — If Equipped
Green Telltale
Light What It Means
Cruise Control Engaged Indicator Light
This light will turn on when the cruise control has been set to a certain speed.
Door Mirror Defrost Indicator Light
Green Telltale
Light What It Means
Door Mirror Defrost Indicator Light
This indicator will illuminate when the Door Mirror Defrost button on the instrument panel
is pushed to the ON position.
114 UNDERSTANDING YOUR INSTRUMENT PANEL

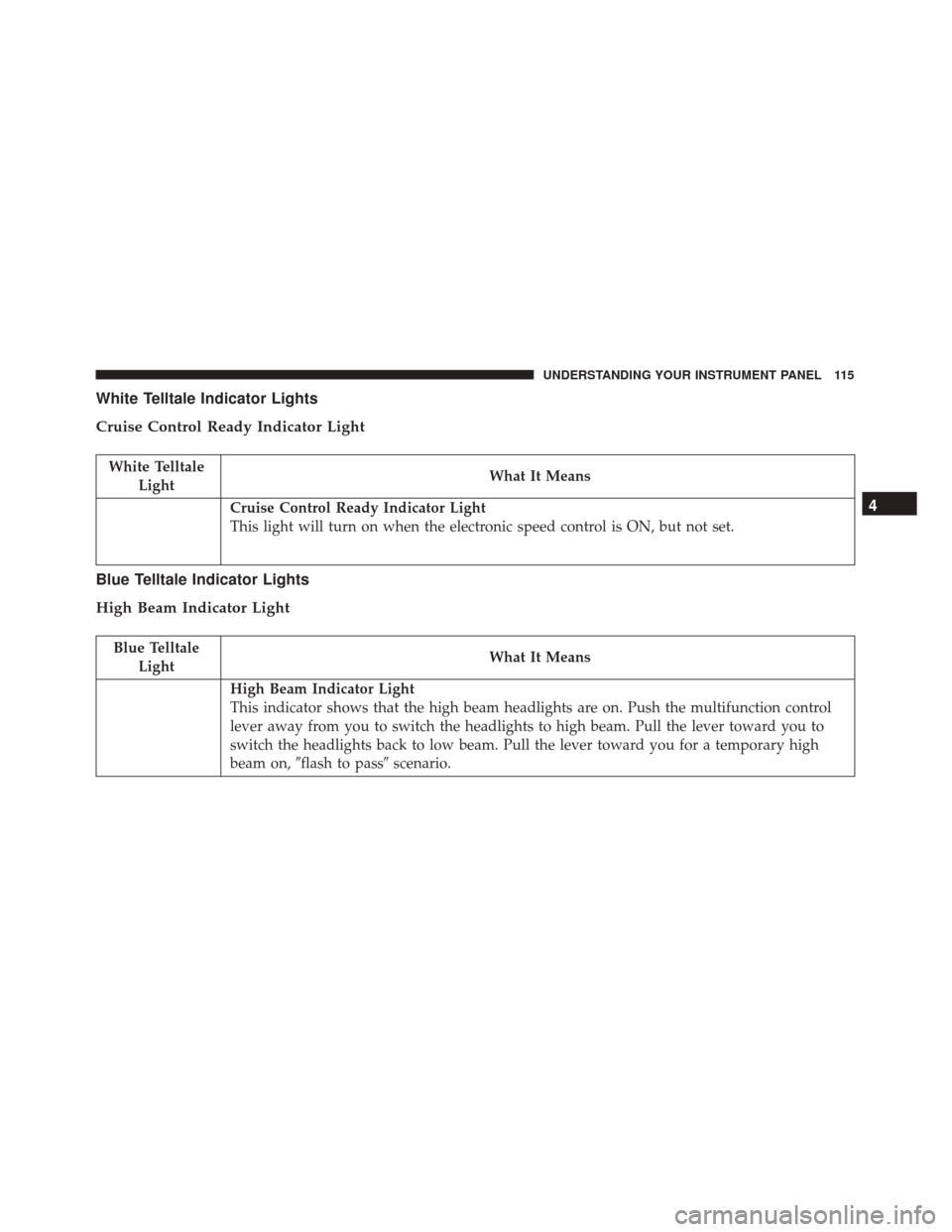

White Telltale Indicator Lights
Cruise Control Ready Indicator Light
White TelltaleLight What It Means
Cruise Control Ready Indicator Light
This light will turn on when the electronic speed control is ON, but not set.
Blue Telltale Indicator Lights
High Beam Indicator Light
Blue Telltale
Light What It Means
High Beam Indicator Light
This indicator shows that the high beam headlights are on. Push the multifunction control
lever away from you to switch the headlights to high beam. Pull the lever toward you to
switch the headlights back to low beam. Pull the lever toward you for a temporary high
beam on,
flash to pass scenario.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 115

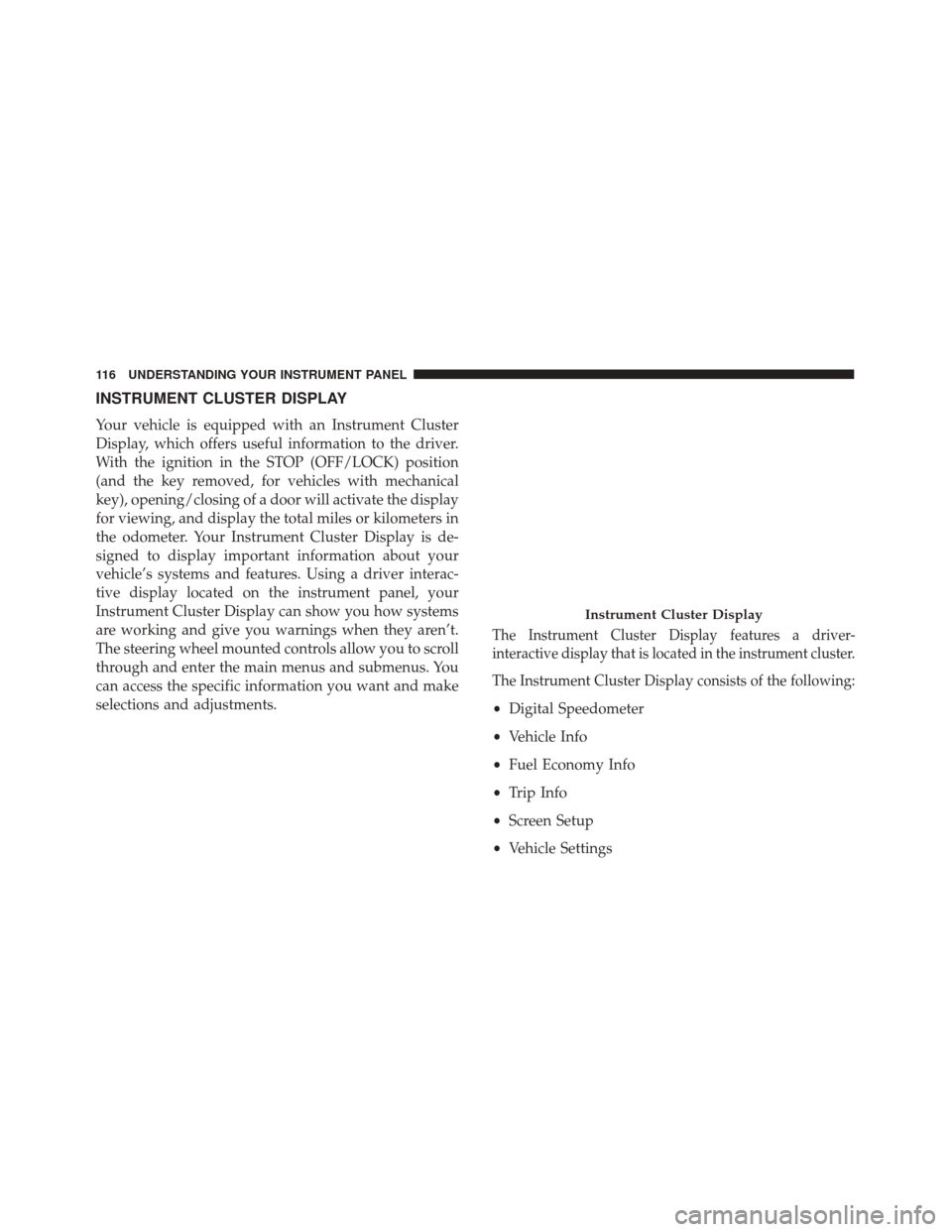

INSTRUMENT CLUSTER DISPLAY
Your vehicle is equipped with an Instrument Cluster
Display, which offers useful information to the driver.
With the ignition in the STOP (OFF/LOCK) position
(and the key removed, for vehicles with mechanical
key), opening/closing of a door will activate the display
for viewing, and display the total miles or kilometers in
the odometer. Your Instrument Cluster Display is de-
signed to display important information about your
vehicle’s systems and features. Using a driver interac-
tive display located on the instrument panel, your
Instrument Cluster Display can show you how systems
are working and give you warnings when they aren’t.
The steering wheel mounted controls allow you to scroll
through and enter the main menus and submenus. You
can access the specific information you want and make
selections and adjustments.
The Instrument Cluster Display features a driver-
interactive display that is located in the instrument cluster.
The Instrument Cluster Display consists of the following:
•Digital Speedometer
• Vehicle Info
• Fuel Economy Info
• Trip Info
• Screen Setup
• Vehicle Settings
Instrument Cluster Display
116 UNDERSTANDING YOUR INSTRUMENT PANEL

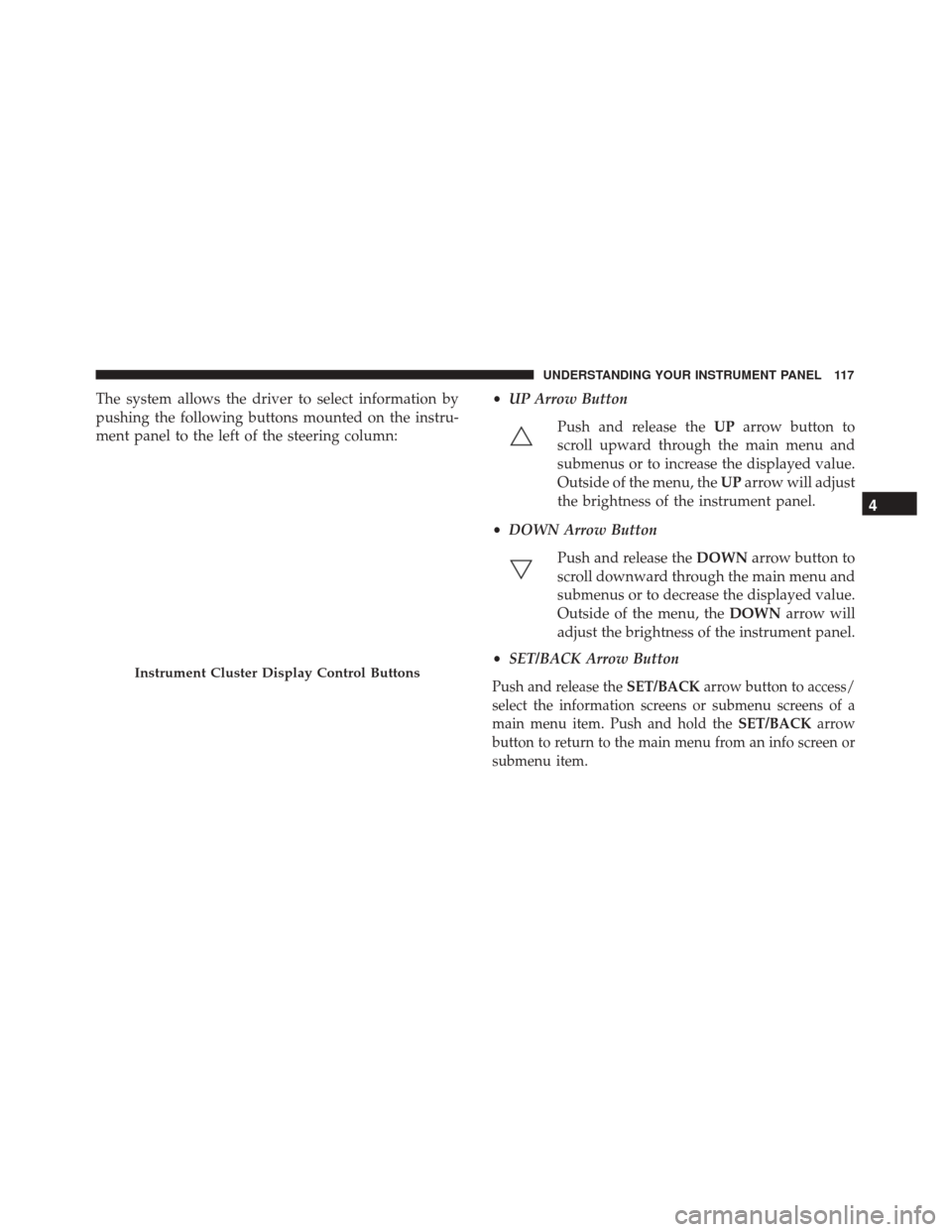

The system allows the driver to select information by
pushing the following buttons mounted on the instru-
ment panel to the left of the steering column:•
UP Arrow Button
Push and release the UParrow button to
scroll upward through the main menu and
submenus or to increase the displayed value.
Outside of the menu, the UParrow will adjust
the brightness of the instrument panel.
• DOWN Arrow Button
Push and release the DOWNarrow button to
scroll downward through the main menu and
submenus or to decrease the displayed value.
Outside of the menu, the DOWNarrow will
adjust the brightness of the instrument panel.
• SET/BACK Arrow Button
Push and release the SET/BACKarrow button to access/
select the information screens or submenu screens of a
main menu item. Push and hold the SET/BACKarrow
button to return to the main menu from an info screen or
submenu item.Instrument Cluster Display Control Buttons
4
UNDERSTANDING YOUR INSTRUMENT PANEL 117

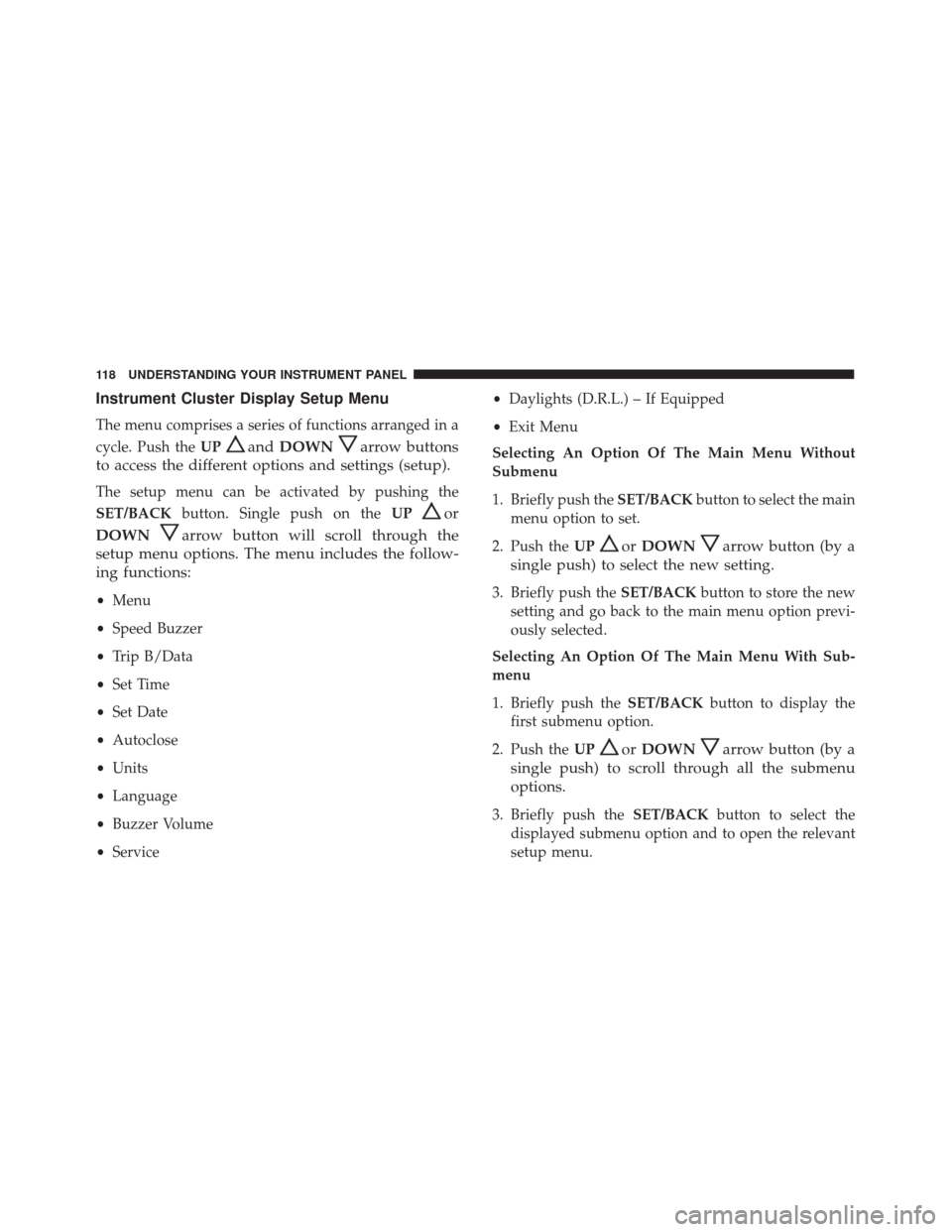

Instrument Cluster Display Setup Menu
The menu comprises a series of functions arranged in a
cycle. Push theUP
andDOWNarrow buttons
to access the different options and settings (setup).
The setup menu can be activated by pushing the
SET/BACK button. Single push on the UP
or
DOWN
arrow button will scroll through the
setup menu options. The menu includes the follow-
ing functions:
• Menu
• Speed Buzzer
• Trip B/Data
• Set Time
• Set Date
• Autoclose
• Units
• Language
• Buzzer Volume
• Service •
Daylights (D.R.L.) – If Equipped
• Exit Menu
Selecting An Option Of The Main Menu Without
Submenu
1. Briefly push the SET/BACKbutton to select the main
menu option to set.
2. Push the UP
orDOWNarrow button (by a
single push) to select the new setting.
3. Briefly push the SET/BACKbutton to store the new
setting and go back to the main menu option previ-
ously selected.
Selecting An Option Of The Main Menu With Sub-
menu
1. Briefly push the SET/BACKbutton to display the
first submenu option.
2. Push the UP
orDOWNarrow button (by a
single push) to scroll through all the submenu
options.
3. Briefly push the SET/BACKbutton to select the
displayed submenu option and to open the relevant
setup menu.
118 UNDERSTANDING YOUR INSTRUMENT PANEL
