Alfa Romeo 4C Spider 2017 Owner's Guide

Locking/Unlocking Doors From The Inside
Push the Lock LED Indicator button. The button
has an LED that indicates whether the doors are
locked or unlocked.
Pushing the Lock LED Indicator buttonagain cen-
trally unlocks all doors and switches off the LED.
Pushing the Lock LED Indicator buttonagain cen-
trally locks all the doors. The doors will be locked
only if all the doors are properly shut.
Once the doors have been locked using the remote
control or the key, it will no longer be possible to unlock
them by pushing the Lock LED Indicator button
.
NOTE: In the absence of electrical power supply (blown
fuse, battery disconnected, etc.), it is still possible to
lock the doors manually.
Emergency Door Locking Device
Passenger Side Door
The passenger side door has a device to lock it when
there is no current.
To lock it, place the metal insert of the ignition key in
housing #1 and turn it clockwise. To restore the starting condition of the door locks (only
if battery charge restored), proceed as follows:
•
Push the Unlock button
on the Key Fob;
•Push the door locking/unlocking LED indicator but-
ton
on the dashboard; or
•Introduce the metal insert of the ignition key in the
front door pawl; or
• Pull the internal door handle.
Emergency Door Lock Function
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

Door Opening/Closing Mechanism Reset
If the battery is disconnected or the protection fuse
blows, the door opening/closing mechanism must be
reset as follows:
1. Close all the doors.
2. Push the unlock button
on the Key Fob or the
door locking/unlocking LED indicator button
on the dashboard.
3. Push the lock buttonon the Key Fob or the door
locking/unlocking LED indicator button
on
the dashboard.
WINDOWS
Power Windows
NOTE:
• These operate when the ignition key is turned to
MAR/ON/RUN and for about three minutes after
the ignition key is turned to STOP or removed unless
one of the doors is opened.
• The buttons are located on the center console. Push/Pull the corresponding buttons to open/close the
desired window.
When one of the two buttons is pushed briefly, the
window moves in stages; if the button is held down to
open,
continuous automatic operation is activated.
If the button is pushed again, the window will stop in
its current position. If the button is pushed for several
seconds, the window lowers automatically (only with
ignition key in MAR/ON/RUN position).
Power Window Switch
1 — Driver Power Window Switch
2 — Passenger Power Window Switch
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Continuous Automatic Operation
This is activated by pushing one of the two buttons for
longer than half a second. The window will stop when
it is fully opened, or when the button is pushed again.
It can be used on both the driver side and passenger
side, only for lowering the window.
Electric Window System Reset
After a break in power supply for the control units
(battery replaced or disconnected or protective fuses for
the electric window control units replaced), the auto-
matic operation of the windows must be restored.
The restoration procedure must be performed as de-
scribed below with the doors closed:
1. Completely open the driver’s door window keepingthe operating button pushed for at least three sec-
onds after the (lower) end of travel position is
reached.
2. Completely raise the driver side window and hold the button down for at least three seconds once the
(upper) end of travel position has been reached. 3. Proceed in the same way as described in points 1 and
2 for the passenger side door.
4. Make sure that the reset is correct by checking that the windows work automatically.
WARNING!
Improper actuation of the power windows may be
dangerous. Never leave children unattended in a
vehicle, and do not let children play with power
windows. Before and during window operation
make sure no one and no object (including cloth-
ing) is in the path of the moving glass or its
mechanism. Do not leave the Key Fob in or near the
vehicle, or in a location accessible to children.
Occupants, particularly unattended children, can
become entrapped by the windows while operating
the power window switches. Such entrapment may
result in serious injury or death.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

DECKLID
NOTE:During normal vehicle operation, the luggage
compartment can reach temperatures above 149º F
(65° C). Pay attention when transporting objects that
may be damaged at such temperatures. Do not keep
aerosol cans in the vehicle: danger of explosion. Aerosol
cans must not be exposed to temperatures above 122º F
(50° C).
Opening Procedure
With driver side door open, pull the decklid release
lever #1 located at the point illustrated in the figure.
Raise the decklid and release supporting rod from its
locking device.
Insert the end of the rod in housing, making sure that
the rod engages in the smallest hole of the retaining clip.
Care must be taken to keep the decklid raised until the
rod is fixed in the correct position.
Decklid Release Lever Location
1 — Decklid Release Lever
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

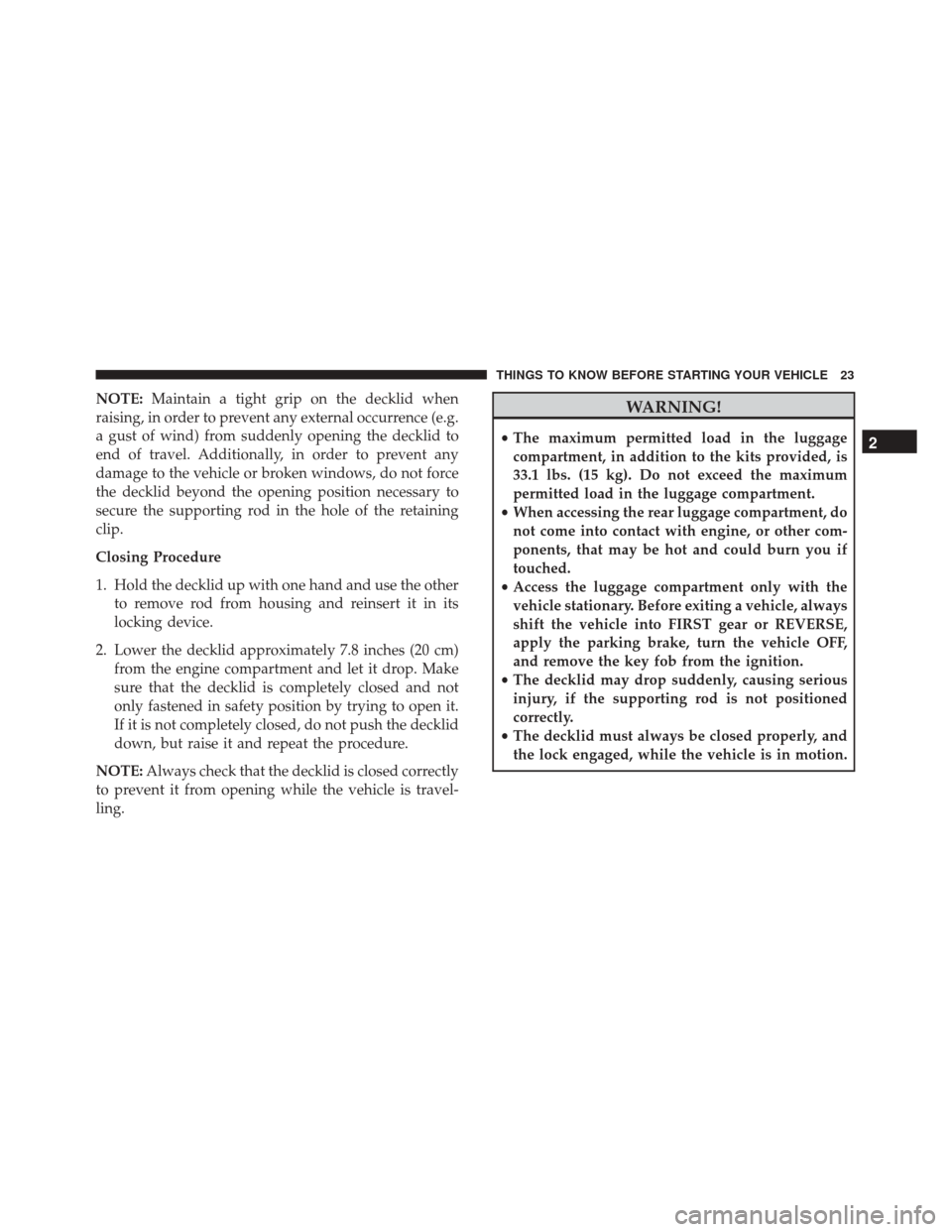

NOTE:Maintain a tight grip on the decklid when
raising, in order to prevent any external occurrence (e.g.
a gust of wind) from suddenly opening the decklid to
end of travel. Additionally, in order to prevent any
damage to the vehicle or broken windows, do not force
the decklid beyond the opening position necessary to
secure the supporting rod in the hole of the retaining
clip.
Closing Procedure
1. Hold the decklid up with one hand and use the other to remove rod from housing and reinsert it in its
locking device.
2. Lower the decklid approximately 7.8 inches (20 cm) from the engine compartment and let it drop. Make
sure that the decklid is completely closed and not
only fastened in safety position by trying to open it.
If it is not completely closed, do not push the decklid
down, but raise it and repeat the procedure.
NOTE: Always check that the decklid is closed correctly
to prevent it from opening while the vehicle is travel-
ling.WARNING!
• The maximum permitted load in the luggage
compartment, in addition to the kits provided, is
33.1 lbs. (15 kg). Do not exceed the maximum
permitted load in the luggage compartment.
• When accessing the rear luggage compartment, do
not come into contact with engine, or other com-
ponents, that may be hot and could burn you if
touched.
• Access the luggage compartment only with the
vehicle stationary. Before exiting a vehicle, always
shift the vehicle into FIRST gear or REVERSE,
apply the parking brake, turn the vehicle OFF,
and remove the key fob from the ignition.
• The decklid may drop suddenly, causing serious
injury, if the supporting rod is not positioned
correctly.
• The decklid must always be closed properly, and
the lock engaged, while the vehicle is in motion.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

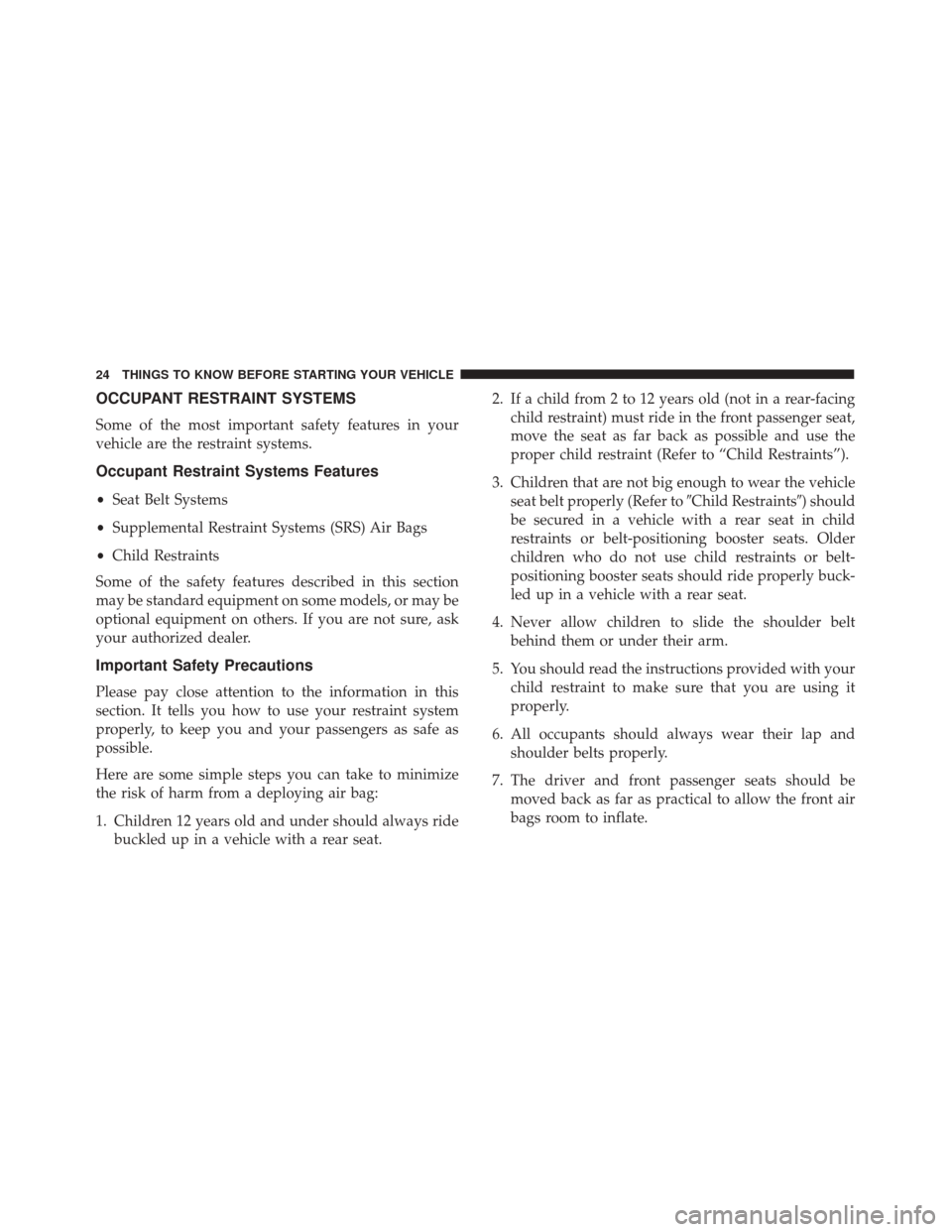

OCCUPANT RESTRAINT SYSTEMS
Some of the most important safety features in your
vehicle are the restraint systems.
Occupant Restraint Systems Features
•Seat Belt Systems
• Supplemental Restraint Systems (SRS) Air Bags
• Child Restraints
Some of the safety features described in this section
may be standard equipment on some models, or may be
optional equipment on others. If you are not sure, ask
your authorized dealer.
Important Safety Precautions
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly, to keep you and your passengers as safe as
possible.
Here are some simple steps you can take to minimize
the risk of harm from a deploying air bag:
1. Children 12 years old and under should always ride buckled up in a vehicle with a rear seat. 2. If a child from 2 to 12 years old (not in a rear-facing
child restraint) must ride in the front passenger seat,
move the seat as far back as possible and use the
proper child restraint (Refer to “Child Restraints”).
3. Children that are not big enough to wear the vehicle seat belt properly (Refer to Child Restraints) should
be secured in a vehicle with a rear seat in child
restraints or belt-positioning booster seats. Older
children who do not use child restraints or belt-
positioning booster seats should ride properly buck-
led up in a vehicle with a rear seat.
4. Never allow children to slide the shoulder belt behind them or under their arm.
5. You should read the instructions provided with your child restraint to make sure that you are using it
properly.
6. All occupants should always wear their lap and shoulder belts properly.
7. The driver and front passenger seats should be moved back as far as practical to allow the front air
bags room to inflate.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

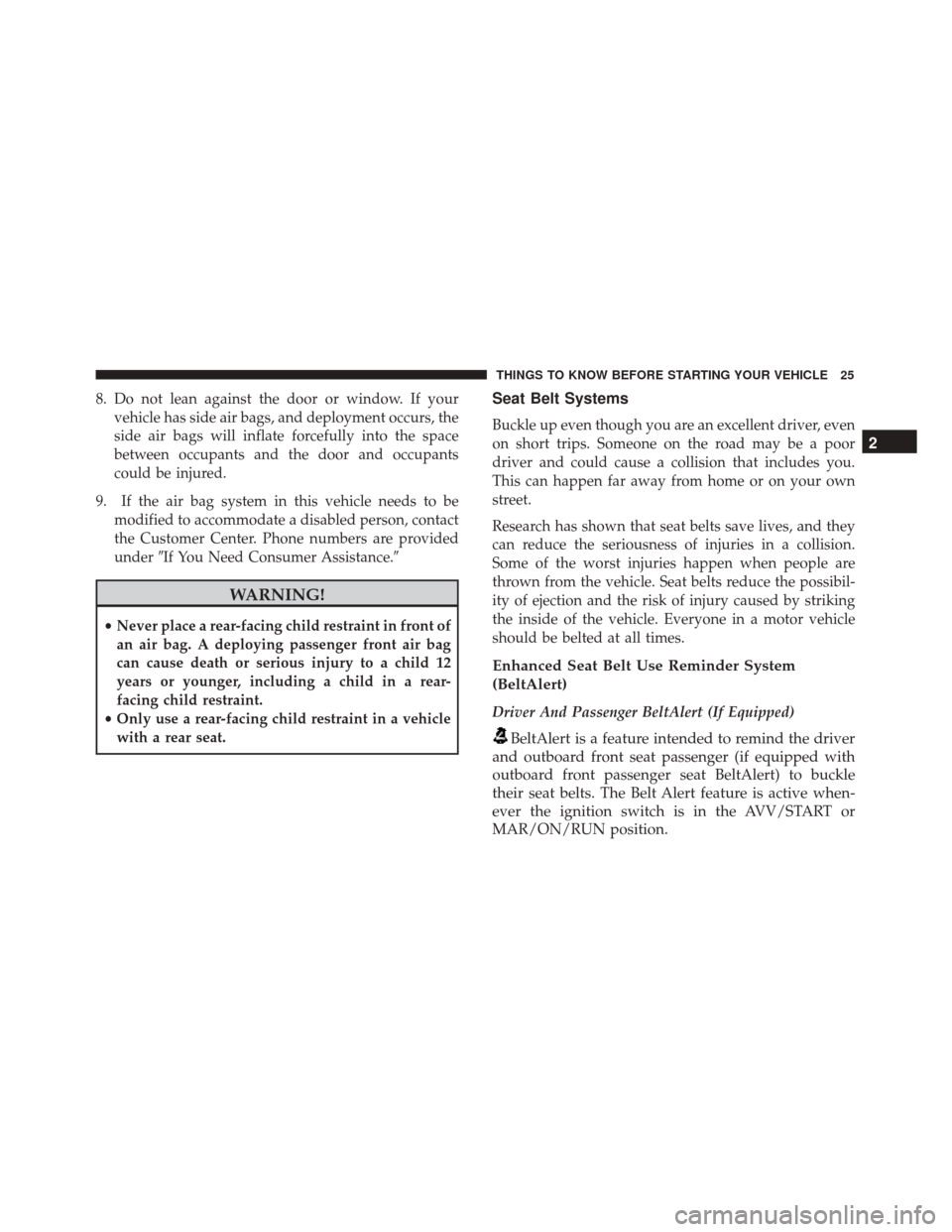

8. Do not lean against the door or window. If yourvehicle has side air bags, and deployment occurs, the
side air bags will inflate forcefully into the space
between occupants and the door and occupants
could be injured.
9. If the air bag system in this vehicle needs to be modified to accommodate a disabled person, contact
the Customer Center. Phone numbers are provided
under If You Need Consumer Assistance.
WARNING!
•Never place a rear-facing child restraint in front of
an air bag. A deploying passenger front air bag
can cause death or serious injury to a child 12
years or younger, including a child in a rear-
facing child restraint.
• Only use a rear-facing child restraint in a vehicle
with a rear seat.
Seat Belt Systems
Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor
driver and could cause a collision that includes you.
This can happen far away from home or on your own
street.
Research has shown that seat belts save lives, and they
can reduce the seriousness of injuries in a collision.
Some of the worst injuries happen when people are
thrown from the vehicle. Seat belts reduce the possibil-
ity of ejection and the risk of injury caused by striking
the inside of the vehicle. Everyone in a motor vehicle
should be belted at all times.
Enhanced Seat Belt Use Reminder System
(BeltAlert)
Driver And Passenger BeltAlert (If Equipped)
BeltAlert is a feature intended to remind the driver
and outboard front seat passenger (if equipped with
outboard front passenger seat BeltAlert) to buckle
their seat belts. The Belt Alert feature is active when-
ever the ignition switch is in the AVV/START or
MAR/ON/RUN position.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

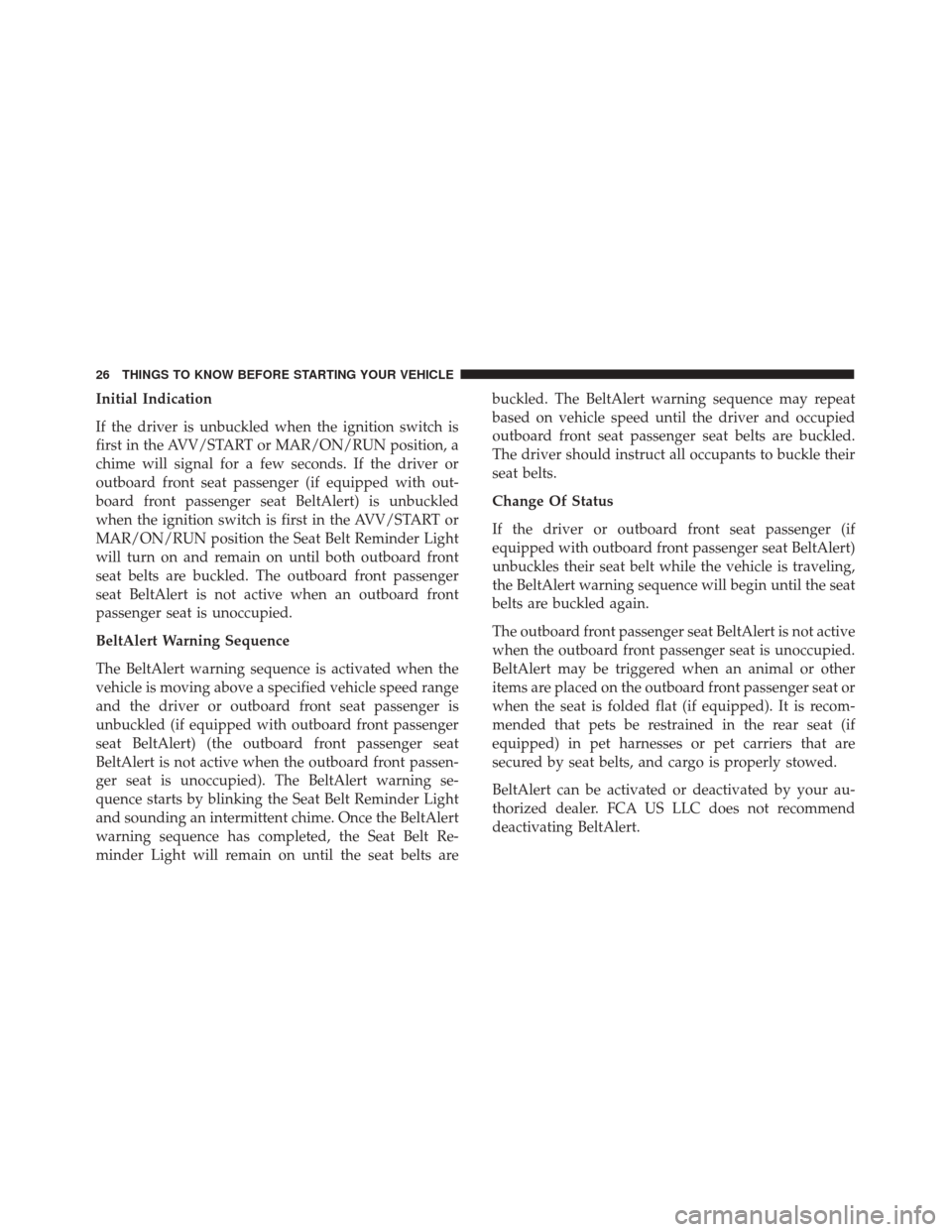

Initial Indication
If the driver is unbuckled when the ignition switch is
first in the AVV/START or MAR/ON/RUN position, a
chime will signal for a few seconds. If the driver or
outboard front seat passenger (if equipped with out-
board front passenger seat BeltAlert) is unbuckled
when the ignition switch is first in the AVV/START or
MAR/ON/RUN position the Seat Belt Reminder Light
will turn on and remain on until both outboard front
seat belts are buckled. The outboard front passenger
seat BeltAlert is not active when an outboard front
passenger seat is unoccupied.
BeltAlert Warning Sequence
The BeltAlert warning sequence is activated when the
vehicle is moving above a specified vehicle speed range
and the driver or outboard front seat passenger is
unbuckled (if equipped with outboard front passenger
seat BeltAlert) (the outboard front passenger seat
BeltAlert is not active when the outboard front passen-
ger seat is unoccupied). The BeltAlert warning se-
quence starts by blinking the Seat Belt Reminder Light
and sounding an intermittent chime. Once the BeltAlert
warning sequence has completed, the Seat Belt Re-
minder Light will remain on until the seat belts arebuckled. The BeltAlert warning sequence may repeat
based on vehicle speed until the driver and occupied
outboard front seat passenger seat belts are buckled.
The driver should instruct all occupants to buckle their
seat belts.
Change Of Status
If the driver or outboard front seat passenger (if
equipped with outboard front passenger seat BeltAlert)
unbuckles their seat belt while the vehicle is traveling,
the BeltAlert warning sequence will begin until the seat
belts are buckled again.
The outboard front passenger seat BeltAlert is not active
when the outboard front passenger seat is unoccupied.
BeltAlert may be triggered when an animal or other
items are placed on the outboard front passenger seat or
when the seat is folded flat (if equipped). It is recom-
mended that pets be restrained in the rear seat (if
equipped) in pet harnesses or pet carriers that are
secured by seat belts, and cargo is properly stowed.
BeltAlert can be activated or deactivated by your au-
thorized dealer. FCA US LLC does not recommend
deactivating BeltAlert.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:If BeltAlert has been deactivated and the driver
or outboard front seat passenger (if equipped with
outboard front passenger seat BeltAlert) is unbuckled
the Seat Belt Reminder Light will turn on and remain on
until the driver and outboard front seat passenger seat
belts are buckled.
Lap/Shoulder Belts
All seating positions in your vehicle are equipped with
lap/shoulder belts.
The seat belt webbing retractor will lock only during
very sudden stops or collisions. This feature allows the
shoulder part of the seat belt to move freely with you
under normal conditions. However, in a collision the
seat belt will lock and reduce your risk of striking the
inside of the vehicle or being thrown out of the vehicle.
WARNING!
•Relying on the air bags alone could lead to more
severe injuries in a collision. The air bags work
with your seat belt to restrain you properly. In some
collisions, the air bags won’t deploy at all. Always
wear your seat belt even though you have air bags.
(Continued)
WARNING! (Continued)
•In a collision, you and your passengers can suffer
much greater injuries if you are not properly
buckled up. You can strike the interior of your
vehicle or other passengers, or you can be thrown
out of the vehicle. Always be sure you and others
in your vehicle are buckled up properly.
• It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding
in these areas are more likely to be seriously
injured or killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly. Occupants, including
the driver, should always wear their seat belts
whether or not an air bag is also provided at their
seating position to minimize the risk of severe
injury or death in the event of a crash.
• Wearing your seat belt incorrectly could make
your injuries in a collision much worse. You
might suffer internal injuries, or you could even
(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

WARNING!(Continued)
slide out of the seat belt. Follow these instructions
to wear your seat belt safely and to keep your
passengers safe, too.
• Two people should never be belted into a single
seat belt. People belted together can crash into
one another in a collision, hurting one another
badly. Never use a lap/shoulder belt or a lap belt
for more than one person, no matter what their
size.
• A lap belt worn too high can increase the risk of
injury in a collision. The seat belt forces won’t be
at the strong hip and pelvic bones, but across your
abdomen. Always wear the lap part of your seat
belt as low as possible and keep it snug.
• A twisted seat belt may not protect you properly.
In a collision, it could even cut into you. Be sure
the seat belt is flat against your body, without
twists. If you can’t straighten a seat belt in your
vehicle, take it to your authorized dealer immedi-
ately and have it fixed.
• A seat belt that is buckled into the wrong buckle
will not protect you properly. The lap portion
(Continued)
WARNING! (Continued)
could ride too high on your body, possibly caus-
ing internal injuries. Always buckle your seat belt
into the buckle nearest you.
• A seat belt that is too loose will not protect you
properly. In a sudden stop, you could move too far
forward, increasing the possibility of injury. Wear
your seat belt snugly.
• A seat belt that is worn under your arm is dan-
gerous. Your body could strike the inside surfaces
of the vehicle in a collision, increasing head and
neck injury. A seat belt worn under the arm can
cause internal injuries. Ribs aren’t as strong as
shoulder bones. Wear the seat belt over your
shoulder so that your strongest bones will take
the force in a collision.
• A shoulder belt placed behind you will not pro-
tect you from injury during a collision. You are
more likely to hit your head in a collision if you
do not wear your shoulder belt. The lap and
shoulder belt are meant to be used together.
(Continued)
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
