Page 61 of 297
Lights
Have someone observe the operation of brake lights
and exterior lights while you work the controls. Check
turn signal and high beam indicator lights on the
instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for
fuel, engine coolant, oil, or other fluid leaks. Also, if
gasoline fumes are detected or if fuel, power steering
fluid (if equipped), or brake fluid leaks are suspected,
the cause should be located and corrected immediately.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59
Page 62 of 297
Page 63 of 297
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS ...........................63
▫ Inside Day/Night Mirror ...............63
▫ Outside Mirrors ......................63
▫ Power Mirrors .......................64
▫ Folding Mirrors .......................65
▫ Heated Mirrors ......................65
REMOVABLE SOFT TOP — IF EQUIPPED .....65
▫ Installing The Soft Top ..................66
SEATS ..............................71
▫ Manual Seats ........................72
▫ Non-Adjustable Head Restraints ..........73
TO OPEN AND CLOSE THE DECKLID ......74
LIGHTS .............................77
▫ Multifunction Lever ....................77 ▫
Headlights ..........................77
▫ Daytime Running Lights ................78
▫ High Beams .........................78
▫ Flash-To-Pass ........................78
▫ Parking Lights .......................78
▫ Turn Signals .........................78
▫ Lane Change Assist ...................78
▫ Follow Me Home/Headlight Delay —
If Equipped .........................79
▫ Dimmer Controls .....................79
▫ Interior Light ........................80
WINDSHIELD WIPERS AND WASHERS .....81
▫ Intermittent Wiper System ..............81
▫ Windshield Wiper Operation .............813

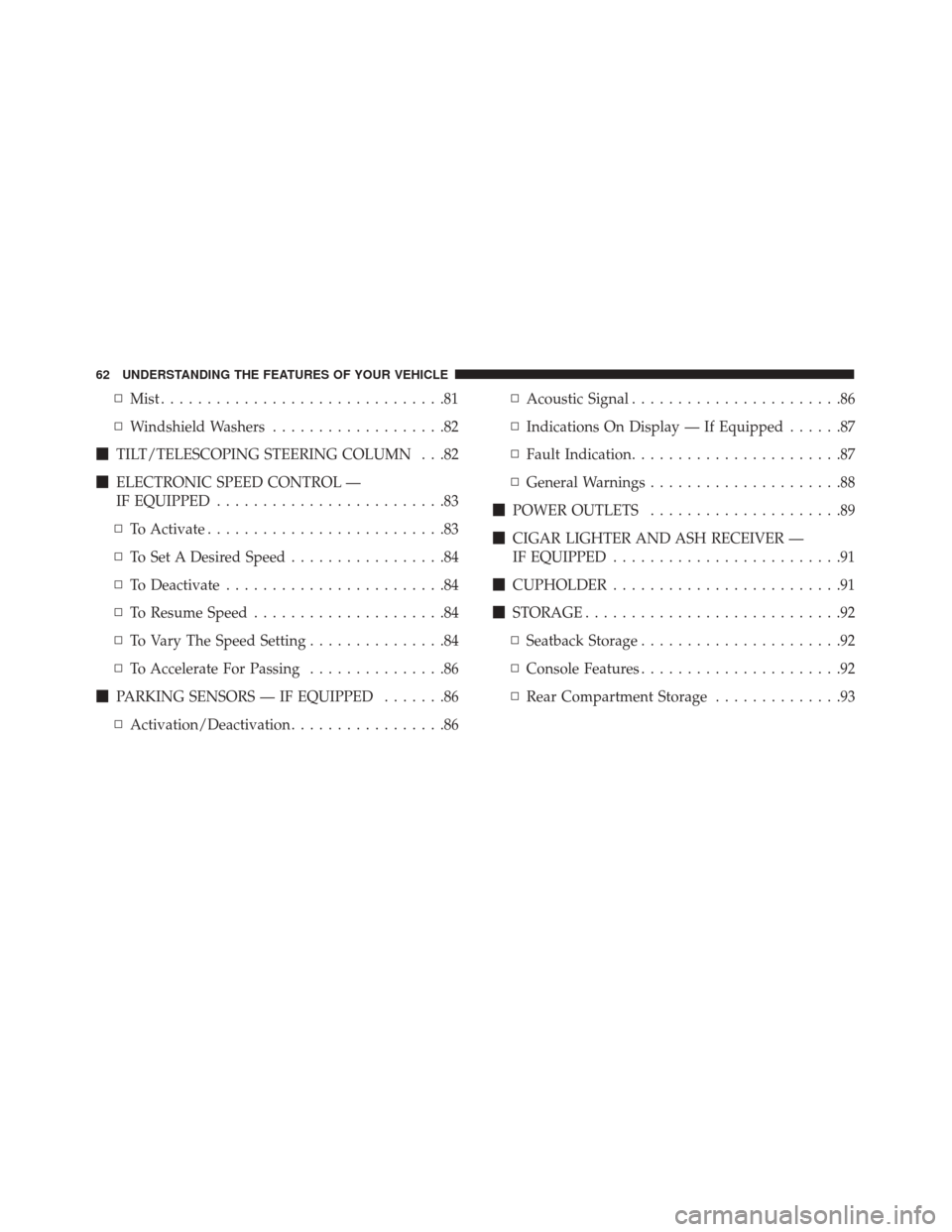

Page 64 of 297
▫Mist ...............................81
▫ Windshield Washers ...................82
TILT/TELESCOPING STEERING COLUMN . . .82
ELECTRONIC SPEED CONTROL —
IF EQUIPPED .........................83
▫ To Activate ..........................83
▫ To Set A Desired Speed .................84
▫ To Deactivate ........................84
▫ To Resume Speed .....................84
▫ To Vary The Speed Setting ...............84
▫ To Accelerate For Passing ...............86
PARKING SENSORS — IF EQUIPPED .......86
▫ Activation/Deactivation .................86 ▫
Acoustic Signal .......................86
▫ Indications On Display — If Equipped ......87
▫ Fault Indication .......................87
▫ General Warnings .....................88
POWER OUTLETS .....................89
CIGAR LIGHTER AND ASH RECEIVER —
IF EQUIPPED .........................91
CUPHOLDER .........................91
STORAGE ............................92
▫ Seatback Storage ......................92
▫ Console Features ......................92
▫ Rear Compartment Storage ..............93
62 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 65 of 297
MIRRORS
Inside Day/Night Mirror
A single ball joint mirror is provided in the vehicle. It is
a twist on mirror that has a fixed position at the
windshield. The mirror installs on the windshield but-
ton with a counterclockwise rotation and requires no
tools for mounting. The mirror head can be adjusted up,
down, left, and right for various drivers. The mirror
should be adjusted to center on the view through the
rear window.
Headlight glare from vehicles behind you can be re-
duced by moving the small control under the mirror to
the night position (toward the rear of the vehicle). The
mirror should be adjusted while the small control under
the mirror is set in the day position (toward the
windshield).
Outside Mirrors
To receive maximum benefit, adjust the outside mirrors
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 63
Page 66 of 297
WARNING!
Vehicles and other objects seen in the passenger
side convex mirror will look smaller and farther
away than they really are. Relying too much on your
passenger side mirror could cause you to collide
with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side mirror.
Power Mirrors
The power mirror controls are located on the center
console.The power mirror controls consist of mirror select knob
and a four-way mirror control switch. To adjust a
mirror, turn the power mirror control knob to the left or
right to select the mirror that you want to adjust.
Using the mirror control switch, push on any of the four
arrows for the direction that you want the mirror to
move.Power Mirror Control
64 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 67 of 297
Folding Mirrors
The exterior mirrors are hinged to allow the mirror to
pivot forward or rearward to help avoid damage. The
mirror has three detent positions: full forward, full
rearward and normal.
Heated Mirrors
These mirrors are heated to melt frost or ice.
This feature can be activated whenever you
turn on the mirror defroster. The Door
Demist/Defrost button is located in the
switch bank above the Climate Controls.
REMOVABLE SOFT TOP — IF EQUIPPED
Your vehicle may be equipped with a removable soft
top.
To remove the soft top, proceed as follows:
1. Turn the front locking handles located near the sun visors to the left one quarter turn.
Folding Mirrors
Front Locking Handles
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 65
Page 68 of 297
2. From the passenger side with the door open, movethe two side locking handles towards each other and
lift the top from the retainers.
3. Roll up the soft top to the center of the vehicle, repeat the procedure on the drivers side of the vehicle. 4. Remove the soft top with both sides rolled up and
store it in the storage bag that is provided.
Installing The Soft Top
To install the soft top, proceed as follows:
1. With the doors open take the soft top and place it incenter of the vehicle.
Side Locking Handles
Soft Top Removal
66 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 69 of 297
2. Unfold the top and be sure to position the front edge(red strip) under the spoiler of the vehicle. 3. As the side beam is unrolled, engage the two fixed
locating pins (1 front, 1 rear) into their retainers.
Installing Top Under The Vehicle Spoiler
1 — Spoiler
2 — Red Strip
Locating Pins Seating In The Vehicle
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 67
Page 70 of 297
4. Move the side locking handles inward.5. Rotate down the side beam.
Unlocking The Side BeamRotating The Side Beam Down
68 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
